My OEM Front Trail Cam install thread

[DailyDrivenTJ]

White on the left in your picture is correct. Because I used the white on the right on my Gladiator. I thought something was off becase you had so many things plugged on that bus. You wouldn't be able to plug the CVPM connector into the green bus.

My bad. I just remembered using the bus on the right.

Sponsored



[RustyC]

White on the left in your picture is correct. Because I used the white on the right on my Gladiator. I thought something was off becase you had so many things plugged on that bus. You wouldn't be able to plug the CVPM connector into the green bus.

My bad. I just remembered using the bus on the right.

I’m in Australia, everything is back to front in these here



[DailyDrivenTJ]

I’m in Australia, everything is back to front in these here

That makes sense now.? So you must have right hand drive.



[Cspence]

Man this all makes me happy I checked this box on my order! Props to you all for tackling this yourselves!



[RustyC]

Correct, any empty spot.

In order to reprogram, I have downloaded the windows version of alpha OBD, and I have the Genieobd bypass, can I simply use any OBD bluetooth unit, or is there a specific one I need to use?

Thanks



[ecidiego]

In order to reprogram, I have downloaded the windows version of alpha OBD, and I have the Genieobd bypass, can I simply use any OBD bluetooth unit, or is there a specific one I need to use?

Thanks

get the OBDLink MX+.



[RustyC]

get the OBDLink MX+.

Thanks, it'll be here tomorrow.
Gotta love Amazon!

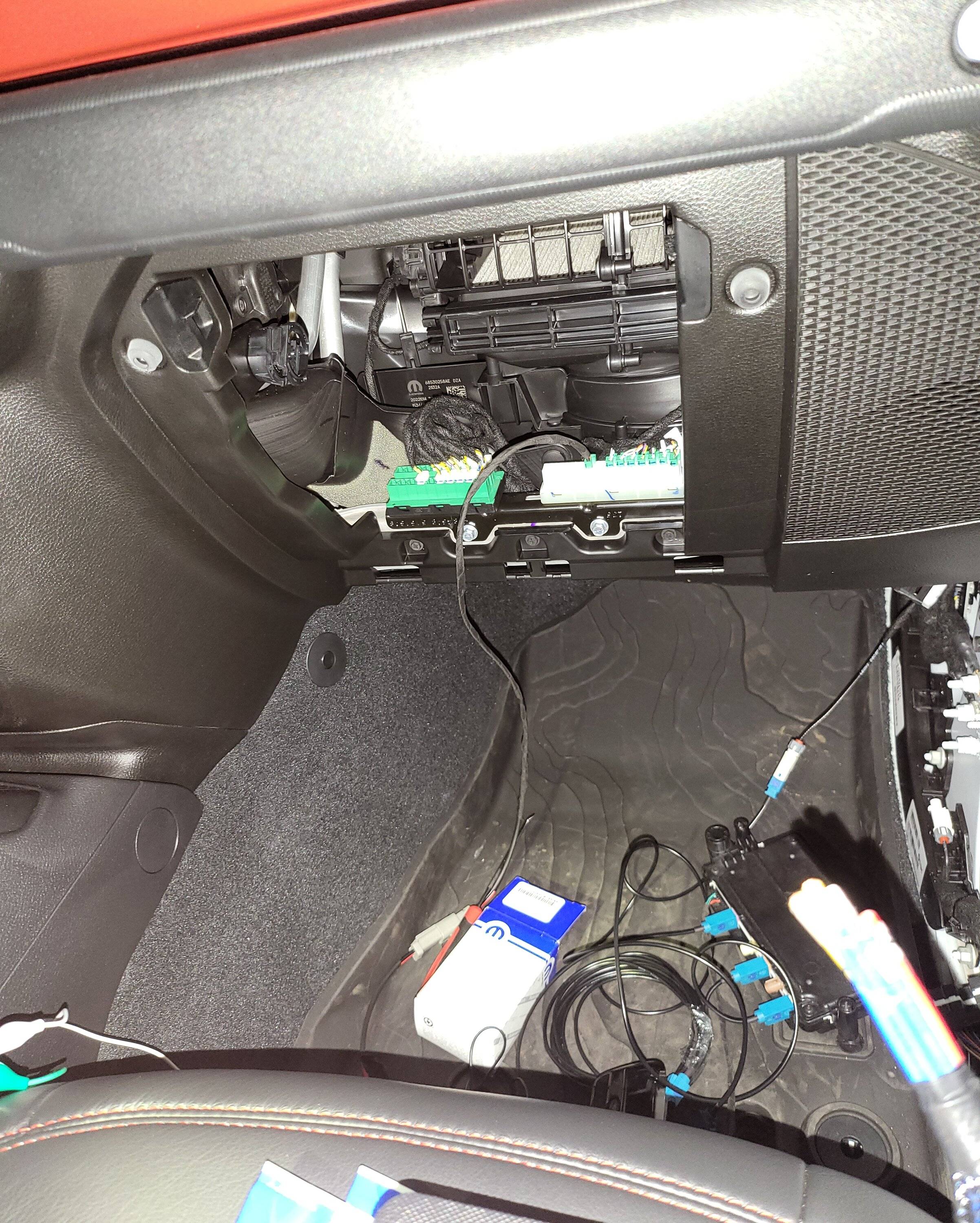

Ive made a short loom as per Jimmy07 pin specs, and mounted the unit behind the glove box (I think the Australian version has more room there), so Just need to run the video cables, and swap out the rear cam, then program tomorrow.
Ill let you guys know if it works in that location, and also about the reverse pin, reverse nozzle result.
Thanks for all your help.
I hope it works, as I have been dreading the rear panel removal, not to mention my ARB twin compressor is mounted back there.



[RustyC]

get the OBDLink MX+.

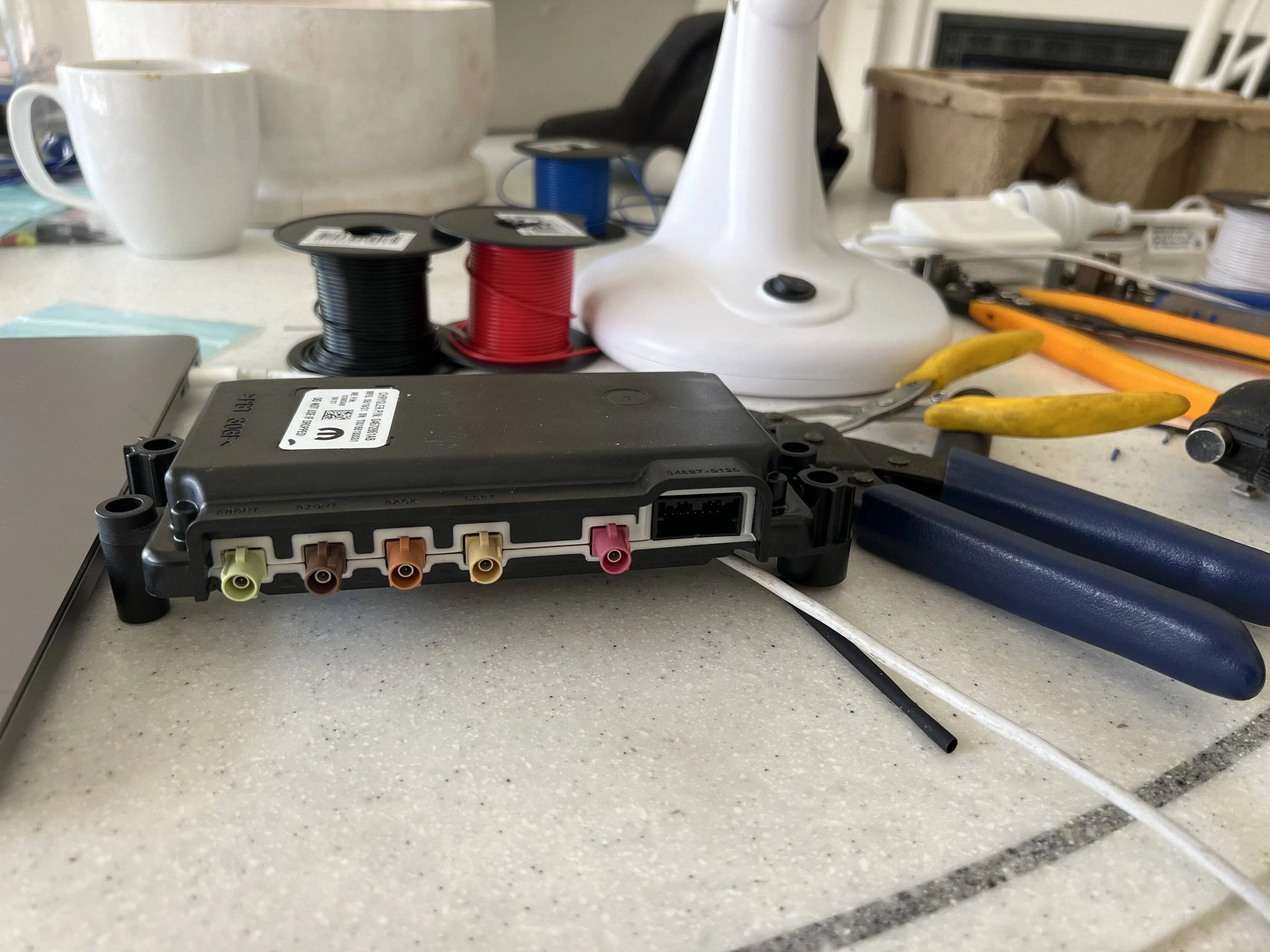

One final stupid question, Im assuming that the pink un named outlet on the video unit is the one that gets connected to the entertainment unit, correct?



[ecidiego]

One final stupid question, Im assuming that the pink un named outlet on the video unit is the one that gets connected to the entertainment unit, correct?

i forget. i remember it's away from the other 4 though.



[RustyC]

i forget. i remember it's away from the other 4 though.

Yep that’s the one



[ecidiego]

.



[DailyDrivenTJ]

I was looking at that position a few days ago. It seemed the CVPM would gets installed under the console assembly as there is no screws or penals in that space to have a top side access. Couldn't find any other pics or videos how it gets mounted even on Wranglers.



[ecidiego]

I was looking at that position a few days ago. It seemed the CVPM would gets installed under the console assembly as there is no screws or penals in that space to have a top side access. Couldn't find any other pics or videos how it gets mounted even on Wranglers.

I can't find a Wrangler owner who did the mod and will answer the question... lol

I am just super curious.



[Alc]

@DailyDrivenTJ when I get back from my trip in about a week my first order will be to remove the center console and look for a place to mount the CVPM under there in the “factory JL” location. Looks like the CVPM gets installed in the JL with the connections facing the passenger side which completely makes sense since there is a large bundle of wires right there to follow. I’m guessing it’s not the same in the JL because without a bed they could run the Farkas up the middle of the vehicle instead of the side like the JT, but who knows.
If all that fails my bracket from the RAM 2500 should be here to mount it under the passenger seat.



[DailyDrivenTJ]

I can't find a Wrangler owner who did the mod and will answer the question... lol

I am just super curious.

Same here. Thanks for all the info. Learning a lot on JTs from your posts.
