My OEM Front Trail Cam install thread

[ecidiego]

.

Sponsored



[DailyDrivenTJ]

You’re a legend!
The positive feed had pulled free of the pin terminal during install.
Rear camera working with an icon for front cam.
Front cam still not online.
I’ll triple check all programming selections tomorrow.

If the rear view is working, CVPM is letting signal through. Well done!

If the front camera does not happen tomorrow, I would expect either the connection to the camera is bad or CVPM itself is bad.



[ecidiego]

If the rear view is working, CVPM is letting signal through. Well done!

it is...but default is rear cam. If he can't switch it with front cam commands it's either harness, programming, or CVPM compat.



[DailyDrivenTJ]

it is...but default is rear cam. If he can't switch it with front cam commands it's either harness, programming, or CVPM compat.

Hopefully he ordered the right CVPM.



[ecidiego]

Hopefully he ordered the right CVPM.

Australia...who knows.... my parts list is for North American vehicles. Export vehicles are different.



[RustyC]

Definitely ordered the correct CVPM for my year.
I would be surprised if the CVPM varied for countries as it does the same thing regardless, however it would be great if someone could confirm this?
Most likely a harness issue, as my crimping tool wasn’t ideal for the molex terminals, so I have the correct crimper on its way.
Checking programming shortly



[ecidiego]

@Aleph

Just want to get a check in here has anyone with a 2023 done this mod successfully...alfaOBD work etc...



[DailyDrivenTJ]

@Aleph

Just want to get a check in here has anyone with a 2023 done this mod successfully...alfaOBD work etc...

Mine is 2023 Diesel. Camera functions work fine for me. Gotta do the washer portion. Seems like the new harness was never needed if all it needed is the swapping the wires?



[ecidiego]

Mine is 2023 Diesel. Camera functions work fine for me. Gotta do the washer portion. Seems like the new harness was never needed if all it needed is the swapping the wires?

we've always known about swapping the wires.

the point was an OEM install.

here in 2024....let's make it easier.



[DailyDrivenTJ]

we've always known about swapping the wires.

the point was an OEM install.

here in 2024....let's make it easier.

So can someone tell me if the wires at the pump end can be swapped instead of de pinning at the 4 way connector?

Does anyone know how these pumps work or BCM controls these? I suppose it spins one way to push fluid out of one port vs the other port?



[ecidiego]

So can someone tell me if the wires at the pump end can be swapped instead of de pinning at the 4 way connector?

Does anyone know how these pumps work or BCM controls these? I suppose it spins one way to push fluid out of one port vs the other port?

100% you can flip the 2 pump wires.



[DailyDrivenTJ]

100% you can flip the 2 pump wires.

Thank you for confirming it. Will report back if it works on 2023!



[DailyDrivenTJ]

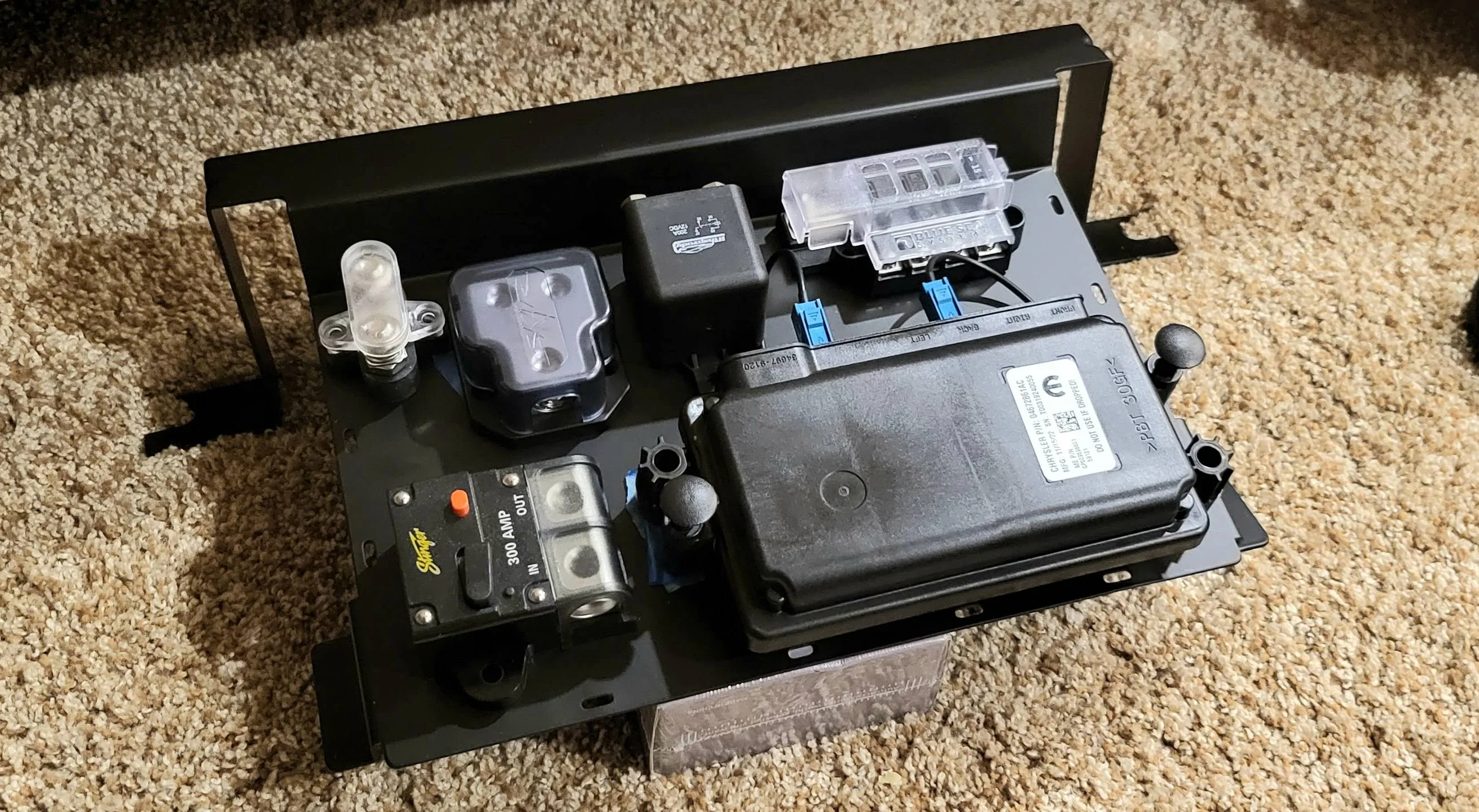

Underseat PDC and CVPM mount.



[ecidiego]

Underseat PDC and CVPM mount.

stud!! you should sell the mount like Jimmy does the harness!! I'll buy one if my CVPM breaks! I'd abandon it in place back there!



[DailyDrivenTJ]

@ecidiego Let me make sure it fits!

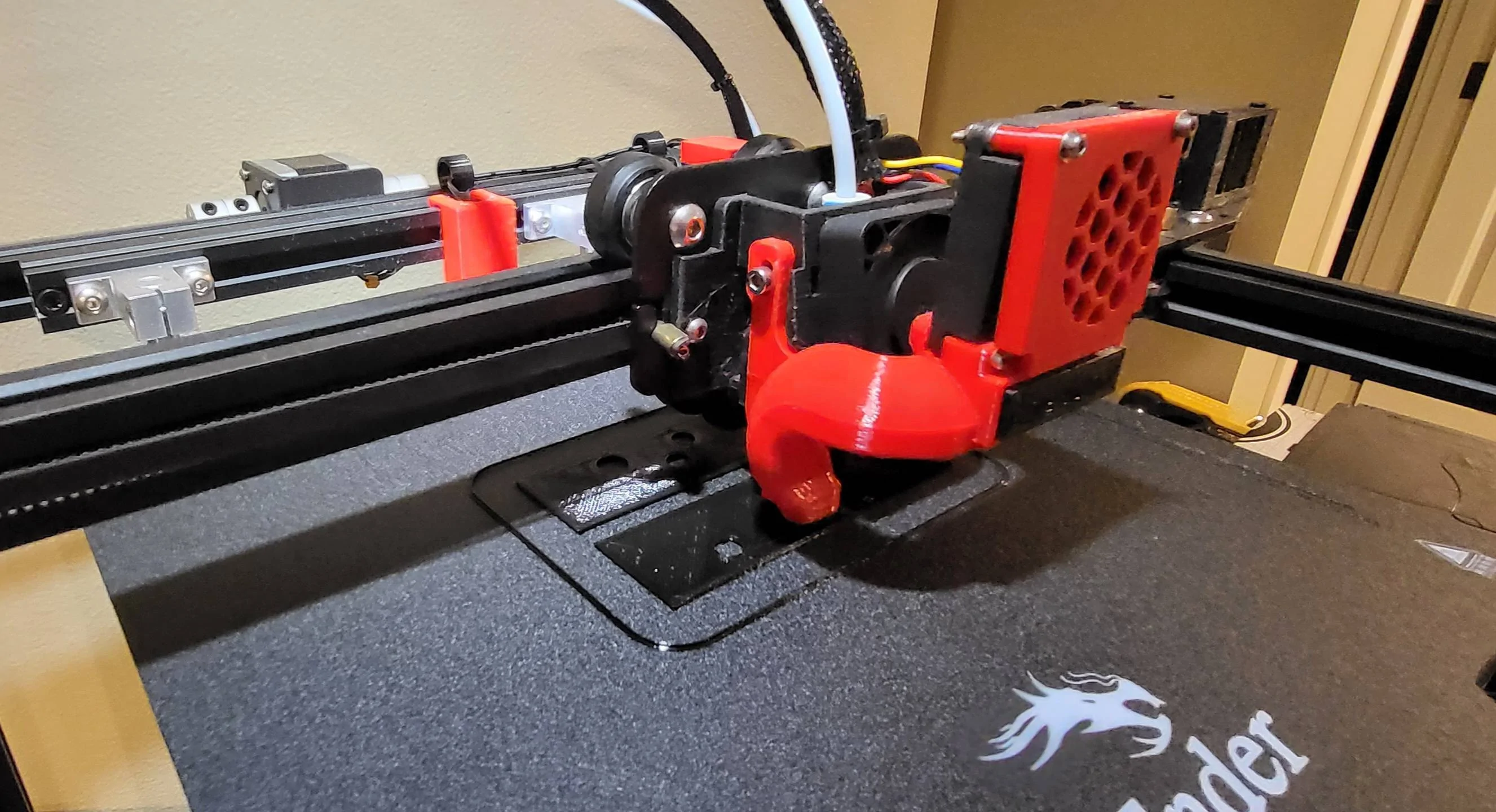

3d Printing brackets for the CVPM.
