Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup)

Kewlrobd

Active Member
Joined
Jun 18, 2021
Threads
7
Messages
39
Reaction score
18
Location
Texas
Vehicle(s)
2021 Gladiator
Actually easier then pulling the door card come to think of it. Just look at the door side of the body harness, do you have the wires coming out of it that correspond with pins 15\16 on the body side? If they're in the door, that's where they'd start.
Good point, gonna look this weekend.
Sponsored



Erievon

Well-Known Member
First Name
Al
Joined
Apr 20, 2020
Threads
1
Messages
643
Reaction score
855
Location
Cleveland, OH
Vehicle(s)
2023 JTR., 2021 JLU Altitude
Occupation
International Banker

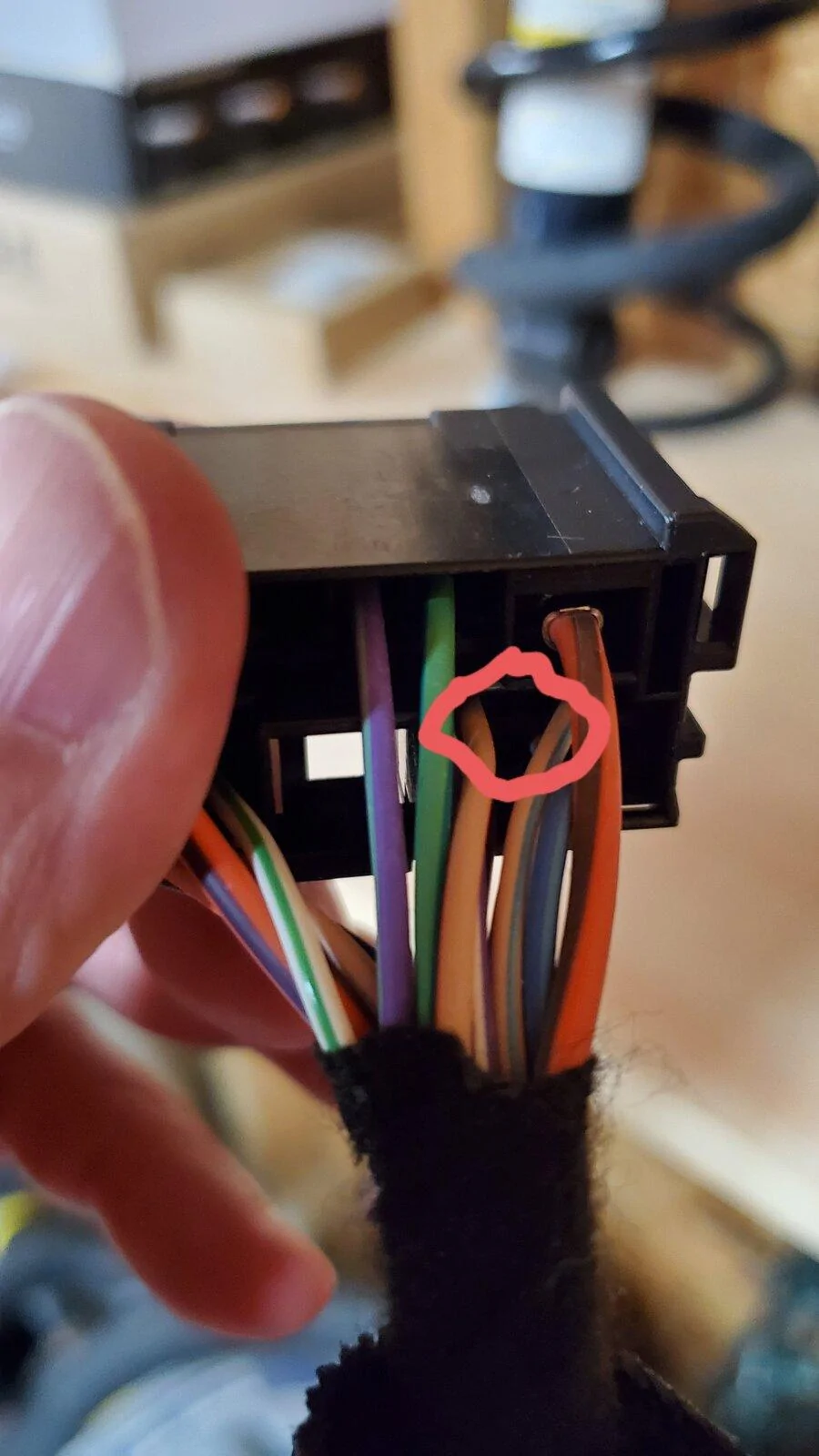

Here's the door harness that I took out of my wife's jl last weekend. The wires would go in the gap I circled, as you can see, hers were not there, but thankfully the pins were present on the dash/body side.



Kewlrobd

Active Member
Joined
Jun 18, 2021
Threads
7
Messages
39
Reaction score
18
Location
Texas
Vehicle(s)
2021 Gladiator
Likely referring to the dash harness. There was talk that some Jeeps didn't have the dash harness, some did. That's why there's posts in this thread about which pins to look for on the body harness going through the dash.

I've never seen talk of the door harness having that small connector for the handle and the extra wires leading to it.

Would like to see links where it's said that the Gladiator doors came with the extra wires.
Not in this thread and I don't think it was a gladiator but I definitely read one post where the connector was already in the door. It was folded back and zip tied to the harness.

Either way I'm realizing this is a rare occurrence.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,573
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Here's the door harness that I took out of my wife's jl last weekend. The wires would go in the gap I circled, as you can see, hers were not there, but thankfully the pins were present on the dash/body side.

Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 20210618_211451
That's one of the most clear VERY close-up pic I've seen. Wow, good job.


Erievon

Well-Known Member
First Name
Al
Joined
Apr 20, 2020
Threads
1
Messages
643
Reaction score
855
Location
Cleveland, OH
Vehicle(s)
2023 JTR., 2021 JLU Altitude
Occupation
International Banker
I saw that in the JL forum too, it was one or two random Rubicons. Easy enough to check with what I've given you here. Hey, never know!


Sponsored

TJO

Member
First Name
Todd
Joined
Oct 27, 2017
Threads
0
Messages
5
Reaction score
1
Location
Maryland
Vehicle(s)
Jk
Can anyone confirm if you have to replace the harness if you have a Rubicom or just replace the door handles? I thought the video mentioned Rubicons already came with the correct harness but somebody posted that Rubicon also needs harness replaced on here as well so I am a bit confused.


Erievon

Well-Known Member
First Name
Al
Joined
Apr 20, 2020
Threads
1
Messages
643
Reaction score
855
Location
Cleveland, OH
Vehicle(s)
2023 JTR., 2021 JLU Altitude
Occupation
International Banker
Rubicons have the pins in the body side harness. We've seen one or two rubis have the correct harness in the door but it seems to be a fluke, not normal/expected. Check the door side plug like I showed above, or pull the door card and look, but I would plan on replacing the door harness.


TJO

Member
First Name
Todd
Joined
Oct 27, 2017
Threads
0
Messages
5
Reaction score
1
Location
Maryland
Vehicle(s)
Jk
Rubicons have the pins in the body side harness. We've seen one or two rubis have the correct harness in the door but it seems to be a fluke, not normal/expected. Check the door side plug like I showed above, or pull the door card and look, but I would plan on replacing the door harness.
Ok, thanks for quick reply.


garzilla

Well-Known Member
First Name
Fred
Joined
Apr 2, 2021
Threads
13
Messages
274
Reaction score
357
Location
Helotes, TX
Vehicle(s)
2021 Jeep Gladiator
Occupation
Software Engineer
Installed mine in Sunday in a 2021 sport s. Routing the wire to the handle was a little tricky.

My install partner is pretty cool 😎. His arms fit better too 😆
Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 20210620_165839


Sponsored

Moonshineheadache

Well-Known Member
First Name
John
Joined
Jun 1, 2020
Threads
15
Messages
132
Reaction score
203
Location
Longmont, CO
Vehicle(s)
2020 Great White Edition Rubicon
Occupation
Gas Pump Jockey - I hate cans!
Vehicle Showcase
1
When I bought my JT, this was the only feature missing and was almost a deal breaker until my Mom of all people told I was being dumb. I guess I had been spoiled by previous vehicles.

A big shout out to everyone contributing to this forum!

As of yesterday with some help from AZ Wholesale Mopar for a screaming deal on parts:
(https://www.azwholesalemopar.com)

...AND ChadMyers73
Jeep Gladiator Proximity Doors Lock Install
()

Life is too short to spend it digging in my pocket! :rock:

Thanks a BUNCH!!


Kevin_D

Well-Known Member
First Name
Kevin
Joined
Oct 18, 2020
Threads
50
Messages
2,328
Reaction score
3,074
Location
Inland Northwest
Vehicle(s)
2021 Sport S, 1971 J4000, a bunch of other stuff

Erievon

Well-Known Member
First Name
Al
Joined
Apr 20, 2020
Threads
1
Messages
643
Reaction score
855
Location
Cleveland, OH
Vehicle(s)
2023 JTR., 2021 JLU Altitude
Occupation
International Banker
Side note, Anyone know the part number for the little sticker in the door jam? Messing with the bad caps on and off so many times the little black dots don't want to stick anymore. It seems heavier then a paper dot from the office supply store.


Moonshineheadache

Well-Known Member
First Name
John
Joined
Jun 1, 2020
Threads
15
Messages
132
Reaction score
203
Location
Longmont, CO
Vehicle(s)
2020 Great White Edition Rubicon
Occupation
Gas Pump Jockey - I hate cans!
Vehicle Showcase
1
Side note, Anyone know the part number for the little sticker in the door jam? Messing with the bad caps on and off so many times the little black dots don't want to stick anymore. It seems heavier then a paper dot from the office supply store.
I think it's just fancy cut electrical tape circles.
