Rear Sway Bar Reinforcement

Painkillerspe

Well-Known Member
Joined
Jul 10, 2021
Threads
11
Messages
198
Reaction score
242
Location
North Carolina
Vehicle(s)
2020 Jeep Gladiator
I wasn't able to get the heat shield to fit back on. Is that going to cause an issue?

Had to reinstall my shorter bolts until I can source some 75 mm ones.
Sponsored



Commodus

Well-Known Member
First Name
Buck
Joined
Aug 11, 2019
Threads
22
Messages
662
Reaction score
718
Location
San Diego, Ca.
Vehicle(s)
Hydro Blue Gladiator, BMW X3
Occupation
Retired
Vehicle Showcase
2
I wasn't able to get the heat shield to fit back on. Is that going to cause an issue?

Had to reinstall my shorter bolts until I can source some 75 mm ones.
I left my shield off, I believe it is more a brush shield than a heat shield


sass JT

Banned
Banned
First Name
Bryan
Joined
Jun 12, 2019
Threads
31
Messages
1,688
Reaction score
2,896
Location
Colorado
Website
youtube.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
MWD
Gotcha. So I guess I would need that and perhaps have some better armor for the lower point. A buddy of mine had it damaged at the lowest point too.
To answer your question more.

rockjock and terraflex make an over the axle swaybar kit that you can buy to replace the low hanging swaybar links. They are spendy but if you play in the rocks and you don’t want to hit them, they are the only options at this time.


bd100

Well-Known Member
Joined
May 31, 2022
Threads
28
Messages
757
Reaction score
744
Location
USA Midwest
Vehicle(s)
JT, WK2, ole' Ram

The OEM brackets are being ripped out in a downward direction
I wonder if the original brackets would have fewer issues if there were a washer between the sway bar link and the bracket to spread the clamping pressure against more bracket material. From the factory the sway bar link's metal sleeve is pressed directly against the bracket and all those 65ft-lb or so of pressure is concentrated in a thin circle against the bracket. The Metal Cloak bracket serves as a large washer to distribute this pressure, and also adds the remote bolt fastening.


Mojave2021

Well-Known Member
Joined
Apr 28, 2021
Threads
23
Messages
449
Reaction score
449
Location
California
Vehicle(s)
21 Gladiator
Installed mine today. No issues other than the nylon locking nuts I bought were too thick to fit on the longer link bolt. I had no issues reinstalling the shield on my 21 Mojave.


Sponsored

jeepers29

Well-Known Member
First Name
Joel
Joined
Aug 24, 2021
Threads
10
Messages
1,565
Reaction score
2,557
Location
Georgetown Tx
Vehicle(s)
JKUR, GC
Occupation
Domestic engineer
Installed mine today. No issues other than the nylon locking nuts I bought were too thick to fit on the longer link bolt. I had no issues reinstalling the shield on my 21 Mojave.
Can you post a pic of the shield. I installed this yesterday on my Mojave and there was no shield on either side.


jeepers29

Well-Known Member
First Name
Joel
Joined
Aug 24, 2021
Threads
10
Messages
1,565
Reaction score
2,557
Location
Georgetown Tx
Vehicle(s)
JKUR, GC
Occupation
Domestic engineer

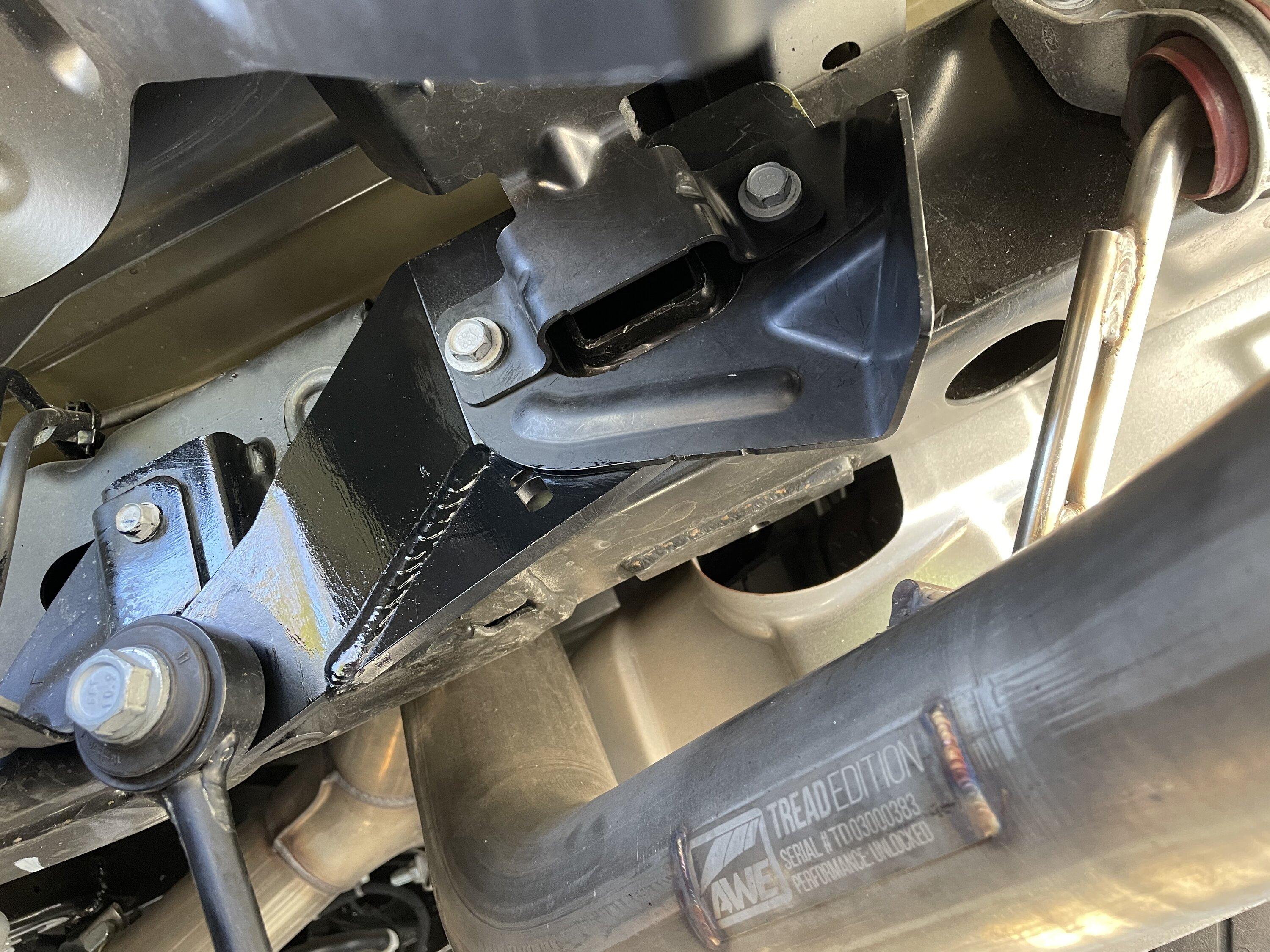

Here you go…I only have 1 on the driver side.

Thank you. I assume the the shield you speak of is the metal piece that is between the wire harness bracket and the metal cloak bracket? That is not on my mojave. I wonder what it is for?


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
54
Messages
2,856
Reaction score
4,637
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
Most of us think it has to do with shielding heat from exhaust or directing air towards exhaust which would explain why it is only on drivers side. My 2021 Mojave had it but came off when the RokBlokz mudflaps went on.....Jack


CrazyCooter

Well-Known Member
First Name
Tony
Joined
Nov 1, 2020
Threads
11
Messages
2,304
Reaction score
2,557
Location
Far NorCal
Website
www.overlandvehicledynamics.com
Vehicle(s)
1991 JEEP YJ, 2021 JTR Ecodiesel
Occupation
Specialty Off Road Shop Owner
I wonder if the original brackets would have fewer issues if there were a washer between the sway bar link and the bracket to spread the clamping pressure against more bracket material. From the factory the sway bar link's metal sleeve is pressed directly against the bracket and all those 65ft-lb or so of pressure is concentrated in a thin circle against the bracket. The Metal Cloak bracket serves as a large washer to distribute this pressure, and also adds the remote bolt fastening.
This is what I have been saying from the beginning........However I'm not sure the washer would fix it if the link has a rolled sleeve.

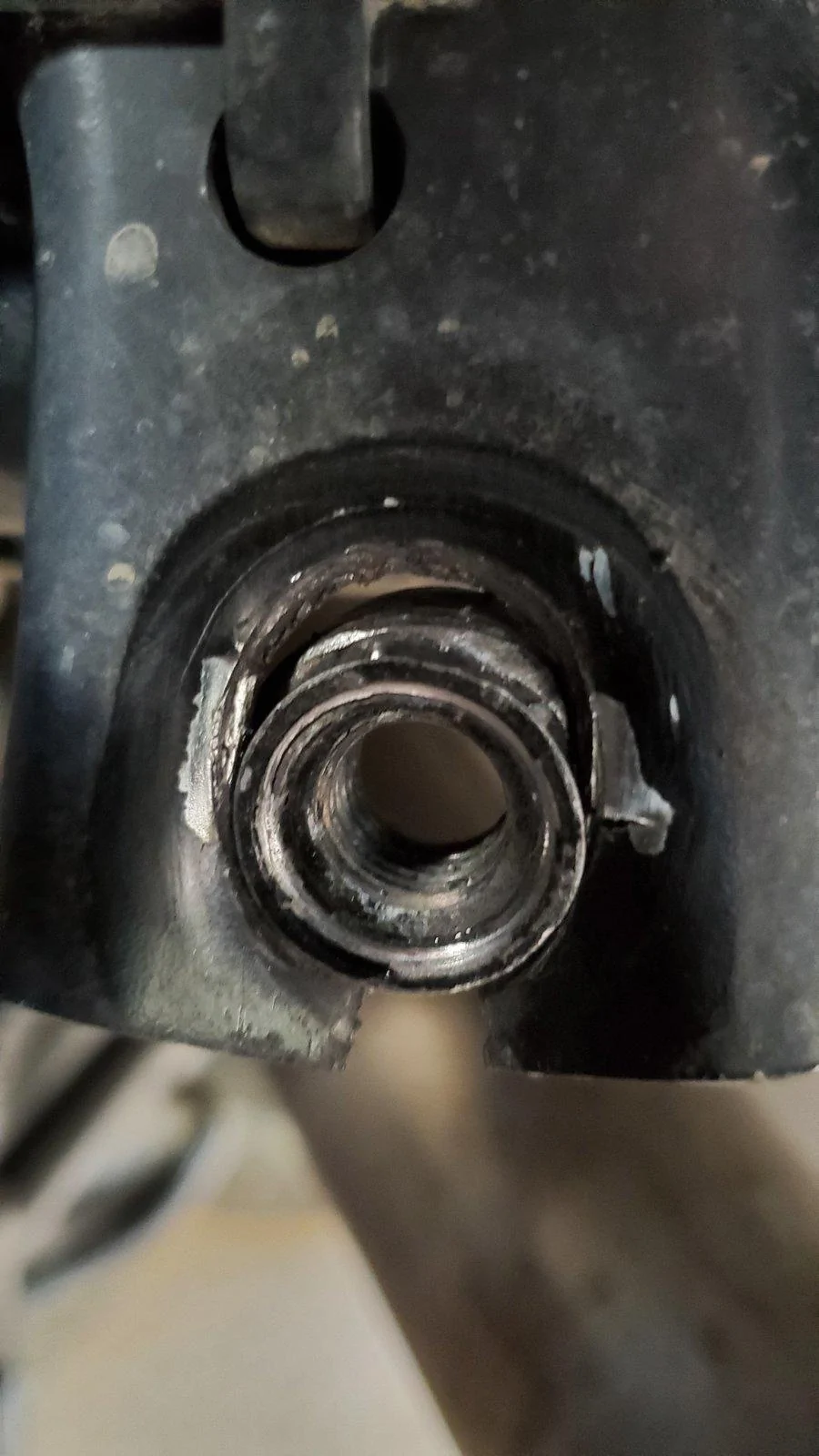

The aftermarket links most manufacturers are supplying are using a crappy thin rolled sleeves in the link bushings that just pinches the rivnut. Eventually it just rips the nut out of the bracket. Itf this doesn't happen, it's the sleeve that crushes, bolts come loose, and maybe the rivnut fails from that?

On my own truck, I used some links I had around the shop, but installed a 3/4" ID hourglass bushings with the appropriate machined seamless sleeves so there is some meat there to pinch the actual bracket like the stock ones. I bet I have more off road miles than 99% of the people on here and no failure yet!


Sponsored

jeepers29

Well-Known Member
First Name
Joel
Joined
Aug 24, 2021
Threads
10
Messages
1,565
Reaction score
2,557
Location
Georgetown Tx
Vehicle(s)
JKUR, GC
Occupation
Domestic engineer
Most of us think it has to do with shielding heat from exhaust or directing air towards exhaust which would explain why it is only on drivers side. My 2021 Mojave had it but came off when the RokBlokz mudflaps went on.....Jack
Why would some have it and not others? Doesn't make semse, but then again, we are talking about FCA


Mojave2021

Well-Known Member
Joined
Apr 28, 2021
Threads
23
Messages
449
Reaction score
449
Location
California
Vehicle(s)
21 Gladiator
Why would some have it and not others? Doesn't make semse, but then again, we are talking about FCA
Honestly that shield doesn’t look like it’s protecting much to me. I wouldn’t worry too much about it.


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
54
Messages
2,856
Reaction score
4,637
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
The other questions not really ever answered , has anyone on a totally stock gladiator have a failure, no matter what trim? Perhaps it has something to do with lifts or heavy tire wheel combos. AEV makes a sway bar reinforcing bracket for their lift. I'm not doing polls or posting a thread, but there is the question, my mojave has been in the air a few times, minor amount, but no failure....Jack


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Threads
54
Messages
2,856
Reaction score
4,637
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
Perhaps it is like the engine cover , just not needed?


Mojave2021

Well-Known Member
Joined
Apr 28, 2021
Threads
23
Messages
449
Reaction score
449
Location
California
Vehicle(s)
21 Gladiator
The other questions not really ever answered , has anyone on a totally stock gladiator have a failure, no matter what trim? Perhaps it has something to do with lifts or heavy tire wheel combos. AEV makes a sway bar reinforcing bracket for their lift. I'm not doing polls or posting a thread, but there is the question, my mojave has been in the air a few times, minor amount, but no failure....Jack
Mine’s otherwise stock other than the rear Hellwig sway bar. Just bought the MC bracket in case the sway bar put too much pressure on the original bracket.
