Another picture showing the only spot where the steel Rubicon bumper and Mojave skid interfere.
Thanks for sharing this.
I have a steel Mopar bumper on order, however I would like to continue using the Mojave skid plate.
Spacers / washers on the bumper might be the way to go here to bring the bumper a bit forward.





Advertisement



NCLife

Well-Known Member
First Name
Jeff
Joined
Dec 3, 2020
Messages
88
Reaction score
66
Location
Charlotte
Vehicle(s)
2020 JT Mojave
Did anyone install a winch yet? Just wondering if I was going to bump into the resevoirs when I do it.


NCLife

Well-Known Member
First Name
Jeff
Joined
Dec 3, 2020
Messages
88
Reaction score
66
Location
Charlotte
Vehicle(s)
2020 JT Mojave
I answered my own question. Winch plate fits fine, just like the JLUR I just took it off of. I’ll post more pics tomorrow when I wrap things up. I moved over the steel bumper, winch, satin black grille and fox steering stabilizer from my 19 JLUR I’m selling.











Tuggernuts

Well-Known Member
First Name
Scott
Joined
Oct 29, 2020
Messages
143
Reaction score
220
Location
NorCal
Vehicle(s)
Ram 1500
Occupation
Truck driver
Not a Rubicon Bumper but I installed a Rugged Ridge Arcus and it went on without any issues or trimming and the factory skid bolted right up.
Since I am not installing a winch, I hacked the middle out of the factory bumper and made a plug to fill the void in the bumper then painted the silver skid black to match. Overall I am very happy with the results.







I think this is the way I prefer to go and is much less cost wise.


Front Runner

Well-Known Member
First Name
Chris
Joined
Aug 30, 2020
Messages
67
Reaction score
58
Location
Chattanooga
Vehicle(s)
2020 Gladiator Mojave, 2016 Cherokee Trailhawk
Occupation
Insurance
It’s interesting the amount of variability there seems to be between the OEM steel bumper and the knock off. The variability is in both from all I have read also. Not just the knockoff bumper. Is there flexibility in the Mojave skid plate front to back or is that set? From all I have read on both, different parts have needed to be trimmed, some haven’t on either. Makes me wonder what all the variability is. This is something that is on my to do list at some point.


atxatxatx

Well-Known Member
Joined
Aug 13, 2020
Messages
175
Reaction score
182
Location
Austin
Vehicle(s)
JK Wrangler Winter edition (sold), WK2 Grand Cherokee, Gladiator Mojave

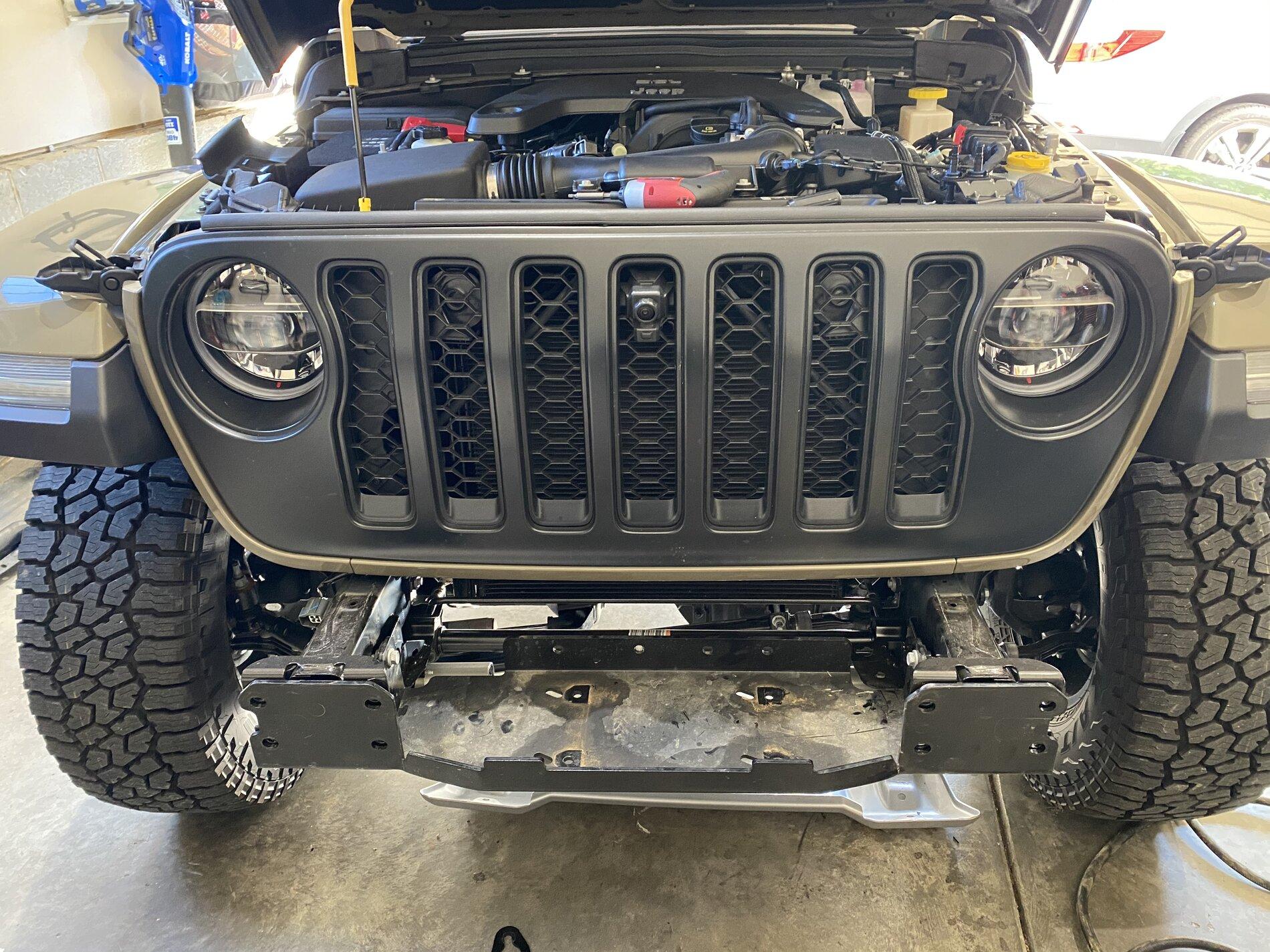

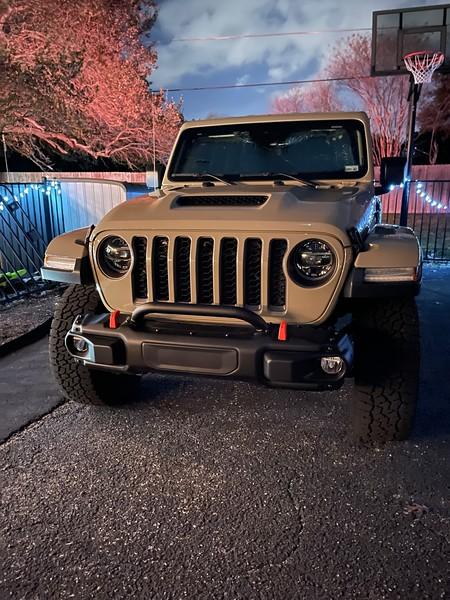

I installed my genuine mopar bumper today on my Mojave. Also made sure to swap over the orange tow hooks. Took off the end caps for now.

Certainly there must be differences between the genuine one and the ebay china one - with the ebay one leaving less cutting to do..

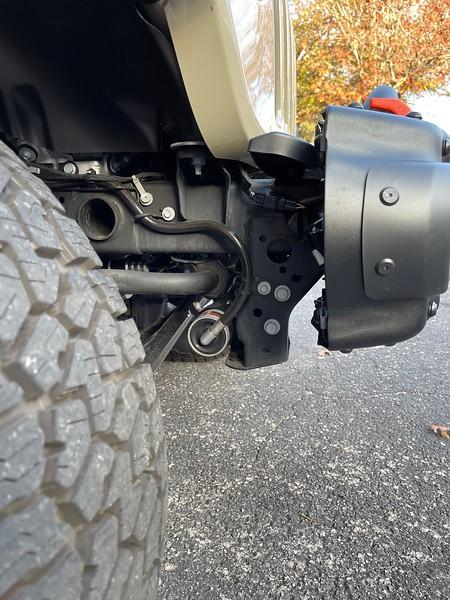

I tried some spacers on the bumper to the frame which it helped to clear the mojave plate brackets, but to mount the actual skid plate would need a lot of cutting. I went back and forth on what I was going to do, but then decided to ended up removing the spacers and brackets, and I will just order the rubicon metal skid plate instead.

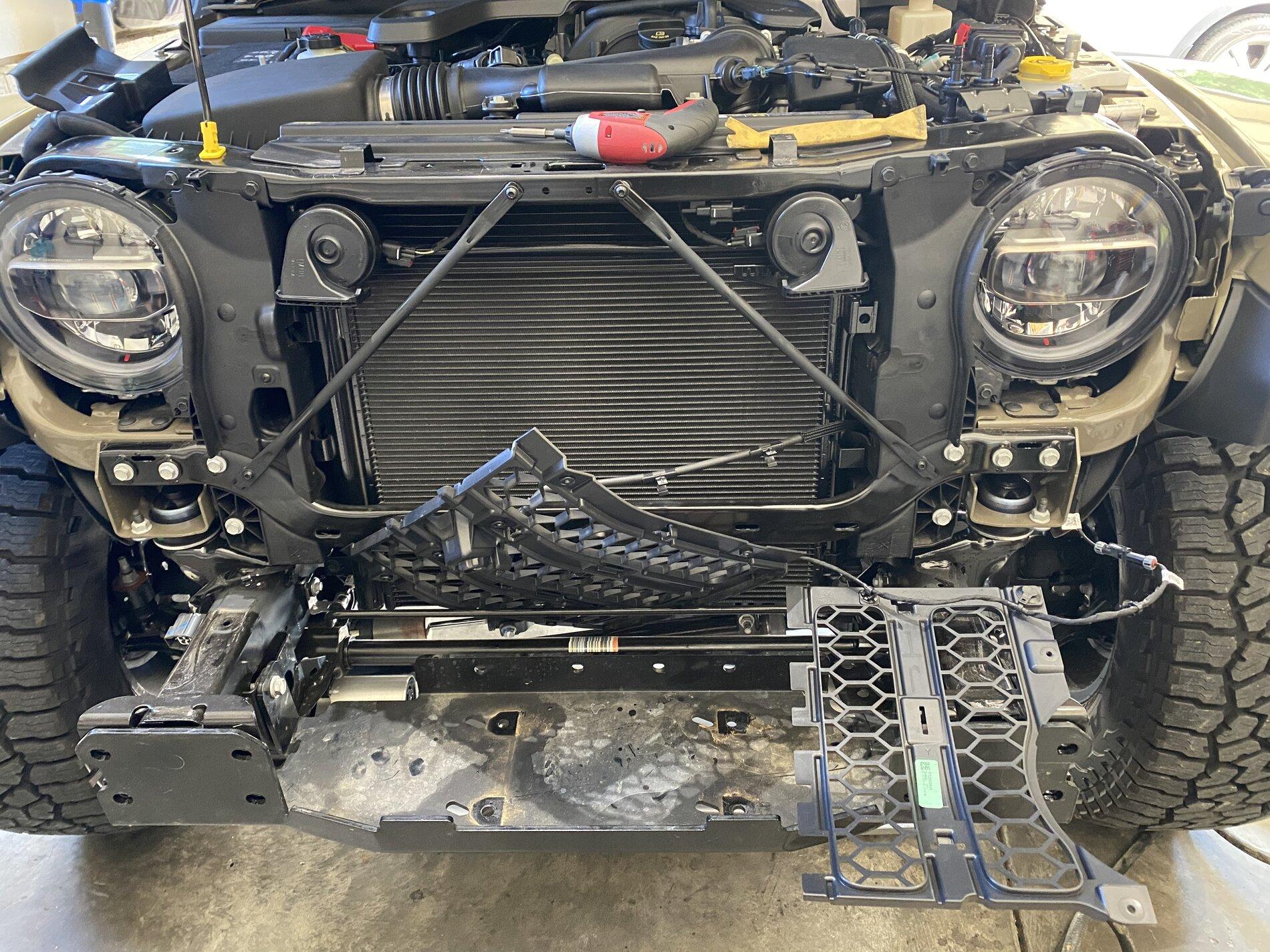

I pretty much had every part of this bumper apart today, lol

Thanks to the previous contributors on this thread, a lot of useful information that assisted me.

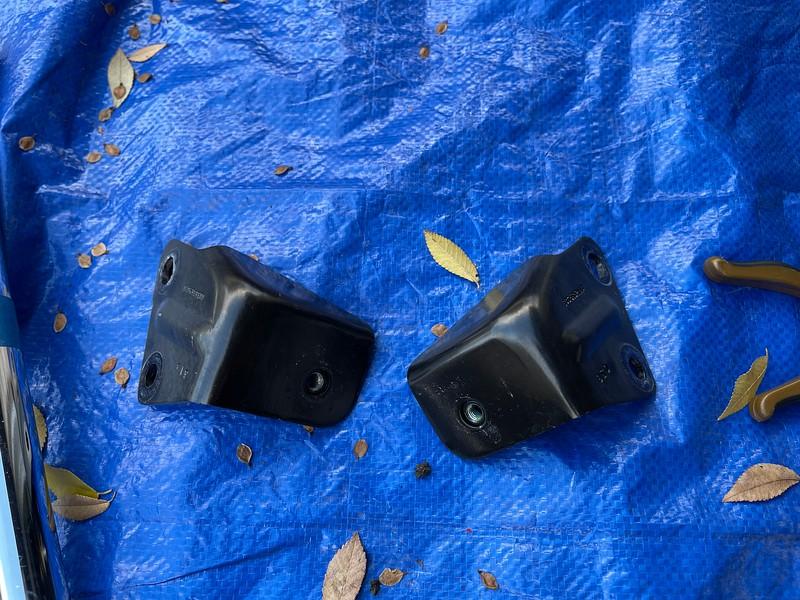

Mojave plate brackets, I ended up removing them





LakeMAnn

Active Member
Joined
Aug 10, 2018
Messages
37
Reaction score
86
Location
NW New Jersey
Vehicle(s)
2020 JT Mojave, 2108 JLUSahara
Great thread here. I will be doing a steel bumper swap this weekend.


Mojave Dr.

Active Member
Joined
Sep 18, 2020
Messages
34
Reaction score
71
Location
Sarasota, FL
Vehicle(s)
2020 Jeep Gladiator Mojave
Occupation
Naturopathic doctor

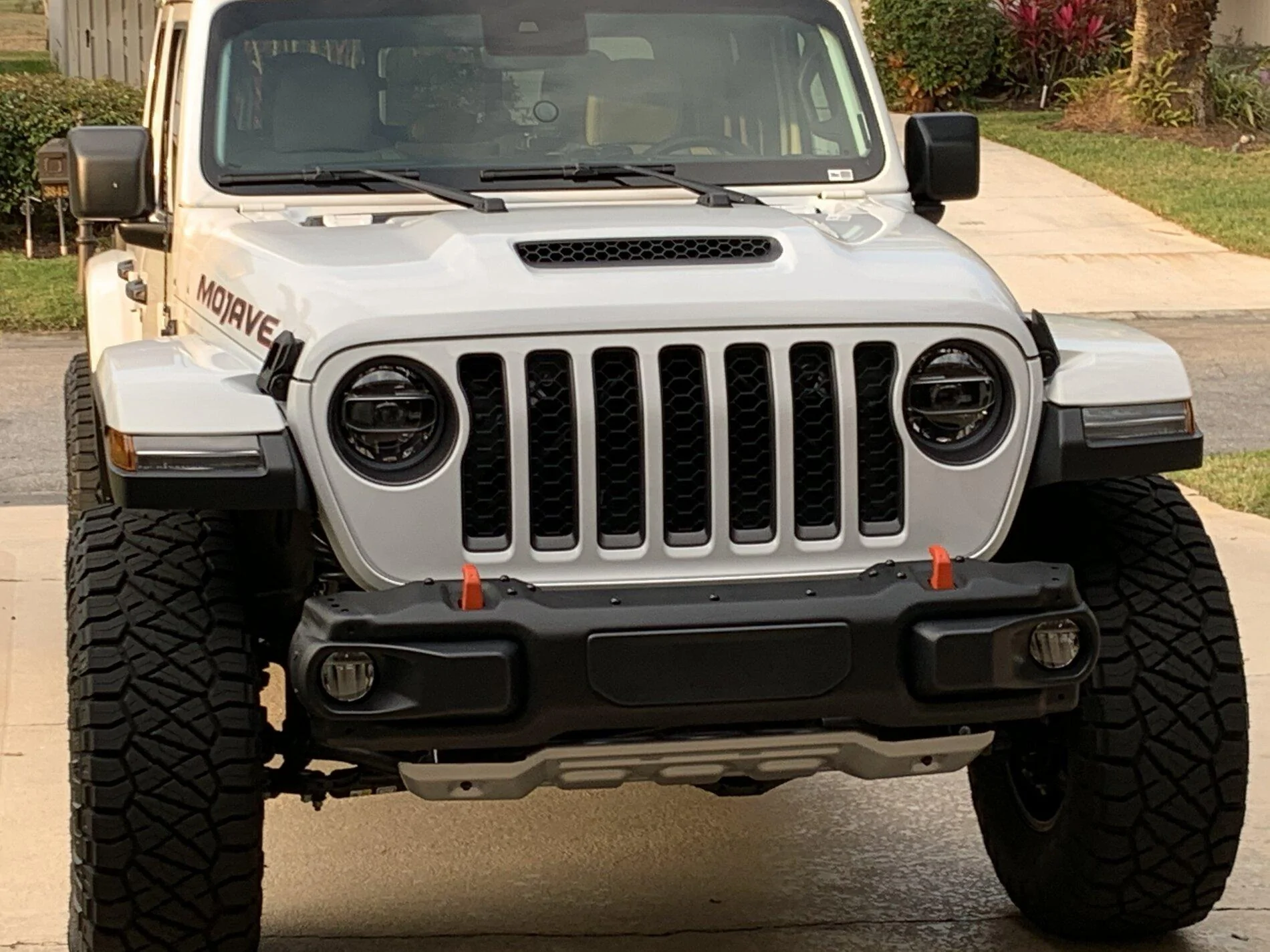

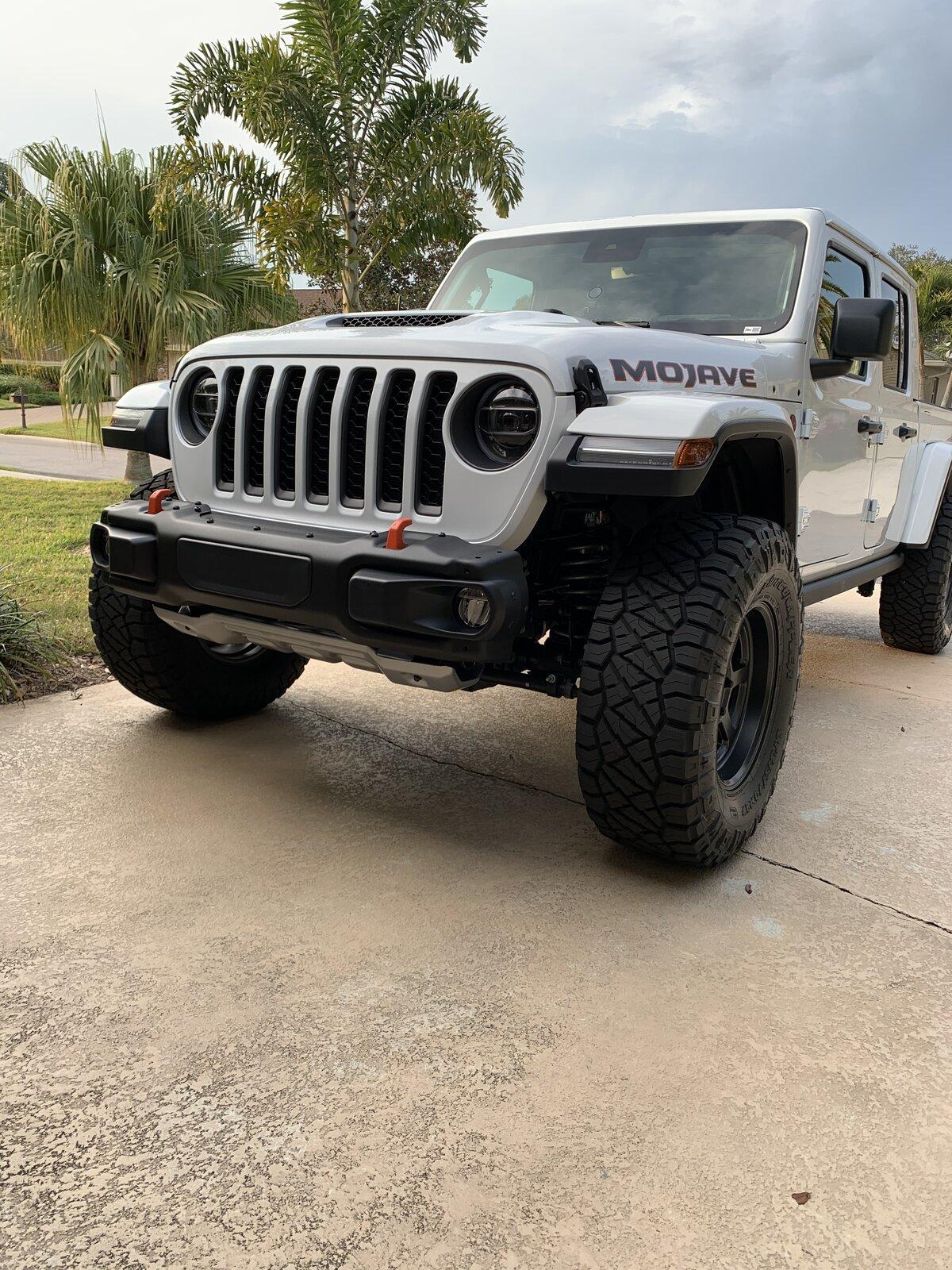

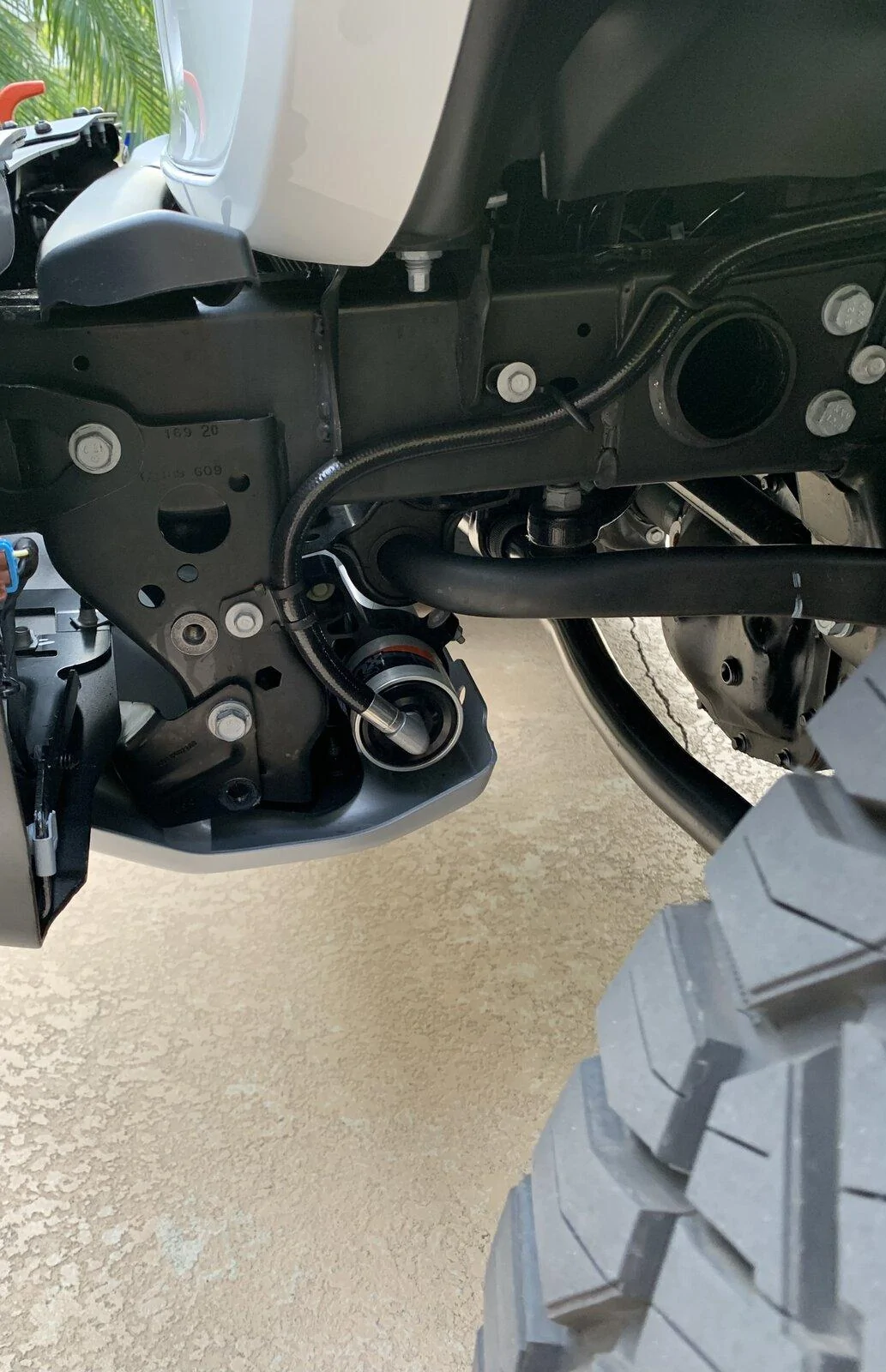

I tackled this last weekend - this is my story: bought the Mopar steel stubby from Bam wholesale. I didn’t want to hack into the bumper or skid plate, so I hoped for a creative solution, and I found it after much reading on this and other forums, owners groups, etc. I ended up moving the skid plate bracket down a hole, using the bottom hole for the top hole of the bracket. While you’ll probably think that’s only 1 bolt holding, once I tightened it and the bottom bolt on the skid... this thing is solid! The only difference is it spaces the skid down about an inch, but doesn’t matter to me - it still protects the reservoir, which is the mission, right? I’m very happy with it! I‘m waiting on the Warn low grille guard to arrive and I’ll call it good for the front end for now... some KC lights to follow at some point.


CMac

Well-Known Member
Joined
Sep 2, 2019
Messages
356
Reaction score
481
Location
Ashburn, VA
Vehicle(s)
Toyota Highlander
I tackled this last weekend - this is my story: bought the Mopar steel stubby from Bam wholesale. I didn’t want to hack into the bumper or skid plate, so I hoped for a creative solution, and I found it after much reading on this and other forums, owners groups, etc. I ended up moving the skid plate bracket down a hole, using the bottom hole for the top hole of the bracket. While you’ll probably think that’s only 1 bolt holding, once I tightened it and the bottom bolt on the skid... this thing is solid! The only difference is it spaces the skid down about an inch, but doesn’t matter to me - it still protects the reservoir, which is the mission, right? I’m very happy with it! I‘m waiting on the Warn low grille guard to arrive and I’ll call it good for the front end for now... some KC lights to follow at some point.
Looks damn sharp. Nice work.


Front Runner

Well-Known Member
First Name
Chris
Joined
Aug 30, 2020
Messages
67
Reaction score
58
Location
Chattanooga
Vehicle(s)
2020 Gladiator Mojave, 2016 Cherokee Trailhawk
Occupation
Insurance
I tackled this last weekend - this is my story: bought the Mopar steel stubby from Bam wholesale. I didn’t want to hack into the bumper or skid plate, so I hoped for a creative solution, and I found it after much reading on this and other forums, owners groups, etc. I ended up moving the skid plate bracket down a hole, using the bottom hole for the top hole of the bracket. While you’ll probably think that’s only 1 bolt holding, once I tightened it and the bottom bolt on the skid... this thing is solid! The only difference is it spaces the skid down about an inch, but doesn’t matter to me - it still protects the reservoir, which is the mission, right? I’m very happy with it! I‘m waiting on the Warn low grille guard to arrive and I’ll call it good for the front end for now... some KC lights to follow at some point.
Looks very good, clean. I like this option a lot better. Thanks for sharing.


IfMatters

New Member
First Name
Ema
Joined
Dec 29, 2020
Messages
3
Reaction score
0
Location
MD
Vehicle(s)
Jeep
Thanks for the post!

can you upload new/more pictures?

how it looks from far away?


AKID_RBM

Active Member
First Name
Matt
Joined
Apr 13, 2020
Messages
42
Reaction score
18
Location
Idaho
Vehicle(s)
Gladiator Mojave Ordered
Occupation
Construction
I tackled this last weekend - this is my story: bought the Mopar steel stubby from Bam wholesale. I didn’t want to hack into the bumper or skid plate, so I hoped for a creative solution, and I found it after much reading on this and other forums, owners groups, etc. I ended up moving the skid plate bracket down a hole, using the bottom hole for the top hole of the bracket. While you’ll probably think that’s only 1 bolt holding, once I tightened it and the bottom bolt on the skid... this thing is solid! The only difference is it spaces the skid down about an inch, but doesn’t matter to me - it still protects the reservoir, which is the mission, right? I’m very happy with it! I‘m waiting on the Warn low grille guard to arrive and I’ll call it good for the front end for now... some KC lights to follow at some......
Wonder how that would work with a Winch?


Mojave Dr.

Active Member
Joined
Sep 18, 2020
Messages
34
Reaction score
71
Location
Sarasota, FL
Vehicle(s)
2020 Jeep Gladiator Mojave
Occupation
Naturopathic doctor
Wonder how that would work with a Winch?
For my purposes, I won’t be adding a winch. But if I did, there wouldn’t be any interference, as the skid is actually moved down and out of the way by an inch and 1/2... definitely wouldn’t interfere with a winch plate. It would be like mounting to any other Mopar steel bumper. I considered it, but it would be a waste of a Warn😂


JaErikson

Member
First Name
Jack
Joined
Dec 4, 2020
Messages
13
Reaction score
2
Location
New Braunfels, Texas
Vehicle(s)
2020 Jeep Gladiator Overland
Occupation
Retired
For my purposes, I won’t be adding a winch. But if I did, there wouldn’t be any interference, as the skid is actually moved down and out of the way by an inch and 1/2... definitely wouldn’t interfere with a winch plate. It would be like mounting to any other Mopar steel bumper. I considered it, but it would be a waste of a Warn😂
Off Topic
do you by chance have access to the bumper and could take a photo of the wiring for the led fog lights.

on the bumper… I took the route of the rubicon bumper married to the rubicon skid plate… no cutting or drilling…
