Xtreme Recon Fender Extension Instsalled

[NachoRuby]

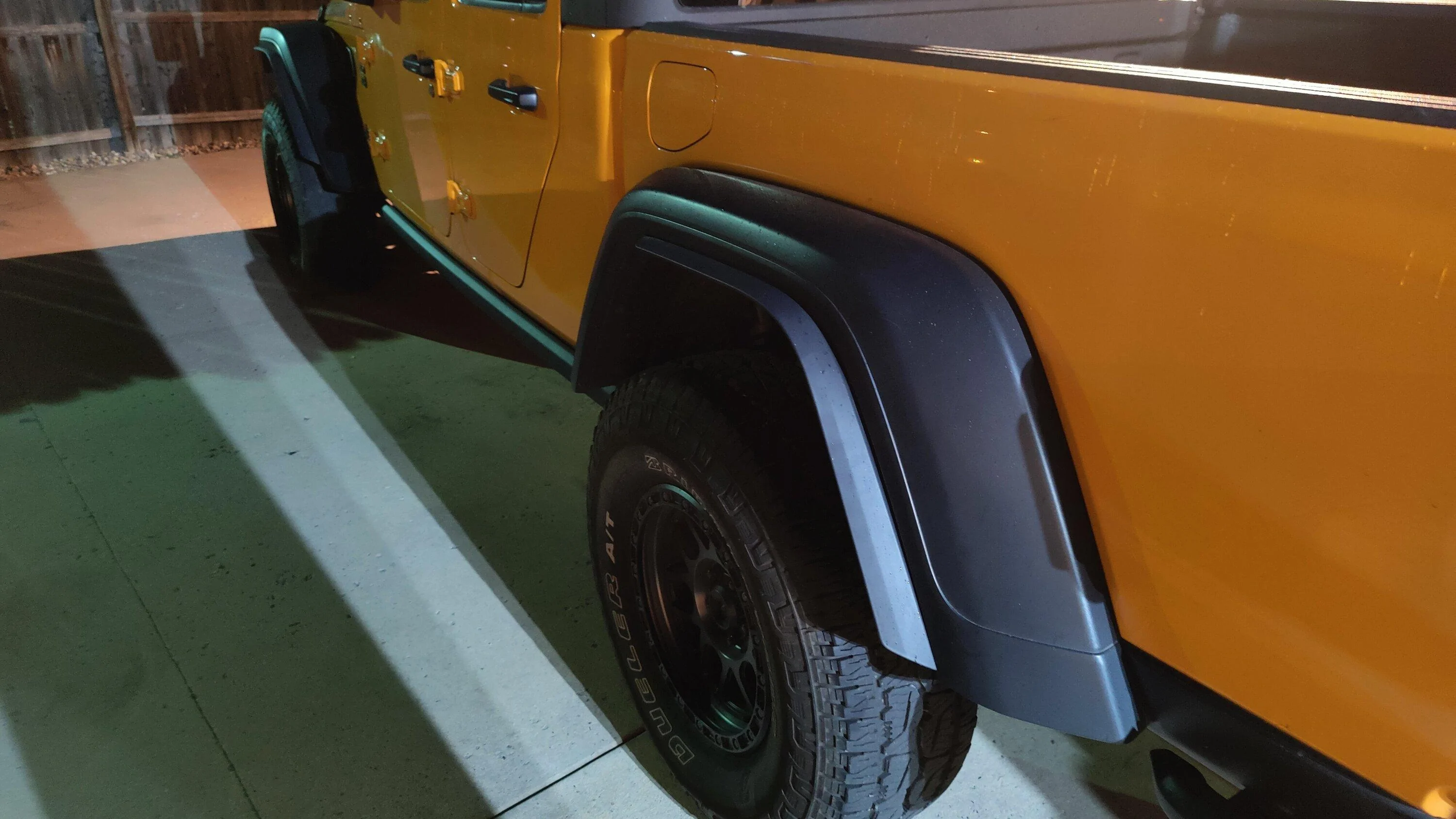

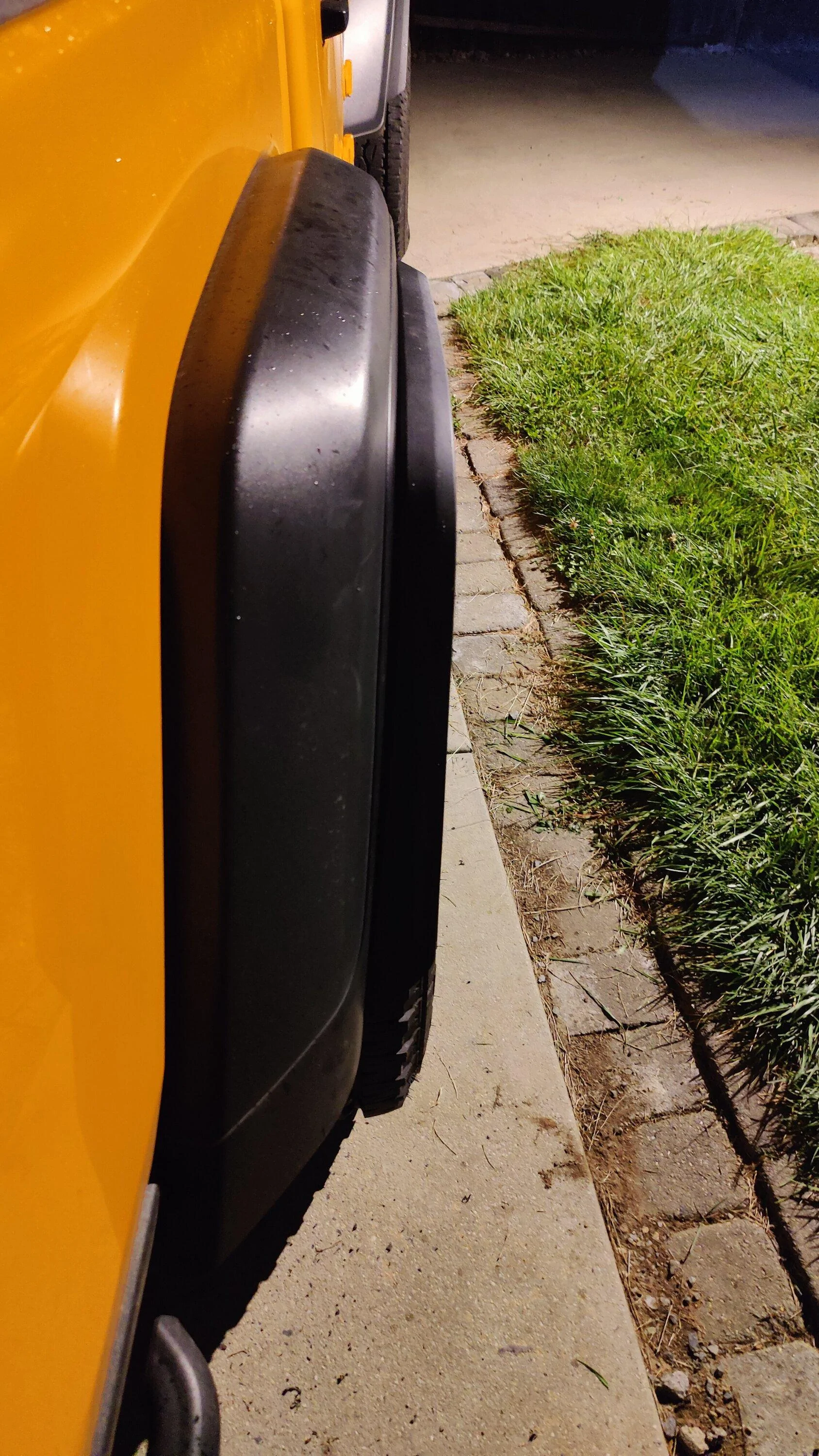

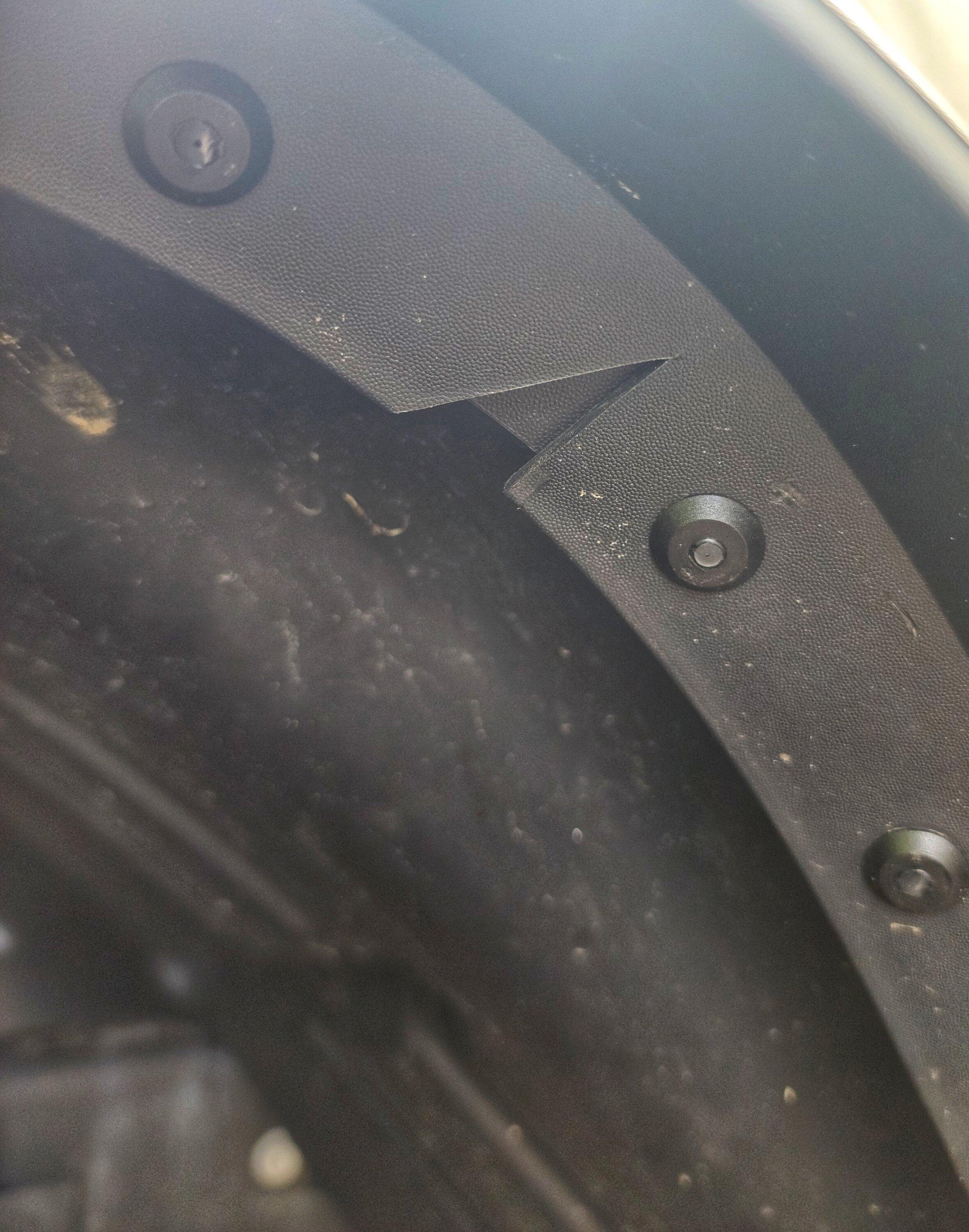

This is the rear, I wanted a flush fit on the bottom. Also a pic of the cut I made underneath to fit the curve of the rear fender

Damn. I couldn't find this post when I was installing mine. Yours came out perfect. I wish I would have aligned the rear like you did. I just used the bottom hole that was already there. I have an extra set of fronts, so I might try again if I don't like what I see in the morning time.

Sponsored



[21Moja]

Damn. I couldn't find this post when I was installing mine. Yours came out perfect. I wish I would have aligned the rear like you did. I just used the bottom hole that was already there. I have an extra set of fronts, so I might try again if I don't like what I see in the morning time.

Looks good...They are easy to take off if you want to realign. Ive thought about redoing my front and cutting them to match the starting and ending point like the back. Im deciding if these are enough protection or if mud flaps are in my winter future



[Rkowalski]

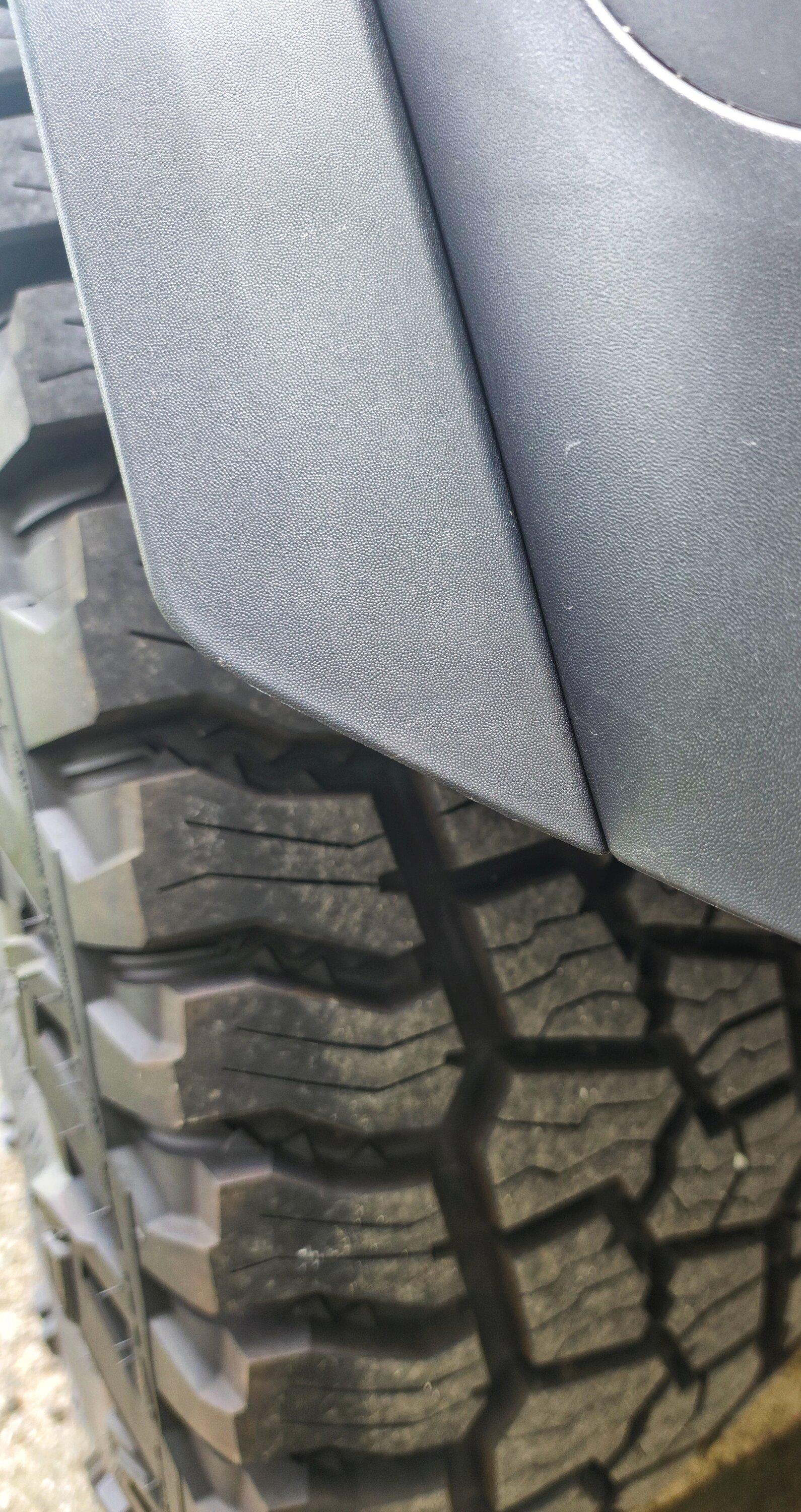

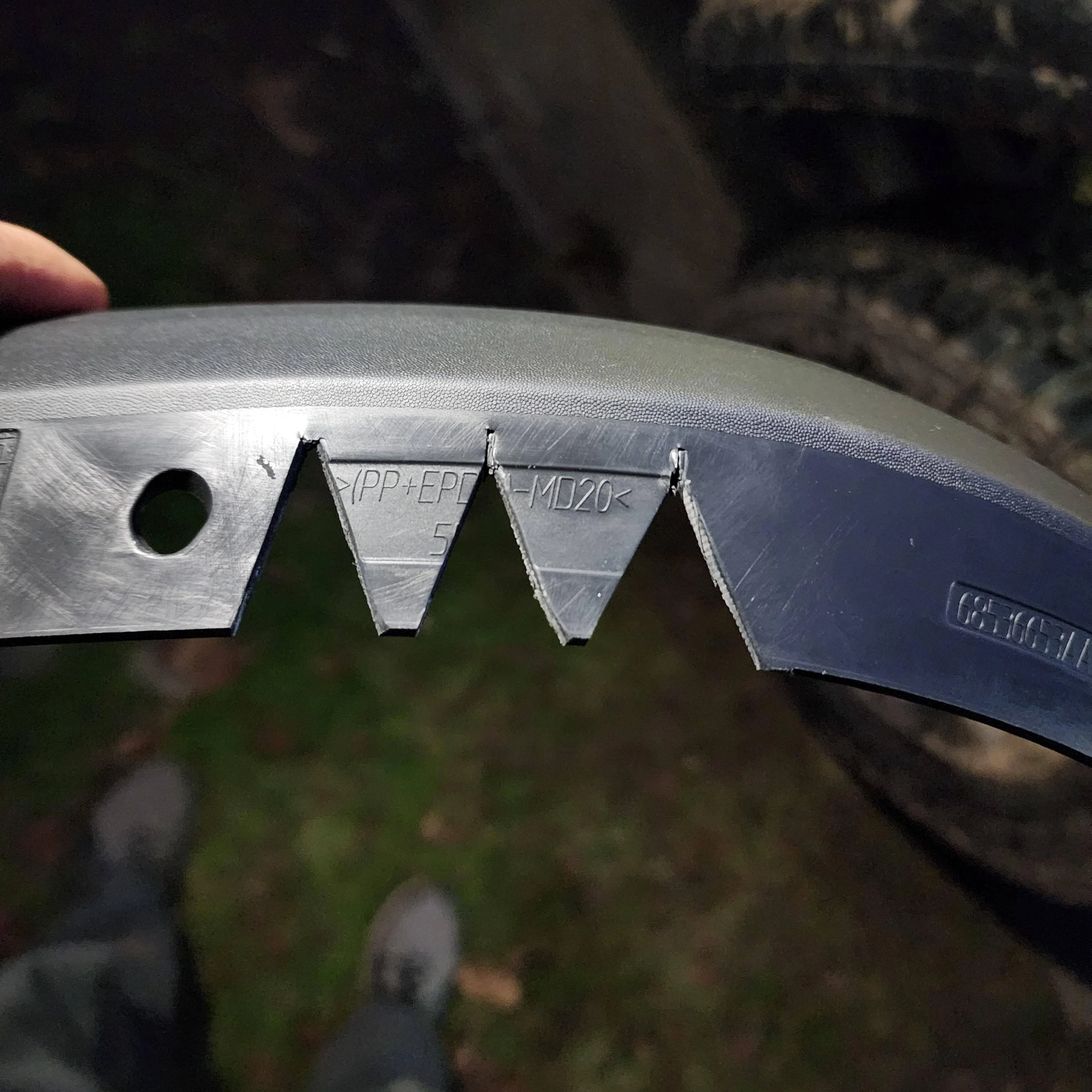

You can also align the fronts to end at the bottom of the fender line (see my original post). You may need to make some "V" cuts in the interior of the fender extension to bend it into place. Anyway, nice job looks great!



[Dls79]

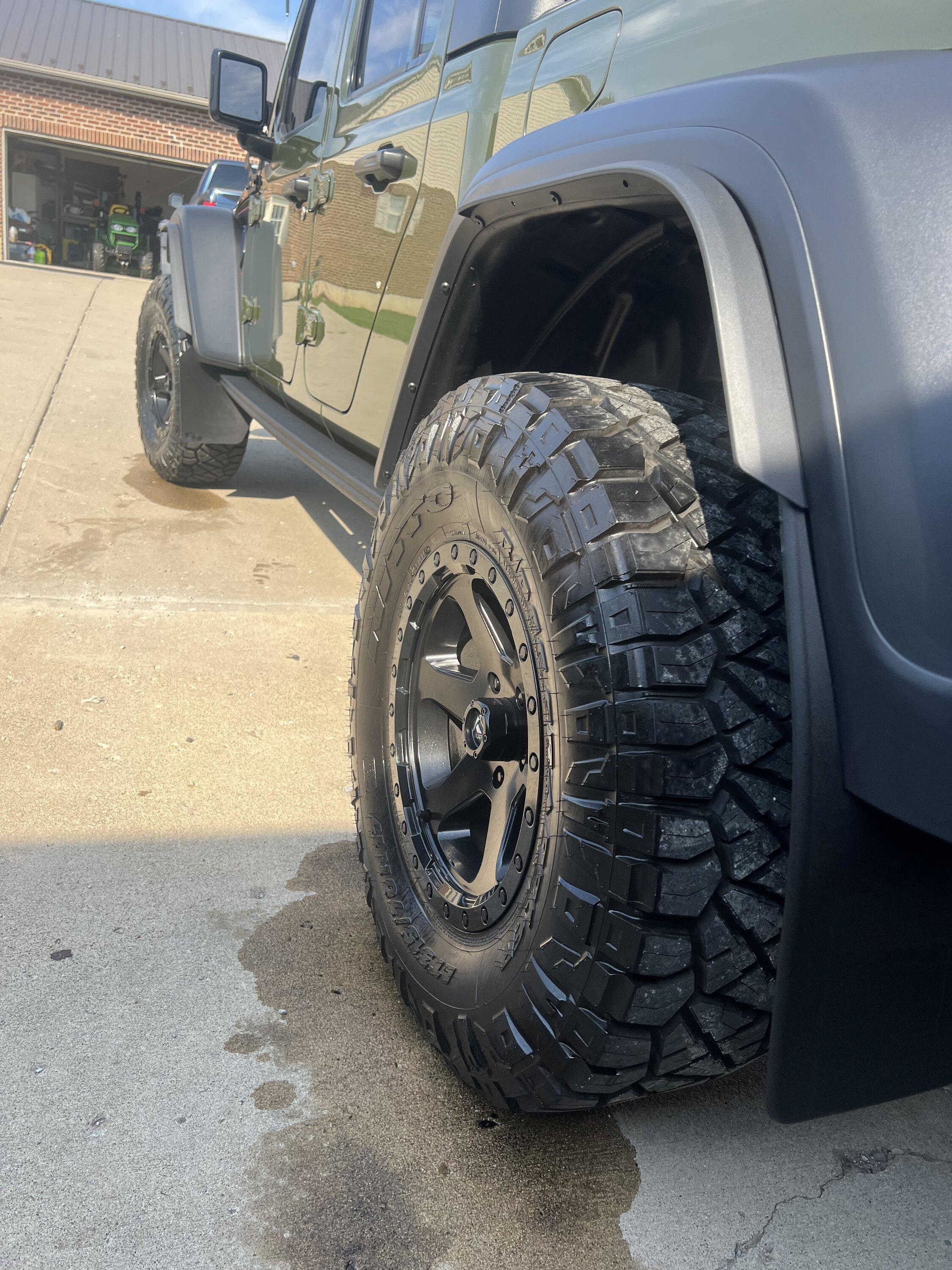

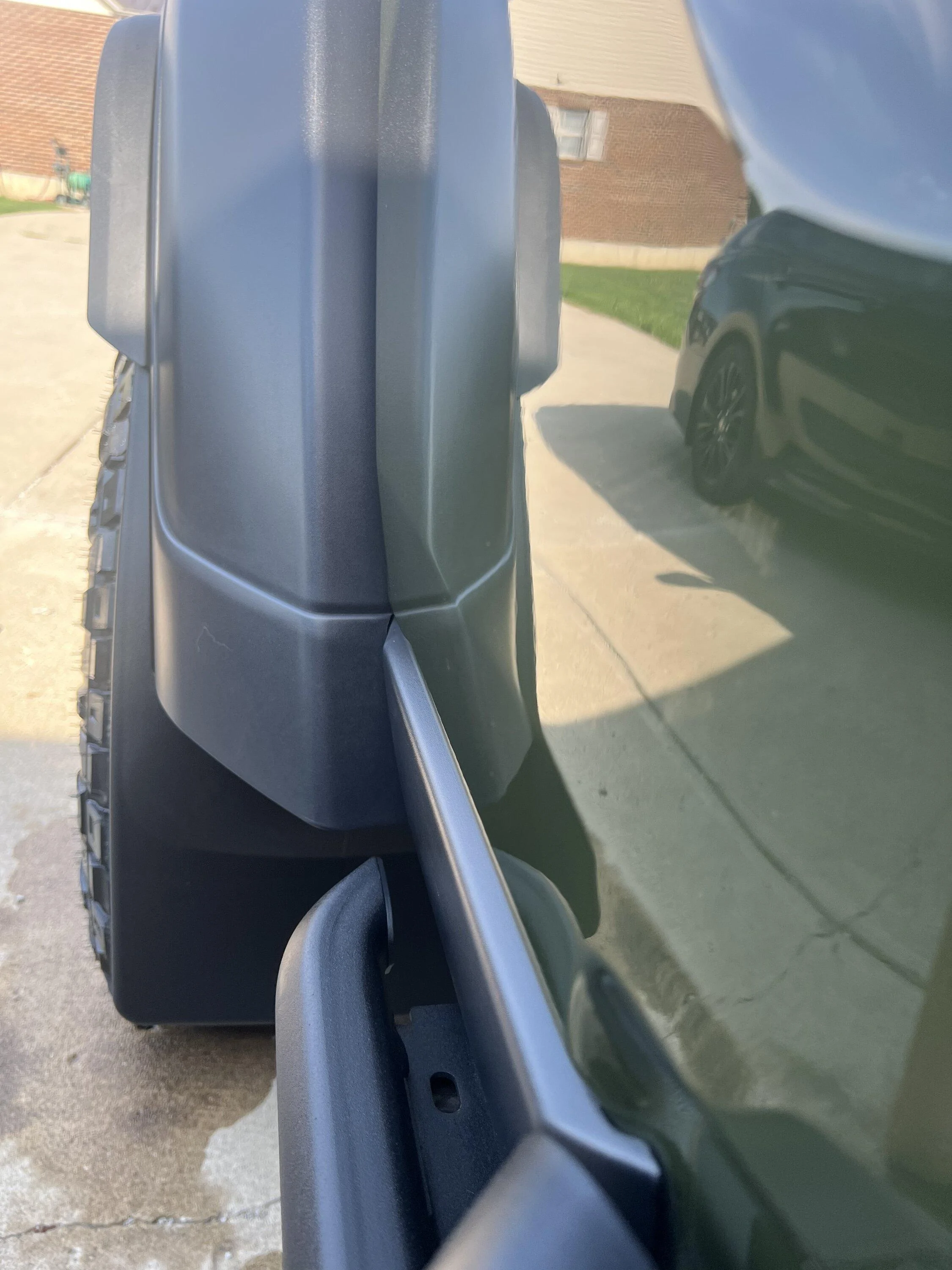

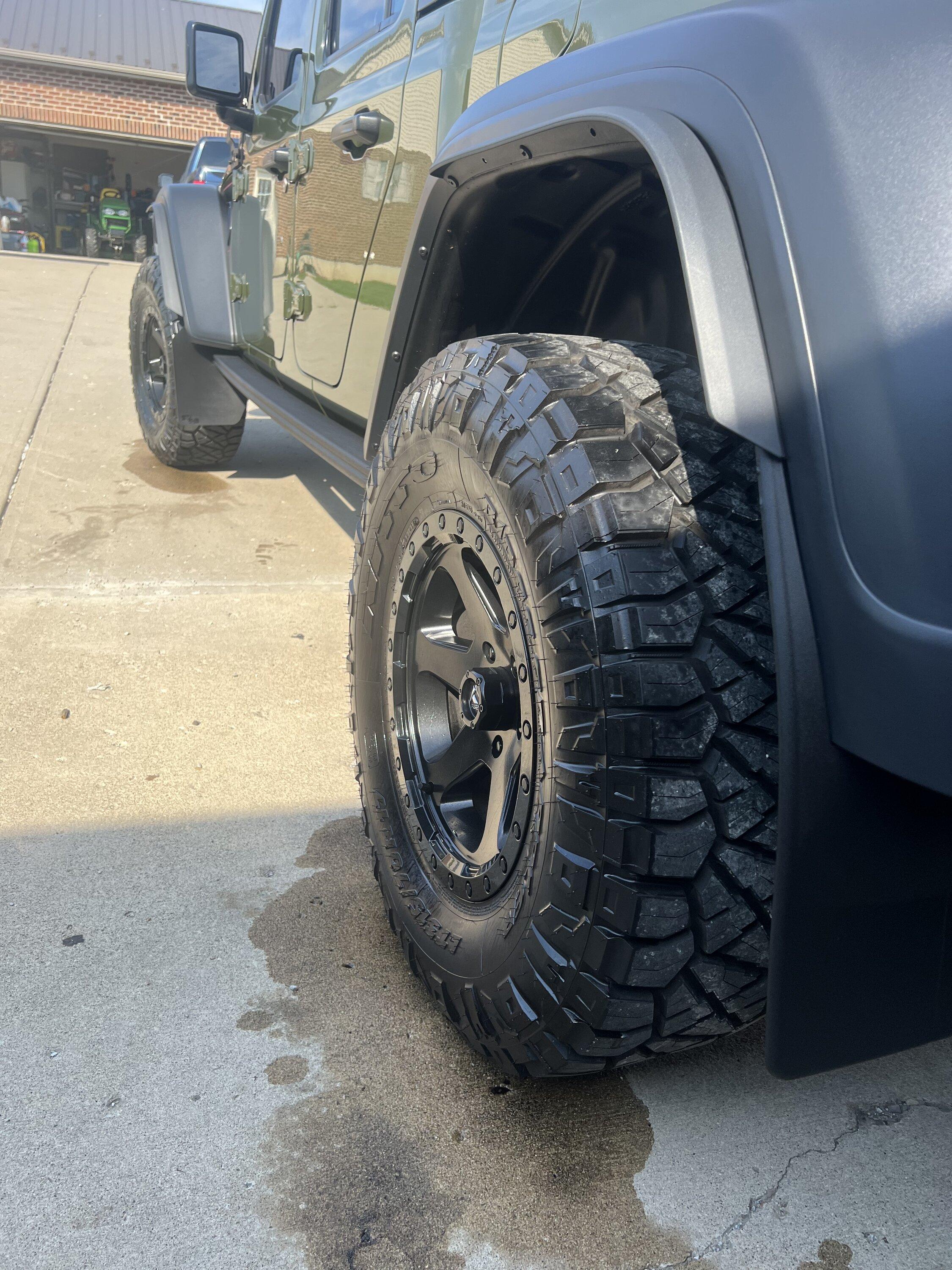

Here is my JTR with Terraflex leveling kit and Nitto Ridge Grapplers (35”). If I had it to do over again, I would put the front fender extensions on the back as well.



[DesertRated]

Looks good...They are easy to take off if you want to realign. Ive thought about redoing my front and cutting them to match the starting and ending point like the back. Im deciding if these are enough protection or if mud flaps are in my winter future

This mod appears to add some extra protection from rocks flying up and chipping the paint. I assume the install is the same for Mojave with painted fenders?



[NachoRuby]

This mod appears to add some extra protection from rocks flying up and chipping the paint. I assume the install is the same for Mojave with painted fenders?

Yes, Mojaves and Rubicons share the exact same fenders. The lip part where this attaches is the same on the unpainted ones and the painted ones.



[21Moja]

This mod appears to add some extra protection from rocks flying up and chipping the paint. I assume the install is the same for Mojave with painted fenders?

I cant imagine it would be any different...All depends on how you want to install.



[Minty JL]

I'm going to order mine this week......feels like it will be the cheapest mod I have bought so far.

I'm going to harvest the Diode Dynamic's SS3 Pros off from my Tahoe and the SS1c1s (red back lit) for the JT; since I will be selling my Tahoe PPV shortly after taking delivery of my JTM



[KidBobot]

First off... THANKS to everyone here that have shown me this mod and how-to also! The perspective from the various installs led me to do a bit of a hybrid of a couple of you guys' installs.

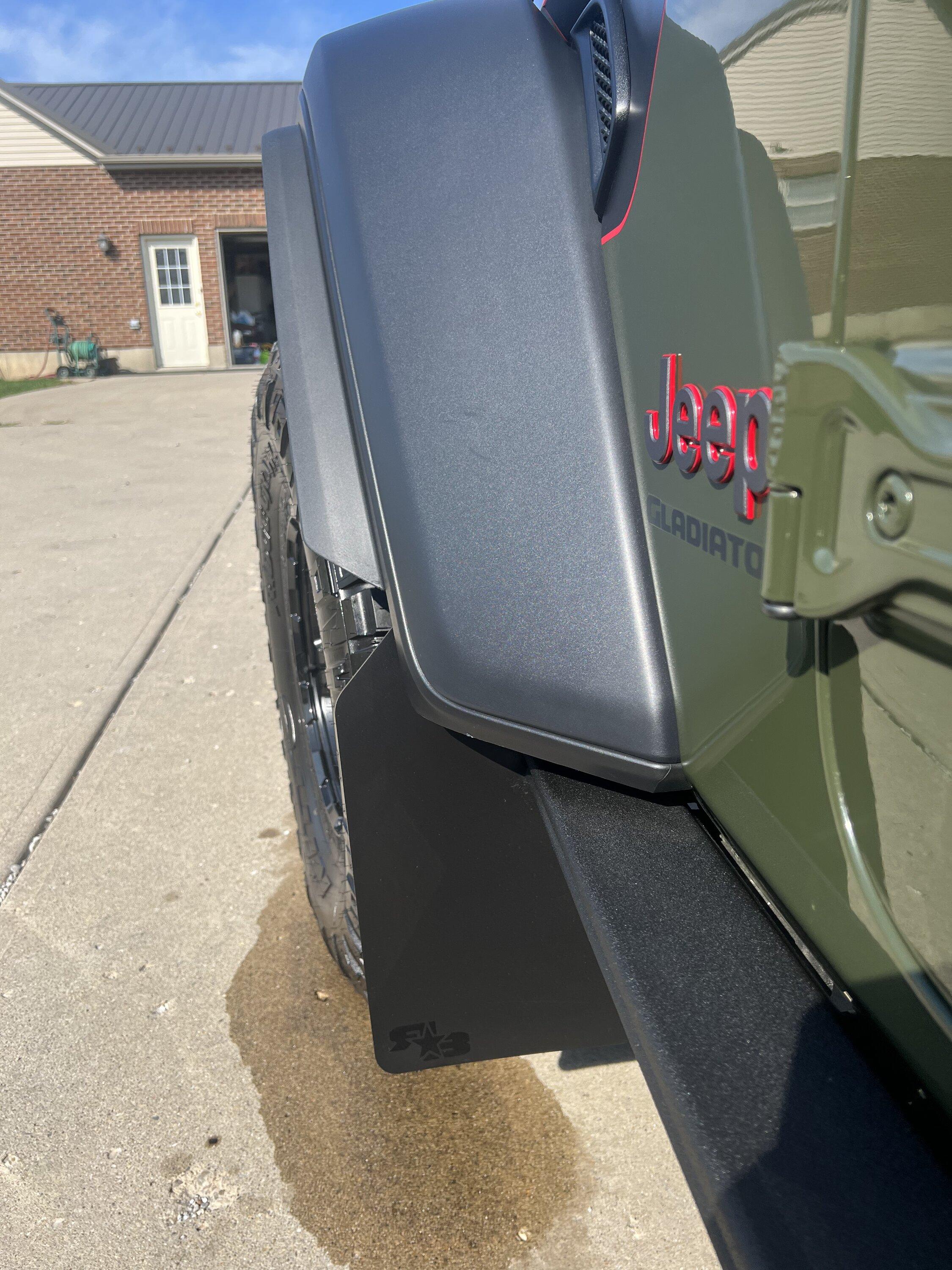

For the FRONT, I kept it "stock" using the existing rivet holes. I really liked the combination of the fender extensions + Rokblokz mudflaps on @Dls79's set up. So I plan on doing the same (@Dls79 - what size mudflaps did you get?)

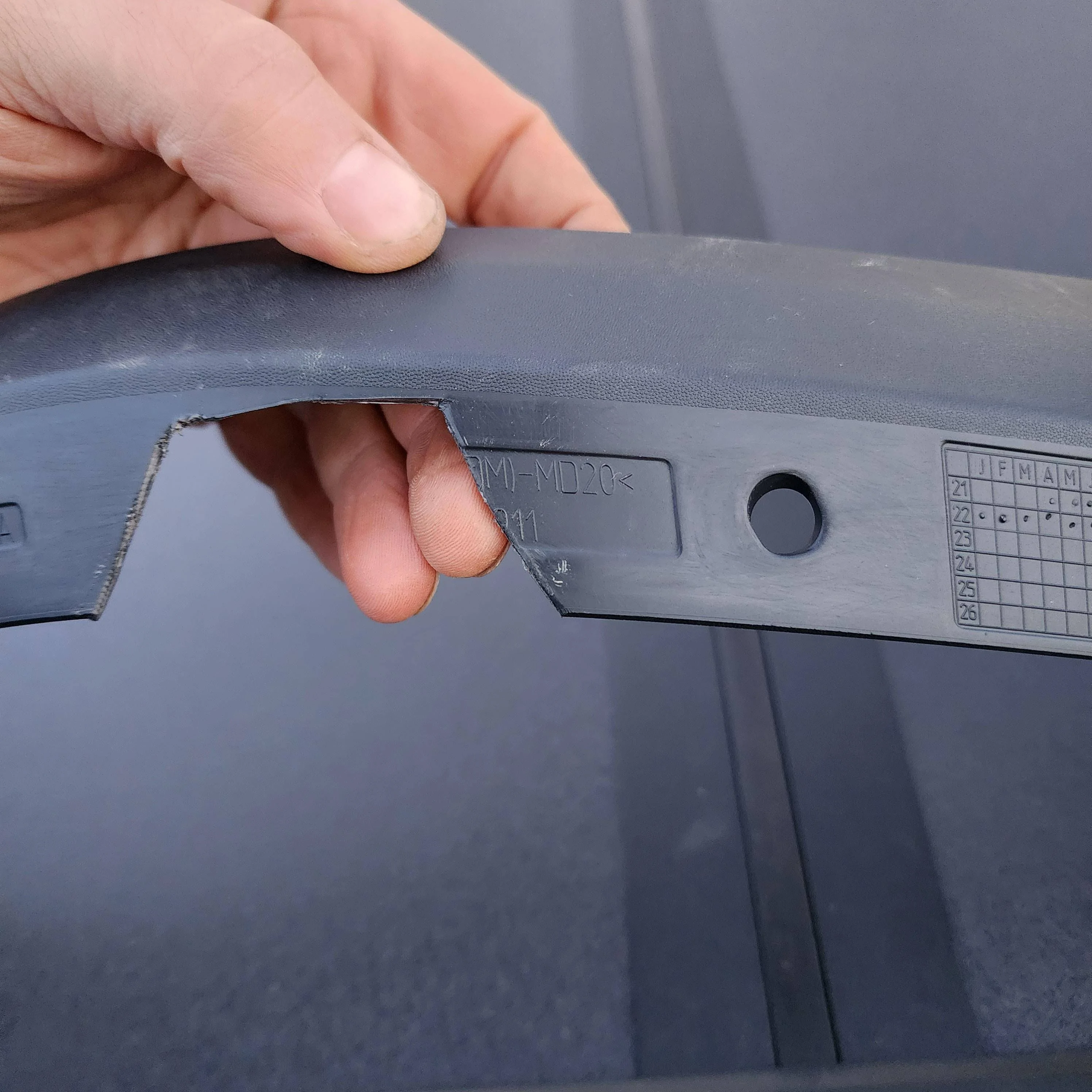

For the REAR, I did the Front XTreme Recon Flares and made them flush with the bottom. I made the same cut to get it to bend better. Then I also used double the rivets to really keep them in place nicely.

A couple of shots from some distance... don't mind the imports in the shot... ;p



[.:eMETAL:.]

Ordered thanks 21Moja for your pioneering here.



[Duece McCracken]

That looks familiar, I did the same thing last weekend...

So if you did it over again, you'd align the fronts to the bottom? A relief cut and redrill to make it happen.

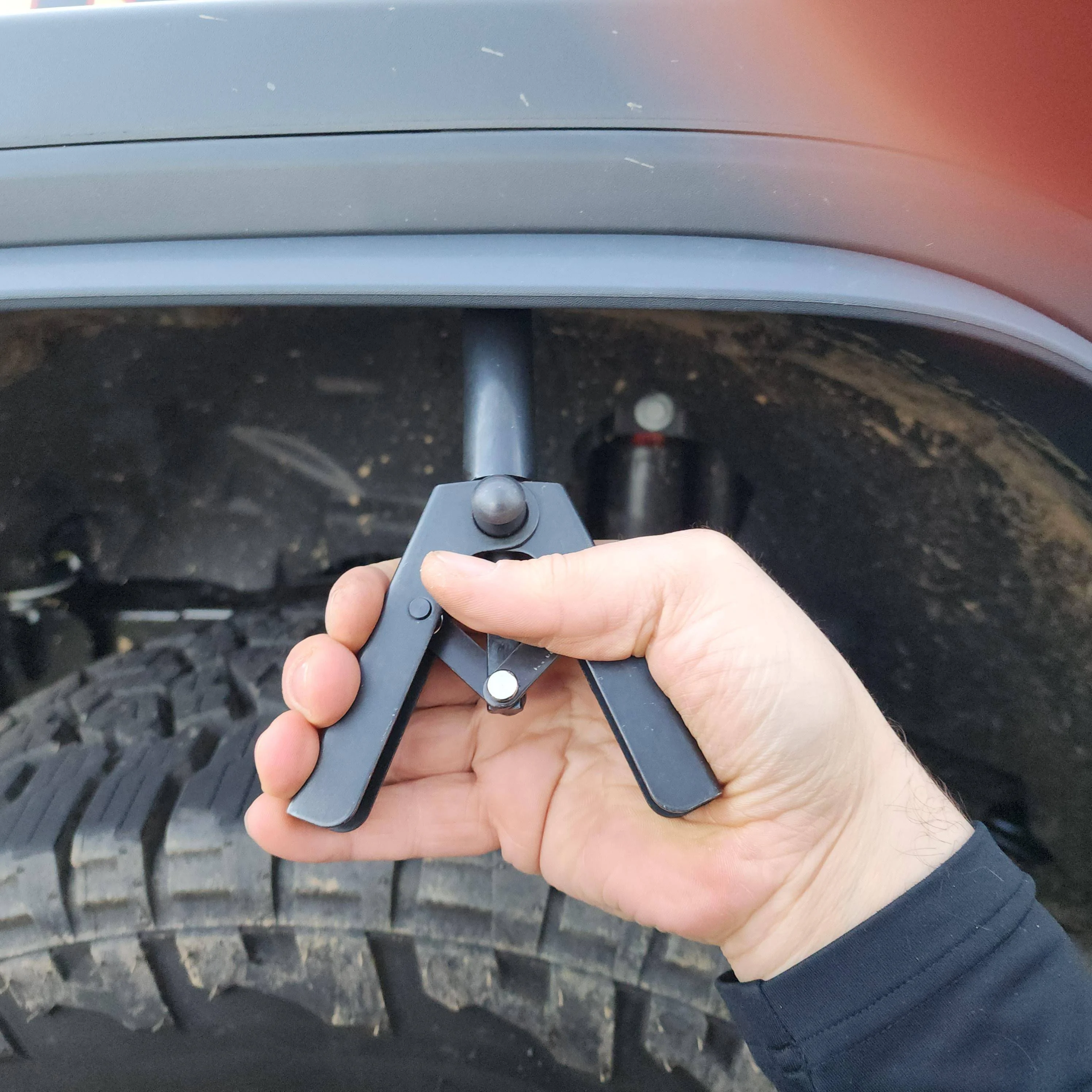

I have the 2x front flares, rivets, and tool. Trying to figure out what I want to do with the fronts, the rears I will be copying you, cause it looks mint. Lol



[Rkowalski]

I aligned the fronts to the bottom because I didn't want to add mud flaps....hope that helps. Rich



[KidBobot]

I kept the fronts "stock"/"factory" for a few of reasons....
1) I want to add RockBlokz mudflaps
2) I want to keep the truck as close to OEM as possible. So it looks congruous to a 392 / Xtreme Recon. Since the Gladiator's rear fenders are unique to the model, figure anything goes out back - but still looks factory.
3) The rivet holes were already there



[Duece McCracken]

Ignore my front left, rear right comment please. It's been a long day.

I didn't want to clutter this up too much, more pics in my build thread, in my sig, soon.







Well, they are installed, lmfao. Not my finest work, but it doesn't look bad from outside the wheel well, rofl!



[RMFSJT]

@Duece McCracken well done man thank you!
