36.69" according to tire size.com
Sponsored
Sponsored
37” spare tire - list of tires that fit under the bed
KurtP
Well-Known Member
hmm. Id jack the tire up and measure the circumference down the center of the tread and calculate diameter. I bet you come up right under 36” for your programmer.
TJDave
Well-Known Member
- First Name
- Dave
- Joined
- Oct 11, 2019
- Threads
- 17
- Messages
- 567
- Reaction score
- 1,097
- Location
- Eastern WA
- Vehicle(s)
- 2020 JTR
- Build Thread
- Link
- Occupation
- Motorized toy collector
I will do that. Thank you. The Tazer Mini should be arriving in the next few days.
Clayton Off Road
Summit Sponsor (Level 3)
- First Name
- James
- Joined
- Jan 27, 2020
- Threads
- 34
- Messages
- 777
- Reaction score
- 1,055
- Location
- Hamden, Ct
- Vehicle(s)
- 2018 JLUR
Yes! New track bar will be available for purchase at the end of this month, and will be shipping with all Ride Right, Overland Plus, and Premium Series suspension systems from now on
KurtP
Well-Known Member
Yes! New track bar will be available for purchase at the end of this month, and will be shipping with all Ride Right, Overland Plus, and Premium Series suspension systems from now on
Sponsored
hjdca
Well-Known Member
- Joined
- Oct 27, 2019
- Threads
- 9
- Messages
- 1,649
- Reaction score
- 2,337
- Location
- Southern California Mountains
- Vehicle(s)
- Jeep Gladiator Rubicon manual Sting Gray
- Build Thread
- Link

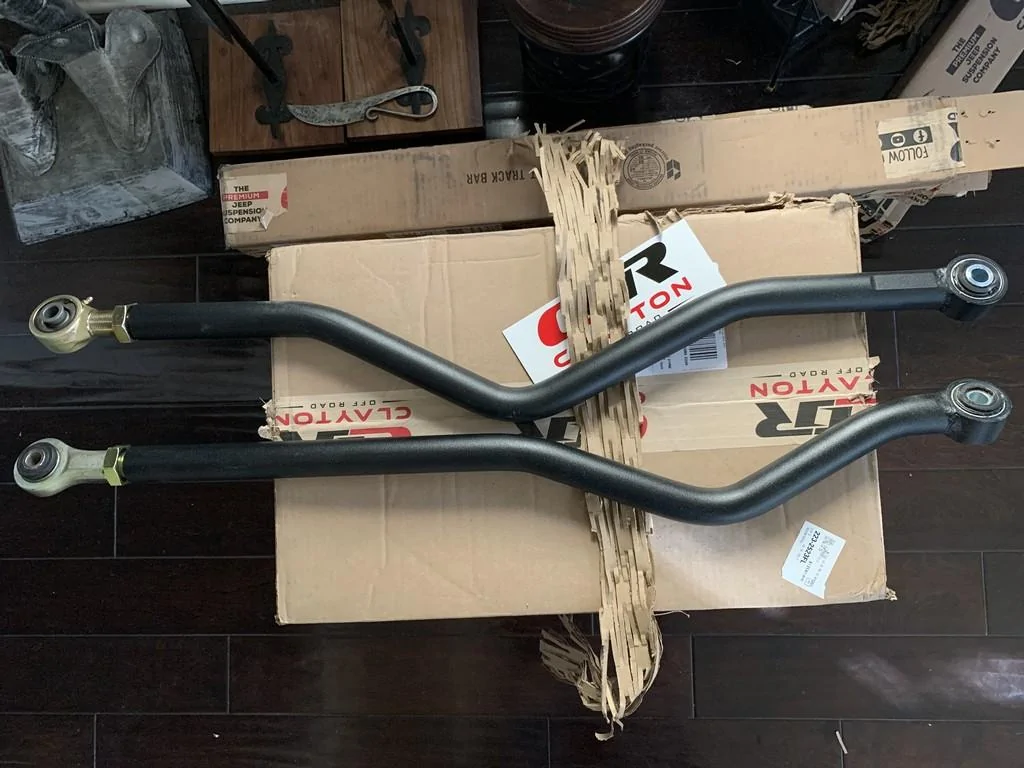

Here it is ! New Clayton Overland Plus kit front and rear trackbars. The new Rear track bar for the Gladiator to clear a 37" spare is on top of the pic. Definitely has a bend in it !! Yea !
KurtP
Well-Known Member
awesome. Just awesome. Pics once installed bro!!Here it is ! New Clayton Overland Plus kit front and rear trackbars. The new Rear track bar for the Gladiator to clear a 37" spare is on top of the pic. Definitely has a bend in it !! Yea !
darkhorse13
Well-Known Member
- First Name
- John
- Joined
- Jun 4, 2020
- Threads
- 40
- Messages
- 604
- Reaction score
- 882
- Location
- Castle Rock, CO
- Vehicle(s)
- 2020 JTR
- Occupation
- Data Analyst

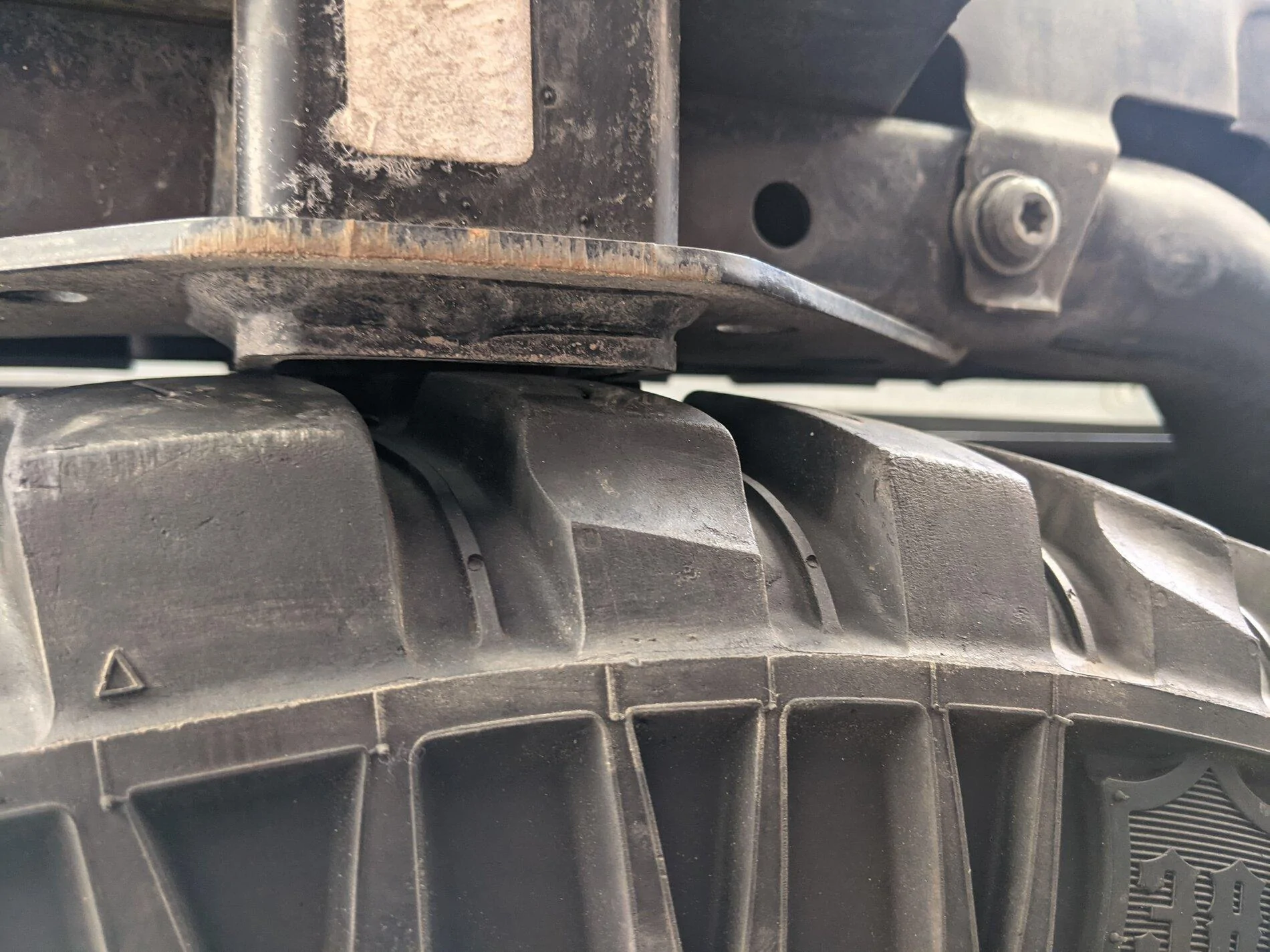

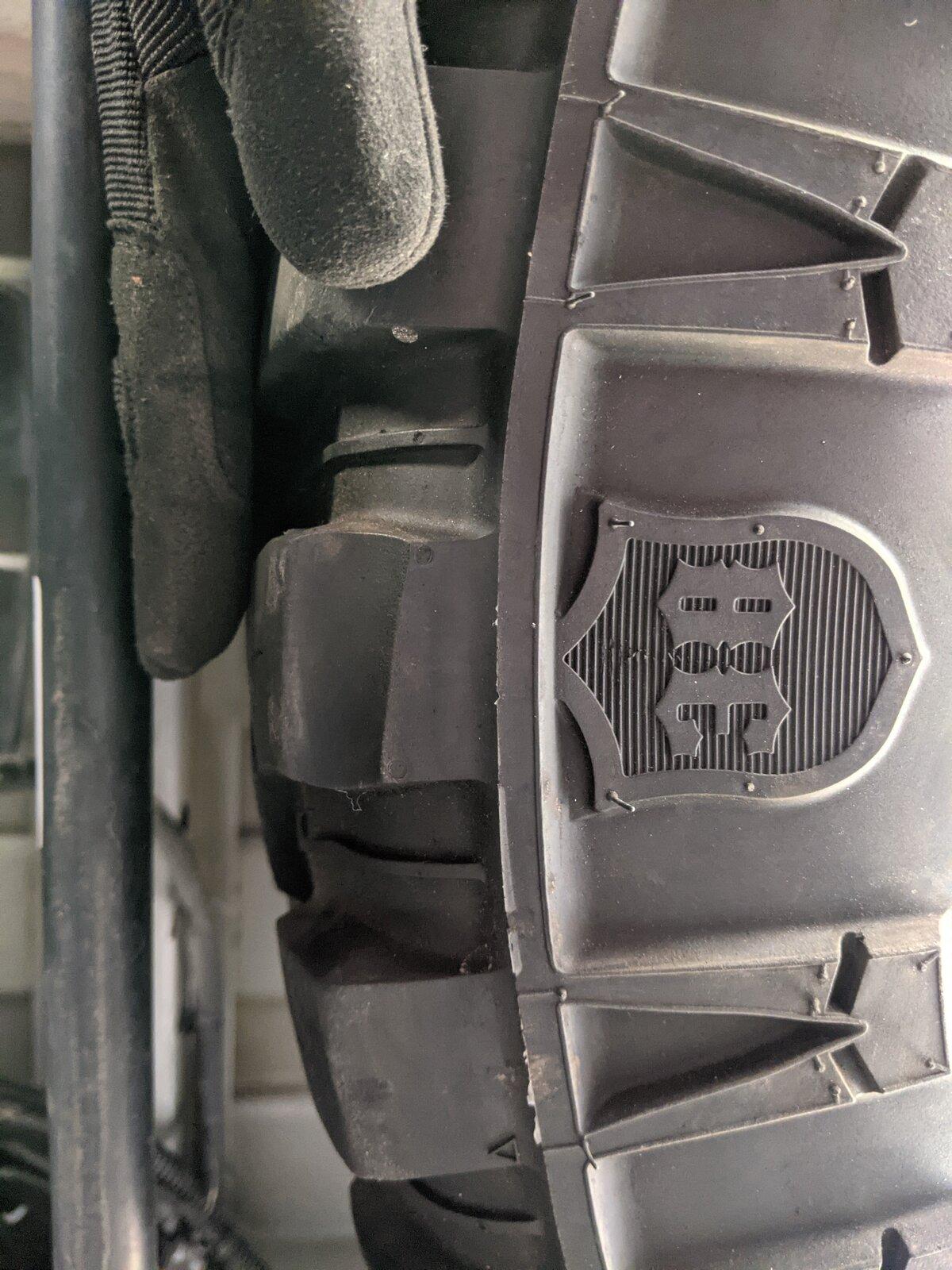

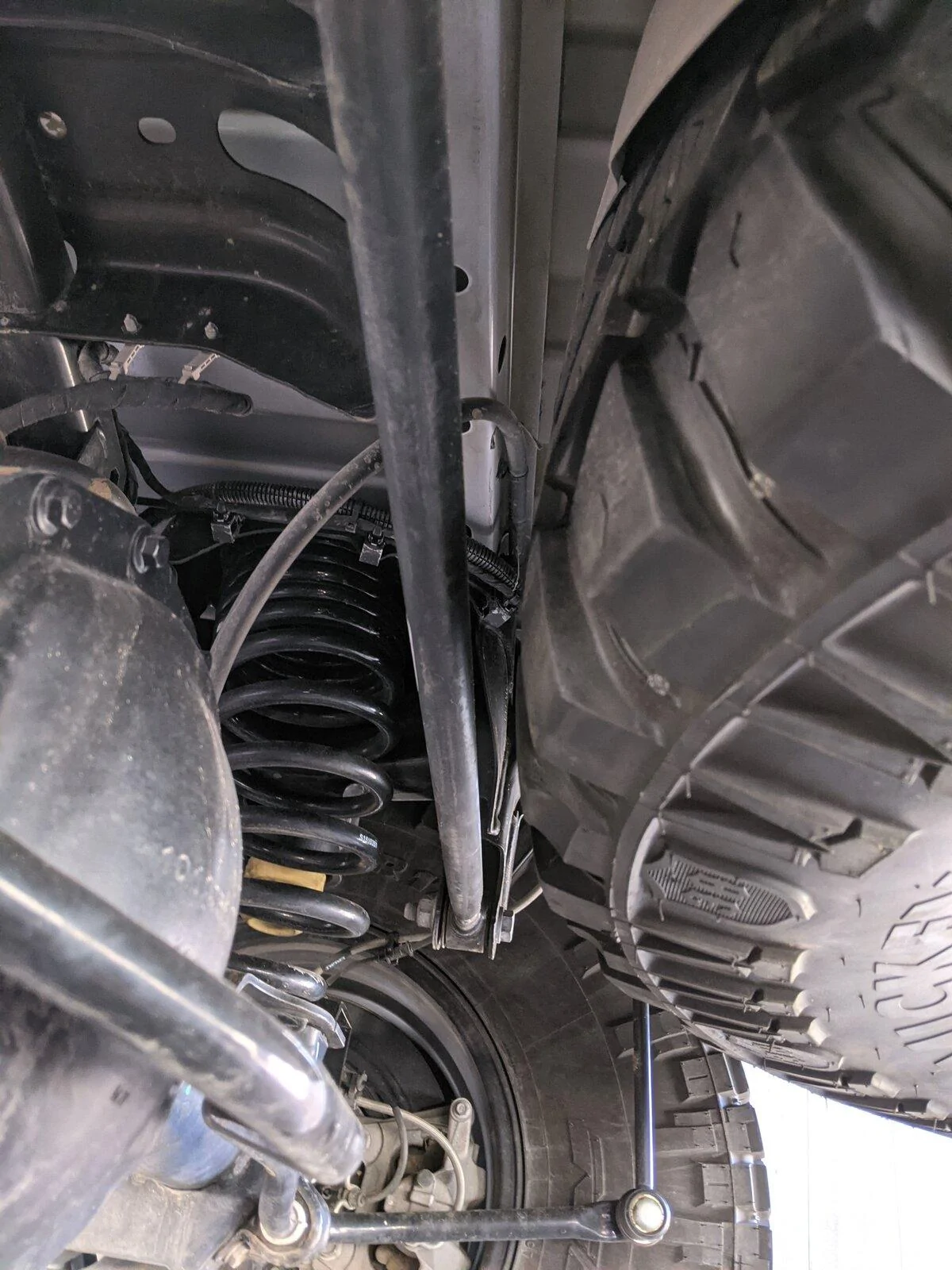

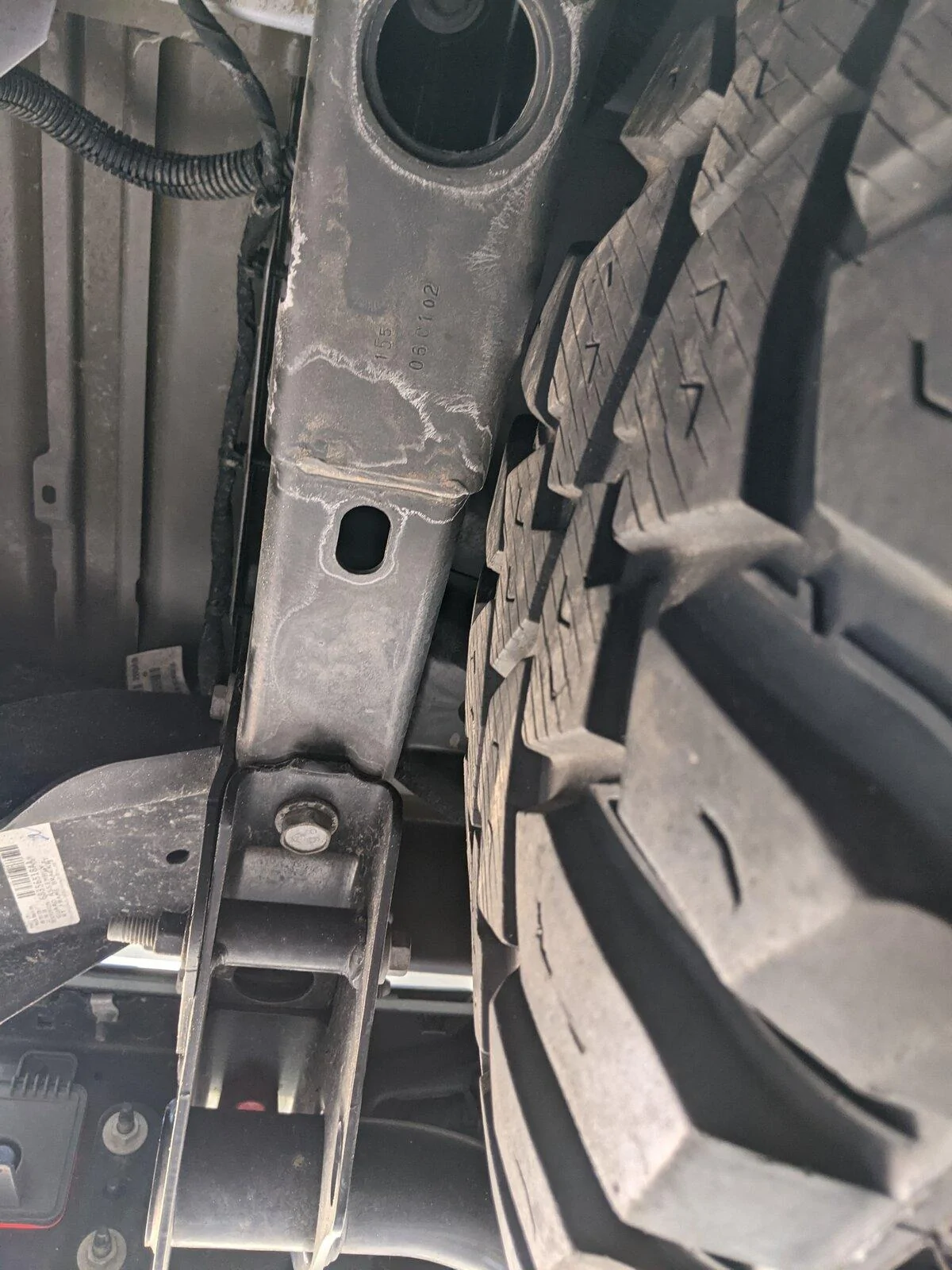

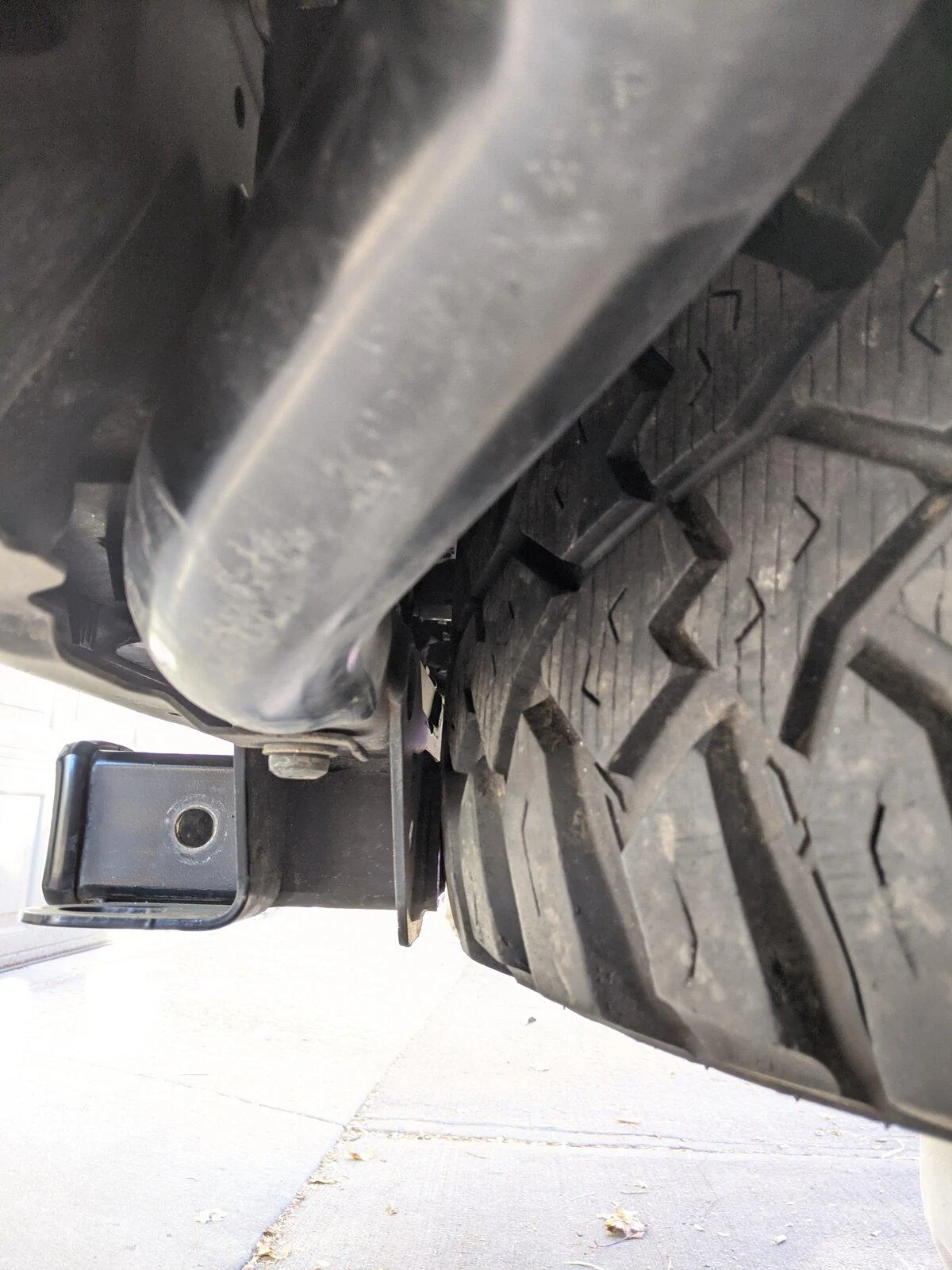

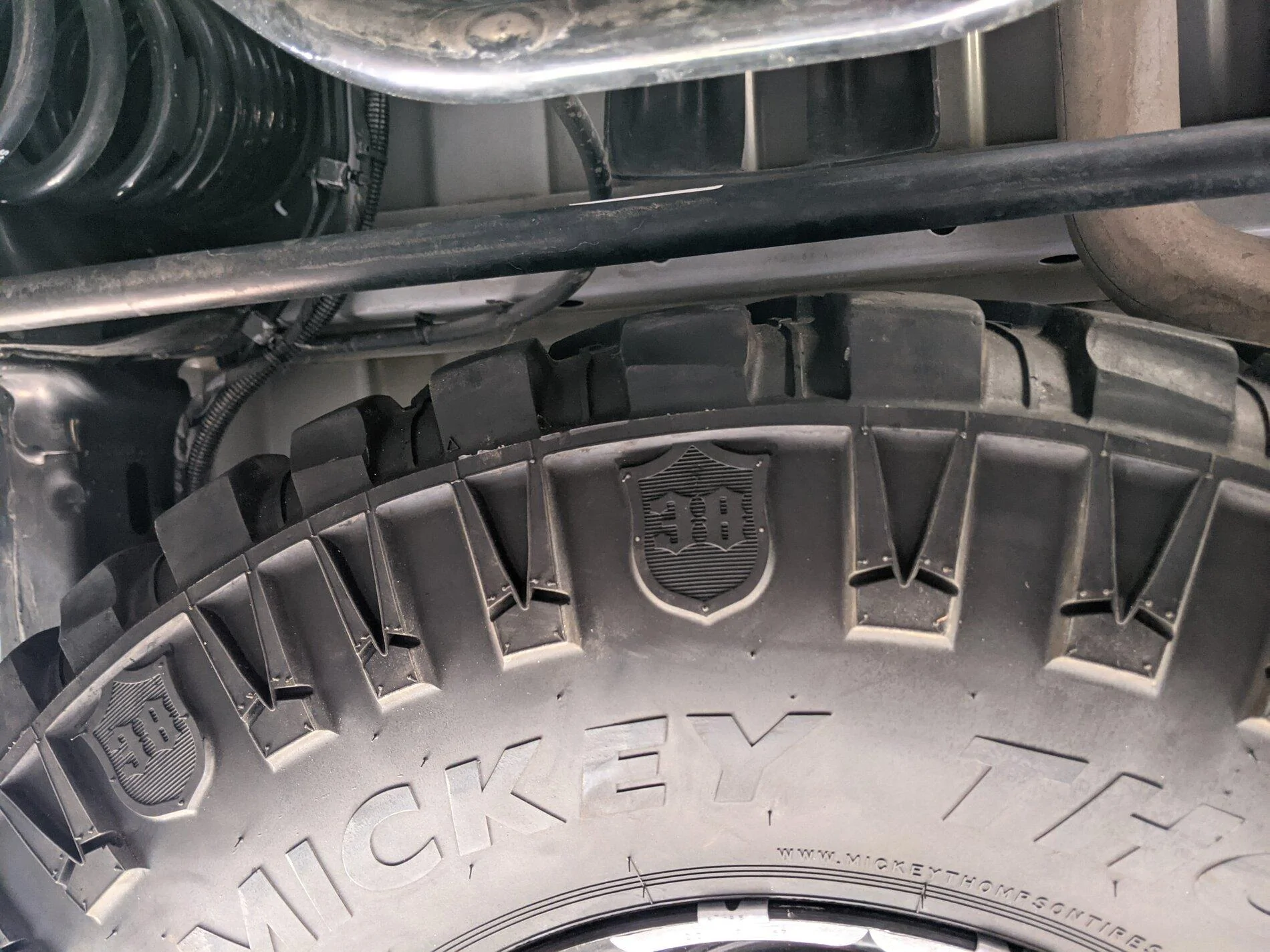

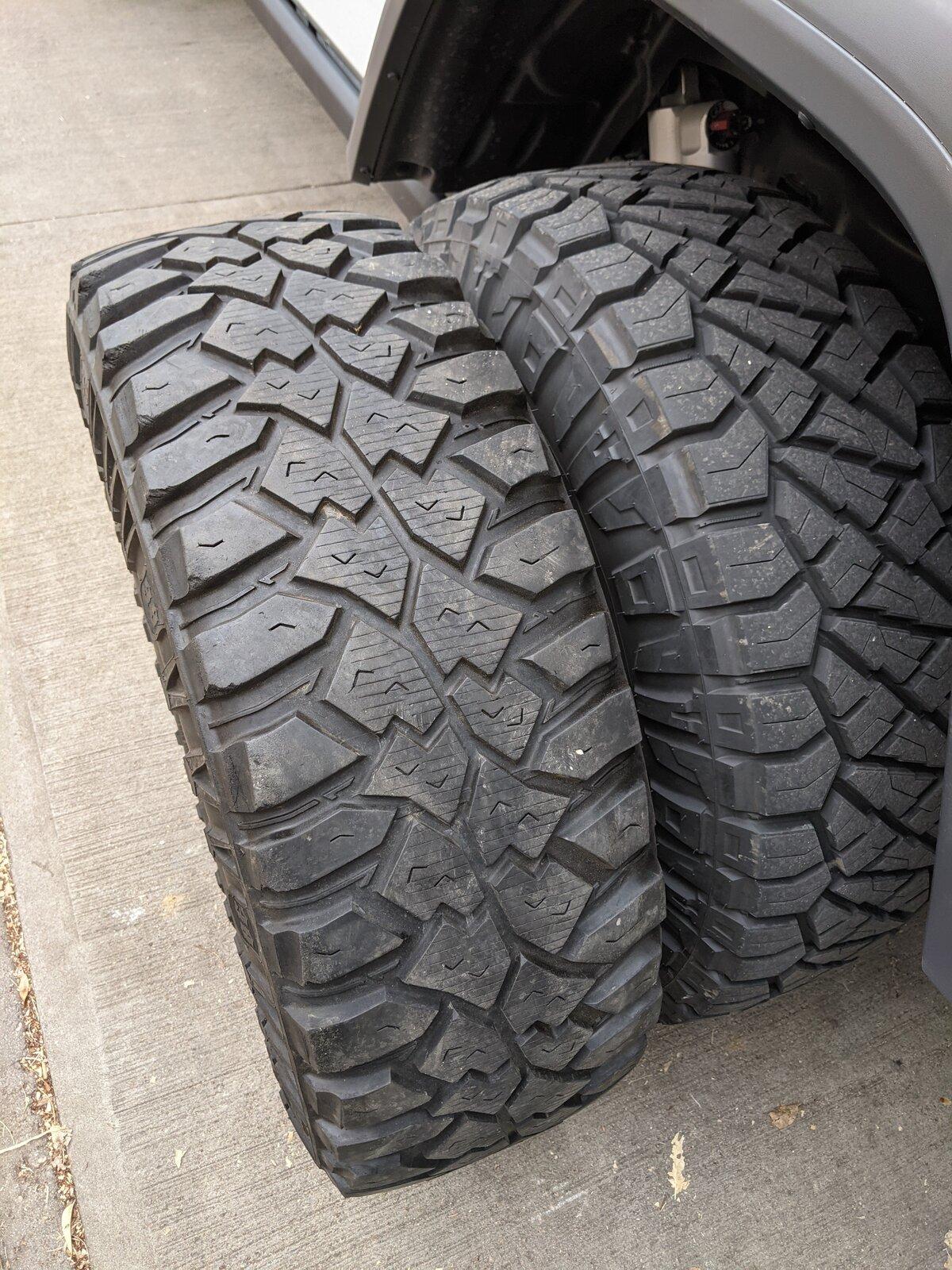

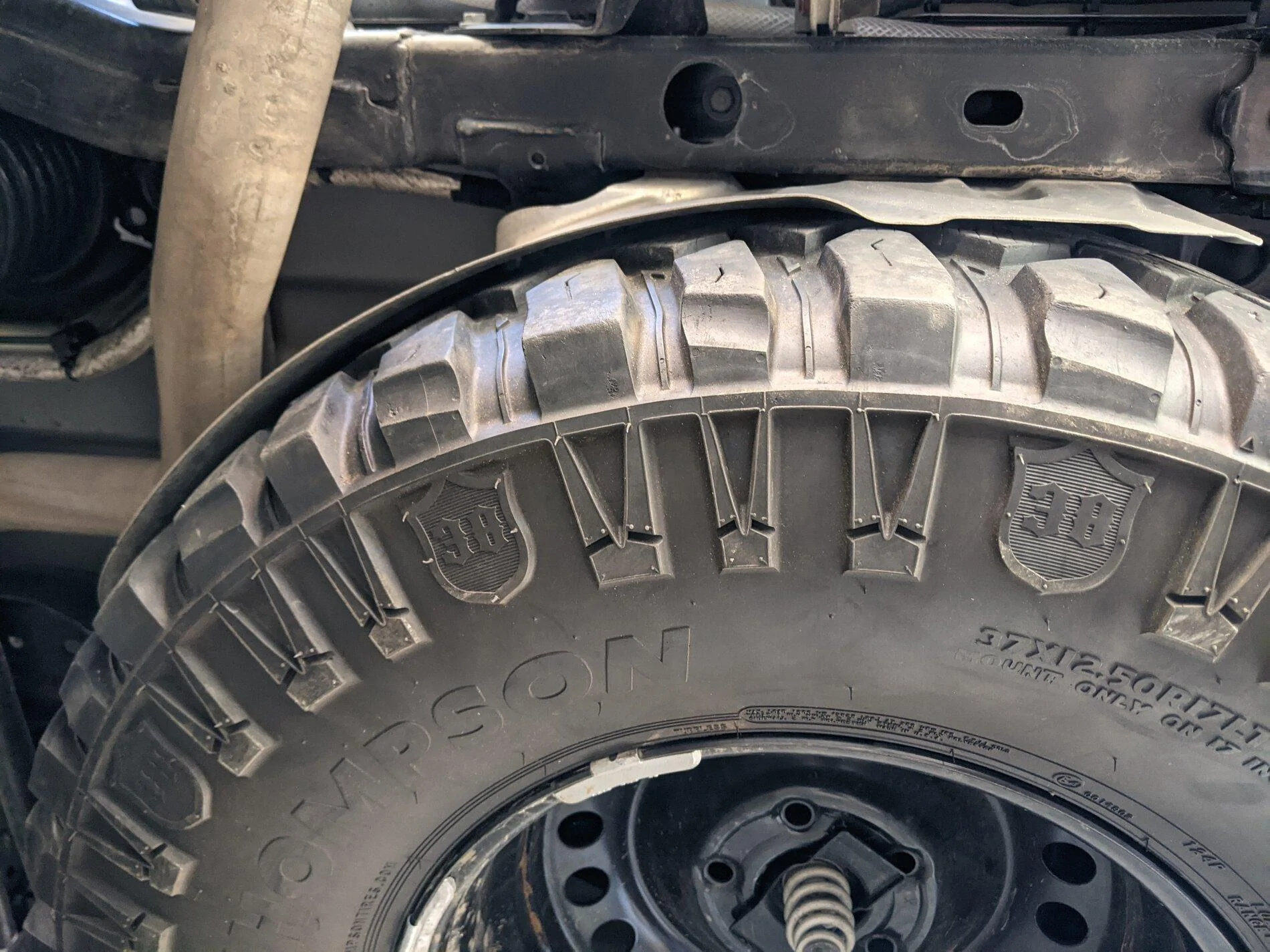

I found that a (used) Mickey Thompson Deegan "38" MT in 37x12.5x17 fits perfectly on an OEM steelie. There was no drama lifting it into place and it clears the track bar with flying colors. It touches the rear hitch but it's not "jammed" against it. Fits the frame rails as well. I wasn't expecting this nice surprise
Please note this is NOT a 38 inch tire... the model is a Deegan "38".
NOTES:
1) OEM steelie 17in
2) Mickey Thompson Deegan "38" Mud Terrain (37x12.5x17 Load D)
a. 10psi - I just picked a random low psi for install as I have an on-board compressor

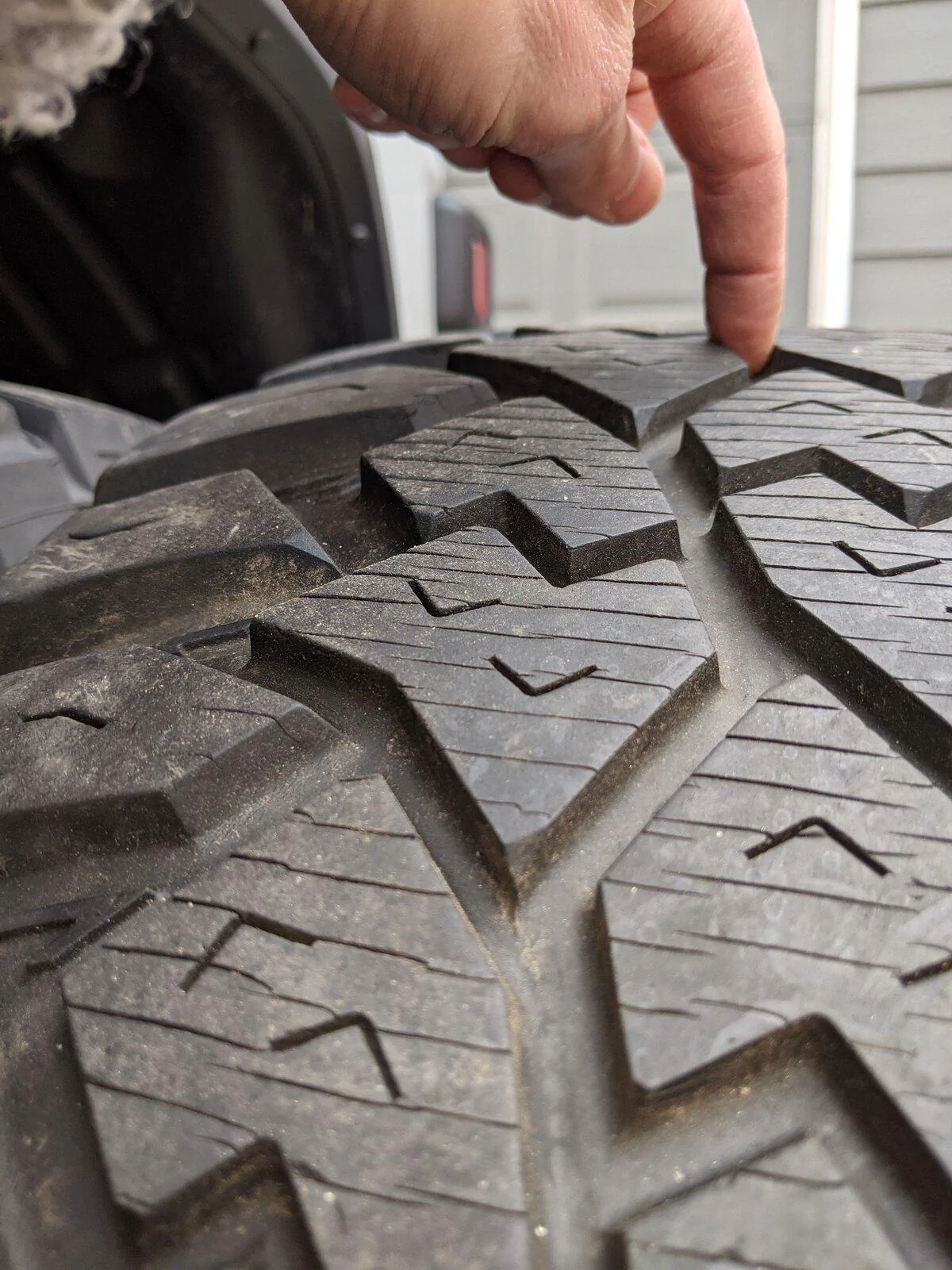

b. 10/32nd tread depth (~8mm).... yes it's a used tire but not bald by any means
3) dropped my rear Clayton springs by 1/4" of lift (guessing this wheel combo is ~130lb?)
Please note this is NOT a 38 inch tire... the model is a Deegan "38".
NOTES:
1) OEM steelie 17in
2) Mickey Thompson Deegan "38" Mud Terrain (37x12.5x17 Load D)
a. 10psi - I just picked a random low psi for install as I have an on-board compressor
b. 10/32nd tread depth (~8mm).... yes it's a used tire but not bald by any means
3) dropped my rear Clayton springs by 1/4" of lift (guessing this wheel combo is ~130lb?)
hjdca
Well-Known Member
- Joined
- Oct 27, 2019
- Threads
- 9
- Messages
- 1,649
- Reaction score
- 2,337
- Location
- Southern California Mountains
- Vehicle(s)
- Jeep Gladiator Rubicon manual Sting Gray
- Build Thread
- Link

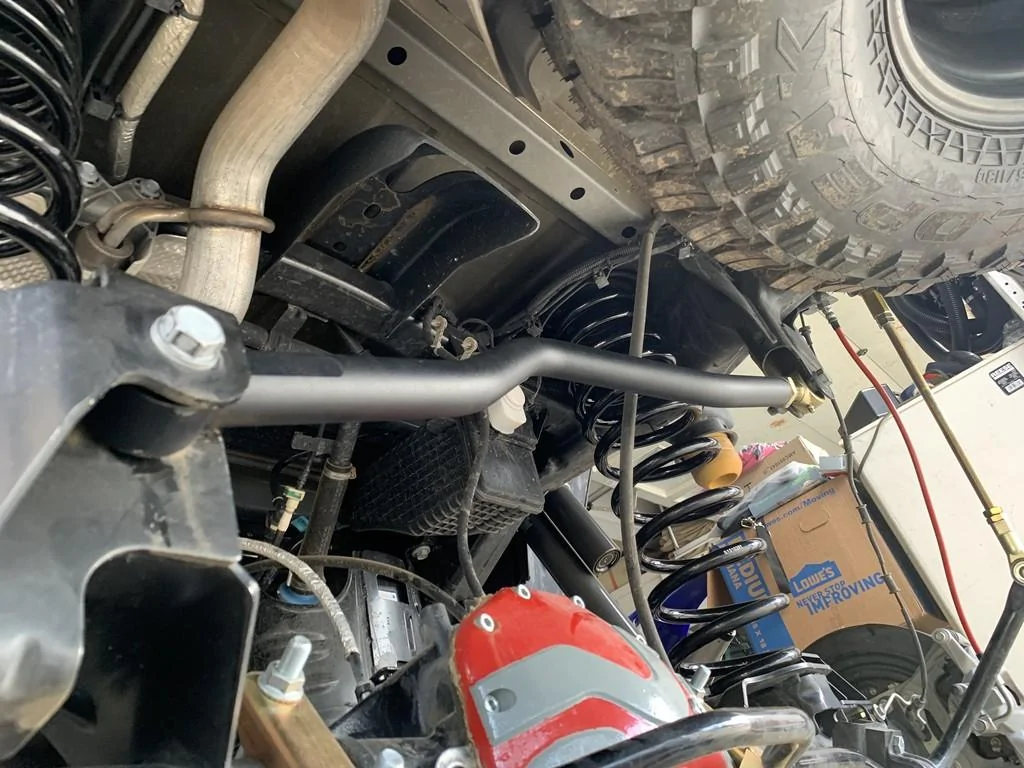

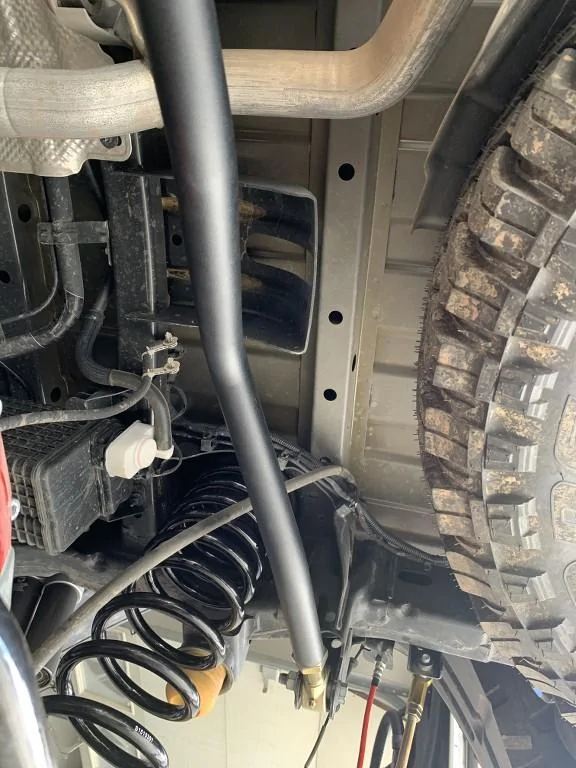

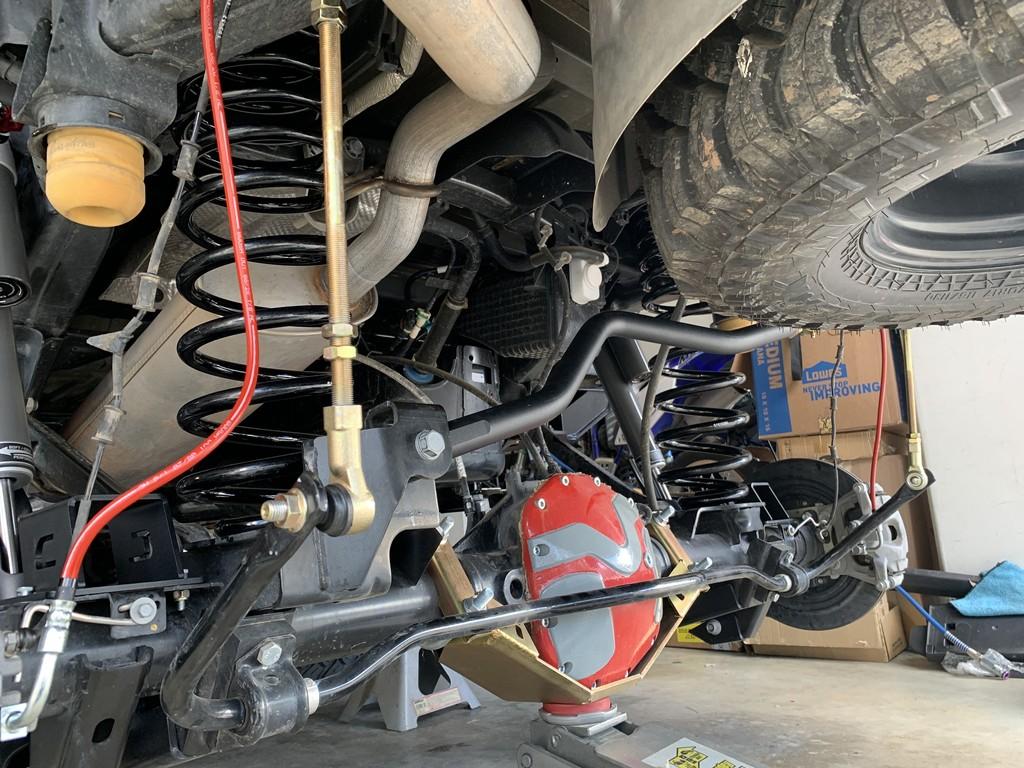

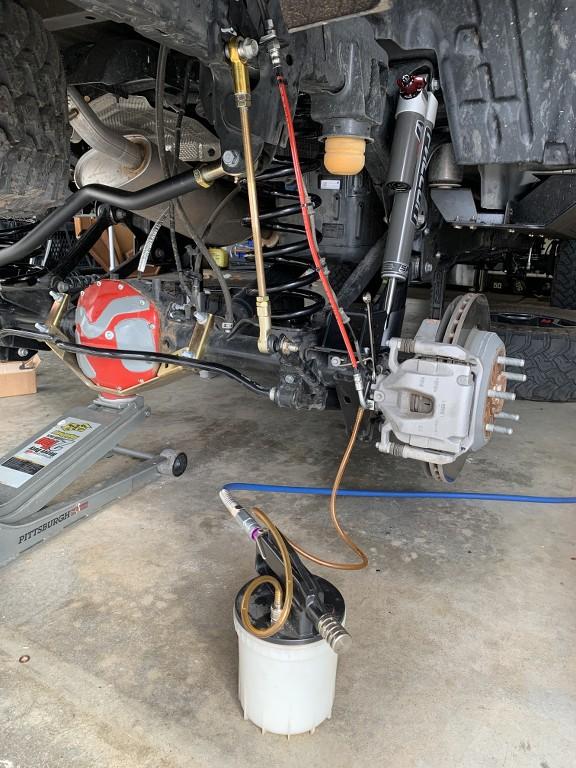

3.5" Clayton Overland Plus kit installed. Great Kit ! Top Quality. Here are some pics of the track bar installed, but, with my 33" spare. I will update in a few days when I get my 37s.
KurtP
Well-Known Member
awesome. Cant wait to see.3.5" Clayton Overland Plus kit installed. Great Kit ! Top Quality. Here are some pics of the track bar installed, but, with my 33" spare. I will update in a few days when I get my 37s.
Sponsored
Wildcatcott
New Member
37/12.50/r17 Patagonia m/t on ICON Compression wheels fit under the bed.
reverse01134
Well-Known Member
So I just fit Patagonia 37x12.50r17. 17x8.5 wheel. I aired it down to 10 psi.

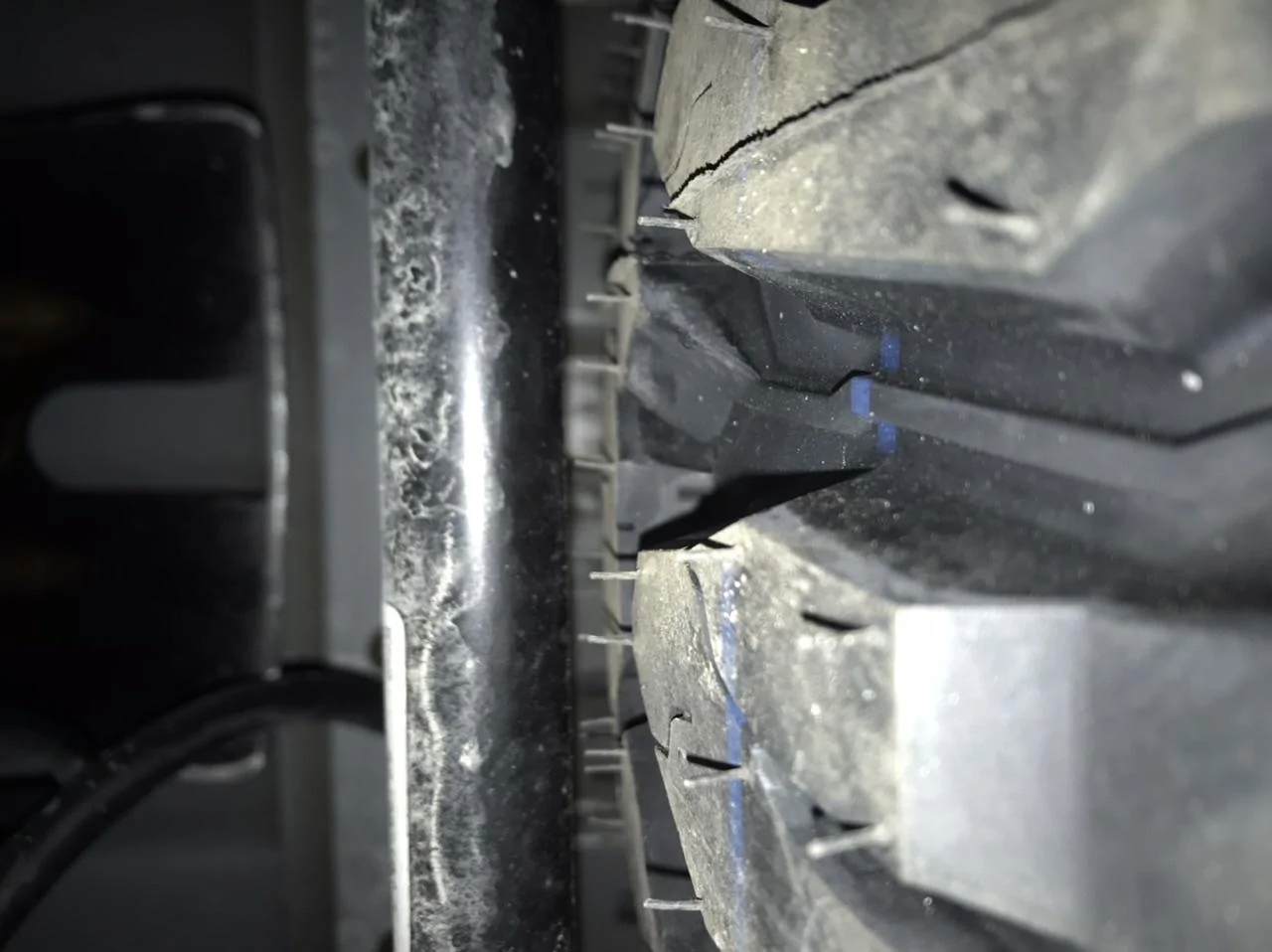

With that, the tire has 1/4" gap to the track bar. Is this OK?
I don't know the suspension mechanism and how track bar moves.
With that, the tire has 1/4" gap to the track bar. Is this OK?
I don't know the suspension mechanism and how track bar moves.
RedRaptorJT
Well-Known Member
- Joined
- Aug 24, 2020
- Threads
- 2
- Messages
- 78
- Reaction score
- 72
- Location
- Toronto, Canada
- Vehicle(s)
- JTR Launch Edition
Does anyone know if a Goodyear Wrangler MT/R 37x12.5x17 mounted on the OEM steel wheel will fit? Online specs show the overall diameter to be 36.8".
Marine2947
Well-Known Member
Looking to get some Black Rhino Dugger wheels (17x8.5 w/ 4 inch backspace) with some 37x12.5 Nitto ridge grapplers. Is that a good fit? The tire stuff kinda confuses me.
hjdca
Well-Known Member
- Joined
- Oct 27, 2019
- Threads
- 9
- Messages
- 1,649
- Reaction score
- 2,337
- Location
- Southern California Mountains
- Vehicle(s)
- Jeep Gladiator Rubicon manual Sting Gray
- Build Thread
- Link
The Goodyear Wrangler MTR Kevlar 37x12.5x17 will clear the new Clayton Track bar, but, it will not fit in between the frame rails on a 17 x 8.5 Method bead grip rim. We (the guys at Discount/America's tire and me) could not get it to fit flat on the bottom of the bed mount - even with 6 psi. In the end, I decided to just use the Patagonia MT 37" as a spare because you can squeeze it between the frame rails at 8 psi or so on a 17x8.5 rim. I really wanted the spare flat against the bed mount.
So, I have 4 Goodyear 37 inch MTRs with a Patagonia 37 inch MT spare.
