Justinswidebody
Well-Known Member
- Thread starter
- #646
Alright I'll keep the full squares. Do you all think they should be more rounded? Or keep it the same?
Sponsored
Sponsored
Building my own flush tail lights
- Thread starter Justinswidebody
- Start date
- Watchers 69
Benbean66
Well-Known Member
Maybe round the corners a little? The whole truck is fairly boxy with tight radius curves all over.
USMC_1Wire6337
Well-Known Member
Is this still for fun and mad money, or do you think you might scale this up at some point? Either way, I would pick either the most popular option from feedback or the easier to produce for quality and ease of print/assembly.
Justinswidebody
Well-Known Member
- Thread starter
- #649
I'm having fun at the moment...
The easiest to produce are the first version....
But now getting blind spot detection involved changes everything for me.....
First version will be in production soon.... Just not sure if I'll be able to offer blind spot compatibility immediately.
Can't use the 3/4 side markers with blind spot sensors....
amoyer_01
Well-Known Member
- First Name
- Andrew
- Joined
- Dec 14, 2021
- Threads
- 22
- Messages
- 308
- Reaction score
- 192
- Location
- Richmond, VA
- Vehicle(s)
- Jeep Gladiator Willys
I have 2 other thoughts for you. Both I think are pretty simple ideas. Just throwing out additional ideas, maybe spur some other ideas you might have.
The first is a stretched out "E" shape to wrap the side but not a full ring.
The second used the full ring on only the back but then the top and bottom leg extends to the side. I was thinking the right portion would be running light and the the left portion would light up with the break also. I broke it up so sequential could work similar to your previous sequence sketch.
The first is a stretched out "E" shape to wrap the side but not a full ring.
The second used the full ring on only the back but then the top and bottom leg extends to the side. I was thinking the right portion would be running light and the the left portion would light up with the break also. I broke it up so sequential could work similar to your previous sequence sketch.
Sponsored
WanderingJ
Well-Known Member
- First Name
- Jay
- Joined
- Sep 22, 2022
- Threads
- 7
- Messages
- 228
- Reaction score
- 270
- Location
- New York - Alb
- Vehicle(s)
- 2023 JT Blue Overland - Prev, 2014 Polar JKU
- Occupation
- contract manager
I think Im liking the one thats a mix of the V1 design with the led strip down the side. trying to picture these on other color JT's. Question regarding your P1P. Are you running that auto material system? Do you have to change filaments each time to do the clear/red. or can you have them all loaded up and the system can print mulit colors
Justinswidebody
Well-Known Member
- Thread starter
- #652
I have 2 other thoughts for you. Both I think are pretty simple ideas. Just throwing out additional ideas, maybe spur some other ideas you might have.
The first is a stretched out "E" shape to wrap the side but not a full ring.
The second used the full ring on only the back but then the top and bottom leg extends to the side. I was thinking the right portion would be running light and the the left portion would light up with the break also. I broke it up so sequential could work similar to your previous sequence sketch.
I like these!!! I'm waiting for some other style LEDs to come in to test... Also I need to do a few design changes so I can make a deeper pocket for the LEDs to hide them.
Justinswidebody
Well-Known Member
- Thread starter
- #653
Alright, so I have 3 p1p's and 1 x1c.
My x1c has the "ams" automatic material system.
I could have 4 different color filaments in it or 4 different kinds of filaments and it will print whatever filament you want it to print with. I mainly use the x1c with the ams whenever I'm at work and get a chance to redesign.... If I think it's a prototype that will need a lot of edits, I will choose PLA material... If I feel it's close, I will choose abs or asa ....
But I just use 2-4 printers at once to make time go by faster lol.
Justinswidebody
Well-Known Member
- Thread starter
- #654

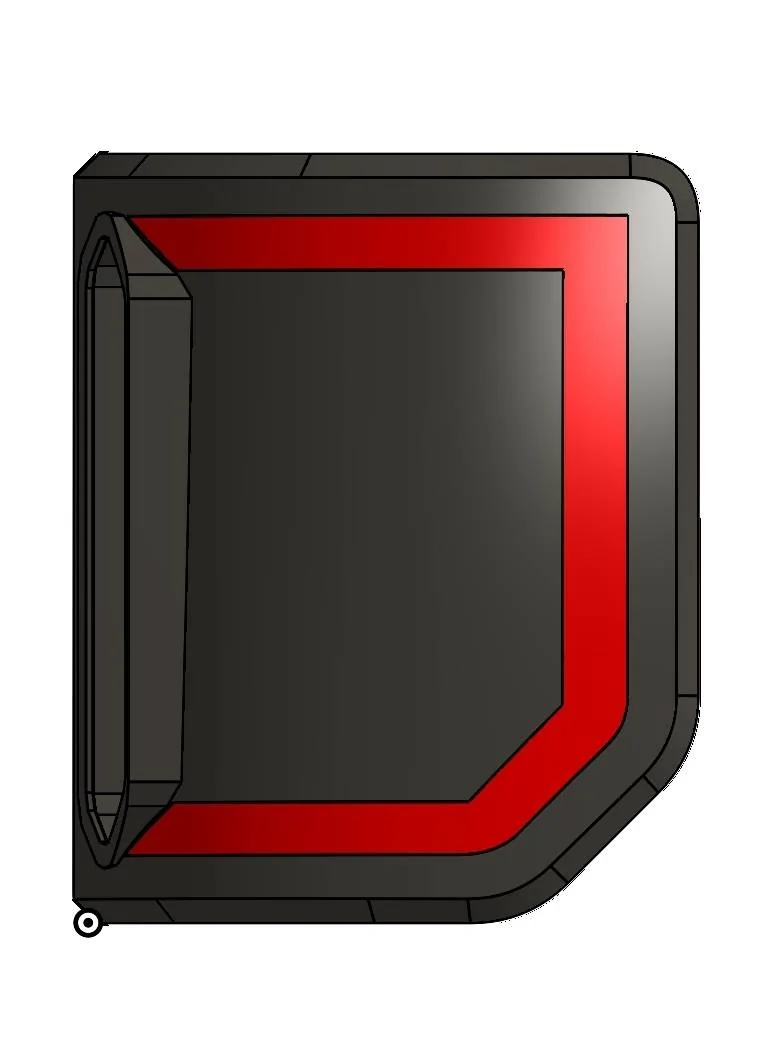

Thoughts???
USMC_1Wire6337
Well-Known Member
Looks great!??
Sponsored
Justinswidebody
Well-Known Member
- Thread starter
- #656

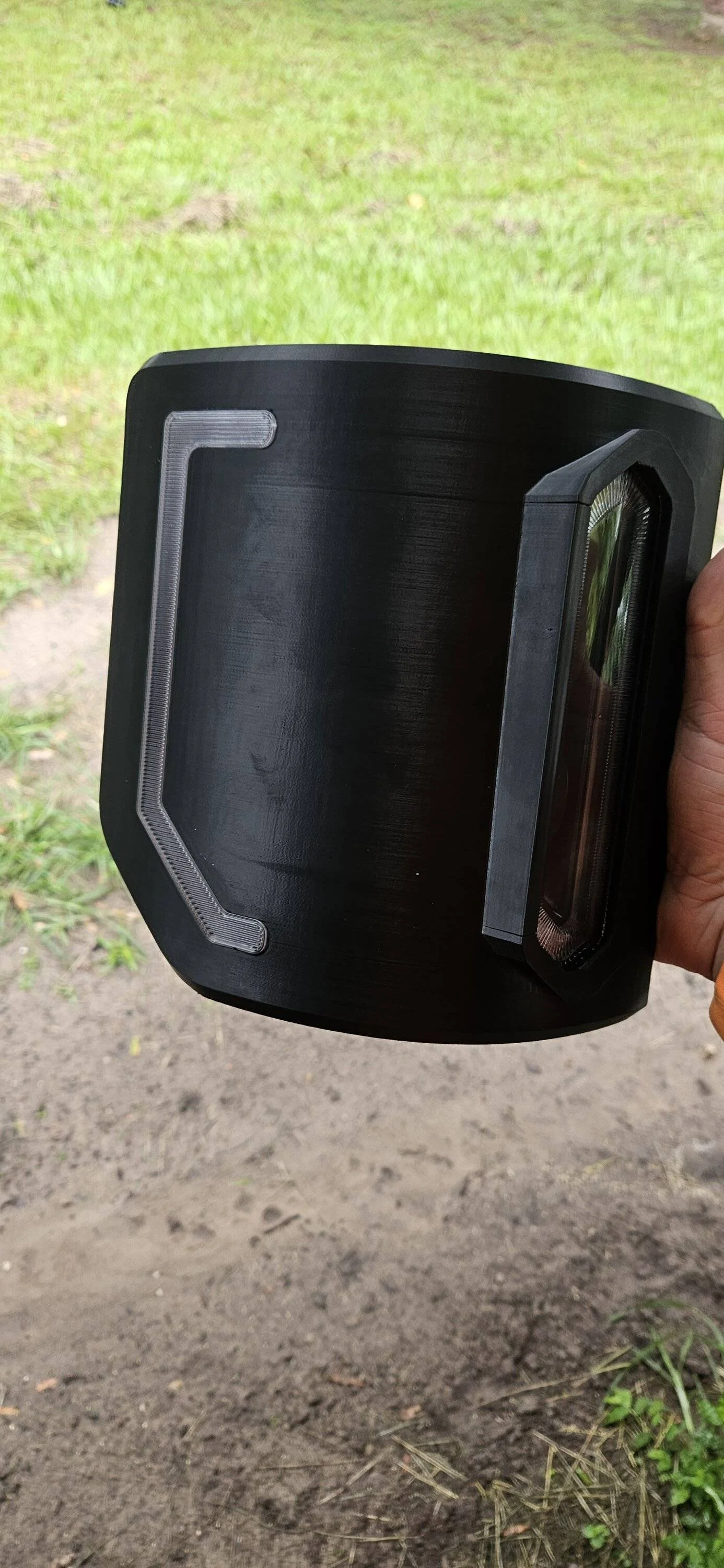

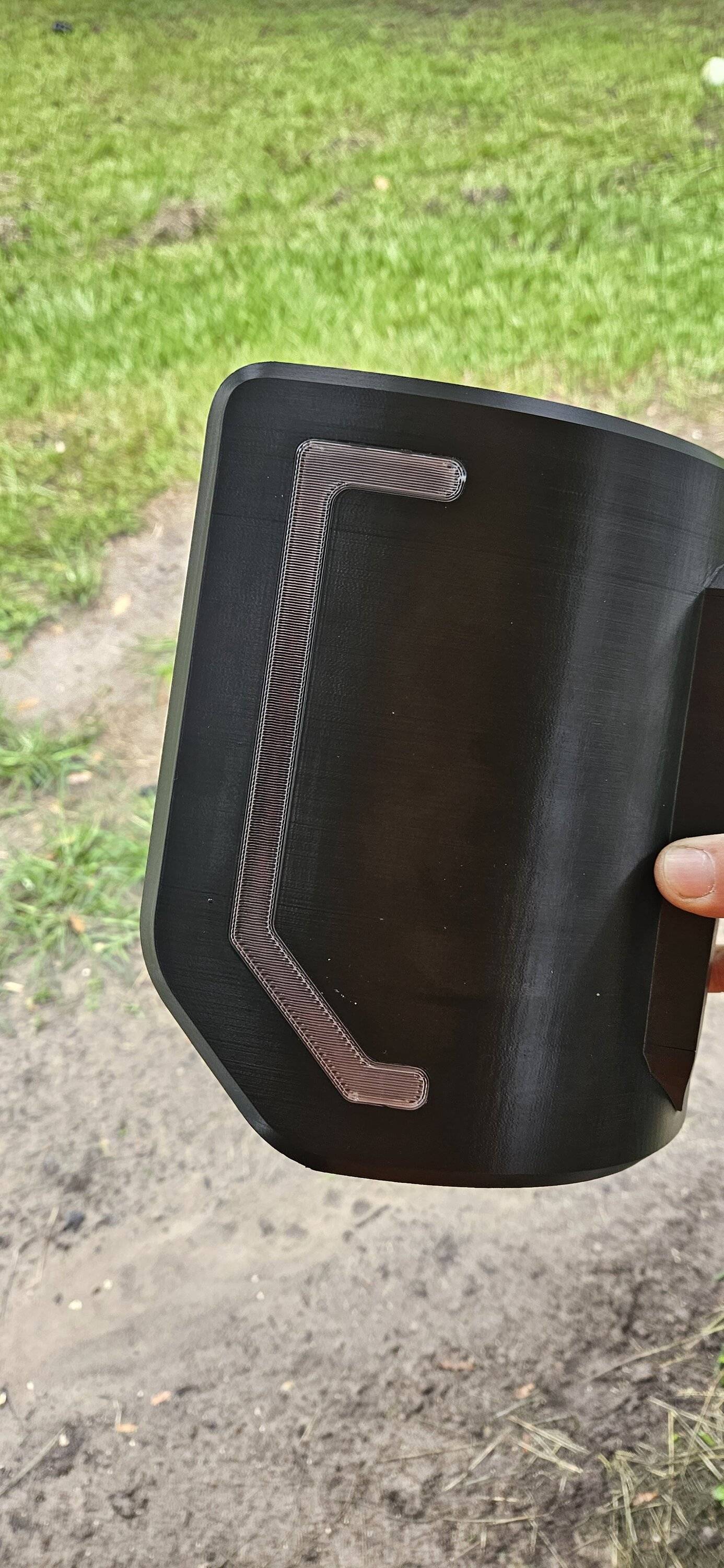

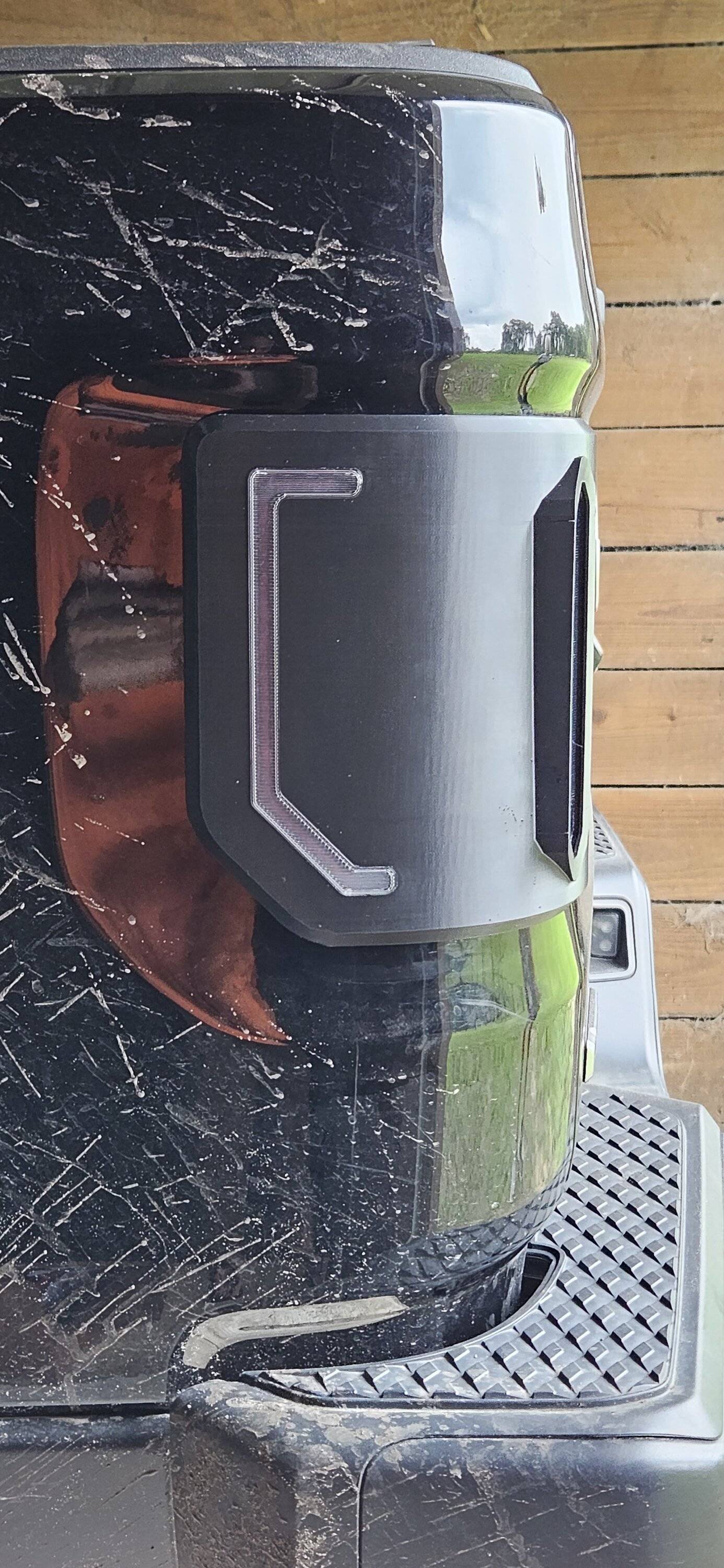

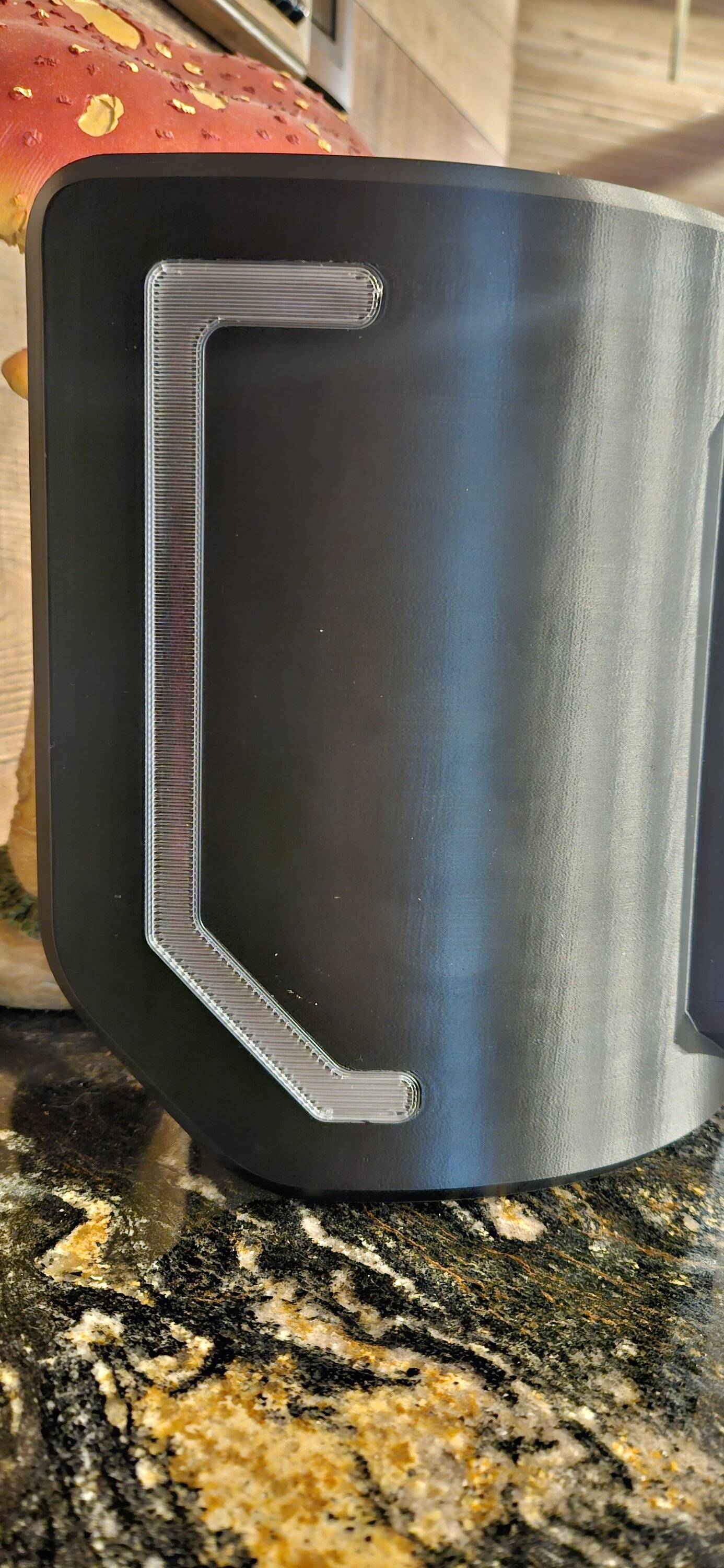

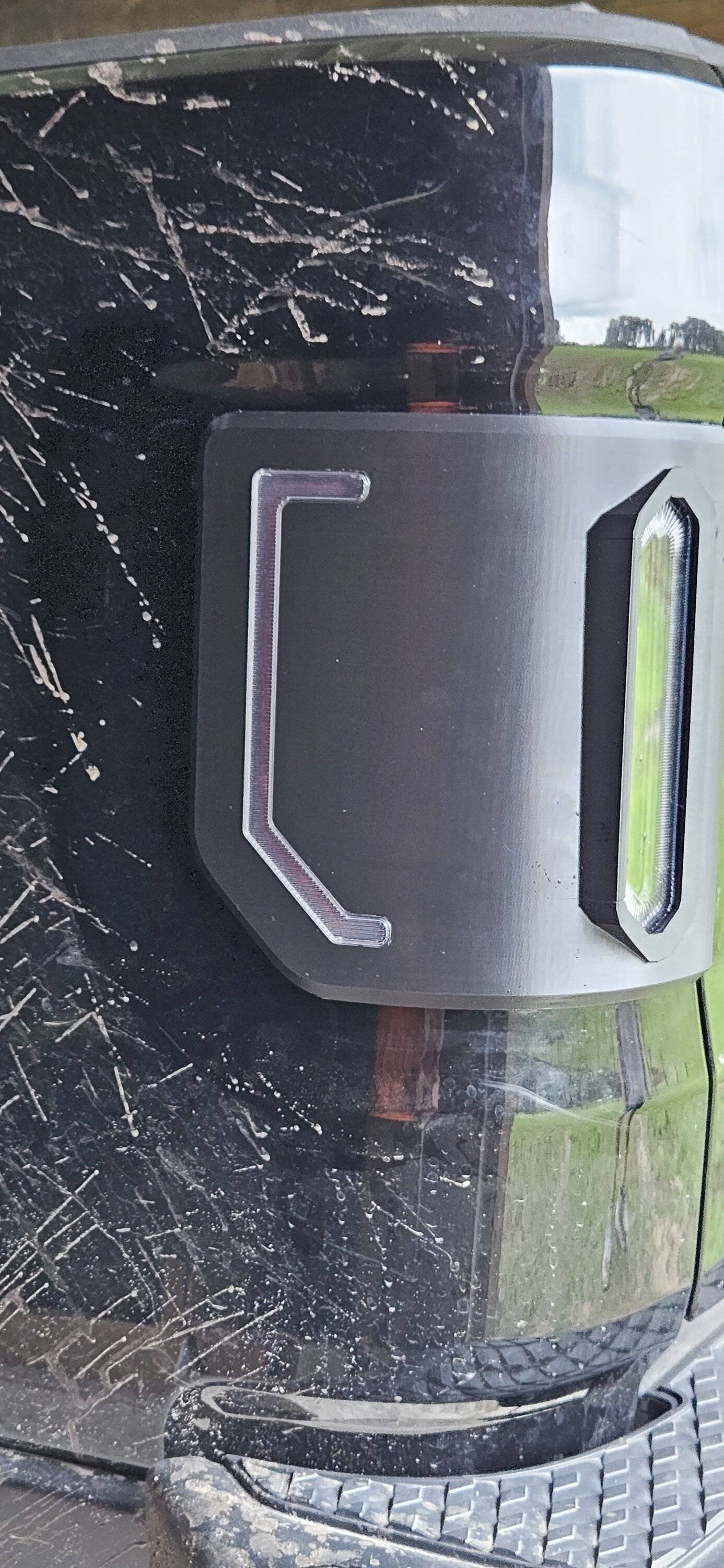

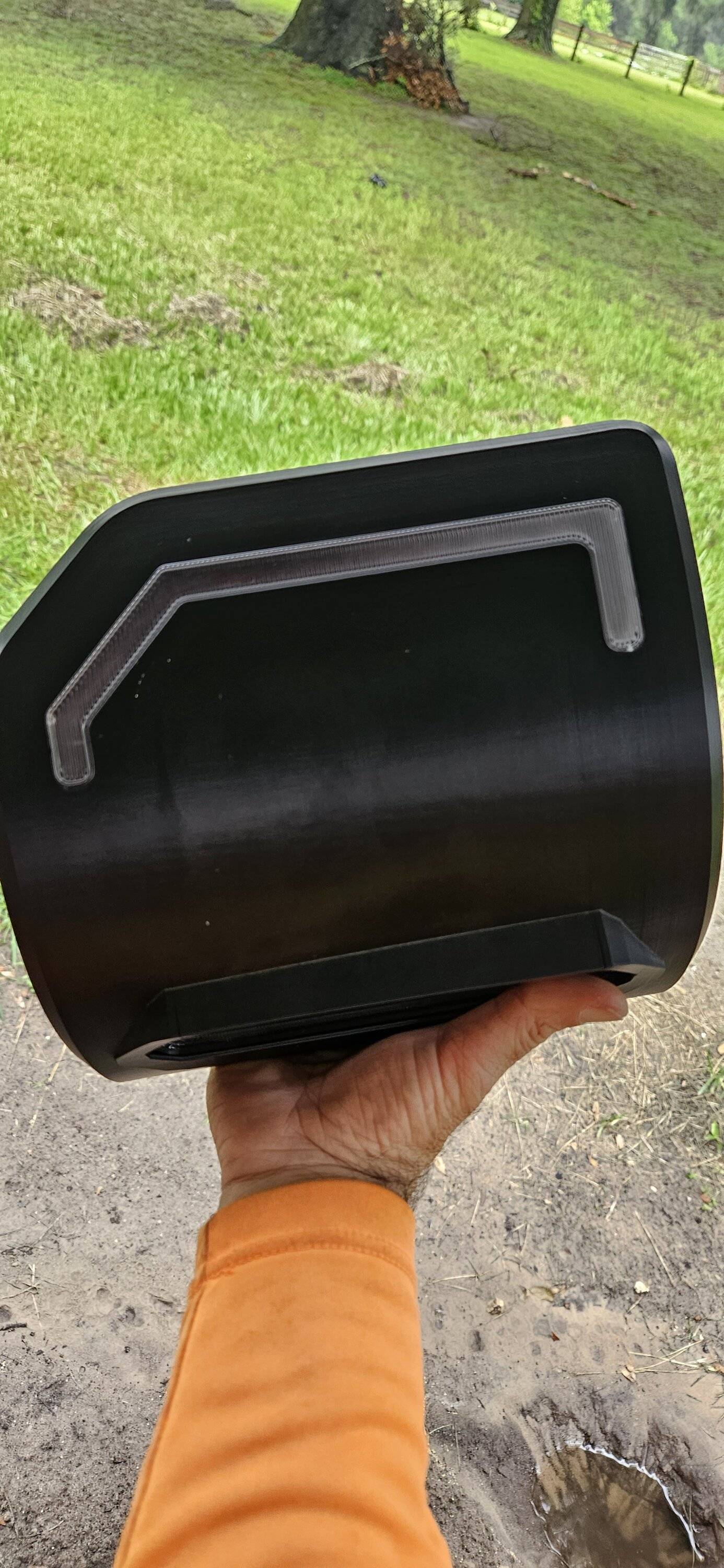

Reprinted the lens where it would match the lens on the light.... To me it looks 1,000 times better! And why yes I did smoke it too
Justinswidebody
Well-Known Member
- Thread starter
- #657
USMC_1Wire6337
Well-Known Member

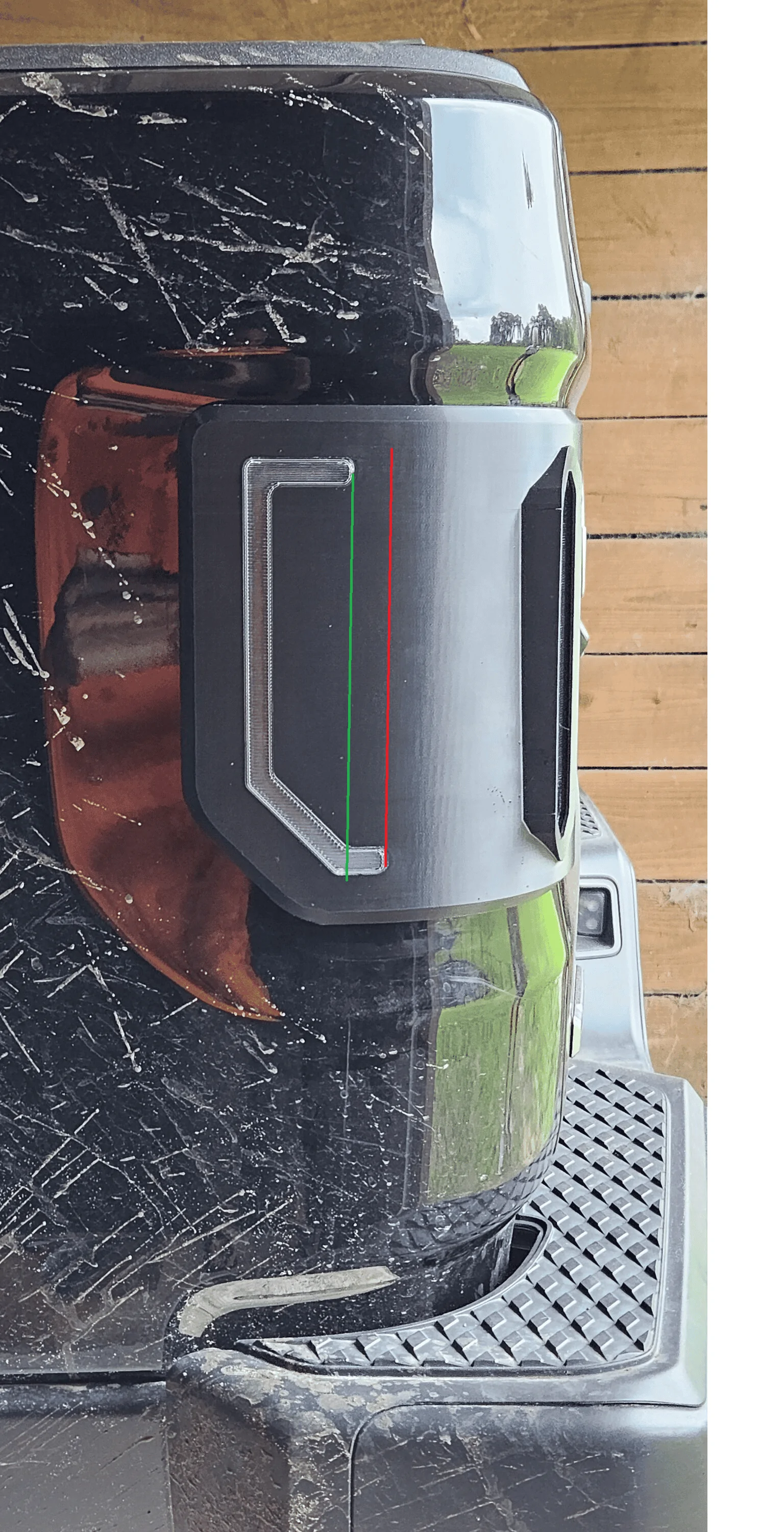

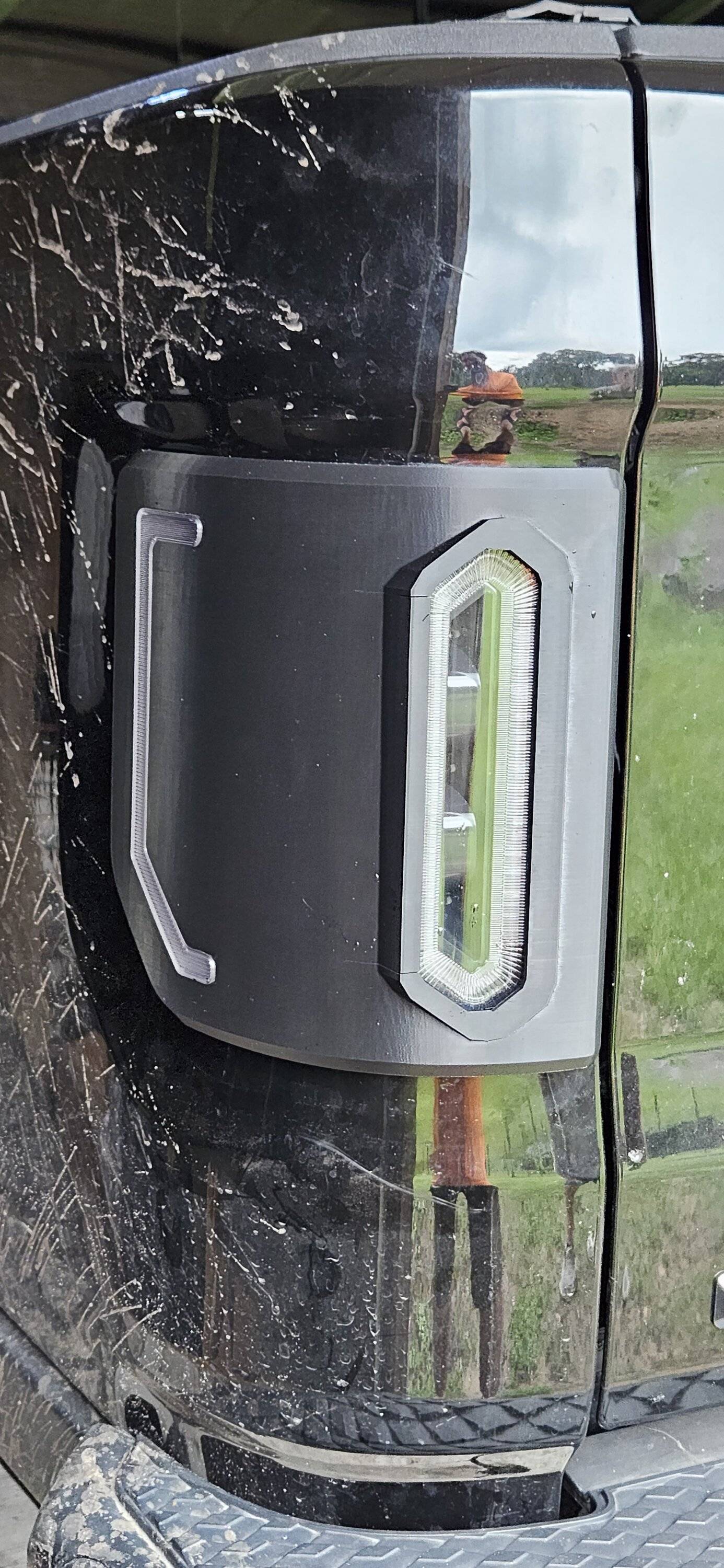

I think my need for symmetry (borderline OCD?) is playing tricks on me. I think the side marker might either need to be longer on top or shorter on the bottom. Maybe it's just me though...Reprinted the lens where it would match the lens on the light.... To me it looks 1,000 times better! And why yes I did smoke it too
Justinswidebody
Well-Known Member
- Thread starter
- #659
Lol I still think it needs to wrap all the way around and meet the lightI think my need for symmetry (borderline OCD?) is playing tricks on me. I think the side marker might either need to be longer on top or shorter on the bottom. Maybe it's just me though...
Justinswidebody
Well-Known Member
- Thread starter
- #660
