PC bodge done:

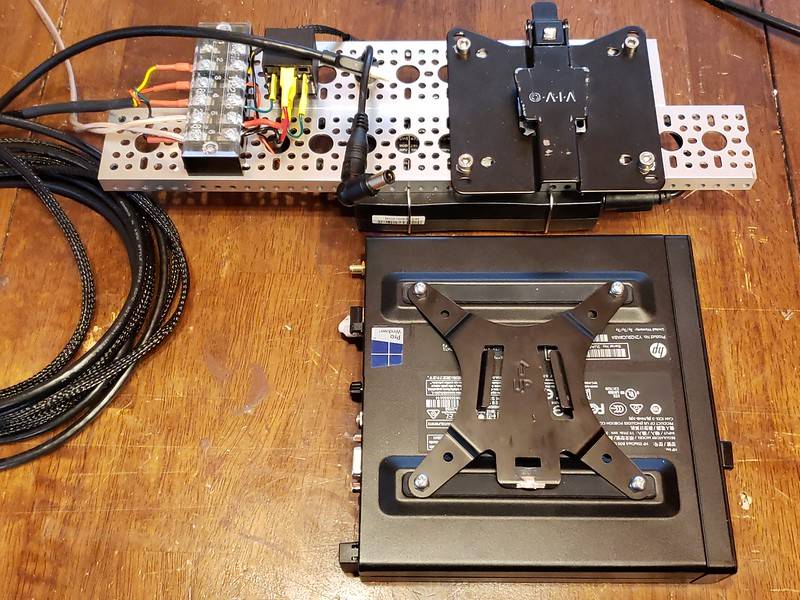

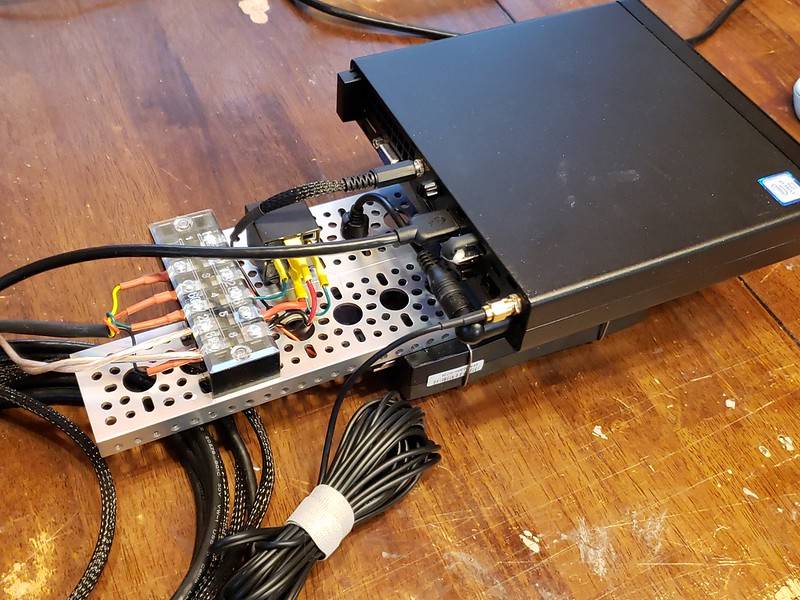

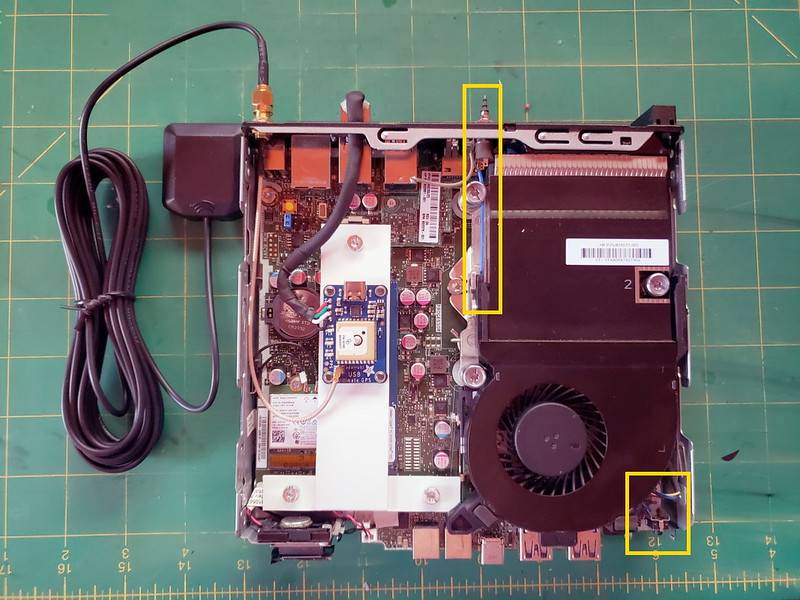

I connected a socket to the front panel on/off/reset switch (yellow boxes.) This will be extended to the monitor location so I don't need to reach under the seat to turn on the computer.

I installed the GPS reciever where the hard drive would normally go. it's mounted on a shelf made with styrene plastic. The reciever is wired to use an external antenna. I also soldered up the USB plug to keep things reasonably tidy.

I've used this reciever in other projects, and it's really nice for the price: 10hz updates with WAAS - it's fast to aquire sattelites and is generally accurate to about 1 meter.

https://www.adafruit.com/product/4279






Last edited:
OP
OP
Chad1376

Chad1376

Member
First Name
Chad
Joined
Dec 27, 2022
Threads
1
Messages
22
Reaction score
90
Location
Henderson, Nevada
Vehicle(s)
2022 Mojave
Occupation
Civil Engineer

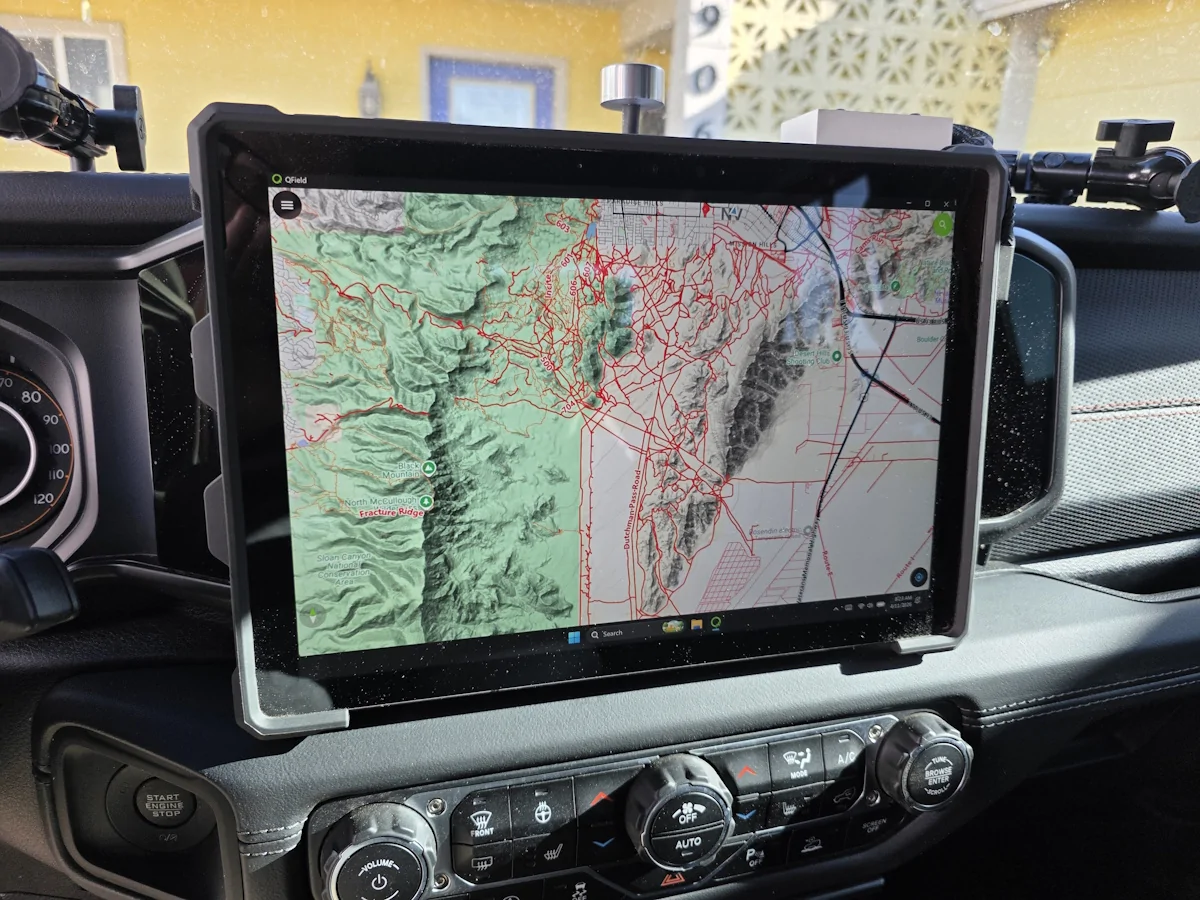

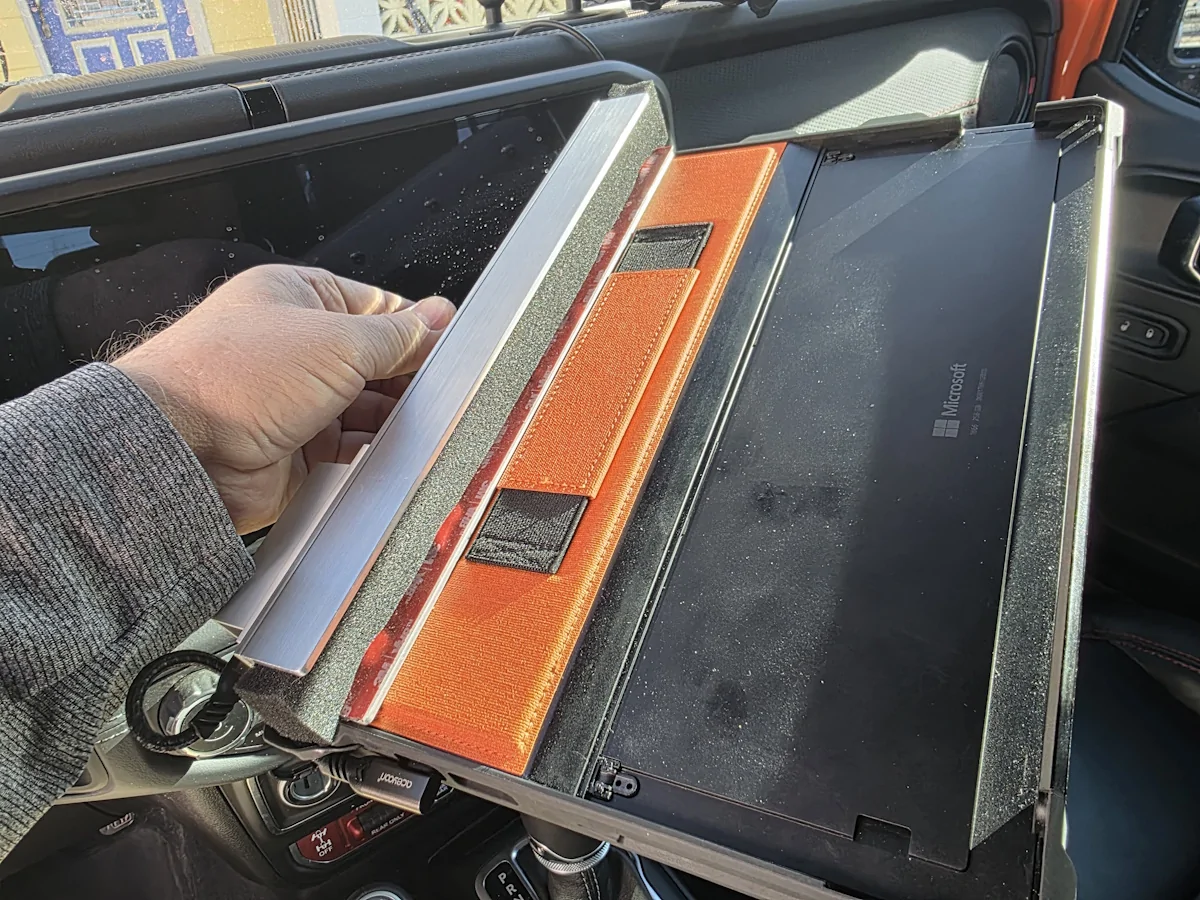

More dodgey bodges - This time on the monitor end. I want to be able to unplug and remove the monitor easily, since I don't want to drive around with it installed all the time. Vesa monitor mount and arm are from Ram Mounts.

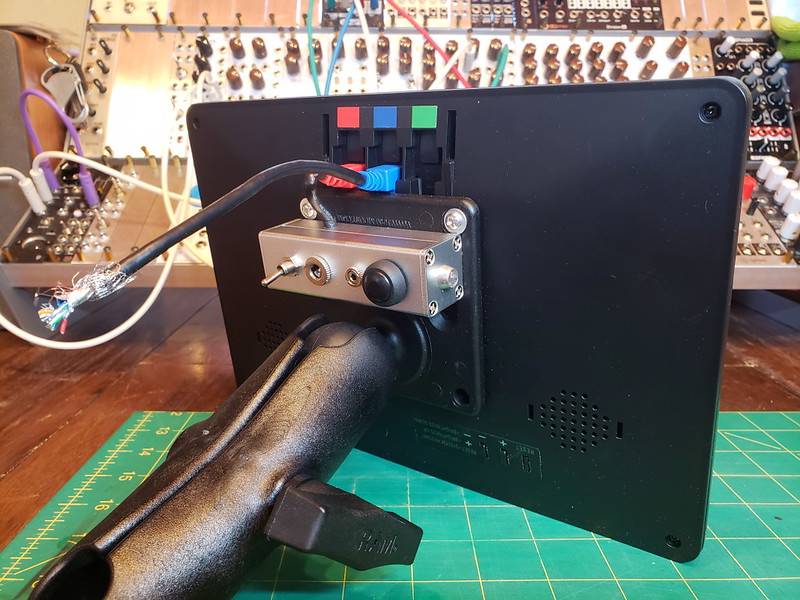

On the monitor:

Red is just 5v power. I ran this through the project box and it connects to the large coax plug on the box.

Blue is USB-3 for video and touch. It uses an obscure 10-pin Mini USB, and parts are nearly impossible to find. I cut off the long lead and will need to solder on a regular USB 3.0 Type A male plug. I'm a little nervous about pulling that off. The plug is on order.

Green is HDMI - don't need it.

On the box:

An LED power light and momentary switch that will run back to the pc on/off/reset via the TRRS plug. The toggle switch is also wired to the plug and will run to a relay that turns on the 12v laptop power supply for the whole mess.



Lost_In_The_Woods

Active Member
First Name
Eric
Joined
May 11, 2021
Threads
0
Messages
39
Reaction score
58
Location
Western WA
Vehicle(s)
2021 JT Rubicon Diesel
Occupation
Forester
Vehicle Showcase
1
As a GIS forester, this is interesting. The best phone app I have used is Gaia but I still find it frustrating and limiting. OnX just makes me want to throw the phone out the window.

OP
OP
Chad1376

Chad1376

Member
First Name
Chad
Joined
Dec 27, 2022
Threads
1
Messages
22
Reaction score
90
Location
Henderson, Nevada
Vehicle(s)
2022 Mojave
Occupation
Civil Engineer

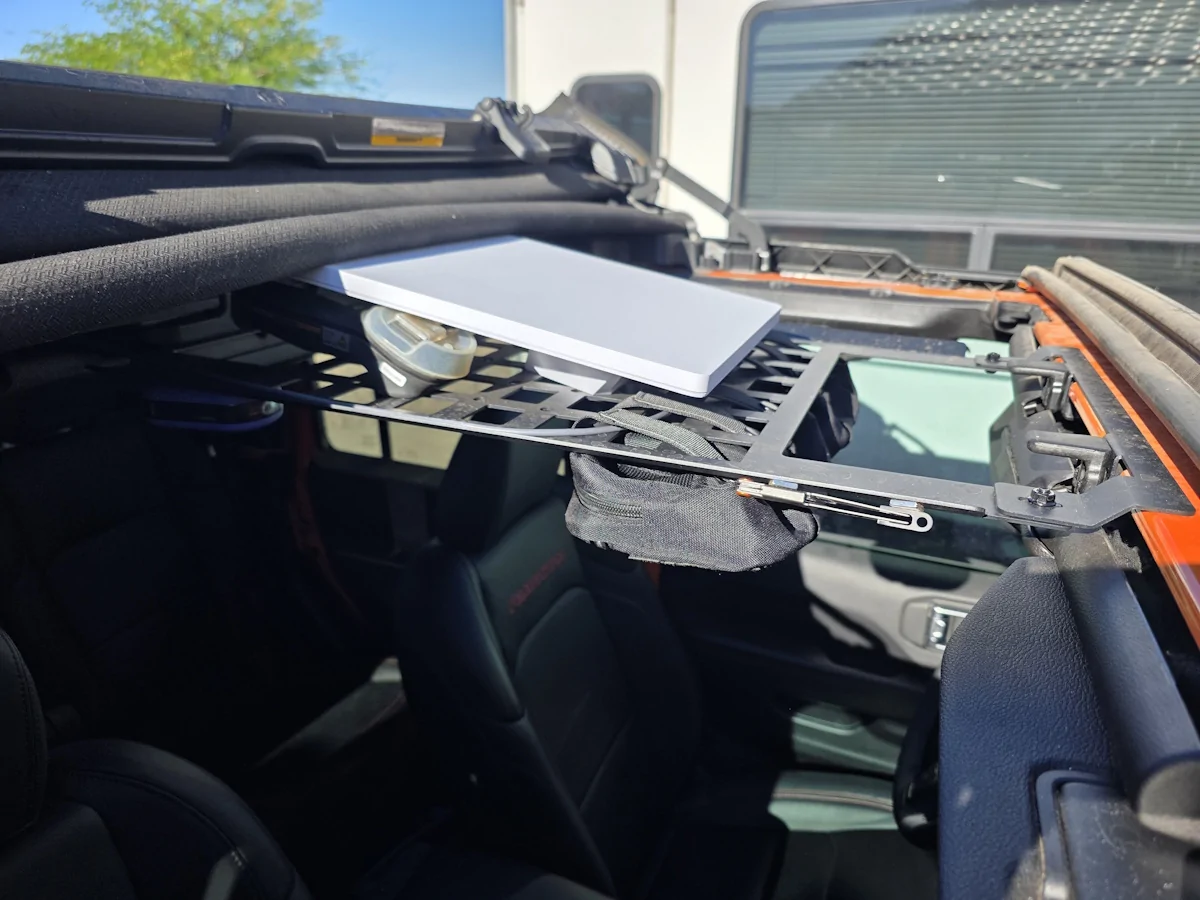

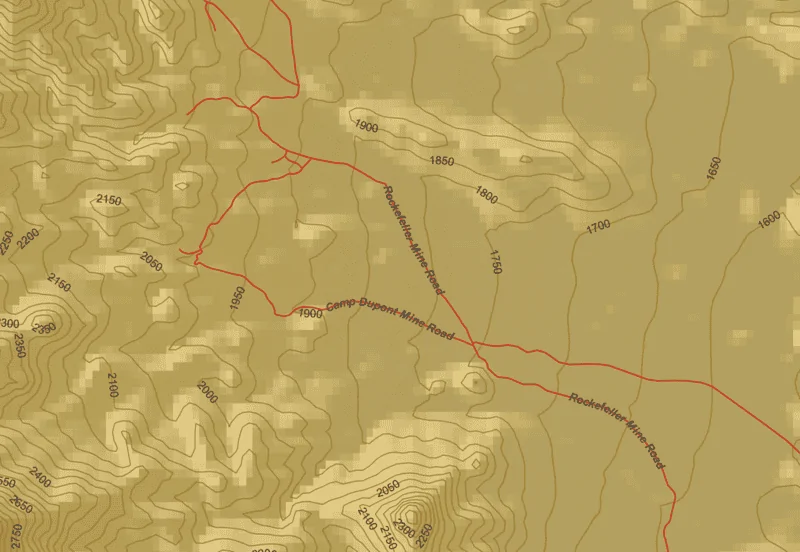

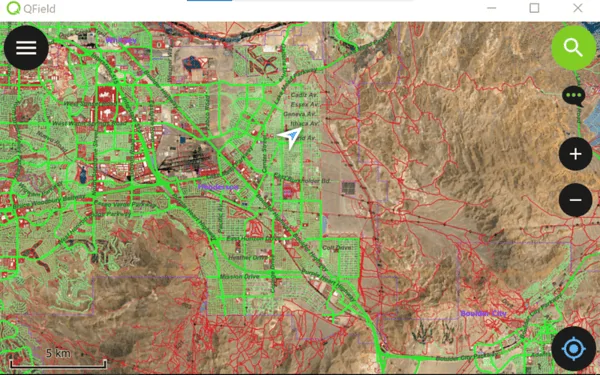

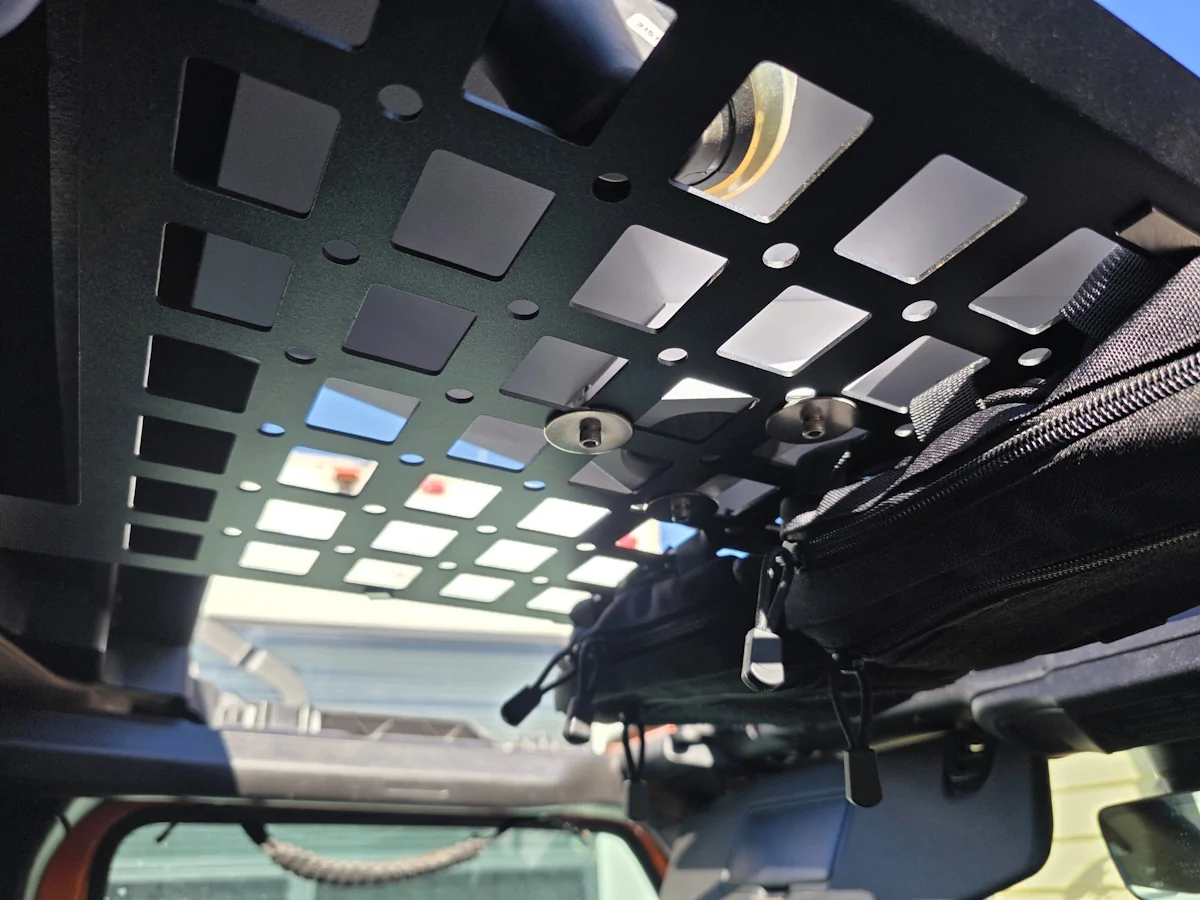

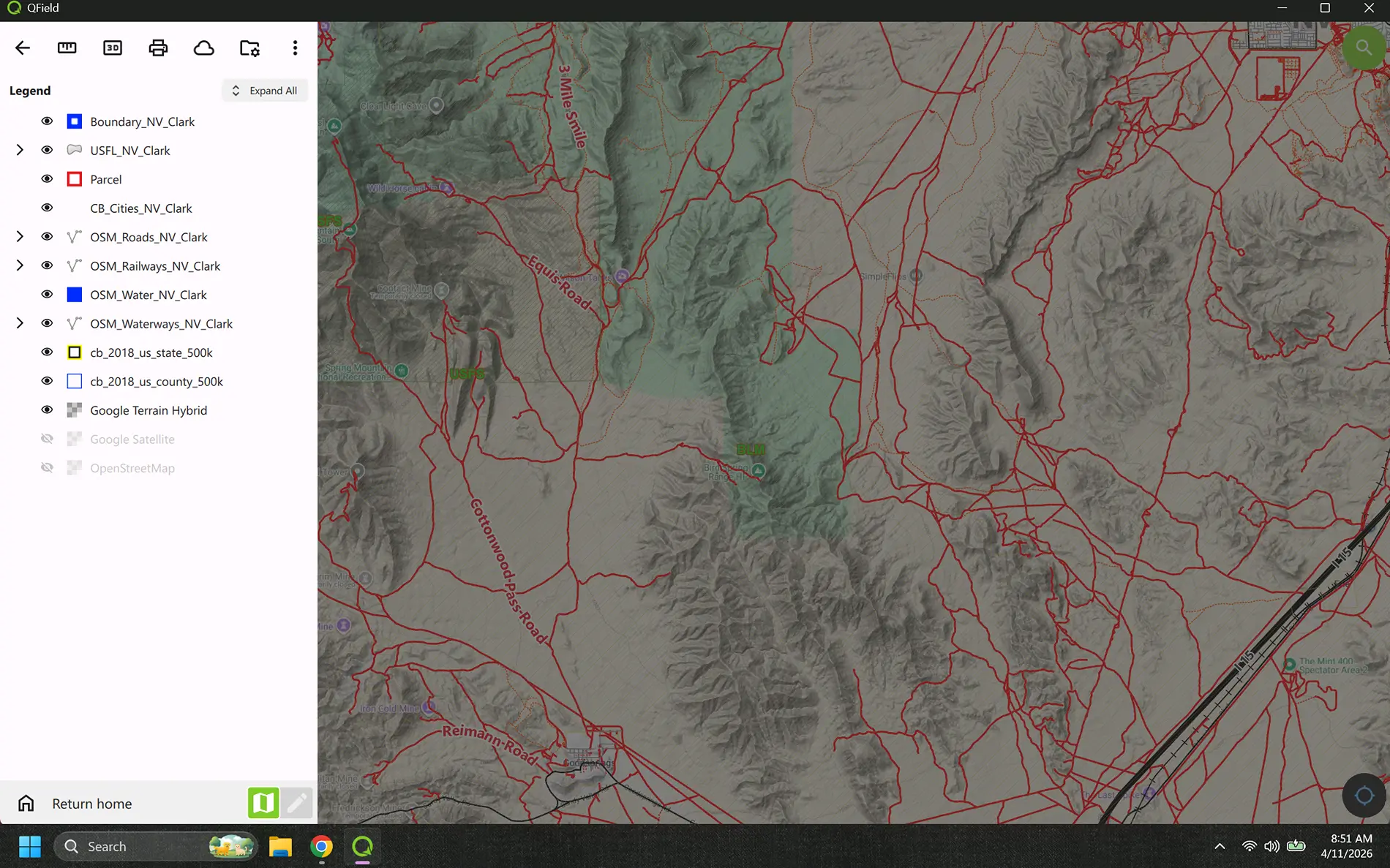

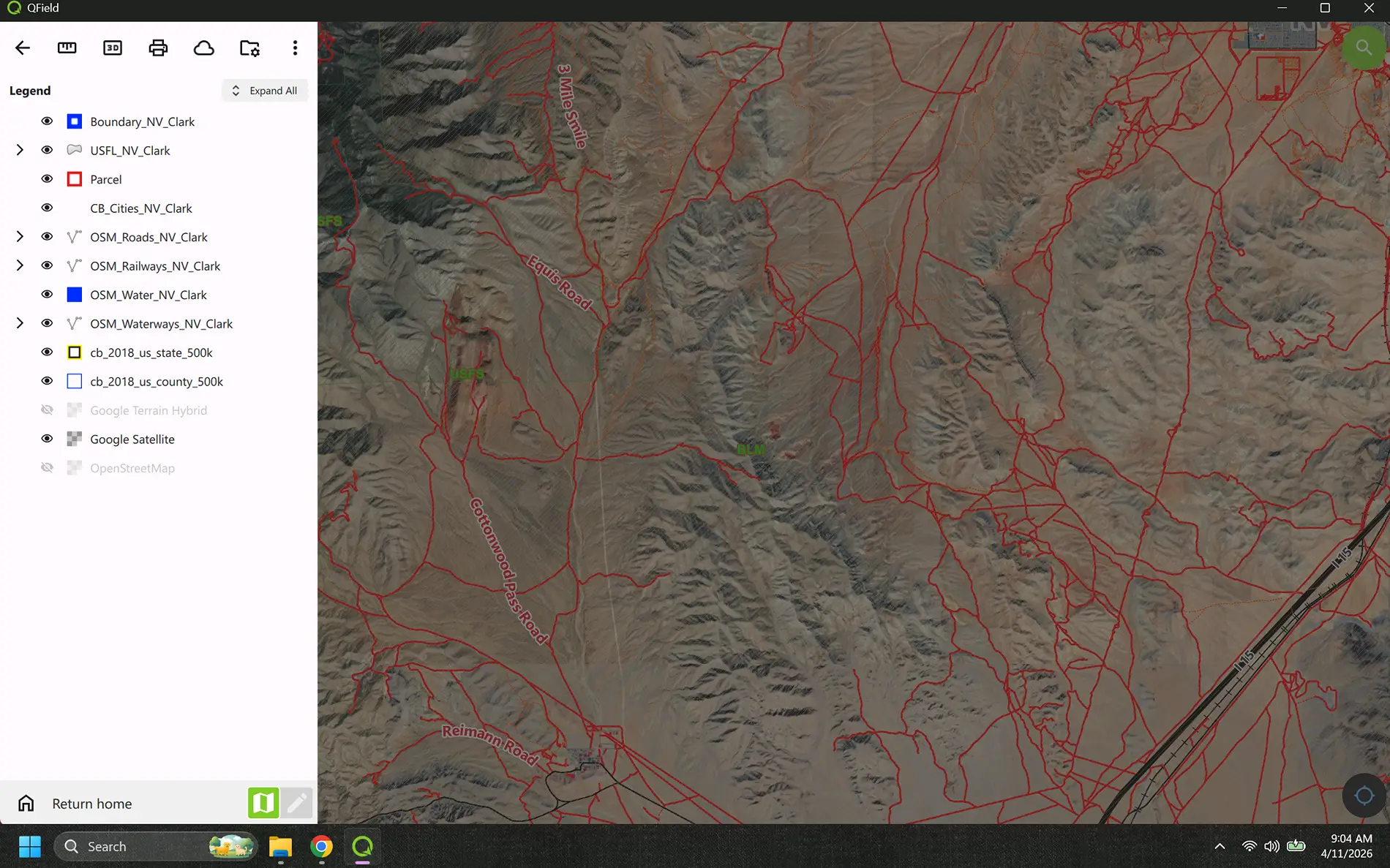

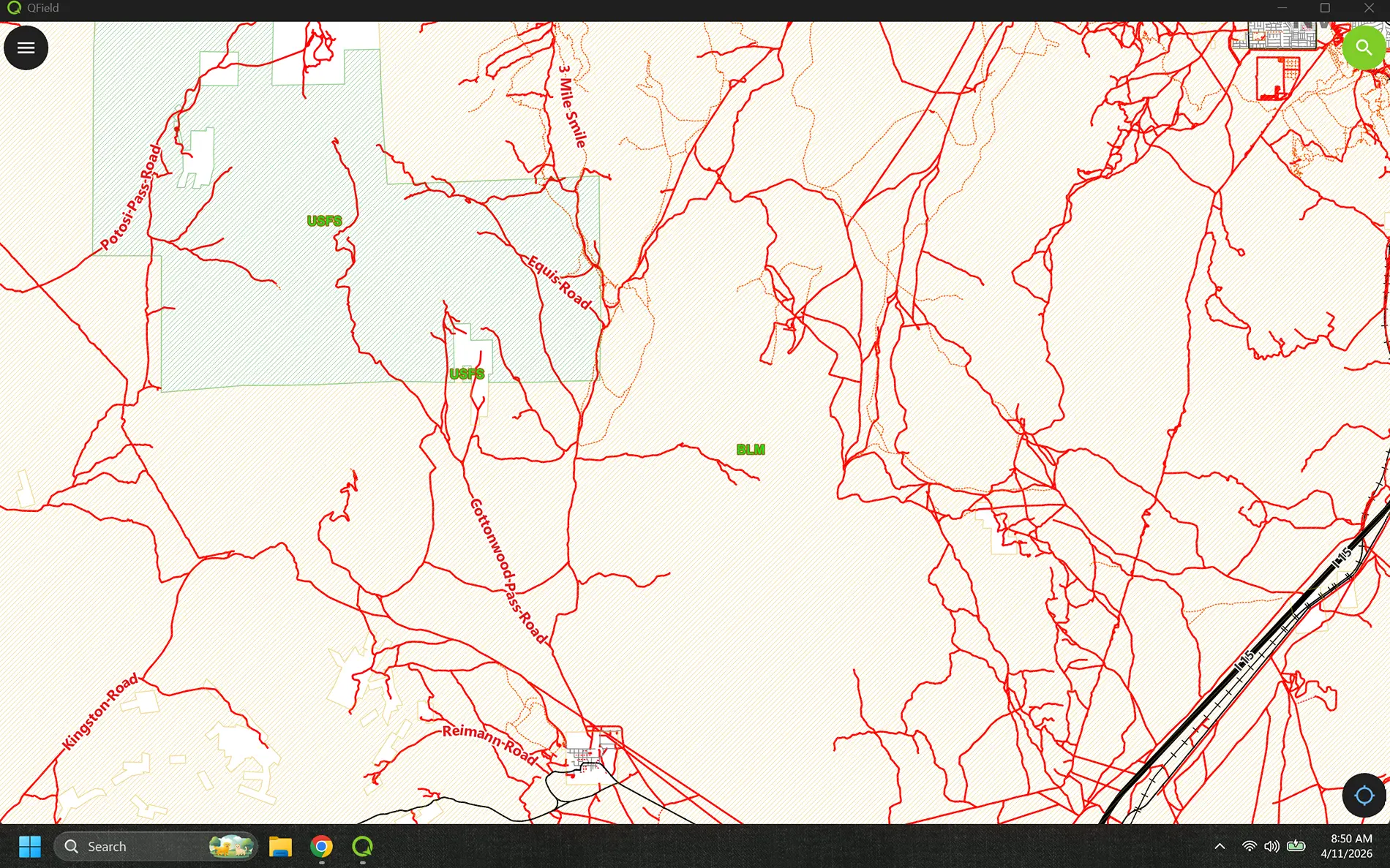

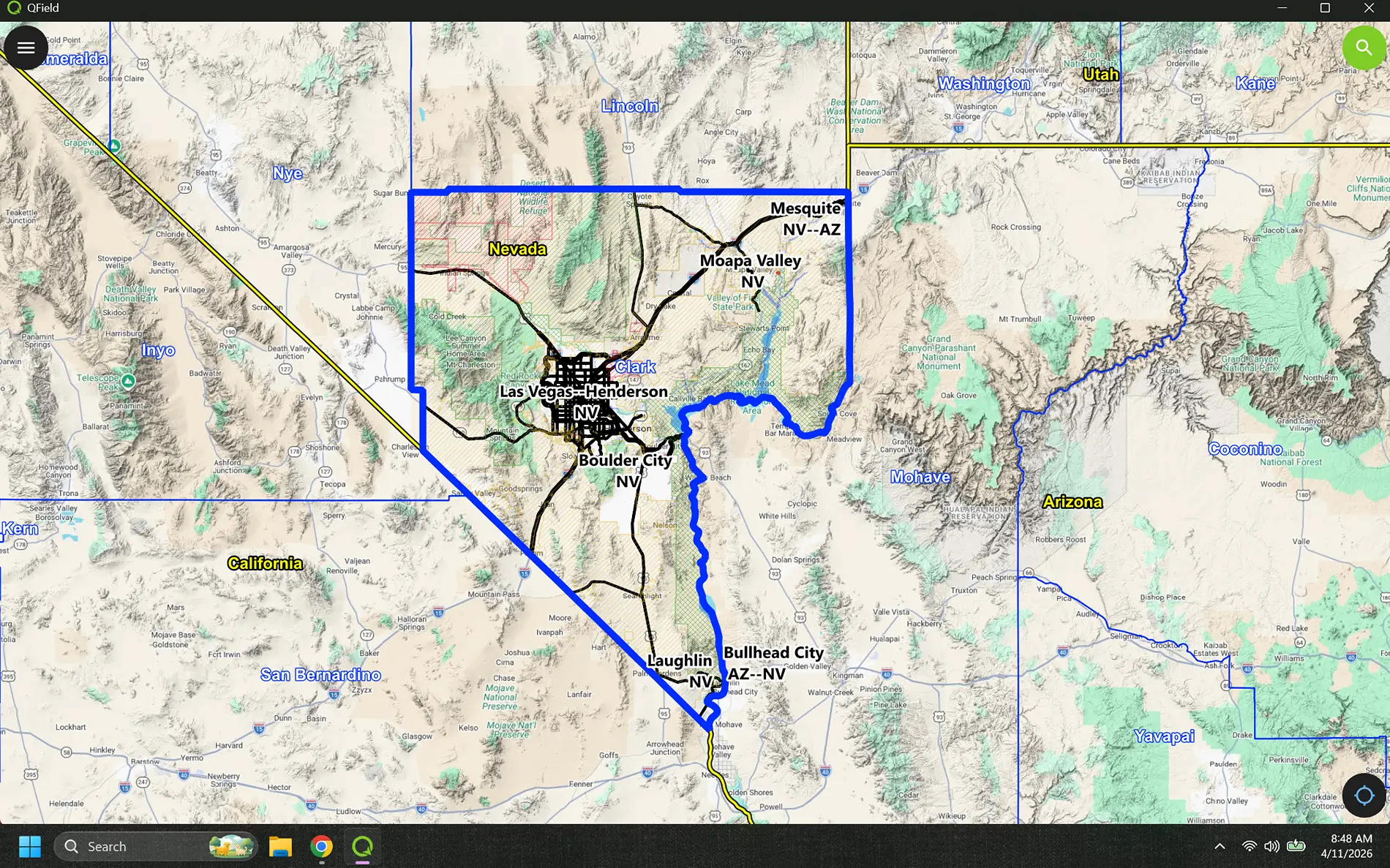

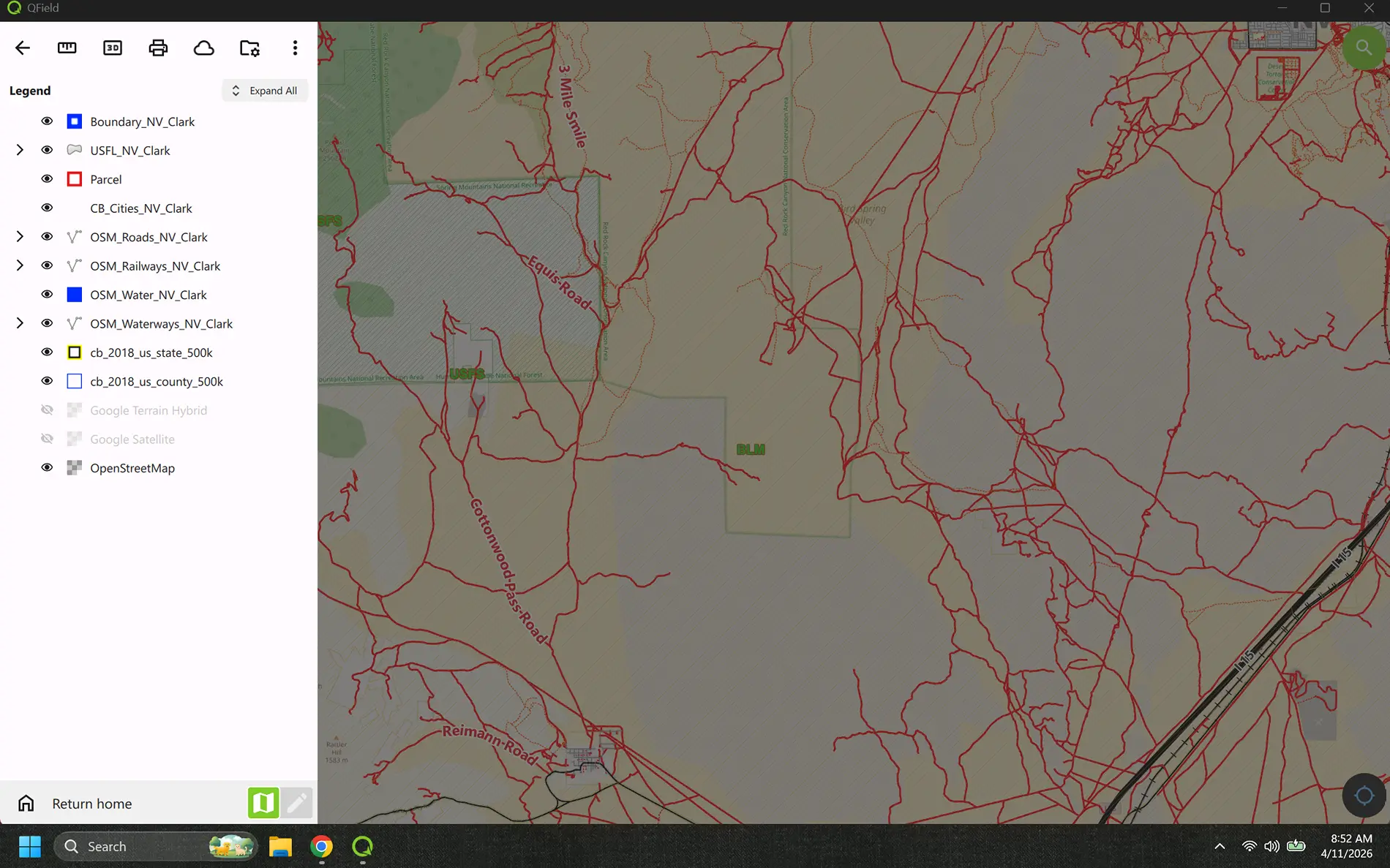

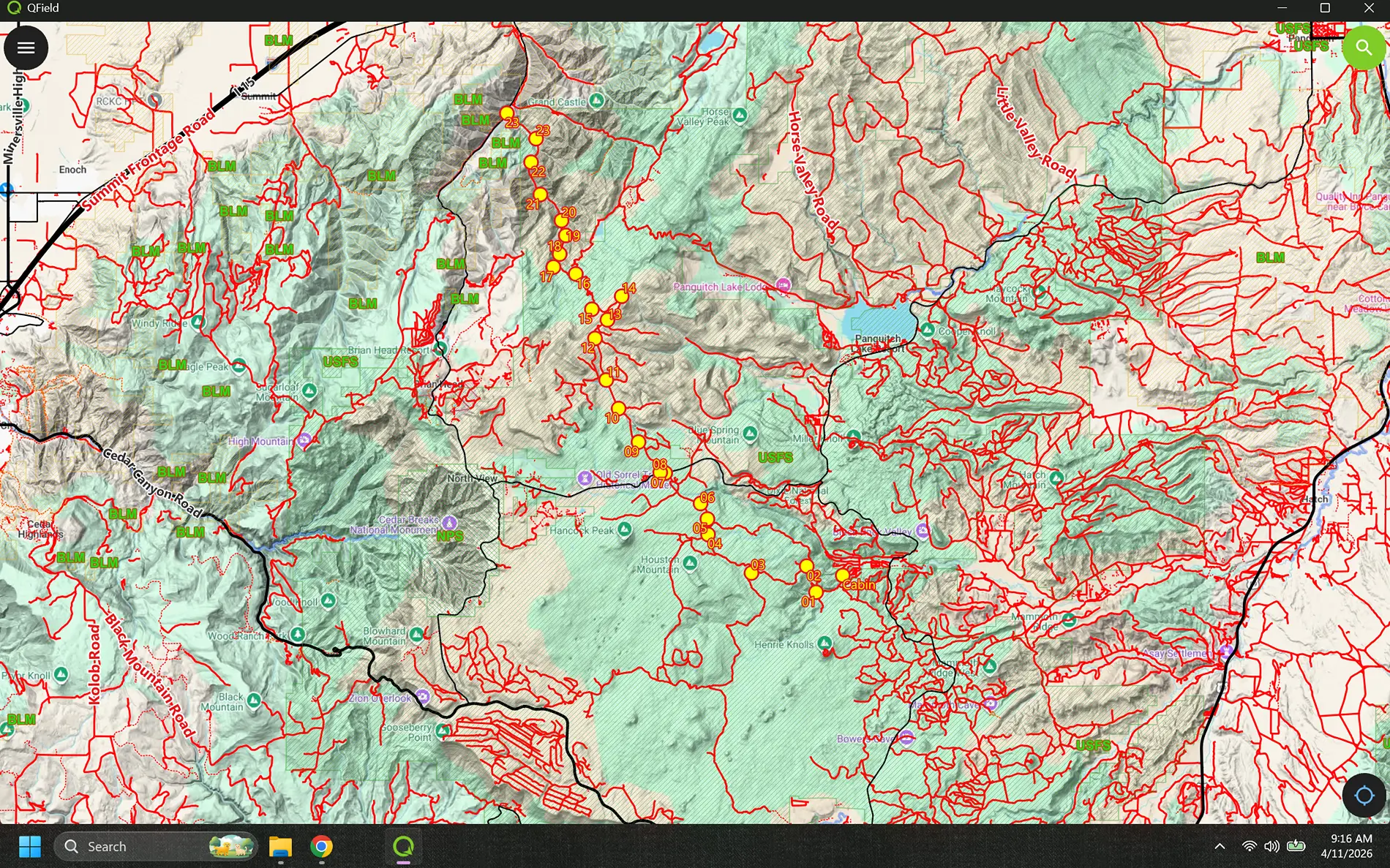

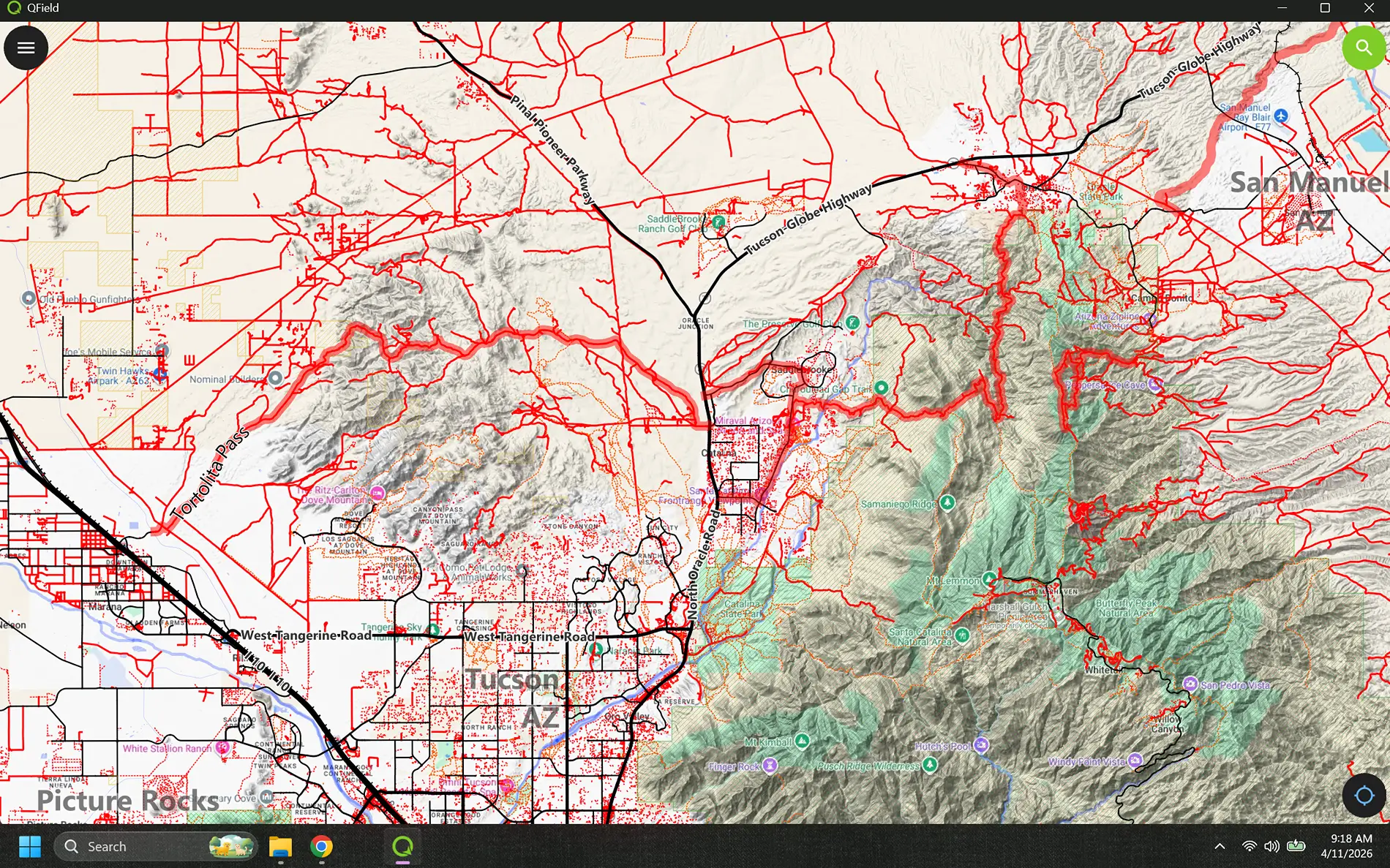

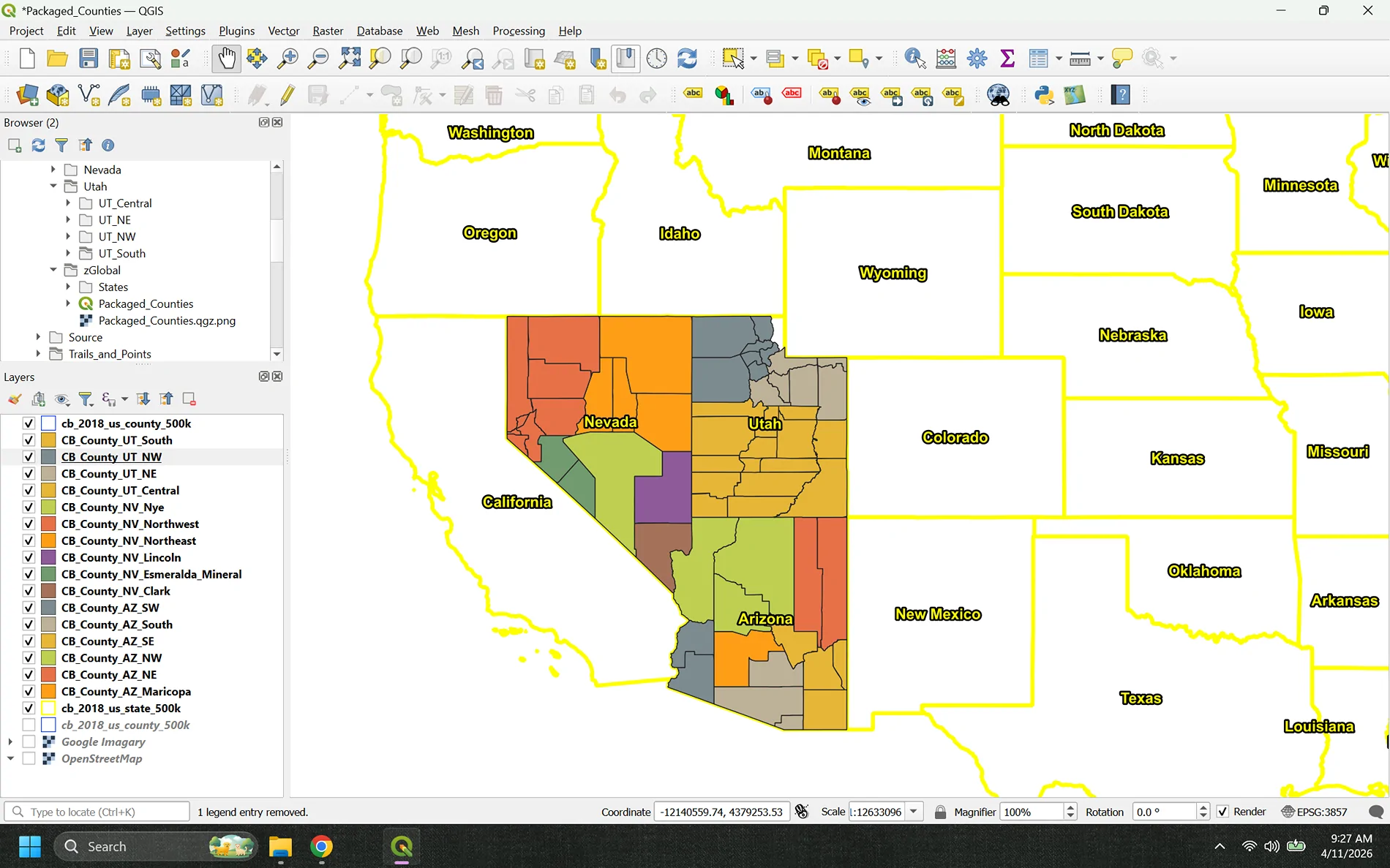

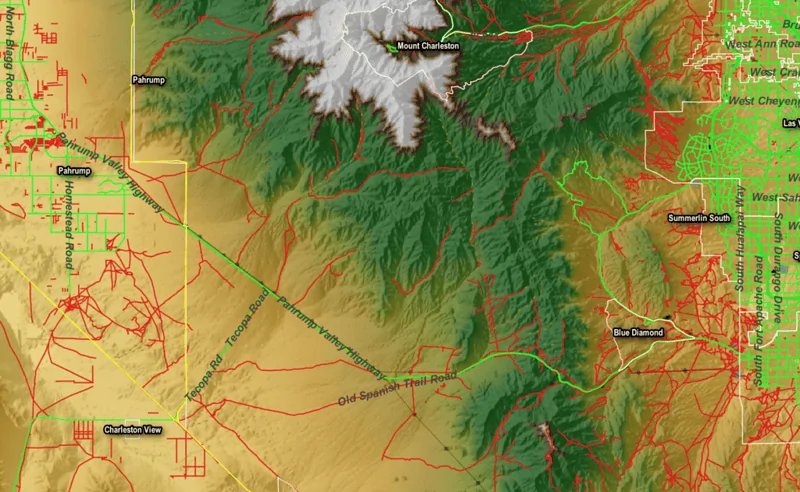

Messing around trying to get the UI as usable as possible. Windows has a lot of shortcomings for anything on a small screen. Tablet mode isn't any better than desktop mode. The biggest challenge is making everything as large as possible. As everyone knows, aiming your finger at a touch screen while bouncing in the dirt is nearly impossible. You pretty much need to come to a stop to hit the right spot. The best I could do is set the screen scaling to 200%, and minimize what shows up on the screen. The taskbar is hidden.
