Mopar Trail Rail Kit Installation

Status
Not open for further replies.

johnparjr

Well-Known Member
First Name
John
Joined
Sep 5, 2020
Threads
36
Messages
1,174
Reaction score
1,394
Location
New Caney, TX
Vehicle(s)
2020 Jeep Gladiator Mojave
Wife gave me the trail rail kit for Christmas. I don't have the bed LineX’d yet...should I wait to install the rails until I do that or is it pretty easy to take them off for the LineX and then reinstall (especially the nutserts?)?
my linex dealer plugged all the holes and had no issues at all installing the trail rail after it was done
Sponsored



USMC32GTR

Well-Known Member
First Name
Dan
Joined
Nov 2, 2020
Threads
1
Messages
52
Reaction score
46
Location
Georgia
Vehicle(s)
1990 Skyline GTR, 2021 JT Rubicon 6MT
Occupation
Analyst

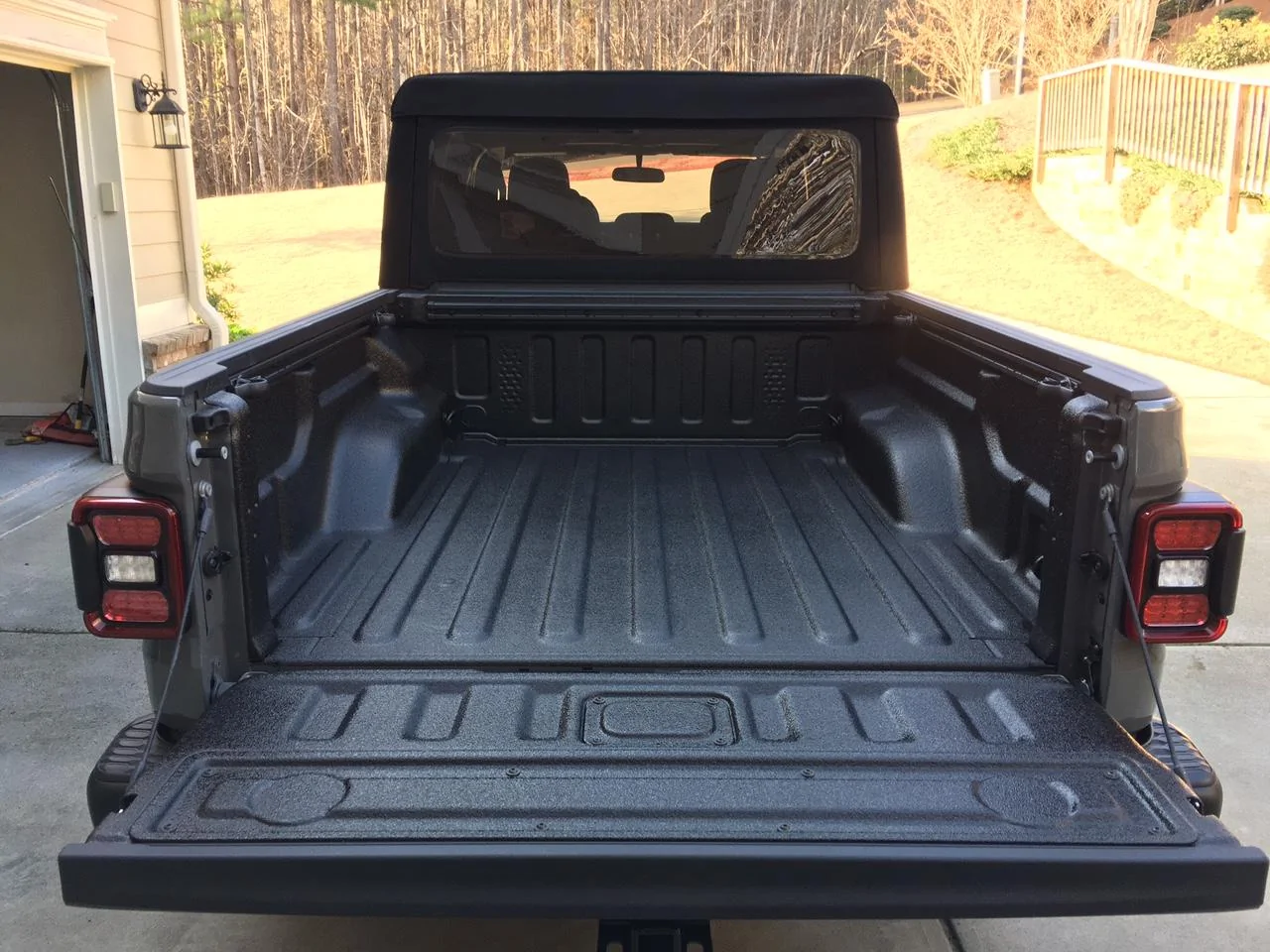

Did this today. I'd asked the LineX shop to plug the holes...they did not. So it took me around 3.5 hours including prep and cleanup and making my own thread chaser bolt. Most of that time was cleaning up the holes. I carefully drilled the bedliner out of the openings of the holes and then worked the included bolts or my chaser bolt until they went in freely. Very time consuming. I highly recommend plugging your own rail holes before taking the bed to get sprayed. I put the front rail on backwards it seems (pic shows cleat exit rectangle on the left but I wasn't paying attention and flipped it to the right, I can't seem to see how it would matter though). Both nutserts fouled right away, I'd be shocked if they ever worked so I had to make a nut/washer/bolt tool to pull them in as mentioned in this thread.

Also the kit as noted earlier only includes 12 bolts when there are 4 per side plus 2 for the nutserts. I had to reuse some old bolts I had laying around.

I would like to get two matching cleats for the front rail. Has anyone figured out of they are purchasable? Saw some other threads that noted they may not be after all.

Jeep Gladiator Mopar Trail Rail Kit Installation IMG_7832.JPG


robd1438

Well-Known Member
First Name
Rob
Joined
Dec 2, 2020
Threads
26
Messages
159
Reaction score
149
Location
Portland CT
Vehicle(s)
2021 Gladiator Rubicon
Build Thread
Link
Just installed mine too; what a PITA! Had to thread/clear all the holes and missing the two bolts like everyone mentioned. I looked online and only see mopar hex bolts for that and not the T30, I know it's anal but I'd like matching ones all around!


Scrambler84

Well-Known Member
First Name
Patrick
Joined
Jan 22, 2018
Threads
2
Messages
53
Reaction score
61
Location
Alexandria VA
Vehicle(s)
2021 JTR Diesel, 2012 JKUR, 1984 Scrambler
Occupation
Network Engineer
The T30s arent the correct bolts for then nutserts as per the new installation instructions, its a hex head bolt


Scrambler84

Well-Known Member
First Name
Patrick
Joined
Jan 22, 2018
Threads
2
Messages
53
Reaction score
61
Location
Alexandria VA
Vehicle(s)
2021 JTR Diesel, 2012 JKUR, 1984 Scrambler
Occupation
Network Engineer

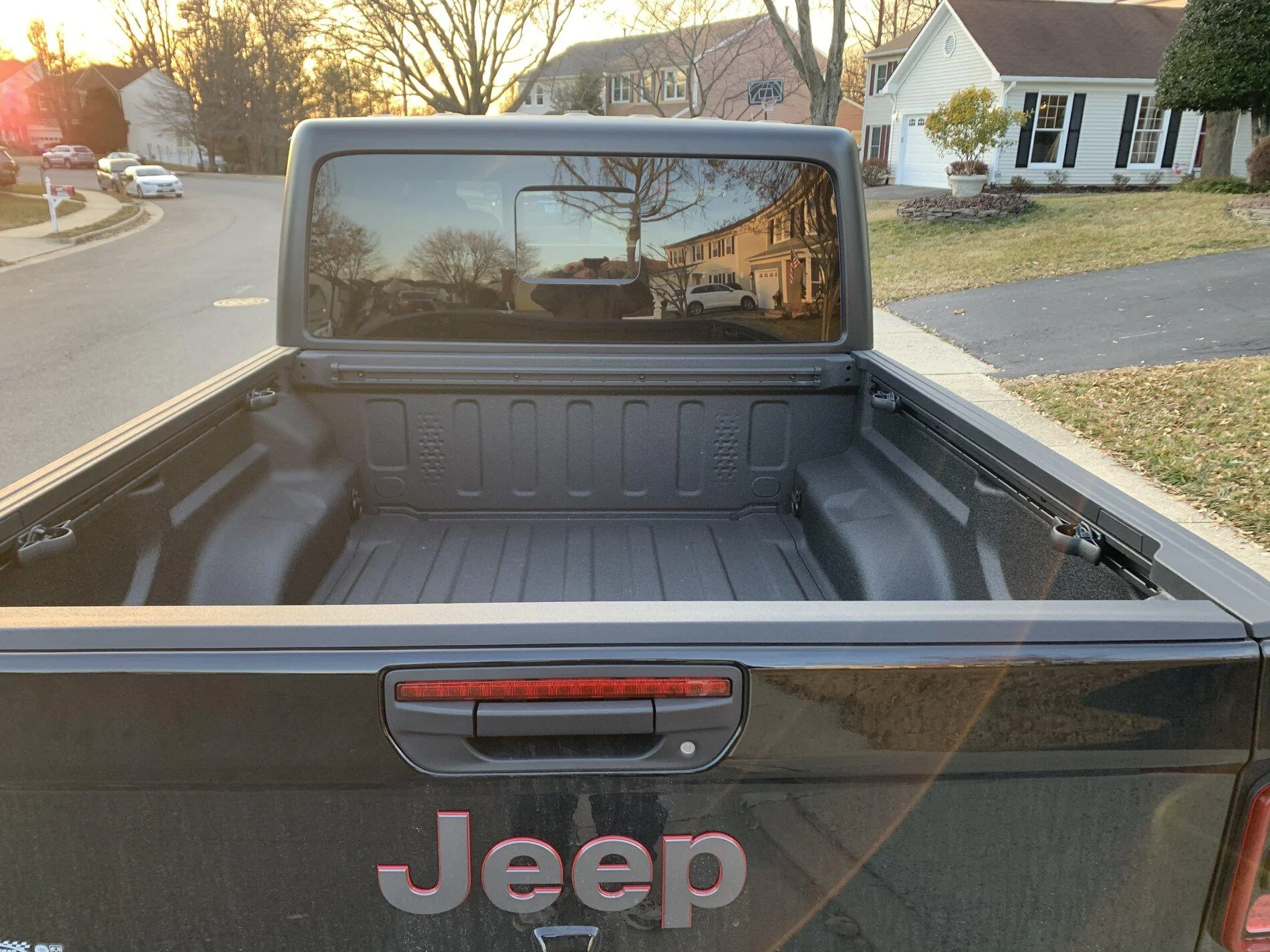

Finished mine today in 32 degree weather for snow storm hits us tonight in DC area.
Jeep Gladiator Mopar Trail Rail Kit Installation D71E416B-E58E-4A57-9D63-D636D4EBDB6C


Sponsored

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,914
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"

Scrambler84

Well-Known Member
First Name
Patrick
Joined
Jan 22, 2018
Threads
2
Messages
53
Reaction score
61
Location
Alexandria VA
Vehicle(s)
2021 JTR Diesel, 2012 JKUR, 1984 Scrambler
Occupation
Network Engineer
Was just looking to have 2 tiedowns for the front rail that looked, worked similar to the side rail ones. If you get a chance see which ones you got in the past and let us all know?


Scrambler84

Well-Known Member
First Name
Patrick
Joined
Jan 22, 2018
Threads
2
Messages
53
Reaction score
61
Location
Alexandria VA
Vehicle(s)
2021 JTR Diesel, 2012 JKUR, 1984 Scrambler
Occupation
Network Engineer
Look cool but yeah not cheap


Sponsored

Gatorized

Well-Known Member
Joined
Sep 13, 2019
Threads
6
Messages
1,658
Reaction score
1,531
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,914
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Was just looking to have 2 tiedowns for the front rail that looked, worked similar to the side rail ones. If you get a chance see which ones you got in the past and let us all know?

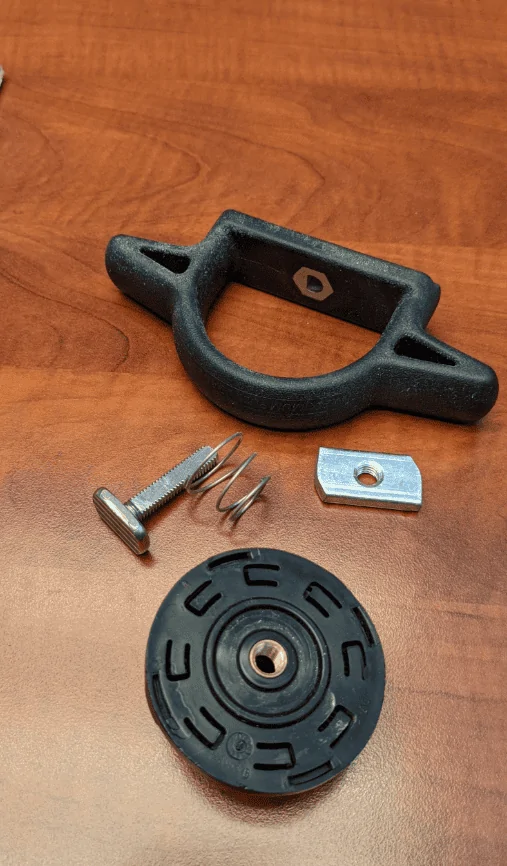

I got these on Ebay, NEW OEM Toyota Tacoma Striker Luggage Part Number 58461-04020-00
I paid $32 shipped, but the seller doesn't have more of them. that part number can be found for $30-$50 on ebay, comes with 4 of them.
https://www.ebay.com/itm/TOYOTA-OEM...61-04020-00-/133662271785?hash=item1f1ee46929


I then bought these
https://www.ebay.com/itm/4209-P3007...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

which are unistrut channel nuts with same threading as the tacoma T bold, because my trail rail is made by Bultright and they used Unistrut 3000 as their strut. This might also work for you though.

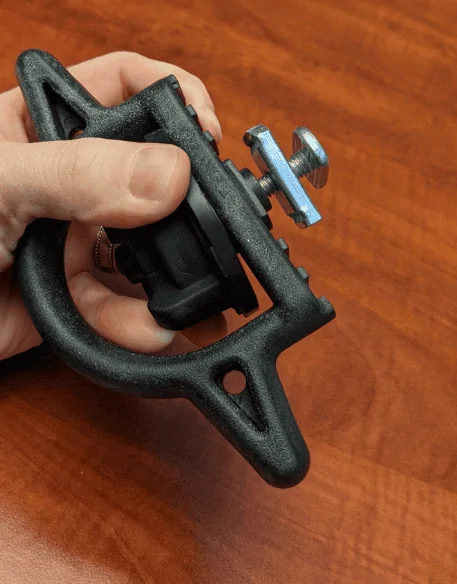

I then took the tacoma tiedown apart, screwed on the nut, so now when I tighten it down the T bolt pushes on the strut nut, which keeps it nice and snug.

If you don't do that with Unistrut 3000 rails, the T bolt doesn't have enough surface area to squeeze down on the rail.

Jeep Gladiator Mopar Trail Rail Kit Installation 1613760849304

Jeep Gladiator Mopar Trail Rail Kit Installation 1613760859335


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,914
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"

YoBub

Member
Joined
Sep 8, 2018
Threads
1
Messages
19
Reaction score
9
Location
Northern Illinois
Vehicle(s)
2020 Gladiator, 2018 Grand Cherokee
I just did this project over the weekend. I cut out some of the bedliner but there was no way to thread the Torx bolts. I purchased a cheap Harbor Freight tap and die kit, used the M6 tap, and just threaded it by hand - medium finger pressure at most. It did a good job going through the threads so that it would run smooth, but the Torx bolt heads kept stripping on install.

I finally gave up and went to Lowes and bought some stainless M6 1.0 bolts, so I could use a socket. Those worked much better - took a little bit of torque, but they went in with no issues. Don't waste your time with the Torx.


Scrambler84

Well-Known Member
First Name
Patrick
Joined
Jan 22, 2018
Threads
2
Messages
53
Reaction score
61
Location
Alexandria VA
Vehicle(s)
2021 JTR Diesel, 2012 JKUR, 1984 Scrambler
Occupation
Network Engineer
agreed the Torx easily strip when installing with little torque applied they are crap, at least one for each of mine is stripped and never got the the 7.7 lbs listed
