Rear Sway Bar Reinforcement

Rockabillyroy

Well-Known Member
Joined
Nov 8, 2020
Threads
15
Messages
825
Reaction score
870
Location
CA
Vehicle(s)
JT

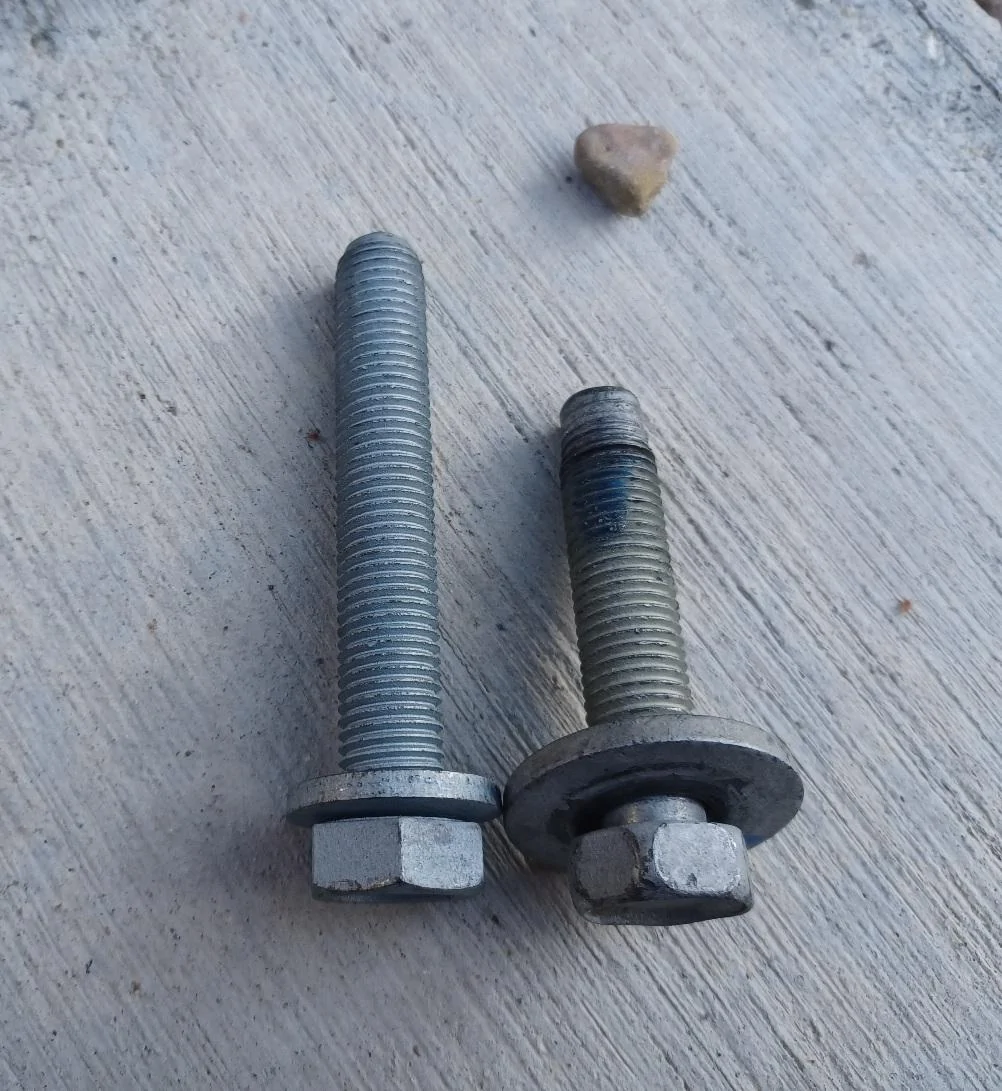

Jeep Gladiator Rear Sway Bar Reinforcement 20220516_183351

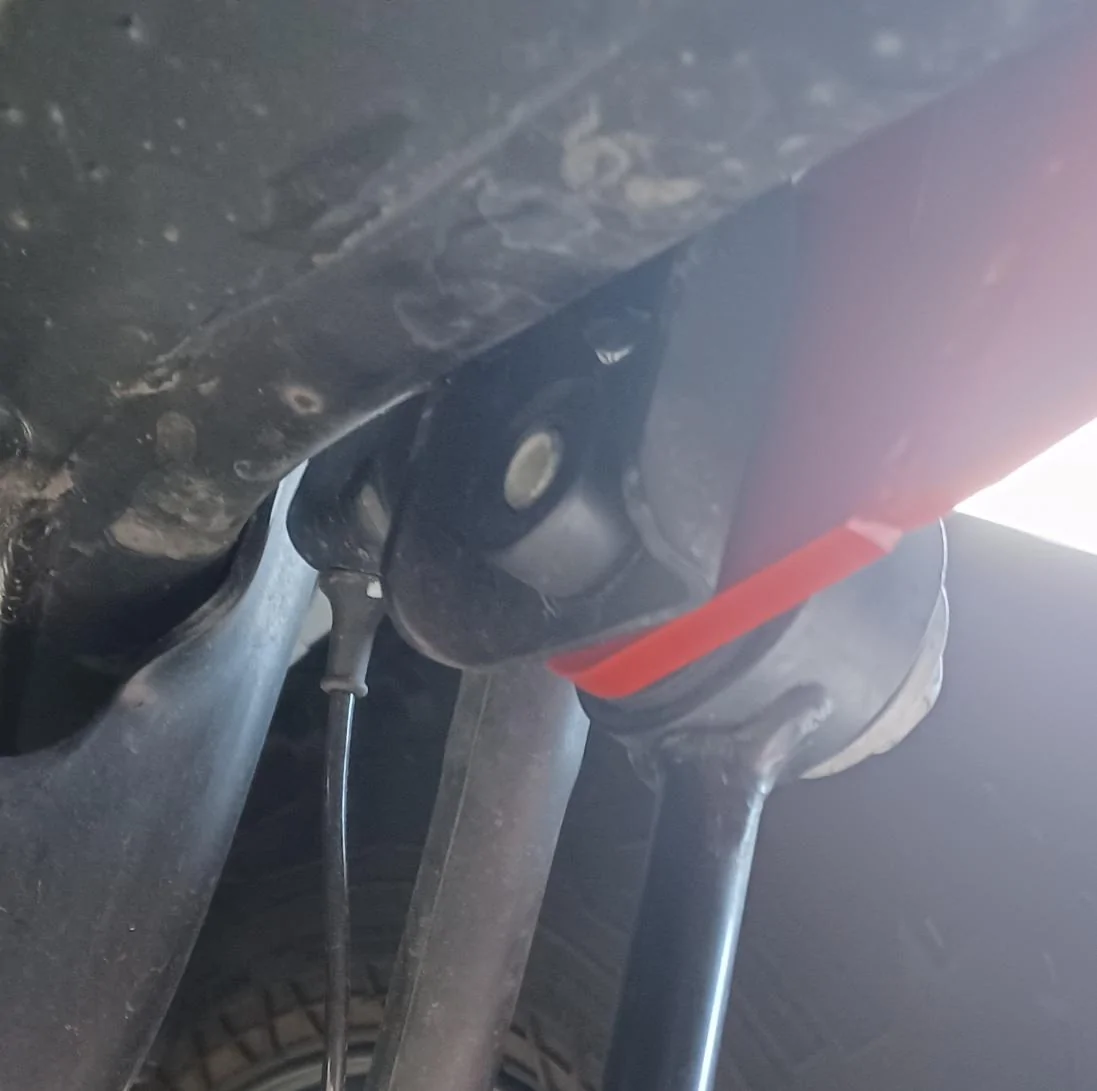

Jeep Gladiator Rear Sway Bar Reinforcement 20220516_182711

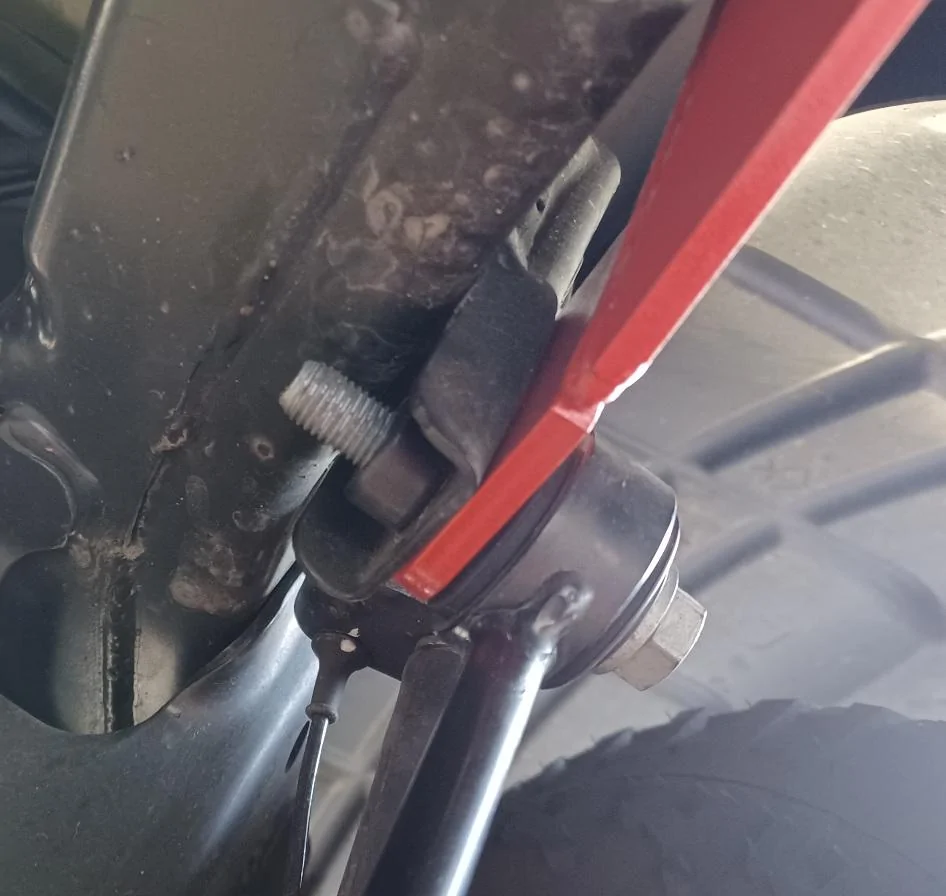

Jeep Gladiator Rear Sway Bar Reinforcement 20220516_183945
For comparison. I might have had maybe 2 threads of engagement. The new ones are a little challenging to start with the ends being fully threaded. Built in washer is smaller as well.
Sponsored



Boostnu

Well-Known Member
First Name
Chris
Joined
Mar 21, 2021
Threads
20
Messages
413
Reaction score
637
Location
Calhoun Tn
Vehicle(s)
2021 Jeep gladiator
Occupation
Machinist

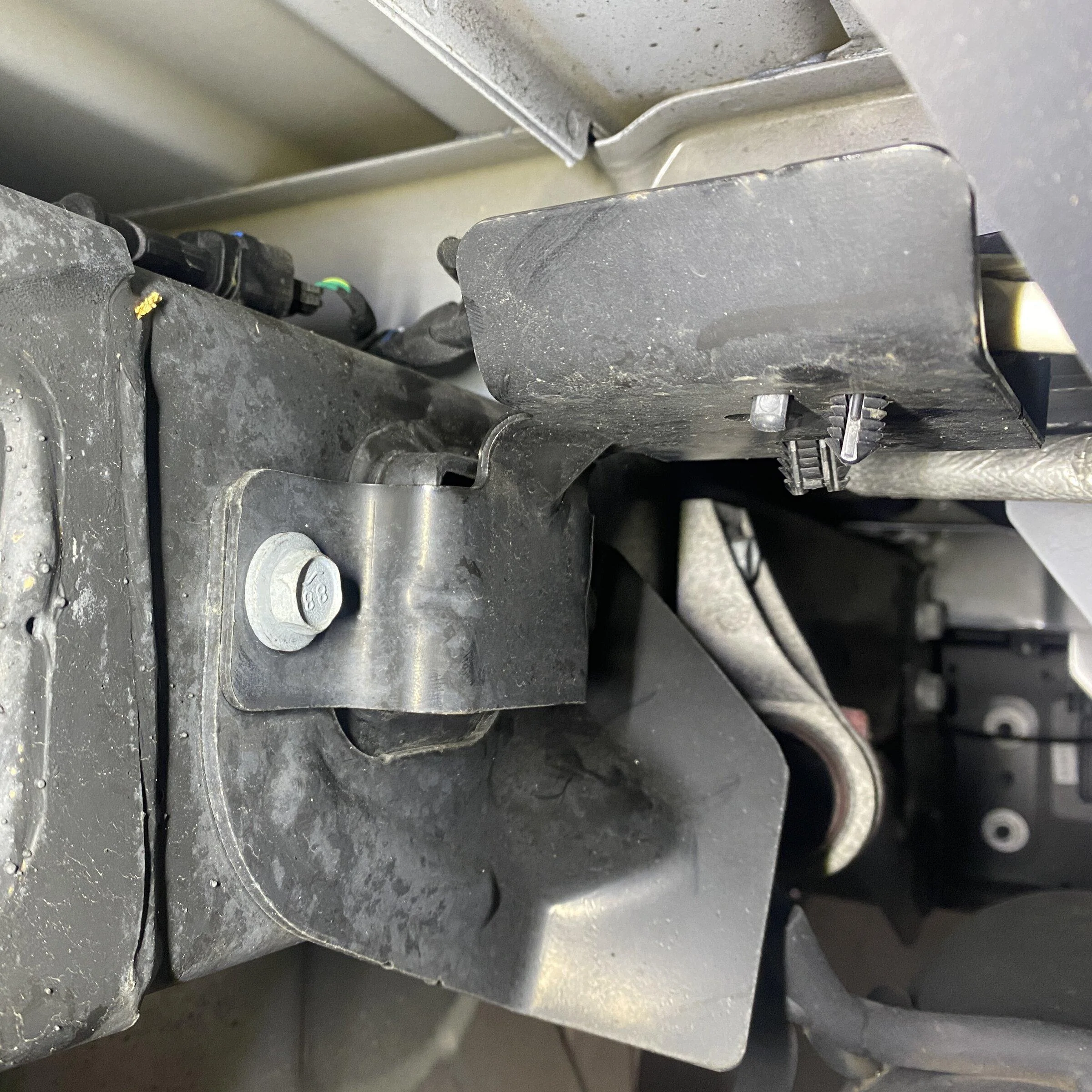

So I was not expecting this bracket. In the MetalCloak instructions it looks a whole lot different. So I’m pausing this install till I figure this out.

Jeep Gladiator Rear Sway Bar Reinforcement 20220516_183945

Jeep Gladiator Rear Sway Bar Reinforcement 20220516_183945

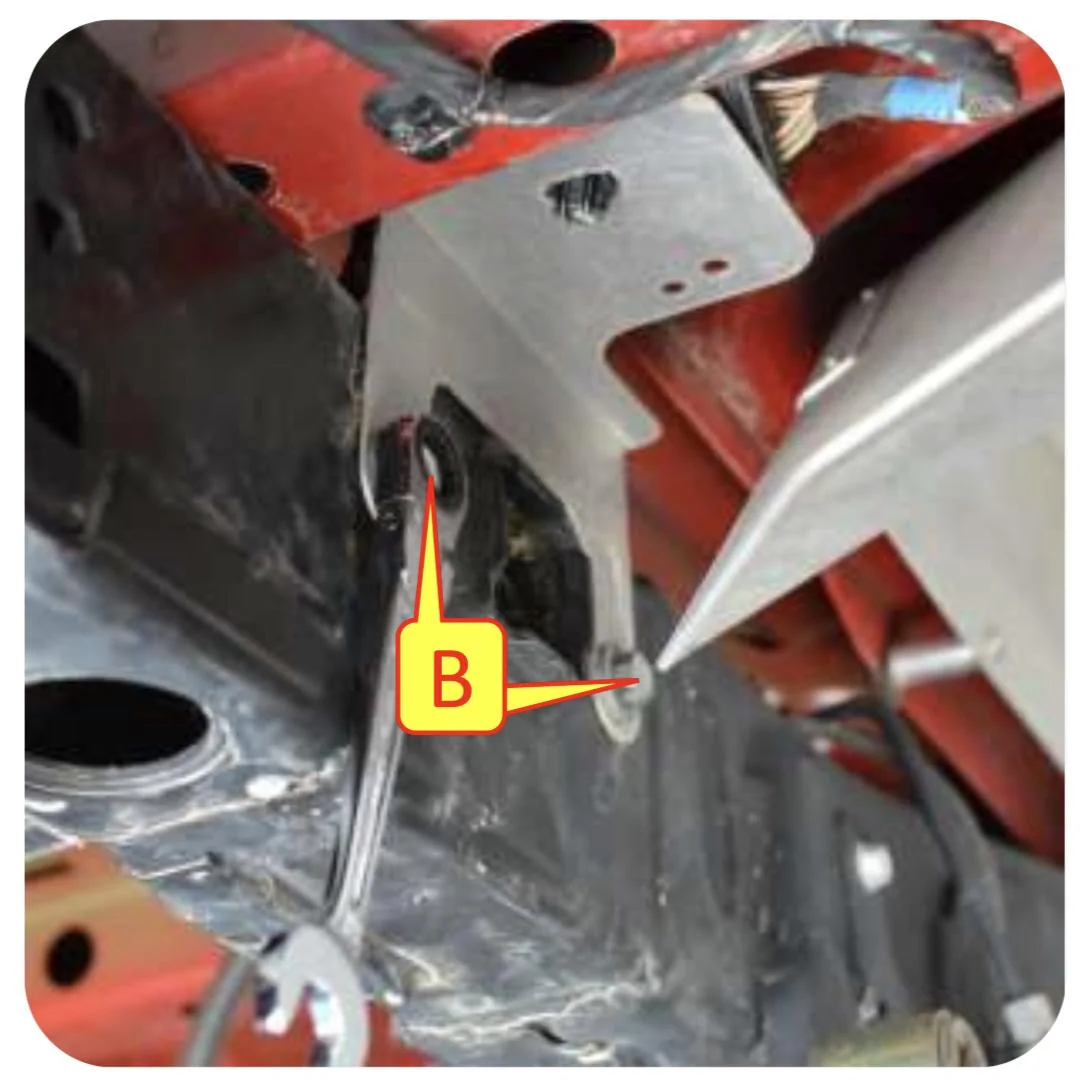

The bracket you see in their pics is the one that comes with their inner fenders. I received the same brackets when I did the metalcloak fenders and their inner fenders.


Mojave2021

Well-Known Member
Joined
Apr 28, 2021
Threads
22
Messages
384
Reaction score
368
Location
California
Vehicle(s)
21 Gladiator
To summarize the 2021 bolt situation with these brackets (linking in the related bolt thread)

  1. One should replace the OEM sway bar end link bolt with the new longer length bolt: 06513320AA
  2. A new nylon lock nut should be used with the longer length sway bar end link bolt such as this one:
  3. One should use their existing OEM frame bolts for the 2 frame bolt holes shown in F below
    Jeep Gladiator Rear Sway Bar Reinforcement 1652760023795
  4. Finagle the heat shields back in if you can.
  5. Don't use the Metalcloak bolts.
Let me know if I'm missing anything.


Sponsored

BUZZHEAD

Well-Known Member
First Name
BOB
Joined
Apr 12, 2021
Threads
3
Messages
727
Reaction score
999
Location
LAKE STATION INDIANA
Vehicle(s)
2020 JEEP RUBICAN GLADIATOR ,2016 HD SLIMS
Occupation
WEED PULLER
OK GENTS, so I received my parts with only two bolts am I good to go or do I need any additional bolts and washers ?
2020 rubicon gasser


Fouts

Well-Known Member
First Name
Marc
Joined
Nov 4, 2021
Threads
12
Messages
498
Reaction score
1,005
Location
Eastern Washington
Vehicle(s)
2021 Jeep Gladiator Mojave
Occupation
Truck Driver

BUZZHEAD

Well-Known Member
First Name
BOB
Joined
Apr 12, 2021
Threads
3
Messages
727
Reaction score
999
Location
LAKE STATION INDIANA
Vehicle(s)
2020 JEEP RUBICAN GLADIATOR ,2016 HD SLIMS
Occupation
WEED PULLER
OH MY GOD, does anybody read previous posts or maybe the directions!?
Read the directions three times read all previous posts ,what I gathered was a different reply from each post nothing clear as a common denominator some were sent with two bolts some with four.What color of pink did you paint yours bright or dull ?


Fouts

Well-Known Member
First Name
Marc
Joined
Nov 4, 2021
Threads
12
Messages
498
Reaction score
1,005
Location
Eastern Washington
Vehicle(s)
2021 Jeep Gladiator Mojave
Occupation
Truck Driver
Read the directions three times read all previous posts ,what I gathered was a different reply from each post nothing clear as a common denominator some were sent with two bolts some with four.What color of pink did you paint yours bright or dull ?
Ouch, that hurt!


BUZZHEAD

Well-Known Member
First Name
BOB
Joined
Apr 12, 2021
Threads
3
Messages
727
Reaction score
999
Location
LAKE STATION INDIANA
Vehicle(s)
2020 JEEP RUBICAN GLADIATOR ,2016 HD SLIMS
Occupation
WEED PULLER

Sponsored

Rockabillyroy

Well-Known Member
Joined
Nov 8, 2020
Threads
15
Messages
825
Reaction score
870
Location
CA
Vehicle(s)
JT
OK GENTS, so I received my parts with only two bolts am I good to go or do I need any additional bolts and washers ?
2020 rubicon gasser
If the threaded boss on your frame mounted brackets have fallen off or you plan on drilling them out, then yes, you are good to go.

If not, the you need to buy bolts that are correct size, length and thread pitch.

  • Like
Reactions: aai

BUZZHEAD

Well-Known Member
First Name
BOB
Joined
Apr 12, 2021
Threads
3
Messages
727
Reaction score
999
Location
LAKE STATION INDIANA
Vehicle(s)
2020 JEEP RUBICAN GLADIATOR ,2016 HD SLIMS
Occupation
WEED PULLER
If the threaded boss on your frame mounted brackets have fallen off or you plan on drilling them out, then yes, you are good to go.

If not, the you need to buy bolts that are correct size, length and thread pitch.
Thank you


Mister Lamb

Well-Known Member
First Name
Andy
Joined
Apr 7, 2022
Threads
29
Messages
398
Reaction score
675
Location
NY
Vehicle(s)
2021 Jeep Gladiator Willy's
Occupation
Power Plant Operator
What'd you guys prep/paint yours with?
