Could someone please measure from the bed surface to the bottom of the door opening? I'm trying to design a drawer system and cant seem to find that measurement anywhere.





Advertisement



Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Messages
461
Reaction score
397
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
Huh?

Is this what you want, tape measure is on the lowest point of floor not on the raised rib?....jack


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Messages
461
Reaction score
397
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
I’m not so sure a 60” drawer glide will fit I ordered a 48” full extension.....Jack


tjbrown23

Member
First Name
Tyler
Joined
Oct 2, 2020
Messages
24
Reaction score
7
Location
Marietta Ohio
Vehicle(s)
2021 Jeep Gladiator Rubicon

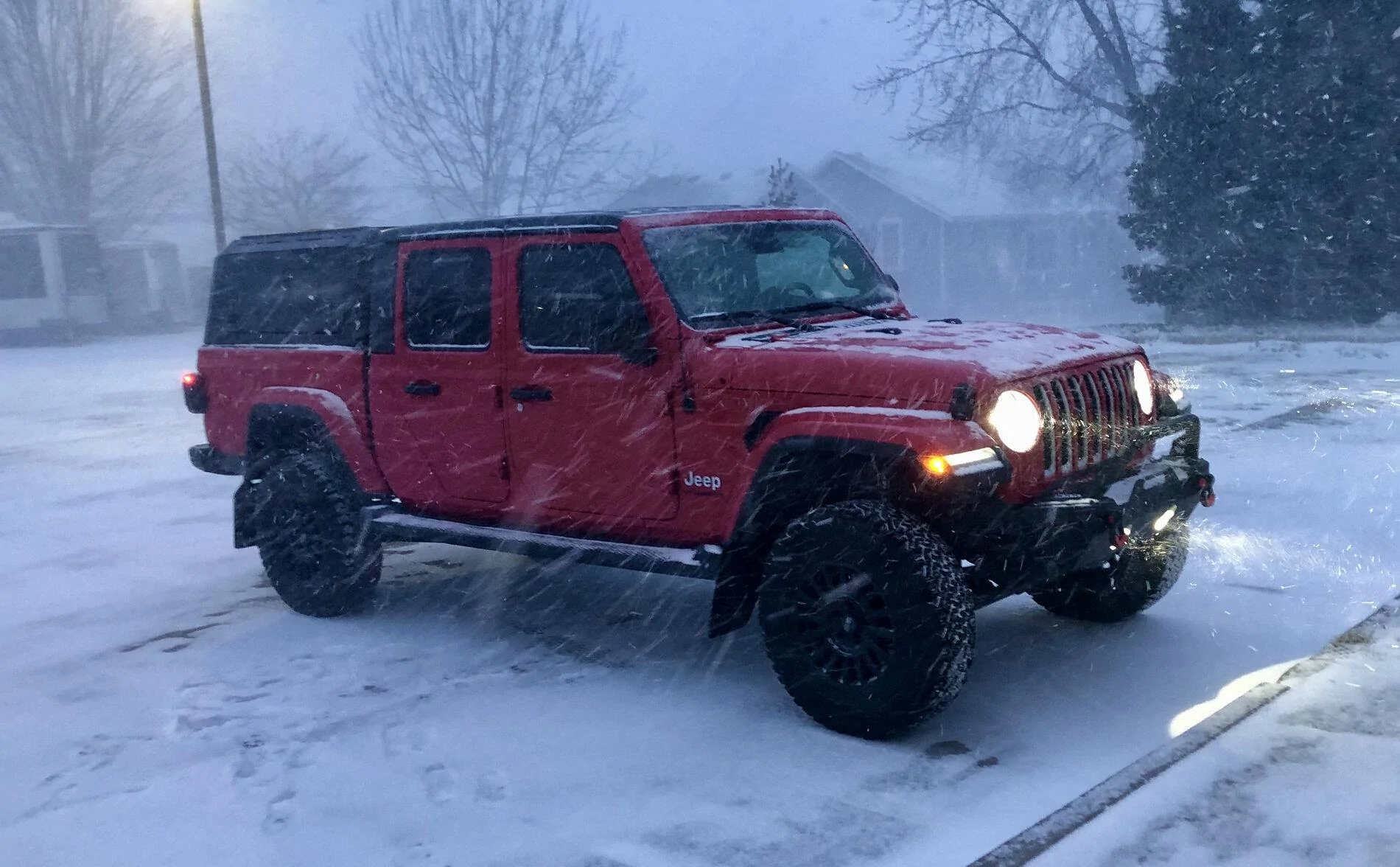

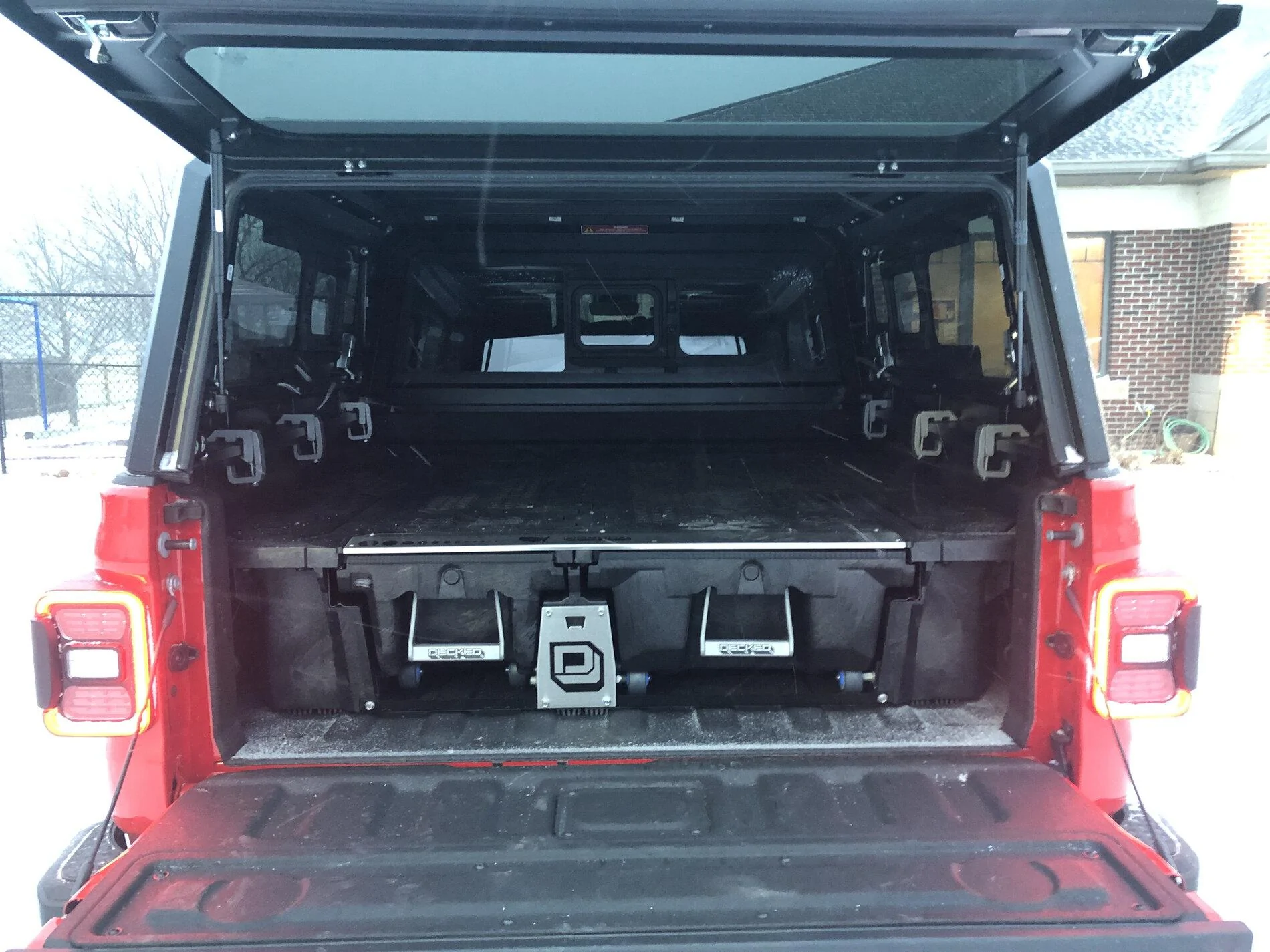

Just installed the Smartcap over the Decked drawers. Happy customer.

Winch and LED cannons inbound for the bumper.

How much room do you have from the top of the decked drawers to the top of the rsi cap? I have the decked system installed just waiting on the cap.


WemoVealot

Member
First Name
Chris
Joined
Jul 21, 2020
Messages
10
Reaction score
14
Location
Iowa
Vehicle(s)
2020 Gladiator Overland
Occupation
Military
How much room do you have from the top of the decked drawers to the top of the rsi cap? I have the decked system installed just waiting on the cap.
Just over 25 inches. I’m waiting to receive and install the slide out table before getting a fridge ... apparently it takes 8” from the top to slide the table out (ouch).
Hope this helps :)


tjbrown23

Member
First Name
Tyler
Joined
Oct 2, 2020
Messages
24
Reaction score
7
Location
Marietta Ohio
Vehicle(s)
2021 Jeep Gladiator Rubicon
Just over 25 inches. I’m waiting to receive and install the slide out table before getting a fridge ... apparently it takes 8” from the top to slide the table out (ouch).
Hope this helps :)
Thanks that helps! Dang that still isn't much room, the decked system is nice but it takes up almost the whole bed. I just wish the bed was a bit deeper.

How hard is it to remove the RSI smartcap if I needed to haul something large, is it manageable with one person?


Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Messages
1,468
Reaction score
985
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland 2013 Nissan Leaf SV
Vehicle Showcase
1
Thanks that helps! Dang that still isn't much room, the decked system is nice but it takes up almost the whole bed. I just wish the bed was a bit deeper.

How hard is it to remove the RSI smartcap if I needed to haul something large, is it manageable with one person?
The cap weighs about 180 pounds. RSI recommends four people for lifting it onto the truck. With the appropriate hoist setup, one person should be able to handle it. Using the Trail Rail clamps, it should be easy to remove.


NORDNDED

Well-Known Member
First Name
Steven
Joined
Apr 10, 2019
Messages
155
Reaction score
267
Location
Holly Springs, NC Durango, CO
Vehicle(s)
2020 JTR, 2016 JKUR, 2015 JKURHR, 2015 F150, 1973 Ford Bronco
Well it showed up, damaged of course. Whoever thought the way it is packaged would suffice for transportation halfway around the world should be fired.. There is zero protection for the roof panels box corners both inside and out and the whole box was banded to the side of the main box allowing it to drag the floor. If they had put half the effort into packaging that they did in the social media hype then this would be a non-issue.

I’m most likely sending it back since @RSI North America Inc did not answer my question on availability of new panels, I don’t want a repaired roof. We’ll see what ORA comes up with in terms of replacement but damn, how disappointing this is after being on board since the springtime..

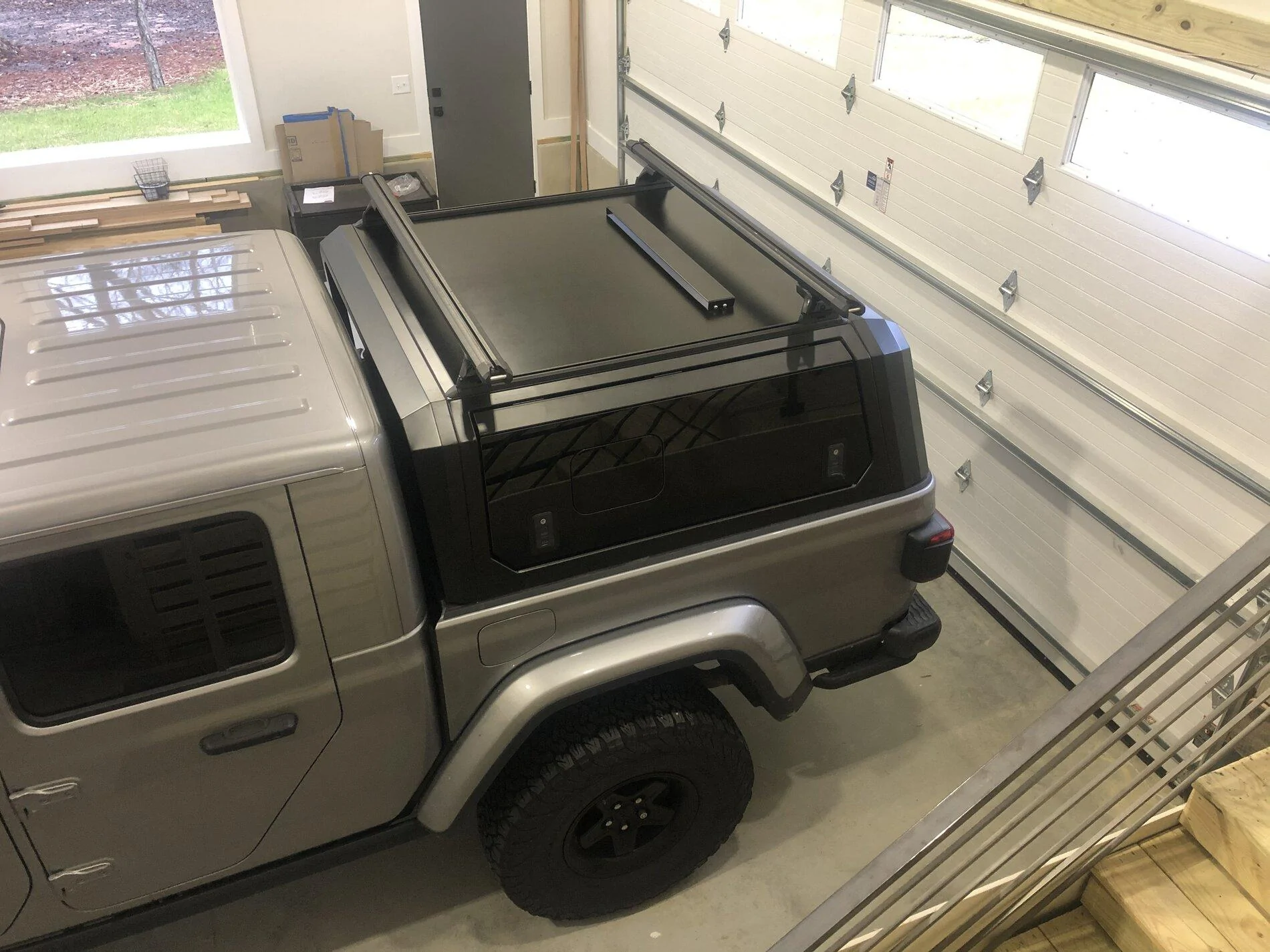

Well I ended up keeping it and repairing it myself. After reforming the corner and tig welding it back together I touched up and blended the paint with Summit Racing satin chassis black. Altogether about 8 hours of work and $50 in materials. I did not fix the dent shown in the first pic, it’ll be there forever.
After putting it together and installing it I can say for certain that I’m glad I did not send it back. I absolutely love this cap and cannot wait to get my Alu Cab tent up there later this week.
For anyone else who receives a damaged roof panel, I’d say that as long as it does not require welding like mine did, that I would keep it. The way they are assembled ends up pulling and aligning the panels together. When I test fit mine to see what needed to be done to repair it, it almost completely realigned the bend you see in the pics above by itself because of the tight tolerances these things are made to. And minor paint chips could probably be fixed with black hard top paint with little notice if at all since its on the roof. Mine required a bit more than a dab of touch up paint since I put heat to it with the welder.
@RSI North America Inc , keep at it, its an awesome product that will be incomparable once these minor issues are worked out.


RSI North America Inc

Peak Sponsor (Level 2)
Joined
Nov 19, 2019
Messages
145
Reaction score
246
Location
Nevada
Website
www.rsismartcap.com
Vehicle(s)
Jeep Gladiator, Toyota Tacoma, Toyota Tundra, Ford F Series, Ford Ranger, Chevrolet Silverado, Chevrolet Colorado, RAM
So it happened to both gullwing doors when they were in direct sunlight on two different occasions. Probably 60F outside. Then it got cold and I decided to clean them. Pretty sticky stuff!!! Hasn't really warmed up enough to happen again and or gotten any direct sunlight, and haven't noticed any leaking since last week.

I did take it through a touchless carwash. No leaks from the gullwings but it will sure as hell come through that roof top vent! My local carwash is crazy strong and that might just be specific to that one.

@RSI North America Inc has not sent a response yet.
One of the differences between a Gladiator cap and the rest of our SmartCap applications is that the latches are installed through the glass. As a part of that process, we use a self-adhesive foam gasket. What you must be experiencing is a bit of excess adhesive dripping from the edge. We do not believe the problem should continue to persist and your solution of using Goo Gone (or some other type of surface safe solvent) is a good one. As the Gladiator is a brand new application and the only instance where this gasket material is used, this is a new learning for us. We’ve already contacted the supplier, shared the images, and they are making a change in adhesives.


JBahr

Member
First Name
Jonathan
Joined
Oct 24, 2020
Messages
23
Reaction score
35
Location
Denver Colorado
Vehicle(s)
2020 Gladiator Stingray Gray
Occupation
Sales
One of the differences between a Gladiator cap and the rest of our SmartCap applications is that the latches are installed through the glass. As a part of that process, we use a self-adhesive foam gasket. What you must be experiencing is a bit of excess adhesive dripping from the edge. We do not believe the problem should continue to persist and your solution of using Goo Gone (or some other type of surface safe solvent) is a good one. As the Gladiator is a brand new application and the only instance where this gasket material is used, this is a new learning for us. We’ve already contacted the supplier, shared the images, and they are making a change in adhesives.
@RSI North America Inc I appreciate the response. I will keep an eye on it and report back if need be.


nortski3

Active Member
First Name
Andrew
Joined
Apr 25, 2019
Messages
33
Reaction score
46
Location
Iowa
Vehicle(s)
Jeep Gladiator Rubicon & BMW F800GS
Bullet has been bit. Let’s see how long it takes to come in... dealer I worked through in Iowa, said 12 weeks but more or less depends on when RSI has a container coming over and their open orders get filled. So the wait begins ....


HeyYoSchmitty

Well-Known Member
First Name
Mike
Joined
Nov 24, 2019
Messages
72
Reaction score
78
Location
Oklahoma City
Vehicle(s)
2020 Gator Green Jeep Gladiator
Bullet has been bit. Let’s see how long it takes to come in... dealer I worked through in Iowa, said 12 weeks but more or less depends on when RSI has a container coming over and their open orders get filled. So the wait begins ....
It’s pretty sweet. No disappointment here.


giantpeaches

New Member
First Name
Chris
Joined
Jan 6, 2021
Messages
1
Reaction score
3
Location
vancouver, BC, Canada
Vehicle(s)
colorado zr2 bison
Long time lurker reading this thread. I don't have gladiator but this thread and forum is the only one with a lot of feedback for smartcap.

Mine arrived the other day(this is for Chevy colorado) think it's probably recent container shipment, all the qc tags were dated December 3rd.

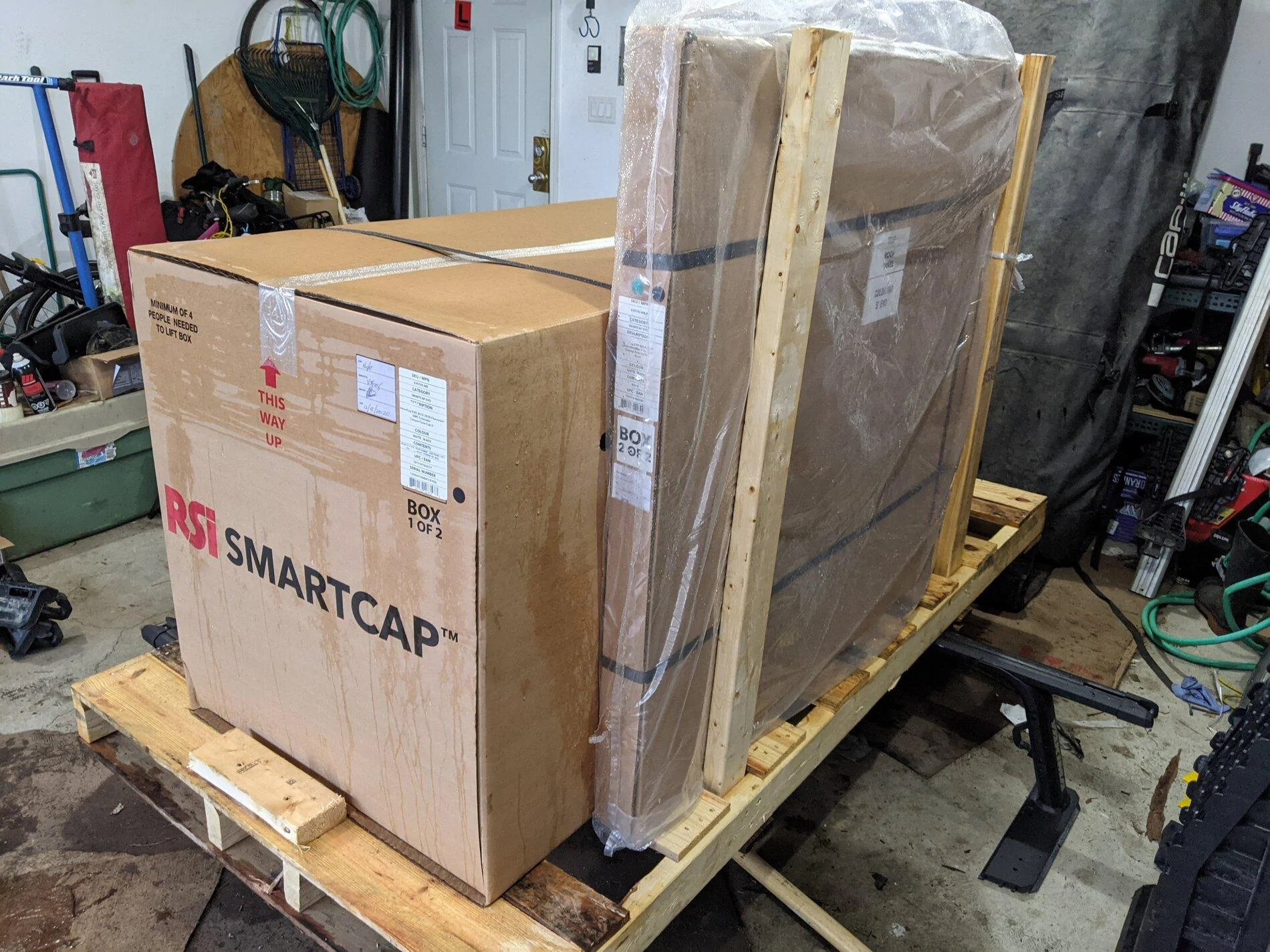

Packaging was nice where it's on a pallet with each corner had small 2x4 to prevent box from moving and roof panel is secured on the side supported as you see in the picture attached then wrapped with the main box( took the photo after I've removed the wrapping)



bhadfield

Active Member
First Name
Brian
Joined
Jul 6, 2020
Messages
36
Reaction score
25
Location
Seattle, WA
Vehicle(s)
2020 Gladiator Rubicon
First off, a big thanks to everyone that has posted pictures and their experiences with the Smartcaps along with @RSI North America Inc for passing along a quick fix for the tailgate clearance issues. I wanted to pass along some additional information about my 'fix' as I did not have additional stock pads to use towards the rear of the cap to help with clearance and the tailgate was so tight it would almost not open with the cap clamped down.

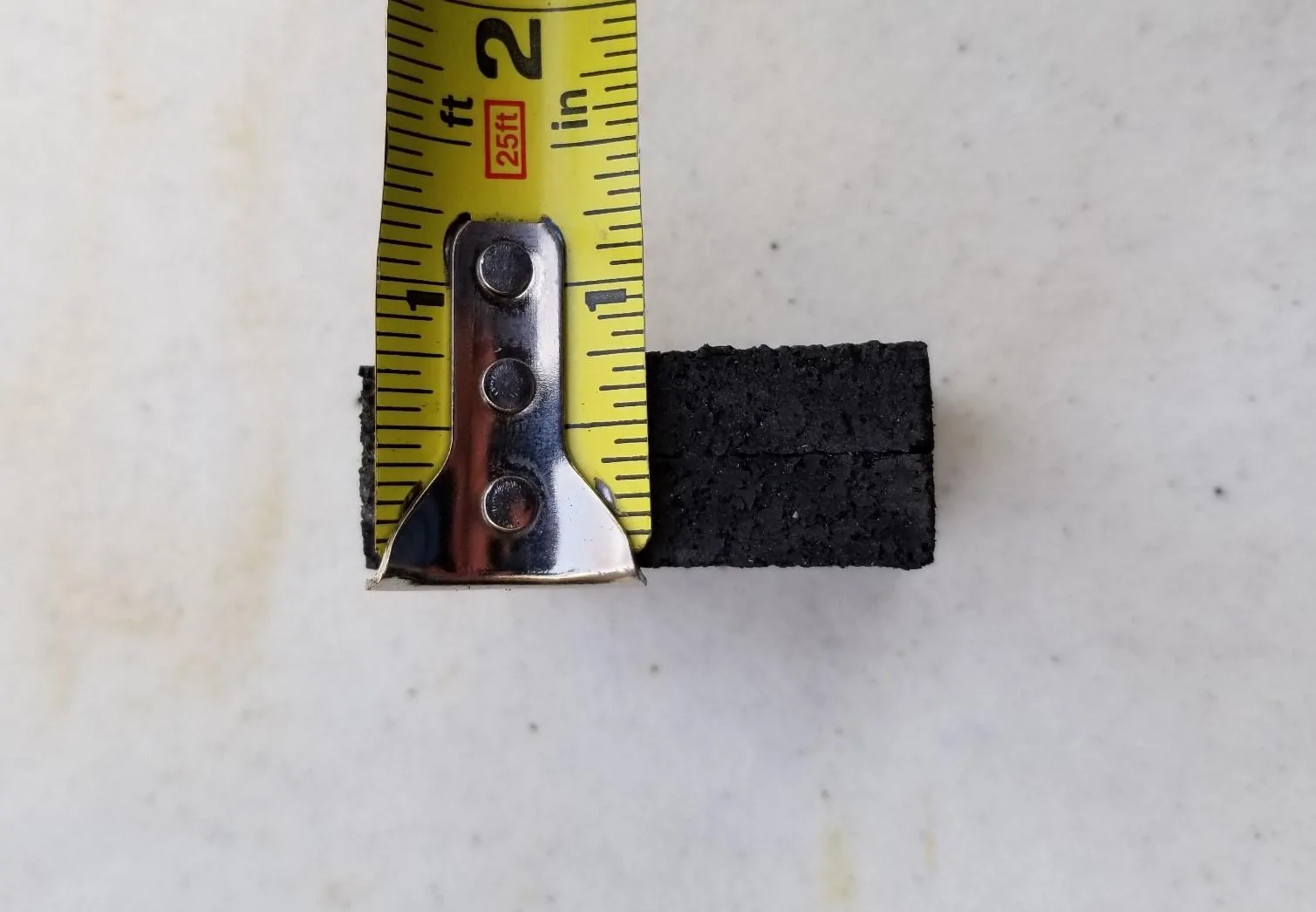

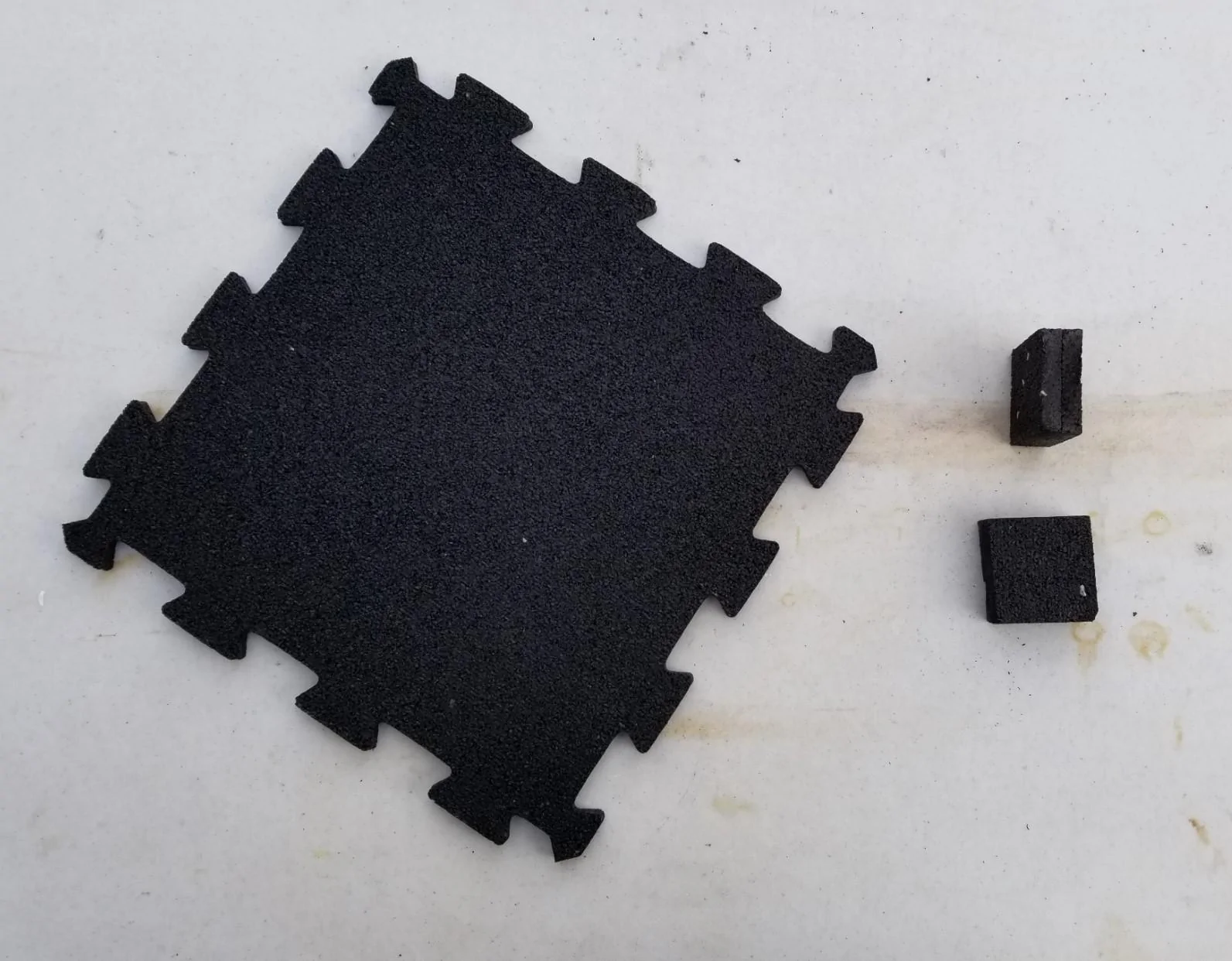

I had a couple of spare rubber floor tiles laying around for materials and I wanted to try and create a larger platform to support the cap than the stock 1.5" x 1.5" pads. I did some quick measurements and figured out that I could get a 2" x 2" pad to fit just to the edge of the bed under the cap. I ended up cutting four 2" x 2" squares from the floor tile and super glued them together to make 2 new pads.



Once they were glued together, they were almost 3/4" thick but the material has some flex in it so it is closer to 5/8" under load.

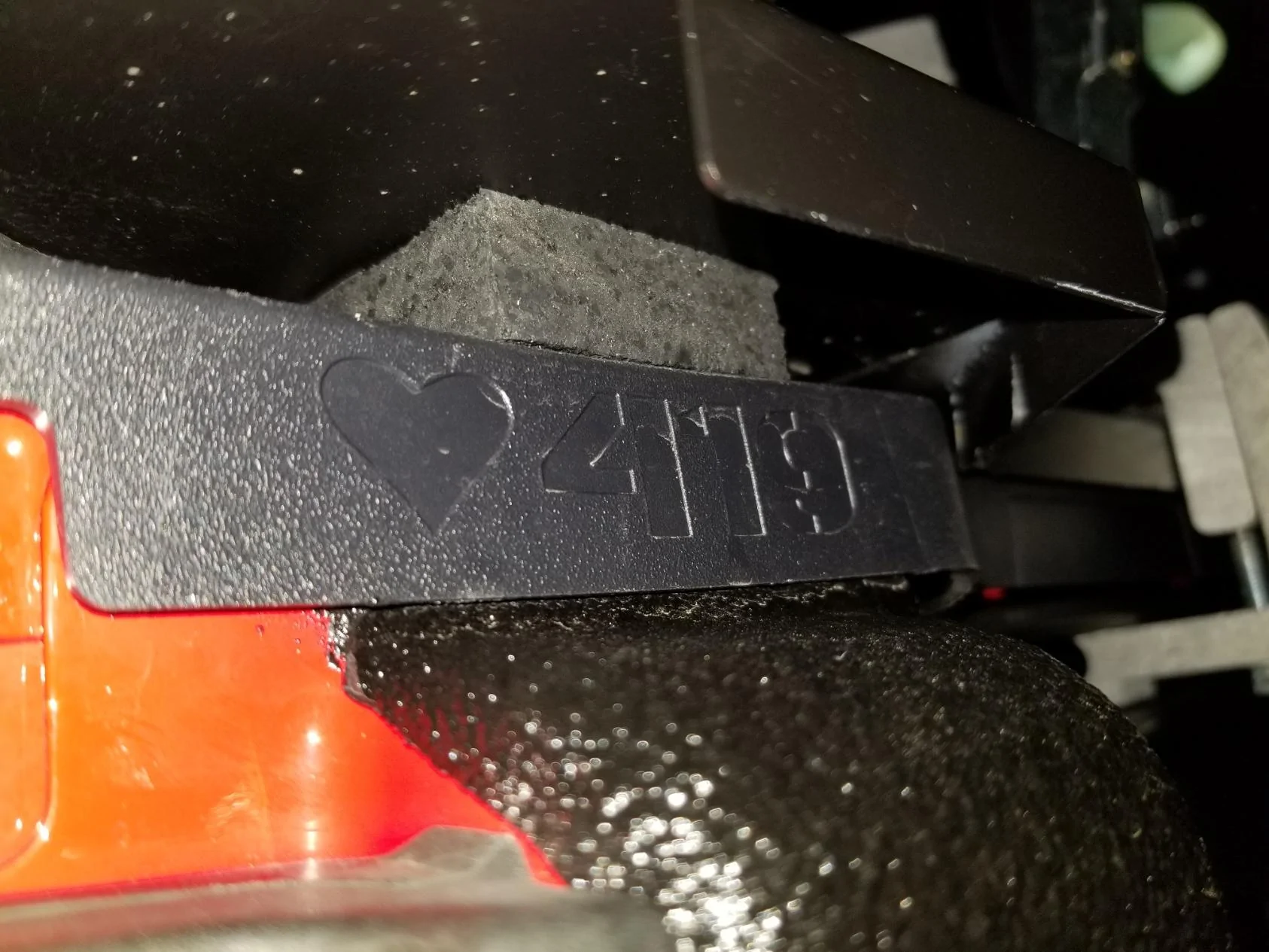

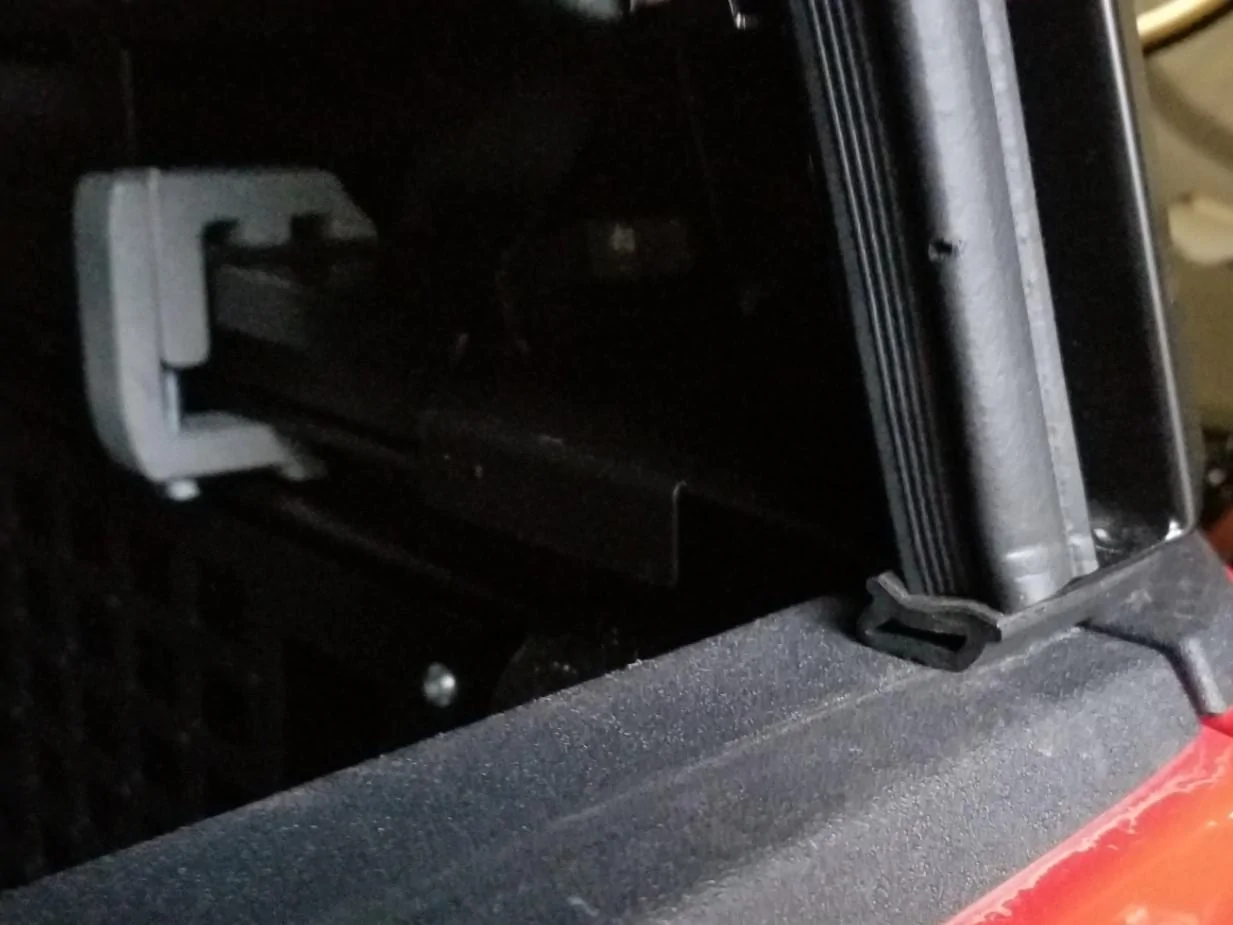

I placed these as far back as I could get them under the rail of the Smartcap along the same linear axis as the pads under the clamps (where the bed rail in the Gladiator starts to get wider but before the back of the cap starts to curve around. It's probably 1/2" towards the back of the bed from the seam where the cap side section and back section mate).



After re-clamping the cap to the recommended spec the cap seals all the way around and the tailgate opens and closes without any restrictions. The back window seals very tight when closed and takes some pressure to open it but I would prefer that so there is a water/dust proof seal.



I'm sure there are some variations in caps and beds so there isn't a one size fits all solution here but for those that are looking at a fix for this I would suggest going to a 5/8" spacer over the 9/16" spacer unless the material you are using has no give in it whatsoever.

FWIW I'm extremely happy with the cap and the fix was really easy once I had it measured out. For my money there isn't a better solution out there, thanks RSi for a great product and helping to come up with a solution when issues arose. Also, thanks again to everyone on this thread that has posted their experiences as well as successful fixes, it's very helpful to see what others have done so the wheel doesn't need to be re-invented every time.


Jaxmax

Well-Known Member
First Name
Jack
Joined
Jun 28, 2020
Messages
461
Reaction score
397
Location
Bally, Pa.
Vehicle(s)
Jeeps....... 2021 Mojave , 2019 Wrangler
Occupation
Electrical Manager
Put my Yakima racks on cap tonight, I have some extra nuts that fit the tracks on the RSI cap, need 8-10 let me know I’ll mail them to ya, anyone on this thread, even you Colorado! Ha!......Jack
