Spare Tire Delete

SilverF0X

Member
First Name
Daniel
Joined
Apr 30, 2020
Threads
3
Messages
22
Reaction score
18
Location
League City, TX
Vehicle(s)
2018 Wrangler JLU & 2020 Gladiator JT
This pic seems to be more than just a vinyl sticker. Seems to match the handle plastic perfectly.



Nitroexpress

Well-Known Member
Joined
Jan 13, 2020
Threads
2
Messages
237
Reaction score
324
Location
Texas
Vehicle(s)
'20 Jeep Gladiator Rubicon, '82 Jeep CJ-8,
Anyone going with bigger tires take the spare wheel/tire off? Going to 35" tires and thinking about just taking the spare off. I know a 35 will fit in the space, but could save a little money by not buying a 5th tire.
I bought one additional OEM wheel and installed 5 skinny 35's (35x11.50). I do 5 tire rotations and the spare fit's in the under bed location with no issue. I've had too many tire related issues in remote locations that a plug and air compressor would not solve, so I always carry a spare.


Jt-wrx

Well-Known Member
First Name
Blake
Joined
Dec 24, 2019
Threads
18
Messages
671
Reaction score
459
Location
eh
Vehicle(s)
20 sport s 6spd
i run mostly truck duty, with sport s on 37's, for spare i went steel 18" and a 285 75r18, little taller than 35 but the thinnest option, looks to hang down about even with the hitch now, when the 12.5" 35 i tried looked like it needed to take a dump...anyway, just don't lock up on the axle it needs to go on and should get you home, sport or rubi...for the overlanders/wheelers, you could run a 35/37 x 11.5 to have less hanging down there, not sure moving them up is great idea, putting a lot of gear higher and higher to begin with, what's happening to that center of gravity?

section width of the 285 75r18 is 11.26"
section width of the 35/37x11.5's is 11.42"
section width of the 35/37x12.5's is 12.52"

so by math alone the 285 is 1.26" less hanging down but looks more like 2" to me and the pics i've taken to compare, i could have gone 11.5's and had same height for bit more thickness and another 7 lbs of rubber but i rarely need a spare so i went skinny and light


Sponsored

Food2000

Well-Known Member
First Name
vinh
Joined
Nov 21, 2019
Threads
8
Messages
60
Reaction score
33
Location
San Diego
Vehicle(s)
Gladiator Sport

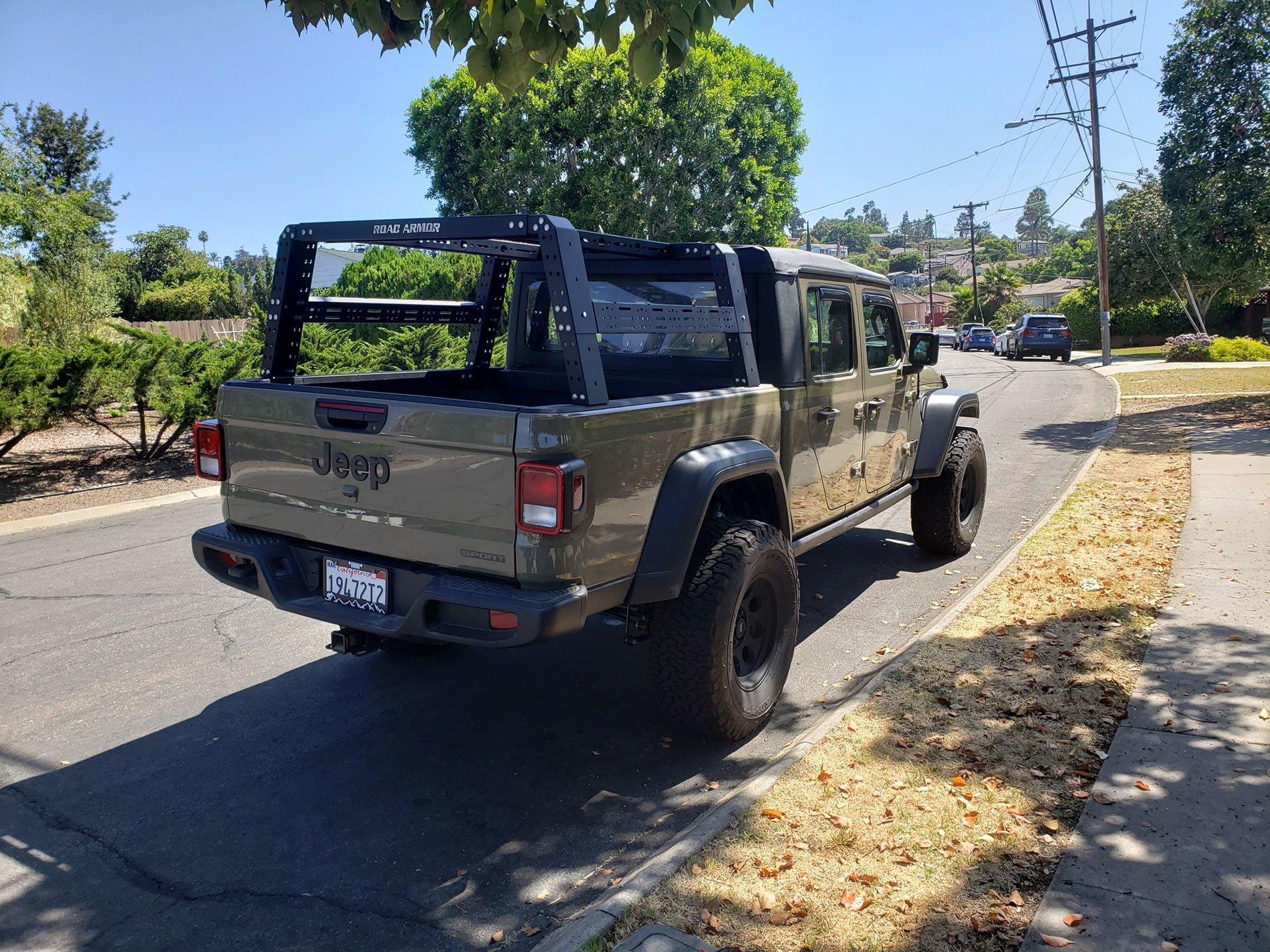

Question for ya, i just got the road armor treck rack as well... and man that spare mount is pricey $230ish, Was it worth it?

I haven't pulled the spare to see how the factory mounts work but... you see any cheaper way to mount it?


Coyotesong

Well-Known Member
First Name
TJ
Joined
Dec 31, 2019
Threads
22
Messages
78
Reaction score
46
Location
USA
Vehicle(s)
2020 Gladiator
Because I am running 38x13.50 tires, I will be using the N-Fab tie-down and keeping it in the bed with a cable lock to the rear bed tie-downs. I plan to mount my compressors and tank where the spare tire was located. I will still be able to use the soft tonneau cover on the bed and I can easily remove the spare tire when I need to haul something and rotate tires. This is a photo from N-Fab's website.
Jeep Gladiator Spare Tire Delete Gladiator3rdBrakelight
Did you drill the bed for the strap mounts?


kickingaz

Well-Known Member
First Name
Scott
Joined
Feb 25, 2020
Threads
20
Messages
314
Reaction score
255
Location
New River, AZ
Vehicle(s)
2021 Gladiator Rubicon Diesel, 2018 Rubicon JLU
Occupation
Owner - New River Offroad
Did you drill the bed for the strap mounts?
I have not installed mine yet as I was waiting for the Maximum-3 gen 2 air tank mount, which just got here recently. But to answer your question, you would either have to drill the bed to weld the brackets to the bed.


TTEChris

Well-Known Member
First Name
Chris
Joined
May 17, 2017
Threads
21
Messages
503
Reaction score
1,729
Location
Houston, TX
Website
tankcustoms.com
Vehicle(s)
2021 JTD
Occupation
Jeep

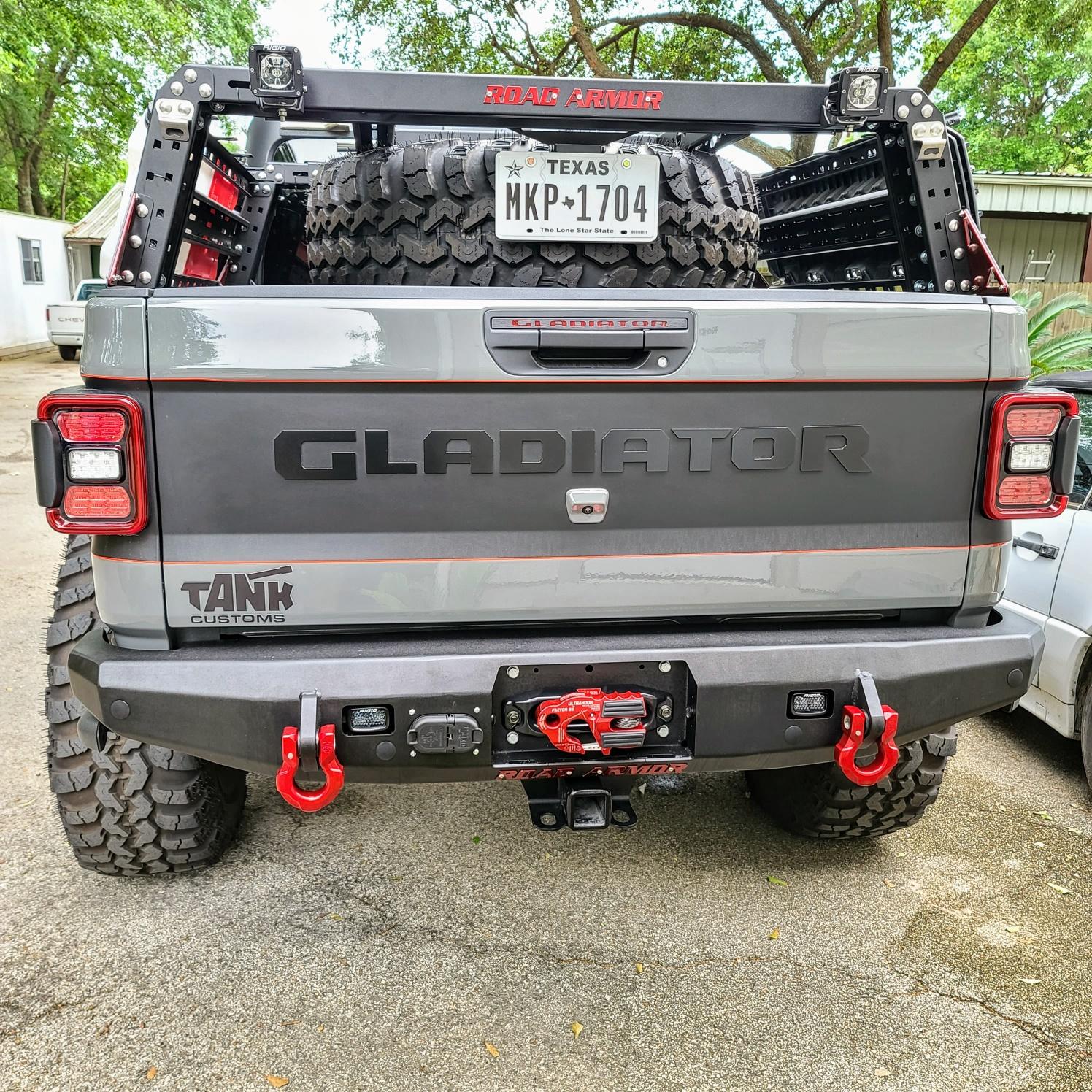

Question for ya, i just got the road armor treck rack as well... and man that spare mount is pricey $230ish, Was it worth it?

I haven't pulled the spare to see how the factory mounts work but... you see any cheaper way to mount it?
It's pricey, but being able to use the factory tools and having it "sucked" up into the rack makes it worth it for me. I can still haul a bunch of gear with it installed, but for day/day driving I usually keep the spare at the shop for better visibility. I'm sure with some fabrication skills you can make it work, but it's all about how you value your time. I have the benefit of playing with Jeeps for a living. The 2-4 hours it would take to make something similar is better spent working on customers Jeeps or installing more "fun" mods on mine.


Jaydebe

Well-Known Member
First Name
Jay
Joined
May 13, 2020
Threads
20
Messages
219
Reaction score
224
Location
Va
Vehicle(s)
Stacy'sMom aka: 2020 JTR
Build Thread
Link
Occupation
Renovations
Vehicle Showcase
1
A related question I have... Who has replaced the steel spare with a normal wheel, so it can be put into five-tire rotation instead of four? I hate the idea of a perfectly good tire being "wasted" and never used. That's 20% more tire life. I always did five tire rotations on my JK.
I did this on my 4R, after 20k on my ATW3's they looked about 1/4 worn tops.


Sponsored

Deleted member 30519

I want a half rack that can hold spare tire on top. Any suggestions?


Food2000

Well-Known Member
First Name
vinh
Joined
Nov 21, 2019
Threads
8
Messages
60
Reaction score
33
Location
San Diego
Vehicle(s)
Gladiator Sport
I would probably also keep my spare off for my day to day driving and only put it on while wheeling.

I'd like to put my RTT when it finally arrives and adjust the bars lower so it's even with the roof for less drag, but then.. i wonder how much the tire will interfere with the camping gear i'd have in the trunk? I should probably measure in the morning to see.

I think i am leaning on just buying the mount.. yes it's pricey but i don't really know how to fab anything and i am sure that whatever i make... will eventually break as i plan on wheelin it.. i can see my self thinking "why was i a cheap ass."



Wicknalter

Well-Known Member
First Name
Nick
Joined
Sep 23, 2020
Threads
11
Messages
131
Reaction score
165
Location
Ohio
Vehicle(s)
2020 Gladiator Sport S
Vehicle Showcase
1

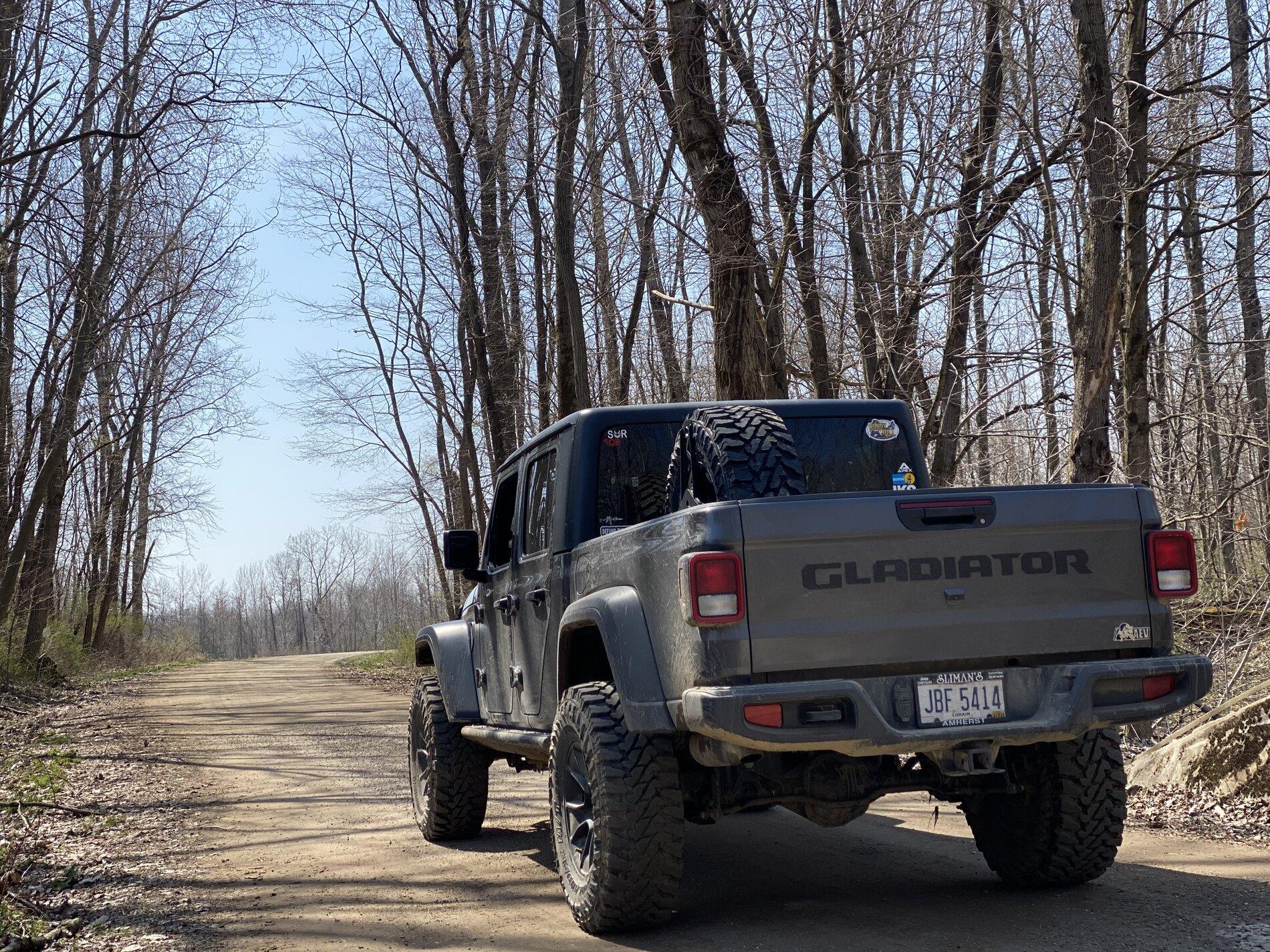

I moved mine. The 35” fits underneath but I nearly punctured it twice while wheeling. It hangs to low for my liking and doesn’t help with the departure angle.





deadbug

Well-Known Member
First Name
Rich
Joined
Sep 6, 2019
Threads
6
Messages
55
Reaction score
21
Location
New England
Vehicle(s)
2020 Jeep Gladiator Rubicon
Occupation
Electrician
Im going 37x12.50"s and thinking of a 37 on a cheap wheel but like 37x10.5 to help save room under there!
anyone else try this ?
