BuiltRight Industries Bedside Racks - Any Interest?

Status
Not open for further replies.

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Sending you a PM!

The rectangles are 1.25in wide and designed to fit MOLLE accessories (or anything similar). The slots are just over .25in and perfect for 1/4-20 hardware and carriage bolts from the back!

Matt
Boom! That's using your noggin.

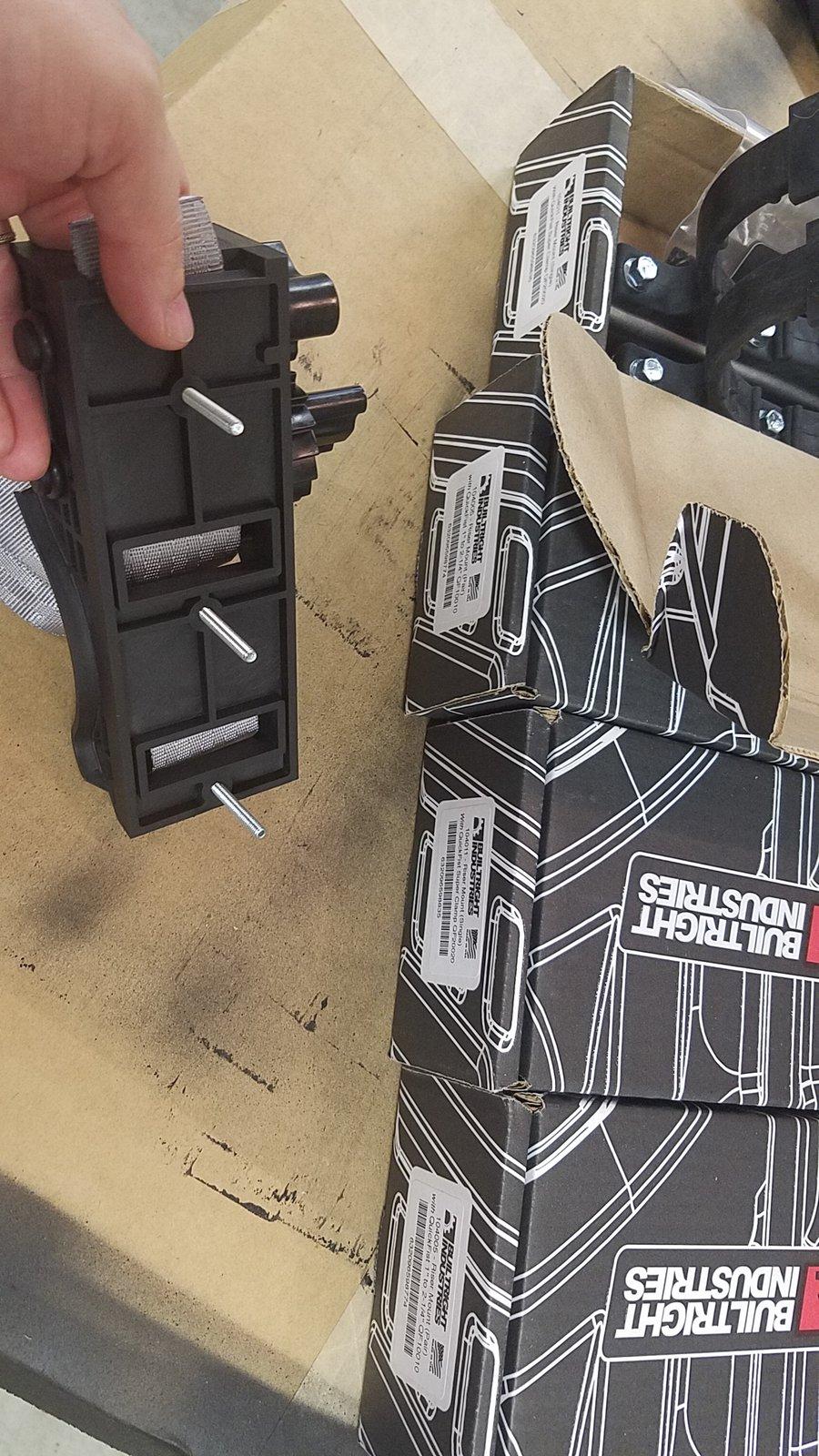

What do you recommend for the quick fist ratchet mounting? Should I drill out the mount holes to be 1/4", or just use a small bolt with like a fender washer behind the BRI panel? Lol

I think I got 8-32 bolts in there now, fit snuggly.

Sponsored



bcunning82

Well-Known Member
First Name
Blake
Joined
Jul 19, 2019
Threads
8
Messages
73
Reaction score
107
Location
Nor Cal
Vehicle(s)
2020 Rubicon Bright White
Bingo. My target has been an MSRP of $200. It looking like I may miss that with higher than anticipated powdercoating costs, but not by much. Will still be a significant savings from Mopar.

Matt
Would the panel system you have out be able to mount to a DIY 7/8x1-5/8 strut rail system, or an L-track system?

Thanks

OP
OP
BuiltRight

BuiltRight

Well-Known Member
First Name
Matt
Joined
May 27, 2019
Threads
5
Messages
123
Reaction score
315
Location
CT
Vehicle(s)
2020 Gladiator
Boom! That's using your noggin.

What do you recommend for the quick fist ratchet mounting? Should I drill out the mount holes to be 1/4", or just use a small bolt with like a fender washer behind the BRI panel? Lol

I think I got 8-32 bolts in there now, fit snuggly.
A #10 bolt should work in there I think, but in any case, just use a washer on the backside!
Would the panel system you have out be able to mount to a DIY 7/8x1-5/8 strut rail system, or an L-track system?

Thanks
You'd want to space it out from the bed to get close to the depth of the factory rail system, but otherwise it should work fine.

Our utility rail kit is basically a DIY+ kit. I bought 2000ft of custom blank channel and am cutting them to length, laser cutting the correct bolt pattern and then plating and coating them for corrosion resistance. My material should arrive on Thursday then we're off to the races!

Matt


WhiteJT8541

Well-Known Member
First Name
Rob
Joined
Aug 6, 2019
Threads
4
Messages
310
Reaction score
373
Location
Ohio
Vehicle(s)
2020 Gladiator Sport
Occupation
LEO
A #10 bolt should work in there I think, but in any case, just use a washer on the backside!

You'd want to space it out from the bed to get close to the depth of the factory rail system, but otherwise it should work fine.

Our utility rail kit is basically a DIY+ kit. I bought 2000ft of custom blank channel and am cutting them to length, laser cutting the correct bolt pattern and then plating and coating them for corrosion resistance. My material should arrive on Thursday then we're off to the races!

Matt
YES!!!


Sponsored

camodog

Well-Known Member
Joined
Nov 7, 2017
Threads
28
Messages
336
Reaction score
469
Location
Denver
Vehicle(s)
2020 Jeep Gladiator Rubicon
@BuiltRight

I have to admit I didn’t read all 16 pages.
But I would be in for the whole set
It would need to be strong enough to hold my 20# homemade powertank.
Here is a pic for reference, not a representation of where exactly I want to store items
Some other items I carry, are a full length shovel, battery powered chainsaw, an ax etc


Ghostrider29

Active Member
First Name
Kyle
Joined
Jul 13, 2019
Threads
4
Messages
44
Reaction score
85
Location
KFBG
Vehicle(s)
Gladiator_Dodge Demon
Hey brother, dig your ideas with the Molle, I like the updates to your website with the addition of trail rail install. Now if I could only get a custom plug cover with built right logo and a black and Crome Boise state bronco logo that’d be ! Have you tried a 3 gal rotopax can with the driver side rear? Should fit.


CAL32

Well-Known Member
First Name
Chris
Joined
Sep 16, 2019
Threads
0
Messages
80
Reaction score
35
Location
07417
Vehicle(s)
Jeep Gladiator Sport S Sting Gray/Toyota 4Runner Limited Pearl White
A #10 bolt should work in there I think, but in any case, just use a washer on the backside!

You'd want to space it out from the bed to get close to the depth of the factory rail system, but otherwise it should work fine.

Our utility rail kit is basically a DIY+ kit. I bought 2000ft of custom blank channel and am cutting them to length, laser cutting the correct bolt pattern and then plating and coating them for corrosion resistance. My material should arrive on Thursday then we're off to the races!

Matt
I'm interested, lmk when its done and what it looks like. i refuse to drop 370 on Mopar's trail rail system...


Kt_gladiator

Well-Known Member
Joined
Feb 17, 2019
Threads
1
Messages
61
Reaction score
37
Location
vA
Vehicle(s)
2016 Forester XT
I've installed the kit on both sides. I must say the panels feel nice and sturdy, and installed wasn't too difficult except for one minor hiccup with the final bolts.

The kit shipped with 3 sets of screw/bolt/washer sets.
The T-slot nuts:

The bottom bumpers:

And, the rear bolts:


I found it was easiest to install the panels by barely threading the T-slot nuts onto the bolt, washer, and panel. Also, installing the bumpers on the bottom at this time as well:


Next, I lifted the T-slot into the trail rail at 45-60 degree angle to get the top edge in, and then pushed it up and over to seat the T-slot in the rail:

And then, I used a 10mm socket and tightened the T-slot bolts down. Finished shot:

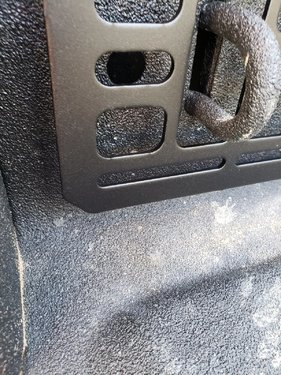

Now, for the hiccup. I didn't have anything to have the large bolts to bite into on the bottom of the panel. I'm awaiting to find out if this is due to missing hardware or if my bed was altered when they added the bedliner. Panels still seem fairly secure, but I think the extra mount point is still needed.

They look great, and I might be adding a few more goodies here soon to them!

Last edited:

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Now, for the hiccup. I didn't have anything to have the large bolts to bite into on the bottom of the panel. I'm awaiting to find out if this is due to missing hardware or if my bed was altered when they added the bedliner. Panels still seem fairly secure, but I think the extra mount point is still needed.
your bag should have had 2 big ones of these,

call Matt if you can't find em., From his install email he said, bolt-metal washer-panel-plastic spacer- box-big nut and if you don't have 2 hands use some masking tape to tape the nut to the bed then lightly thread it in.


Sponsored

kayakmike

Well-Known Member
First Name
Mike
Joined
Jan 23, 2019
Threads
29
Messages
1,136
Reaction score
1,689
Location
Ramona, CA
Vehicle(s)
2020 Jeep Gladiator Granite Crystal Metallic Launch Edition
Build Thread
Link
Occupation
Rocket Scientist
Whoo hoo! Look what showed up today. Front and side racks!

Now I just need to wait until the 30th to pick up my JT to put these on. Adding these to the accessory pile. :CWL:


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
I don't think the front racks have shipped yet.

Whoo hoo! Look what showed up today. Front and side racks!

Now I just need to wait until the 30th to pick up my JT to put these on. Adding these to the accessory pile. :CWL:
I


kayakmike

Well-Known Member
First Name
Mike
Joined
Jan 23, 2019
Threads
29
Messages
1,136
Reaction score
1,689
Location
Ramona, CA
Vehicle(s)
2020 Jeep Gladiator Granite Crystal Metallic Launch Edition
Build Thread
Link
Occupation
Rocket Scientist
I don't think the front racks have shipped yet.


I
Dang it! Now you made me open the box. I was just going to put it in the pile with the rest of waiting parts. Just sides and a couple of surprises! Good, because I need to add a few more goodies to ship with the front panel. Thanks Matt @BuiltRight!


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
Dang it! Now you made me open the box. I was just going to put it in the pile with the rest of waiting parts. Just sides and a couple of surprises! Good, because I need to add a few more goodies to ship with the front panel. Thanks Matt @BuiltRight!


BlackDog

Well-Known Member
First Name
Ryan
Joined
Sep 30, 2017
Threads
14
Messages
260
Reaction score
234
Location
Evergreen, CO
Vehicle(s)
2020 Sting Gray JTR / 2005 Grand Cherokee
Whoo hoo! Look what showed up today. Front and side racks!

Now I just need to wait until the 30th to pick up my JT to put these on. Adding these to the accessory pile. :CWL:
Got mine today, too! Just need a truck to put them in.
