Carrier bearing spacer for rear driveshaft

Geekjeep

Well-Known Member
Joined
Oct 20, 2019
Threads
23
Messages
238
Reaction score
100
Location
Florida
Vehicle(s)
Gladiator sport s
Man. Rockjock unit is beautiful but had no instructions. I put a little blue loctite on it. Regardless


duvinclunk

Well-Known Member
First Name
Davin
Joined
Mar 8, 2021
Threads
23
Messages
205
Reaction score
75
Location
SLC, UT
Vehicle(s)
21 JTR
Could an improper driveline angle cause more noise from the carrier or pinion bearing?


jc99

Well-Known Member
First Name
jc
Joined
Mar 26, 2019
Threads
7
Messages
104
Reaction score
75
Location
Vancouver
Vehicle(s)
2021 JTRD
Another carrier bearing option I found...

https://rockkrawler.com/jt-carrier-bearing-drop-kit/

From what I was told when I called Rock Krawler it is much taller 1 3/4" . It also adjusts the shaft position driver/passenger to straighten it out. That is also noted in the install guide for there lift where they note the use of the carrier bearing drop kit.

From the JT ADVENTURE-XLONG ARMSYSTEMS install guide:
"Please note: The JT rear third link mounting bracket also includes a carrier bearing drop mount built right in and also recenters the driveshaft down the tunnel removing the Z shape out of the driveline increasing driveline durability."

I'd be interested to confirm the height of this from someone who has it and how much the position of the shaft is moved Driver/Passenger.


Sponsored

JRODZ

Active Member
First Name
John
Joined
Oct 16, 2021
Threads
4
Messages
30
Reaction score
34
Location
CNY
Vehicle(s)
21 Jeep Gladiator Willys
Occupation
Truck Driver

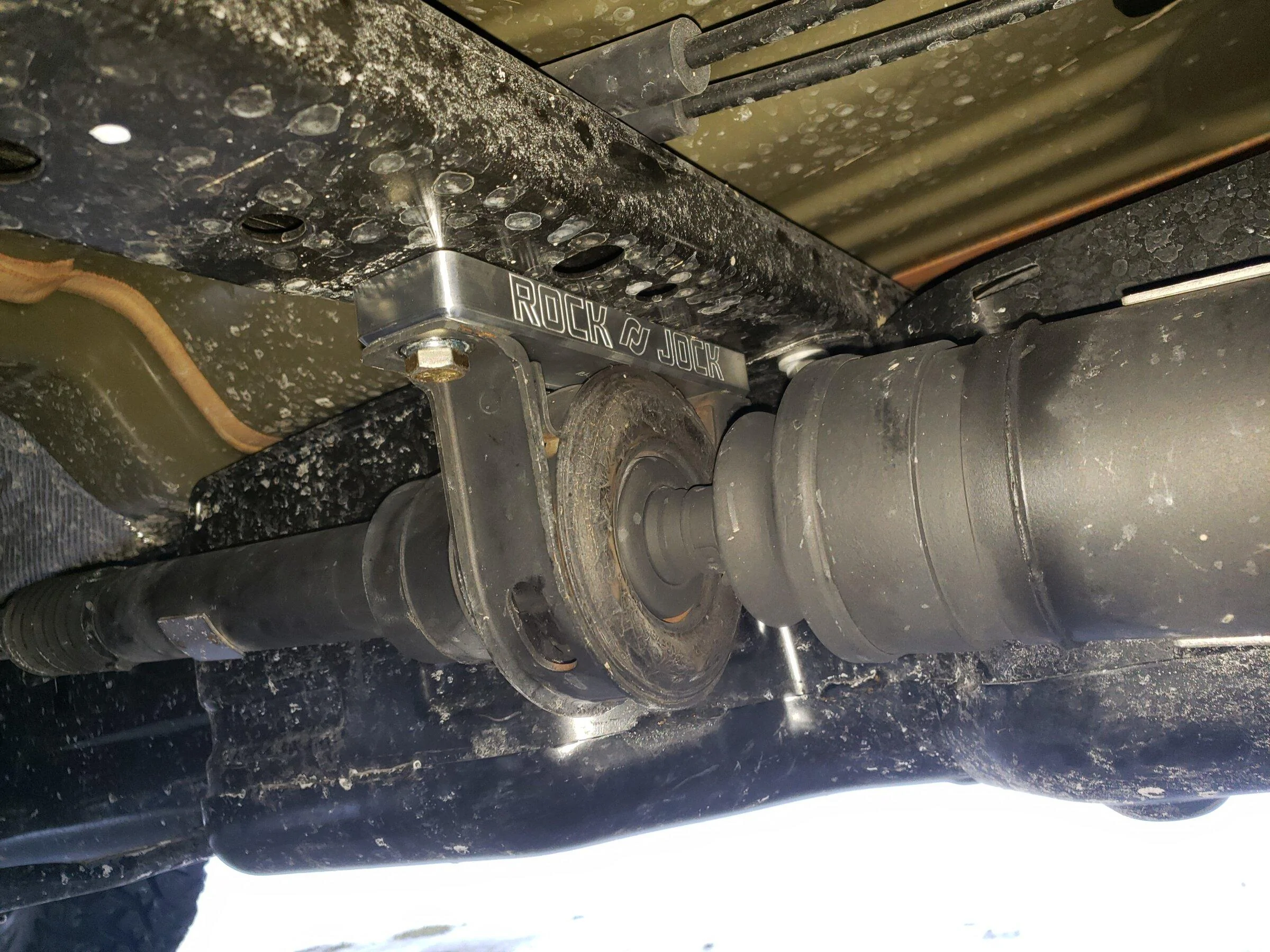

I added the Rock Jock on mine also. Like you, I figured it cheap insurance, 35 buck. I'm running a RC 3.5" lift.





WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
40
Messages
5,362
Reaction score
7,302
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1

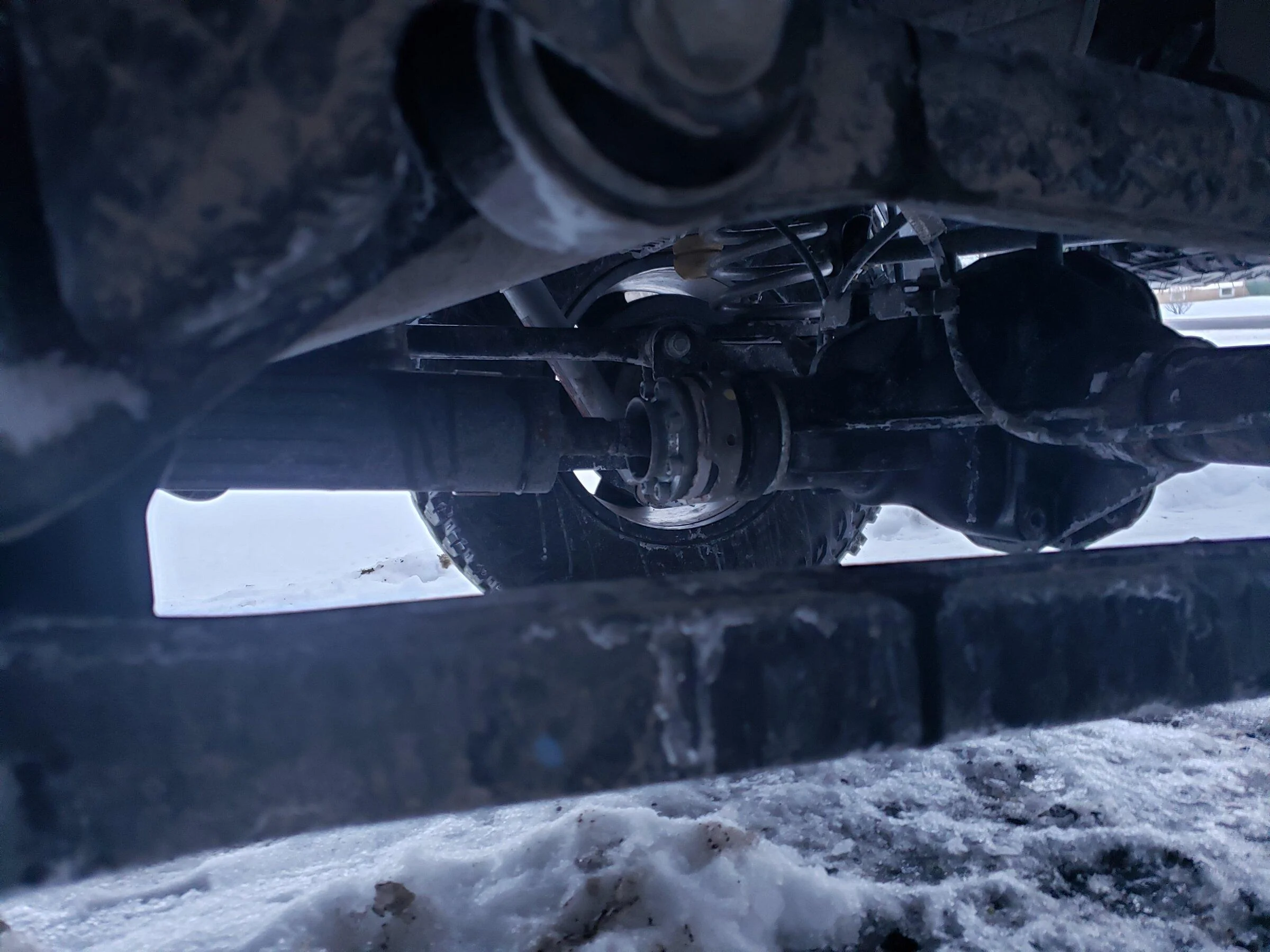

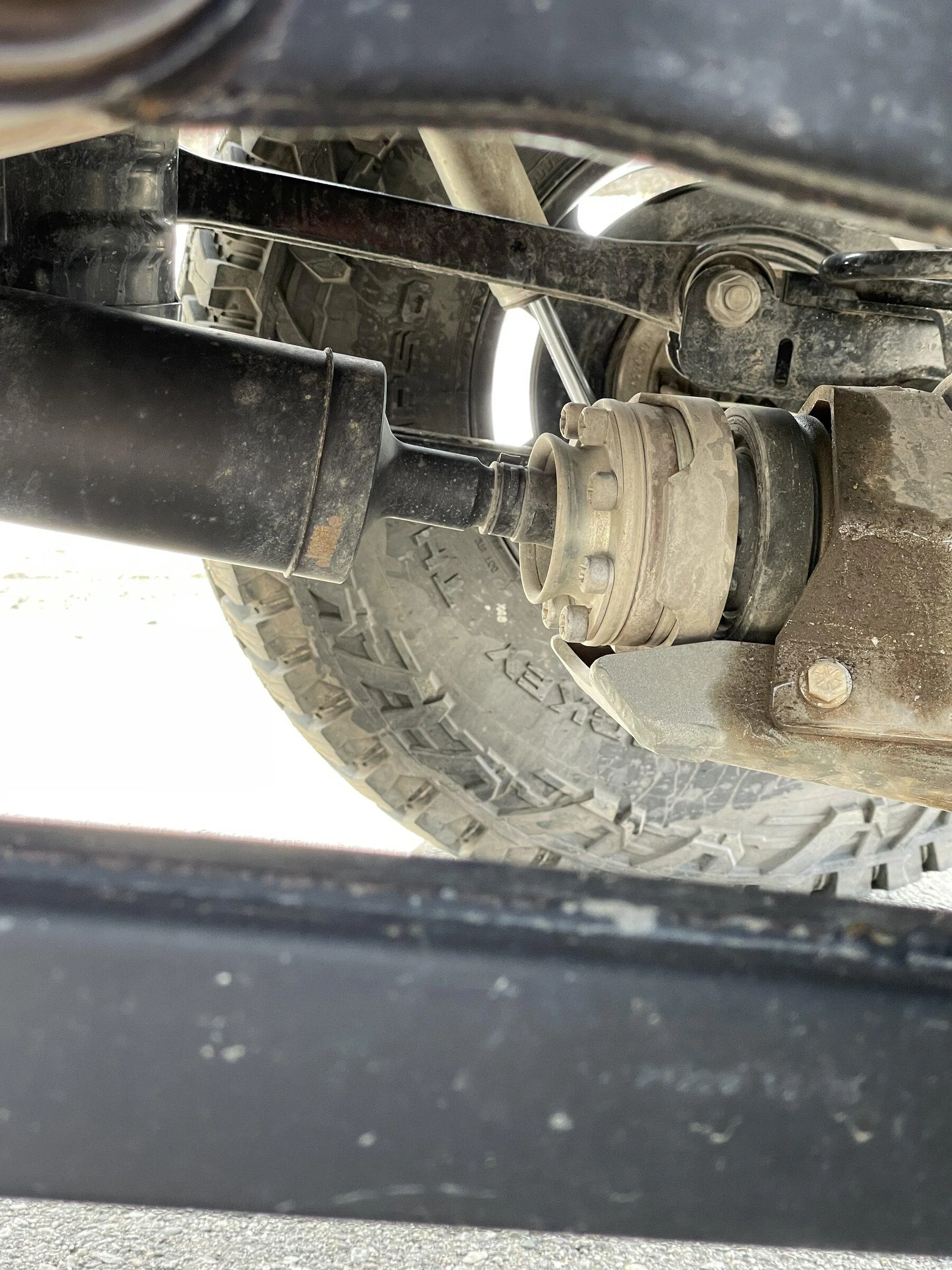

By looking at this picture of the drive shaft connection to the rear diff, can someone tell me if a spacer would be necessary? I really like the idea, but don’t know enough about the angles, as zero is apparently bad as well. If not, thanks anyway.
Jeep Gladiator Carrier bearing spacer for rear driveshaft C107B5CD-FDA9-4EC7-9F36-BA0F24889211


MoparMadness

Well-Known Member
First Name
Frank
Joined
Jul 16, 2019
Threads
13
Messages
84
Reaction score
84
Location
CA
Vehicle(s)
2020 Jeep Gladiator Rubicon
By looking at this picture of the drive shaft connection to the rear diff, can someone tell me if a spacer would be necessary? I really like the idea, but don’t know enough about the angles, as zero is apparently bad as well. If not, thanks anyway.
Jeep Gladiator Carrier bearing spacer for rear driveshaft C107B5CD-FDA9-4EC7-9F36-BA0F24889211
If the rear is lifted more than 2 inches with stock arms, you can benefit from a spacer. It looks like you need one from the photo but its best to measure the difference between the shaft angle and yoke angle to be sure.


WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
40
Messages
5,362
Reaction score
7,302
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1
If the rear is lifted more than 2 inches with stock arms, you can benefit from a spacer. It looks like you need one from the photo but its best to measure the difference between the shaft angle and yoke angle to be sure.
The rear is stock control arms and 3.5-4 I’d guess. It started with the 3” JKS lift, but I have ram 1500 springs in the back as an add on, so it’s likely 4 in the back. Any opinions between the rock hard and Dana spicer options? I’d probably lean towards Dana if no one has a good reason otherwise.


NewGladdyOWNR

Well-Known Member
First Name
Johnny
Joined
Aug 7, 2021
Threads
22
Messages
363
Reaction score
523
Location
Michigan
Vehicle(s)
Jeep Gladiator Overland
Occupation
MRI Technologist
Anyone have a picture of a stock rear pinion angle to diff? This is mine with the Clayton 2.5” lift. I also bought the rock jock spacer, yet to install it though.



Sponsored

WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
40
Messages
5,362
Reaction score
7,302
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1
Anyone have a picture of a stock rear pinion angle to diff? This is mine with the Clayton 2.5” lift. I also bought the rock jock spacer, yet to install it though.

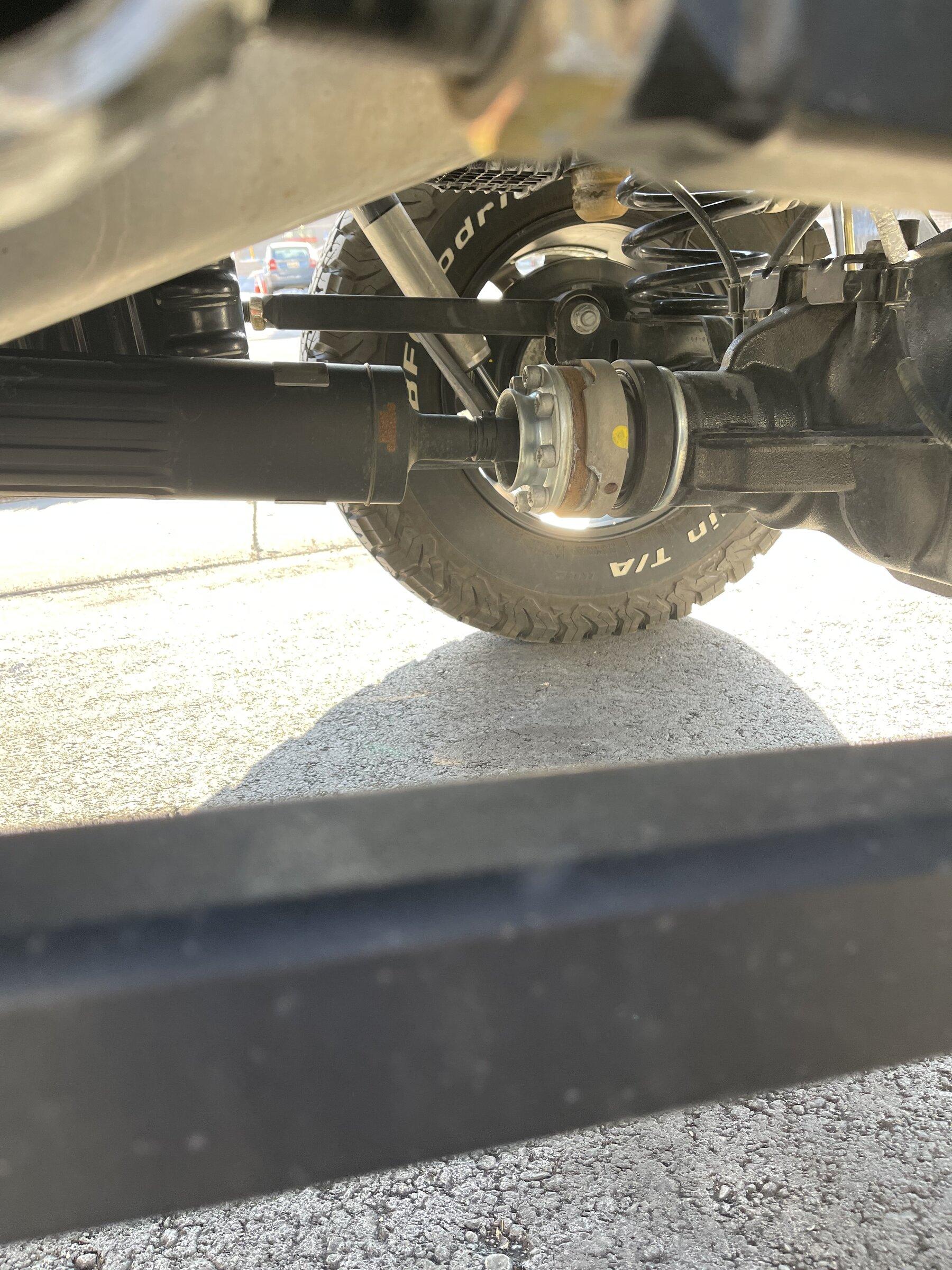

Jeep Gladiator Carrier bearing spacer for rear driveshaft 16908C81-3F16-4246-9825-851FDC4A924E

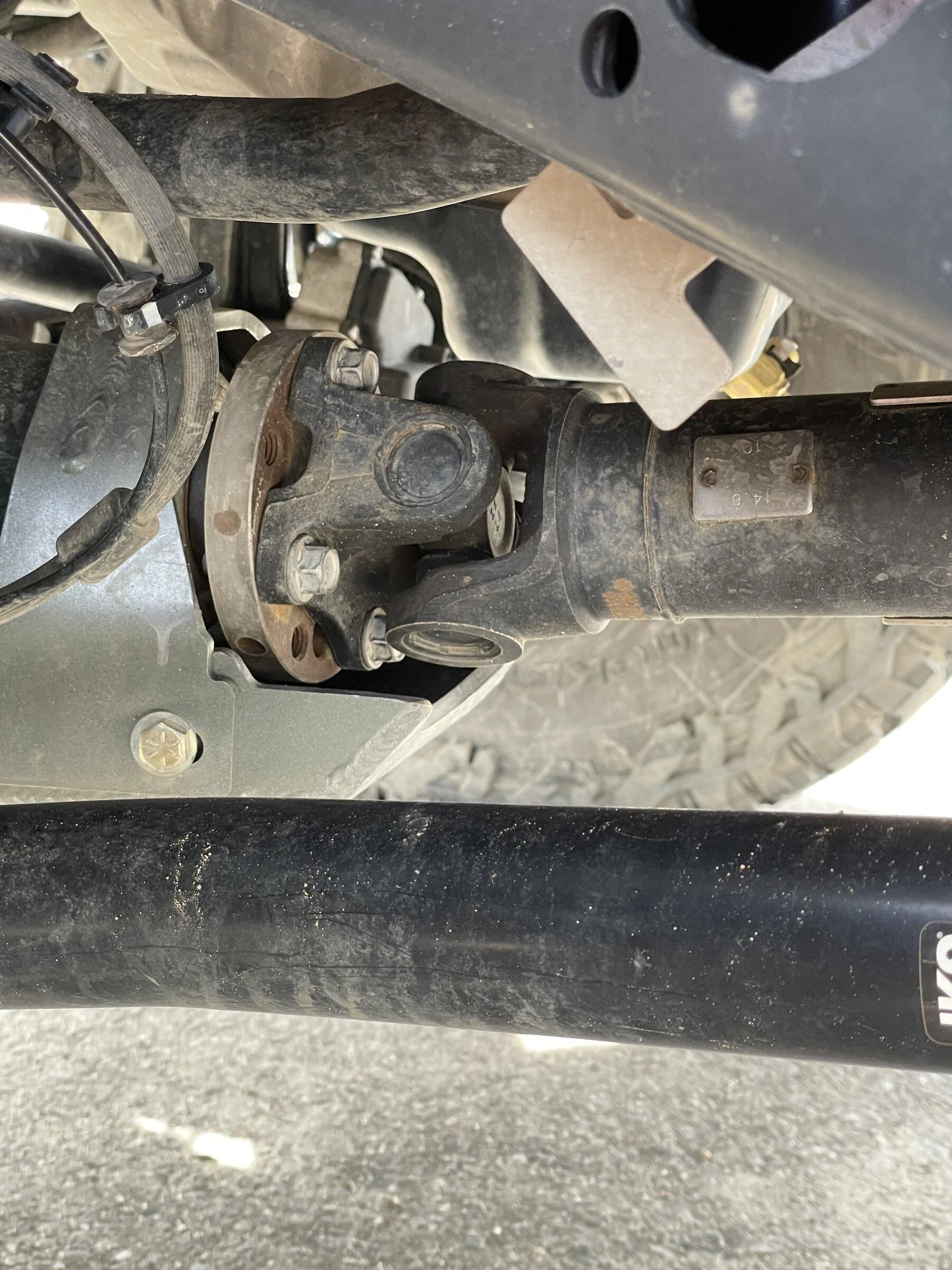

Yours looks super tame compared to mine. If mine looked like that I wouldn’t bother with a spacer I don’t think. But if that’s 2.5, and mine looks the way it does. I’m getting one. Here’s my front picture. Harder to judge with u joints visually.
Jeep Gladiator Carrier bearing spacer for rear driveshaft 7D6A9E0E-A70D-4D9E-880A-53407DE95DCF


WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
40
Messages
5,362
Reaction score
7,302
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1

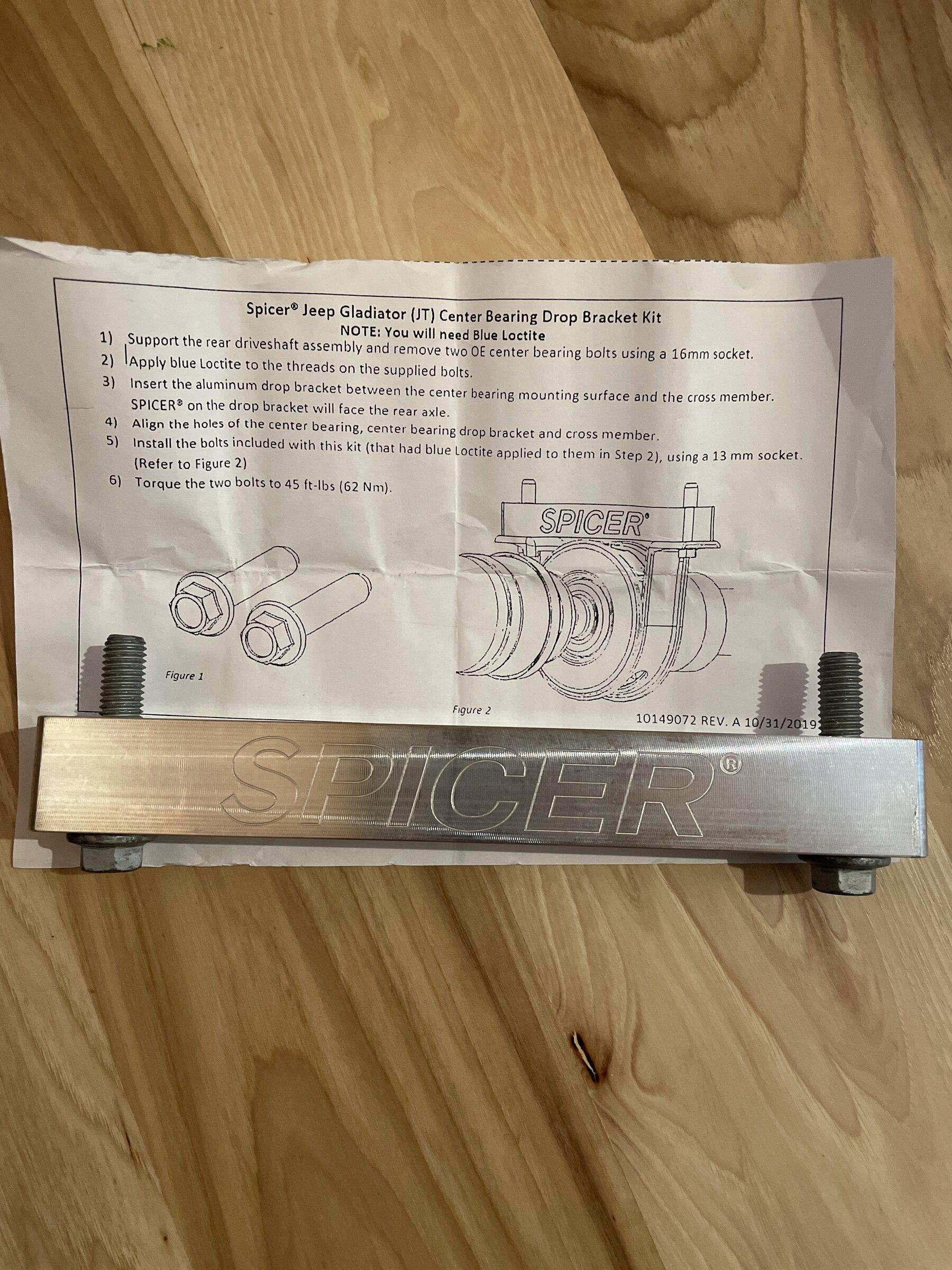

This just arrived. When it’s warmer later this week I’ll throw it on. Looks like a 20 min job max, but don’t they all. Thanks for the heads up on this everyone.
Jeep Gladiator Carrier bearing spacer for rear driveshaft image


WILDHOBO

Well-Known Member
First Name
Dan
Joined
Sep 24, 2021
Threads
40
Messages
5,362
Reaction score
7,302
Location
Colorado
Vehicle(s)
2021 Gladiator Rubicon
Occupation
Network Engineer
Vehicle Showcase
1

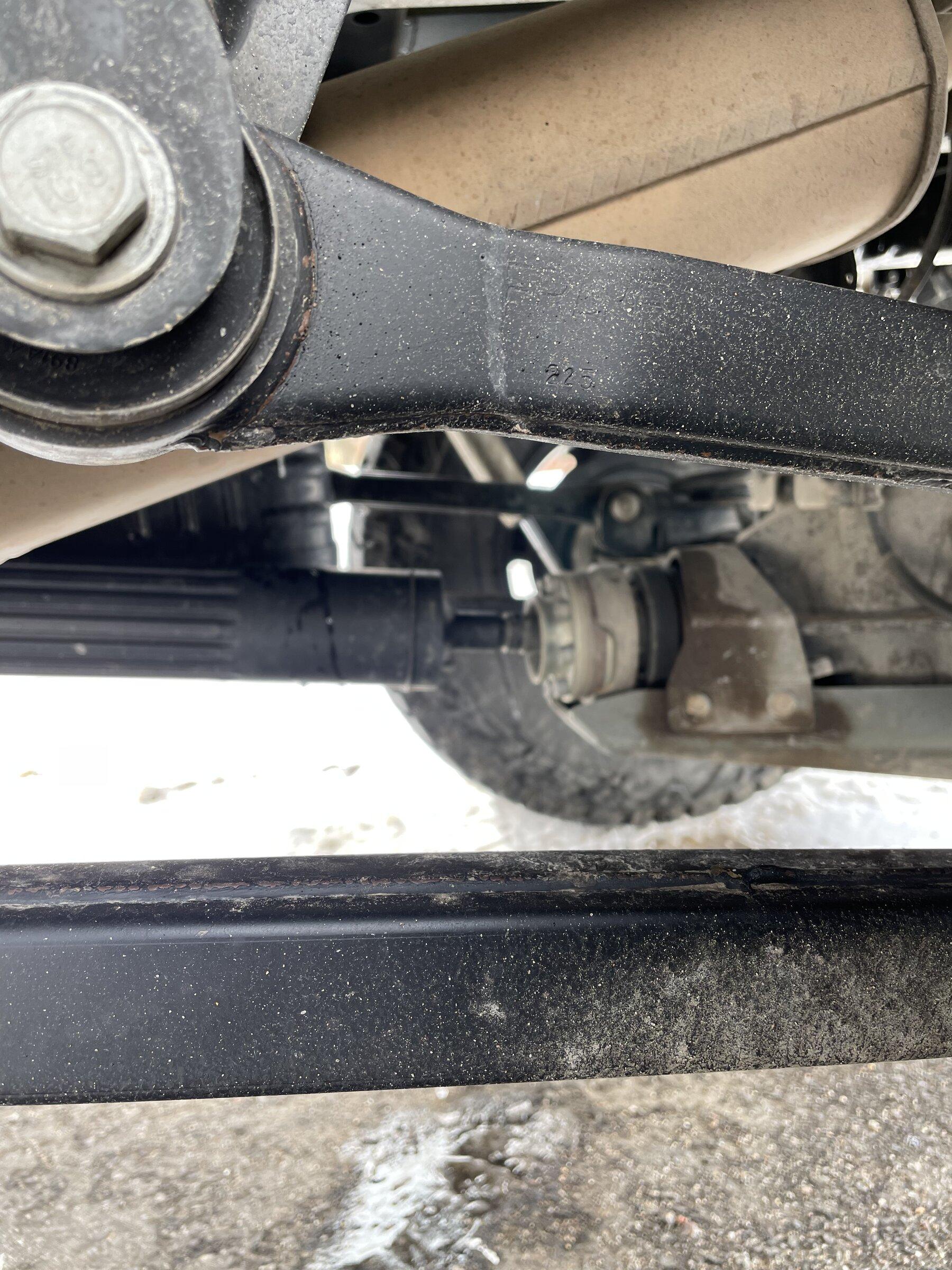

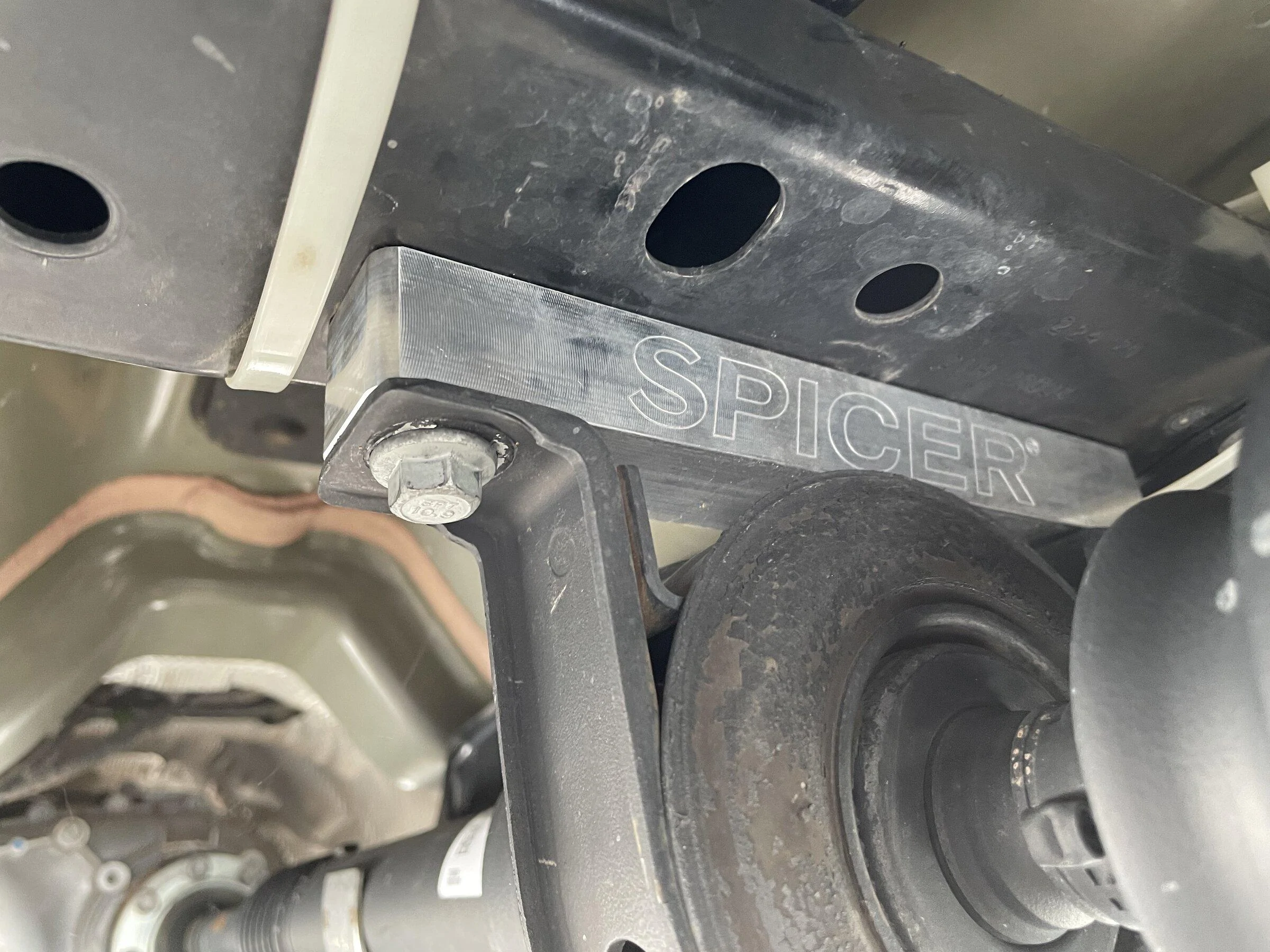

Threw it on today. Very easy. 10 minutes. No issues I can see. Did maybe 25 miles with a max speed of 65 so far, but no vibrations. Here’s the before and after pictures of the pinion angle, along with a picture of the spacer installed. The pictures aren’t perfect. The angle is way better at the bearing. 45 ft lbs didn’t seem very tight, but I trust my wrench and used blue loctite.

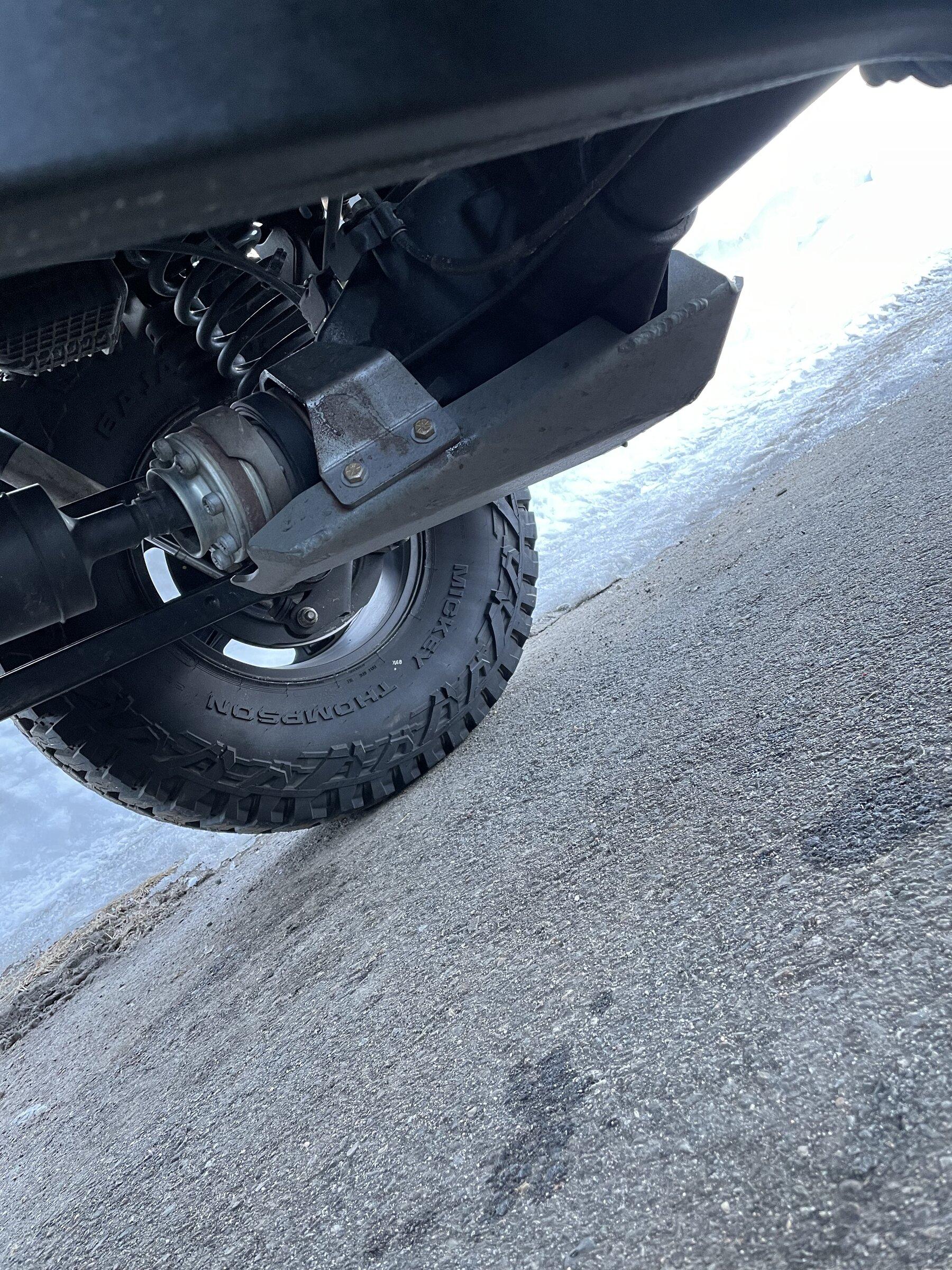

Before
Jeep Gladiator Carrier bearing spacer for rear driveshaft 20F19BE9-D012-4AE1-BA5D-0751C689336F

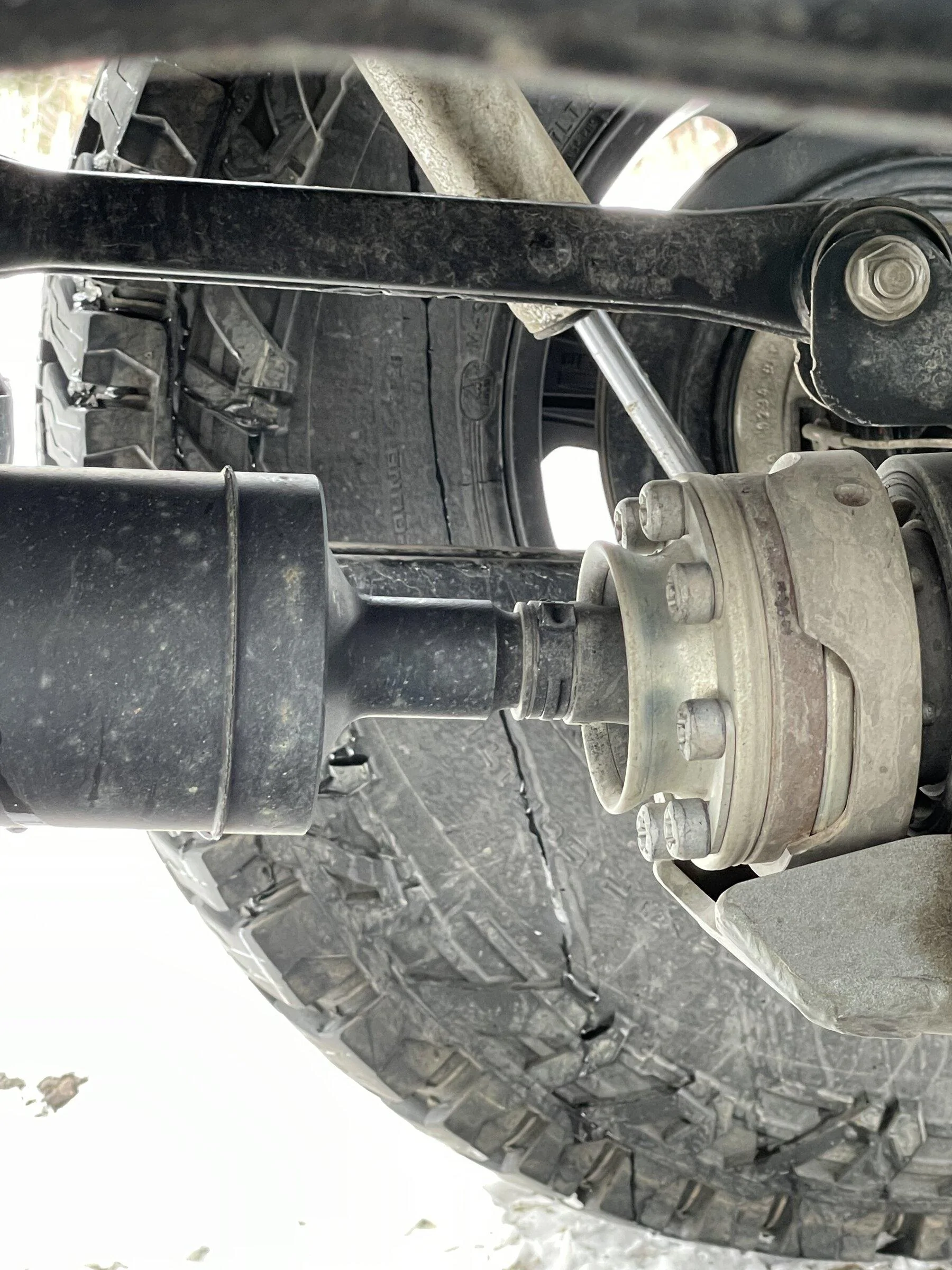

After
Jeep Gladiator Carrier bearing spacer for rear driveshaft EFF1A53F-4F2E-411A-850C-C6868A6008D9

Jeep Gladiator Carrier bearing spacer for rear driveshaft 728CC9EB-9AA9-46F2-8DE3-AE208ED3FD8F

Jeep Gladiator Carrier bearing spacer for rear driveshaft CF282D3A-9D12-494B-9882-C6A7D02B727F


XraytecH

Well-Known Member
First Name
Bernie
Joined
Jan 14, 2021
Threads
170
Messages
1,522
Reaction score
2,102
Location
South San Francisco
Vehicle(s)
2021 Jeep Gladiator Sport
Occupation
Xraytech
Vehicle Showcase
1
I just picked up the Rock Jock spacer. Is it as simple to install as it looks? Any pointers?
Super easy, the only hang up I had was I spent about 15mins trying to find my bottle of red loctite 🤦

I used a jackstand to hold the drive shaft at the carrier bearing. And used an impact wrench to spin off the factory bolts.
