Did anyone else find their controller put together BACKWARDS???

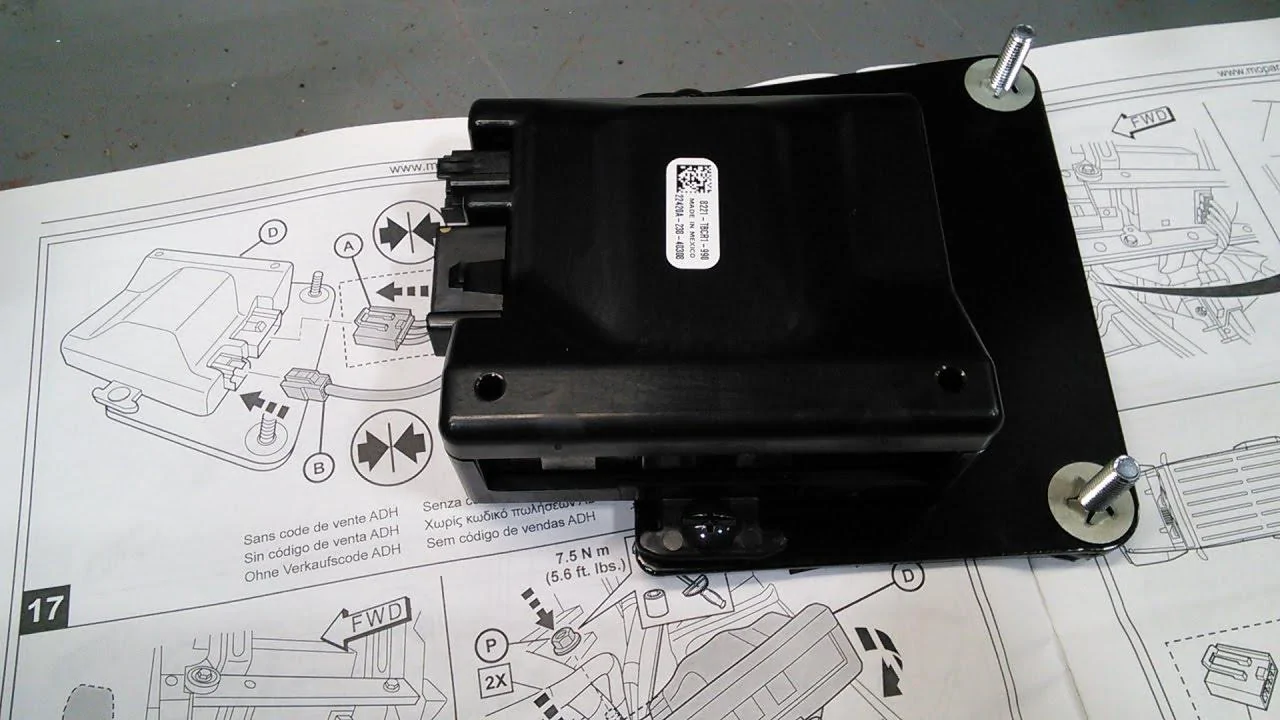

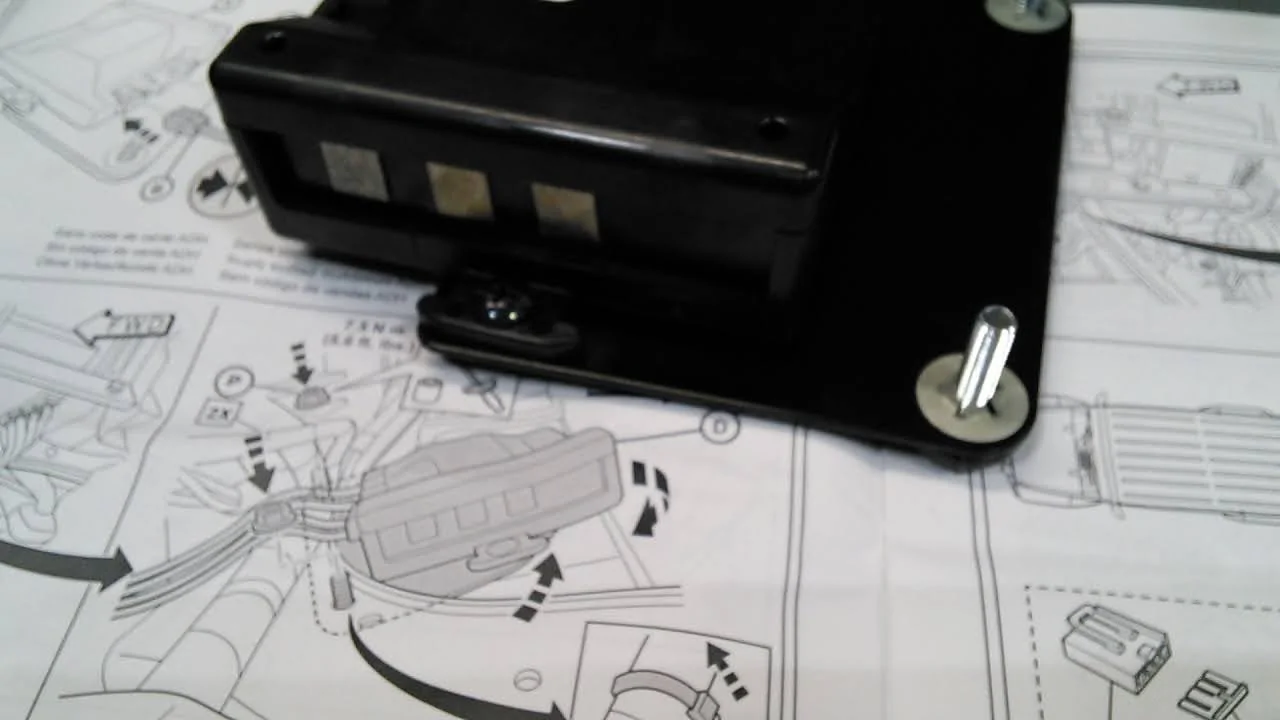

Look at my real controller AS IT ARRIVED, then look at the "instructions" and compare how it really is to how they say it is.......

I still have not found the mount points - I find nothing with holes spaced like this, but before that, it appears I have to take this apart and turn it around??
Who else has actually installed one themselves - is the book correct, or did the staff in Mexico do it right and the illisturator screwed up?

Oh, and the controller must have the circuit inside to isolate it from the brake light system as there's no diode in the cable that comes with these.


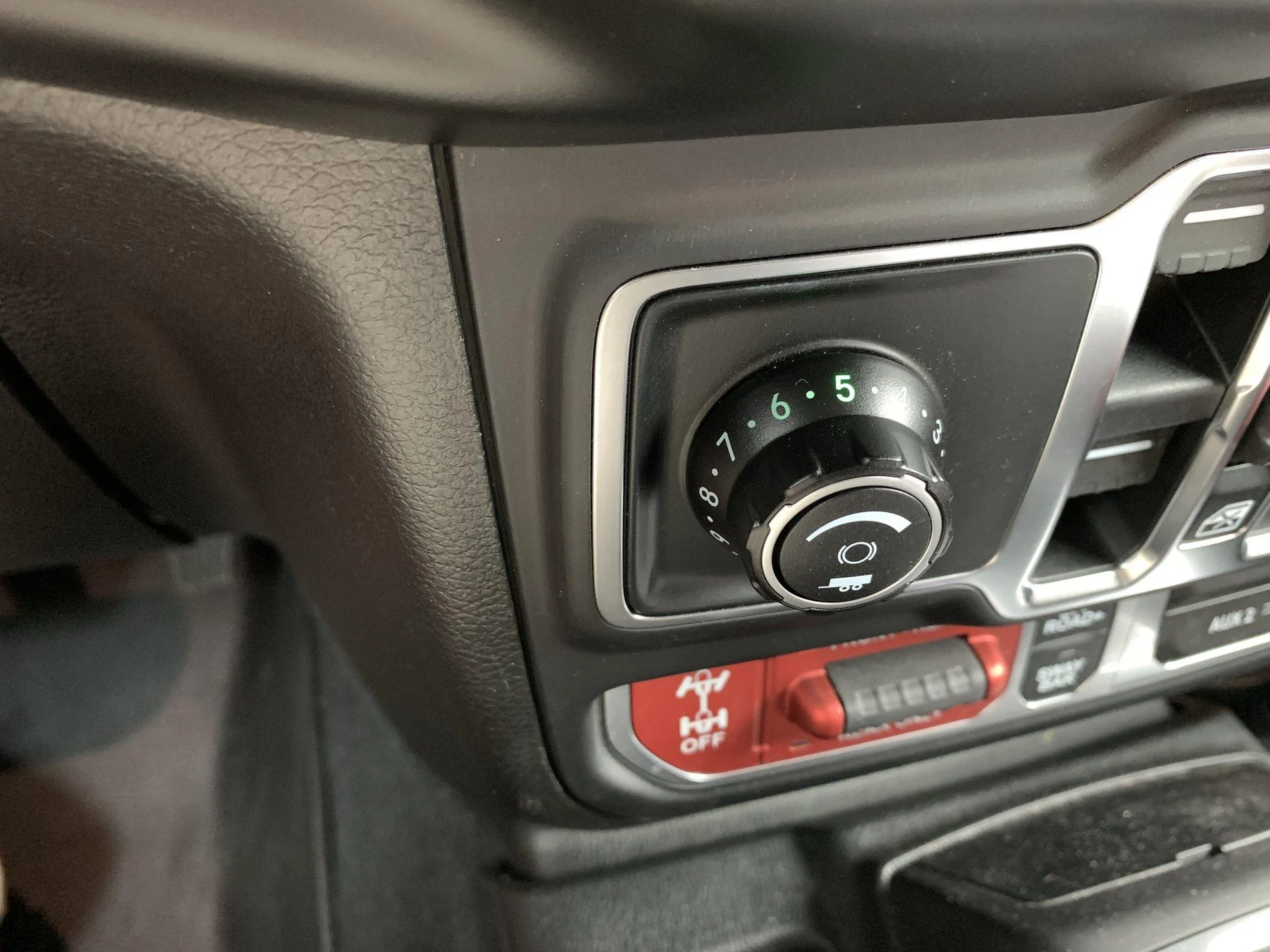

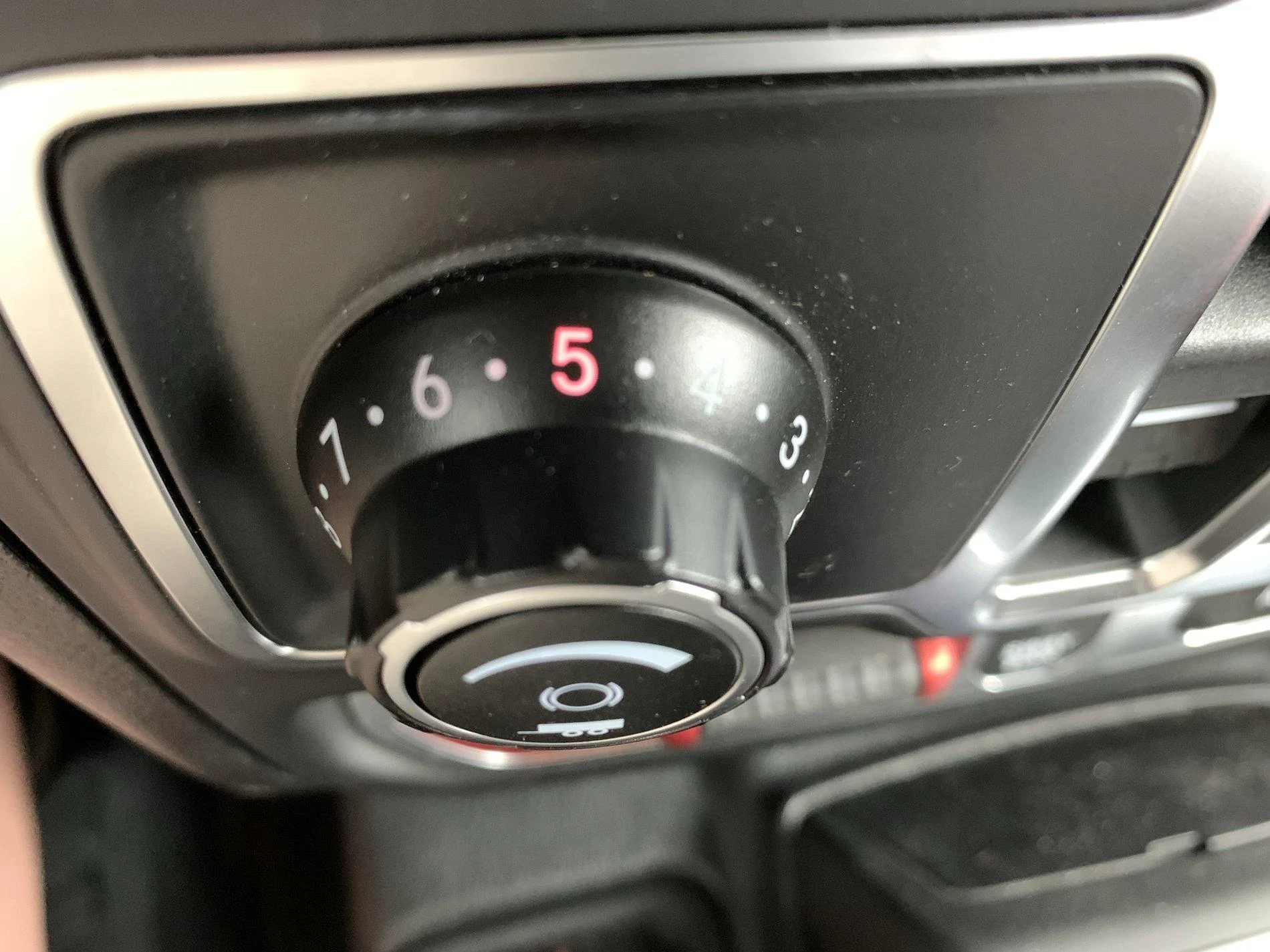

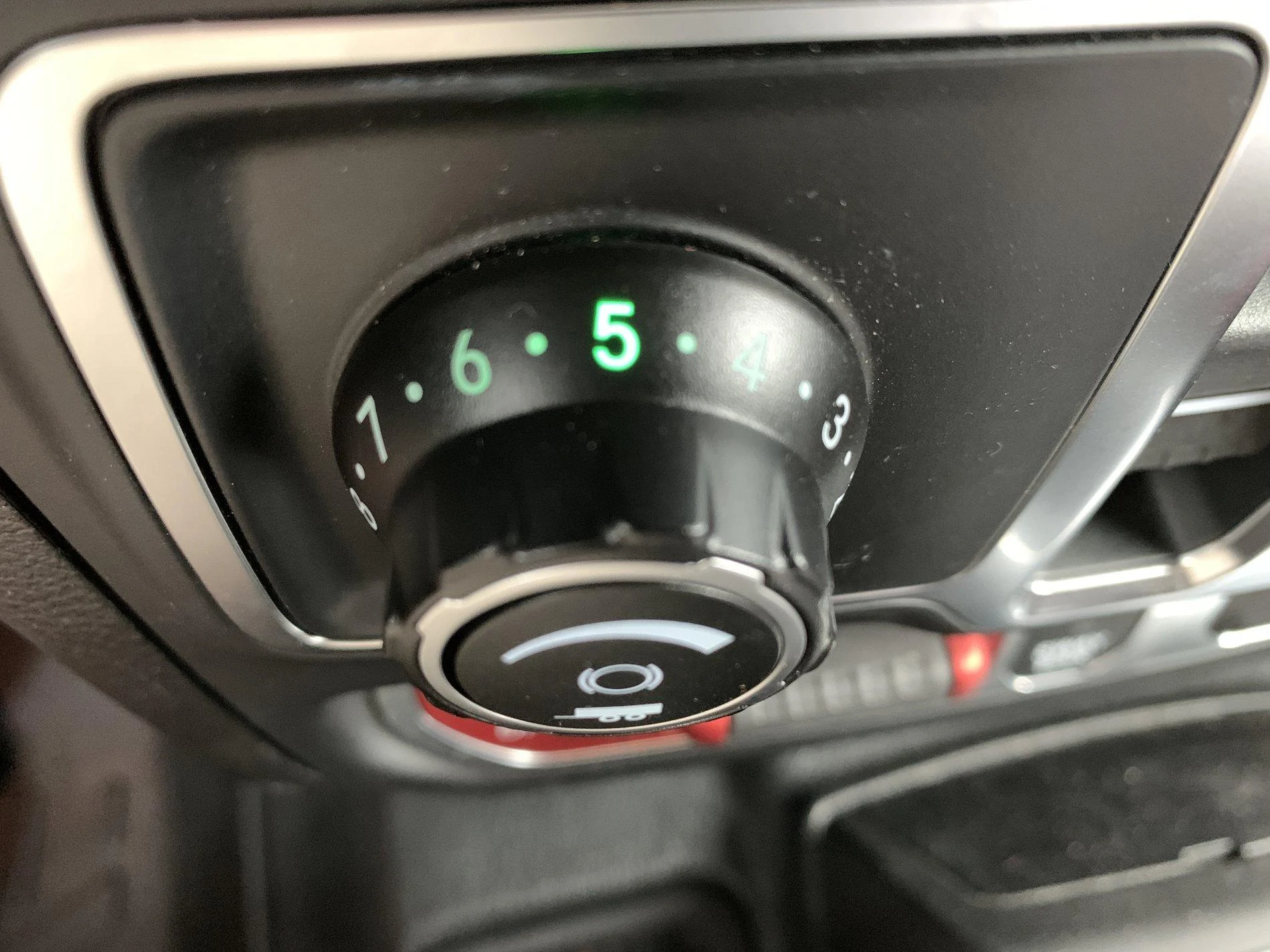

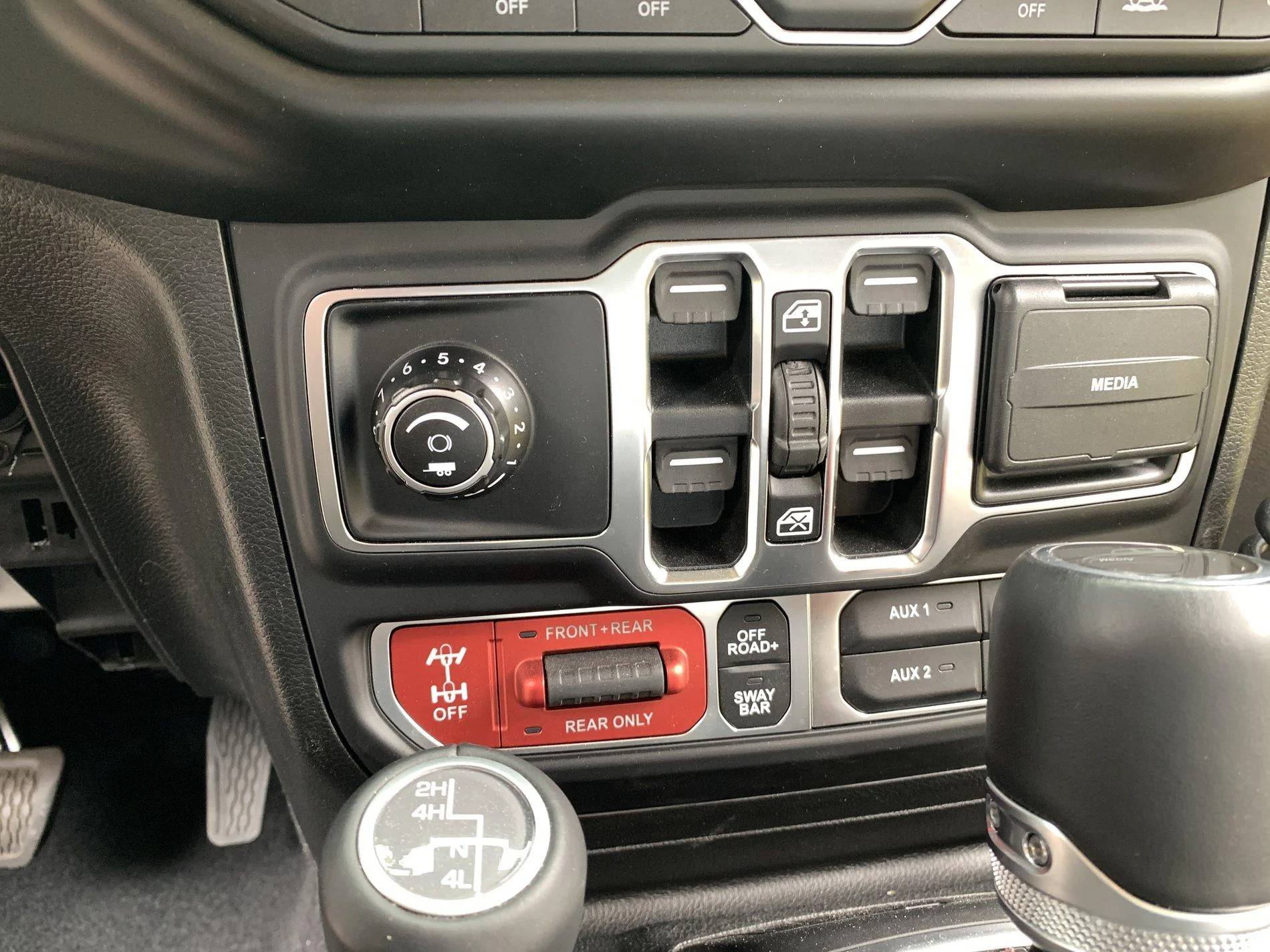

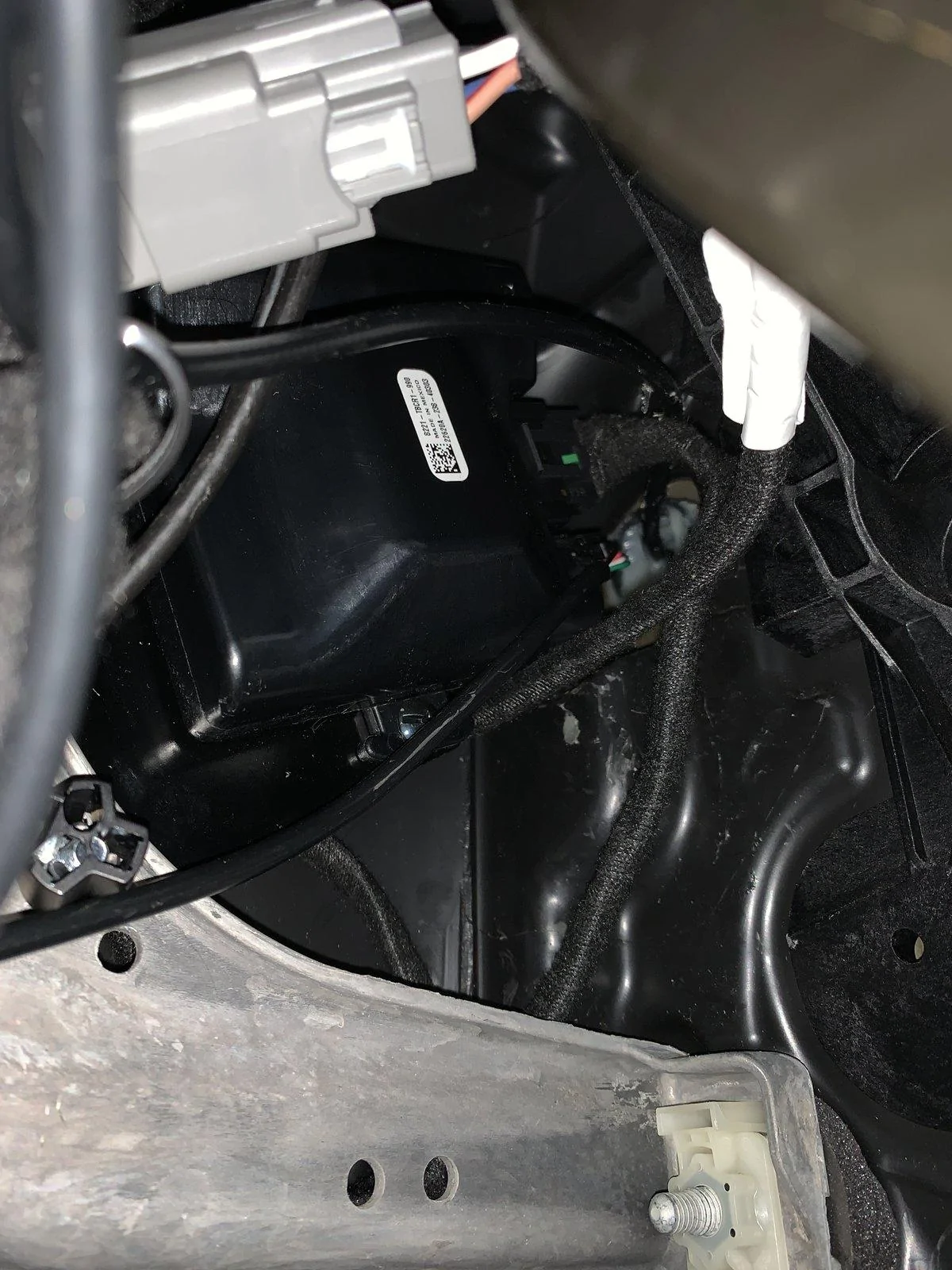

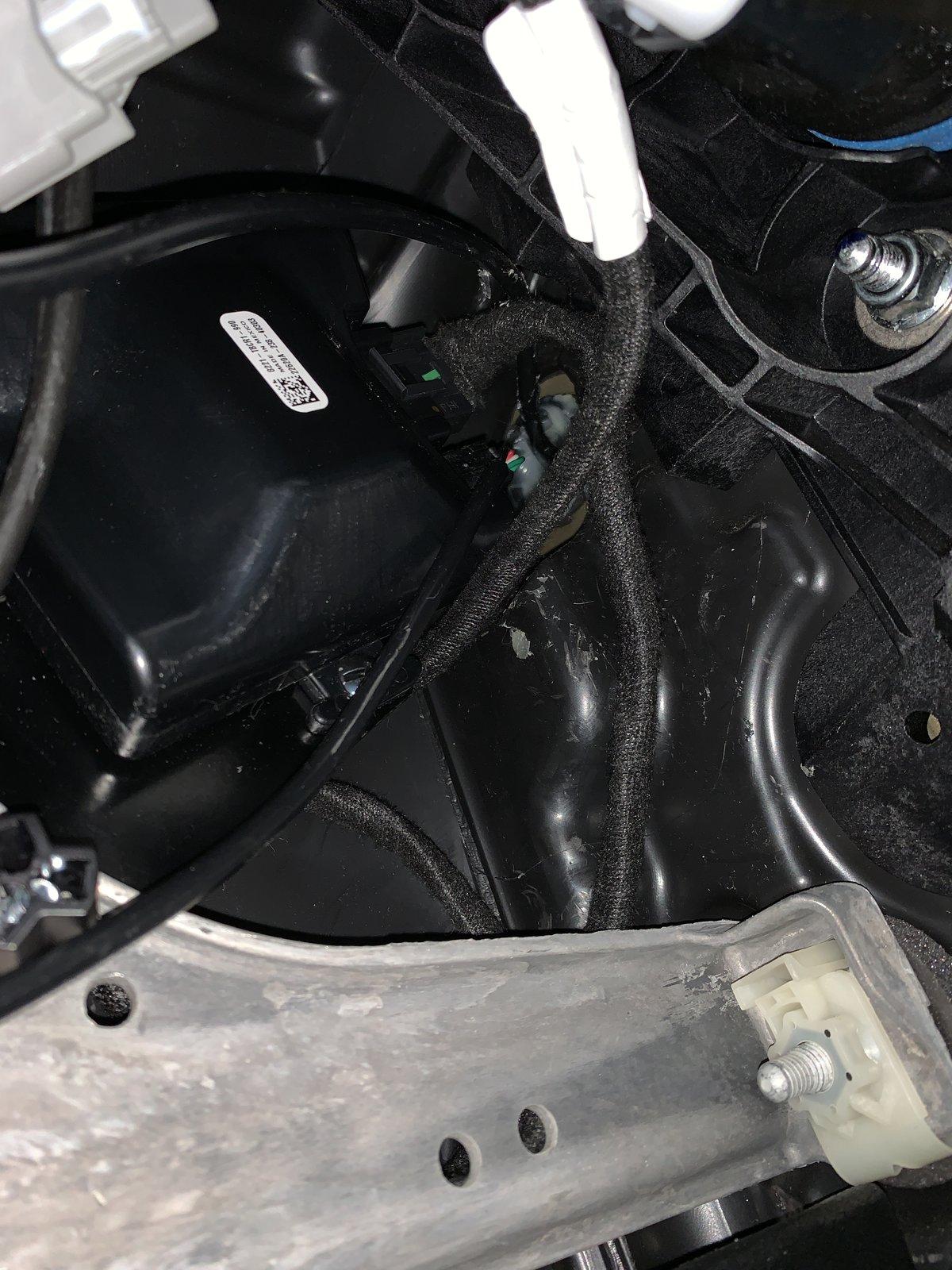

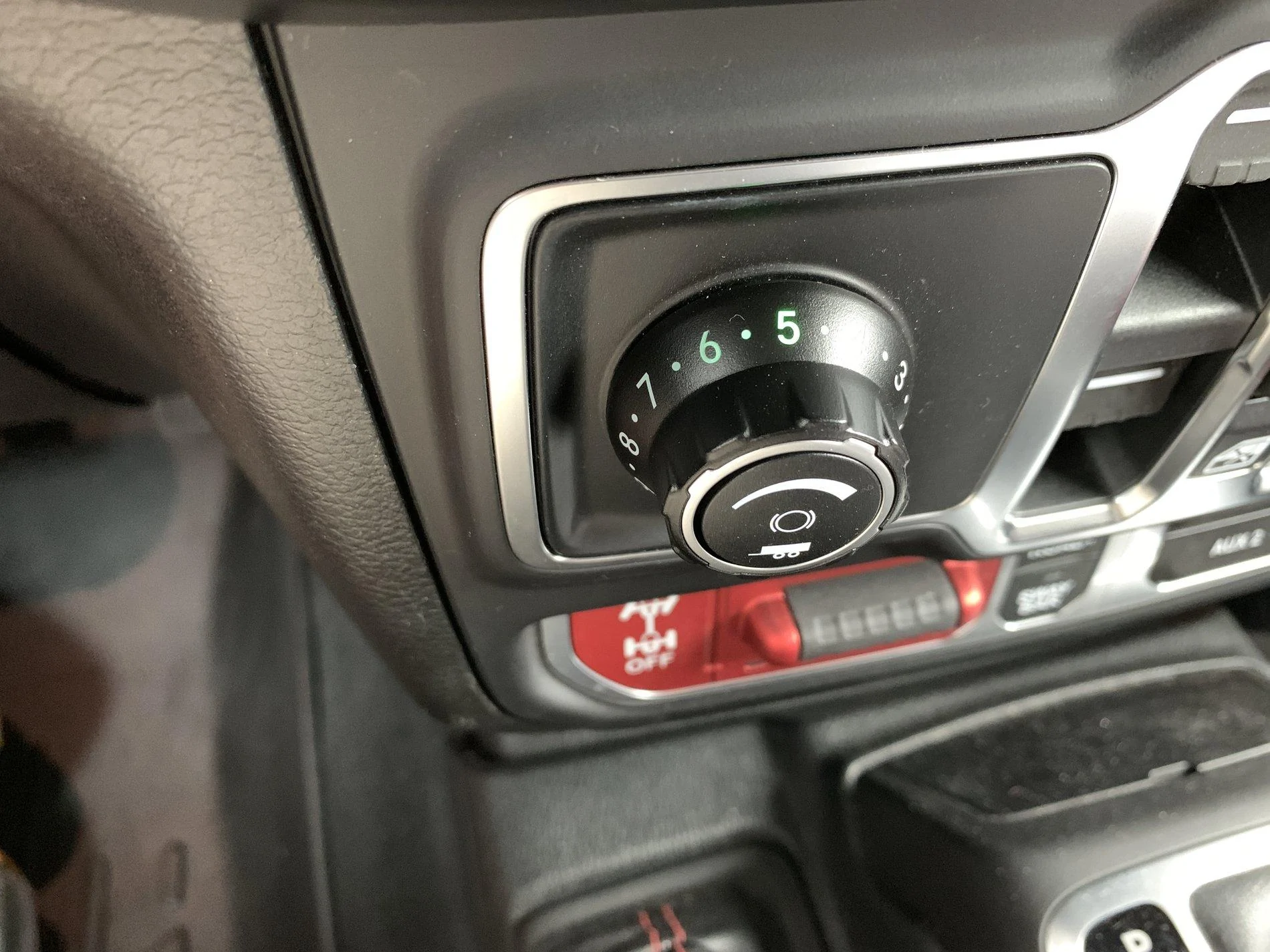

I think it’s an instruction typo. Mine is like that too and installed just fine. The upper hole requires you to remove a clip that fastens the harness to the metal piece under the dash. They show it in the instructions, but it’s hard to see, I missed it the first time.
