Factory Trailer Brake Controller releases ...EDIT: STILL WAITING

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
6,243
Reaction score
5,004
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3
Errors will flash, orange lights for stability, traction, forward collision, ACC. Cluster says this that and the other thing disabled then shows those orange ! lights.

I believe it's only if yo have ACC



Advertisement





atoy74

Active Member
First Name
Al
Joined
May 11, 2020
Messages
32
Reaction score
12
Location
Miami
Vehicle(s)
Gladiator Rubicon
Errors will flash, orange lights for stability, traction, forward collision, ACC. Cluster says this that and the other thing disabled then shows those orange ! lights.

I believe it's only if yo have ACC
Thats interesting. When I tow, I'm usually relying heavily on the ACC. Does that cause an issue too?


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
6,243
Reaction score
5,004
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3
Thats interesting. When I tow, I'm usually relying heavily on the ACC. Does that cause an issue too?
ACC should still function as long as you never push the brake controller button.

Nice, a brake controller with a function you can't use LOL


Mkcagle

Well-Known Member
First Name
Michael
Joined
Jul 27, 2019
Messages
388
Reaction score
269
Location
Biloxi, MS
Vehicle(s)
2020 Jeep JT Gladiator Sport S w/max tow
Ok sorry having a brain fart over this. I have a Sport S auto with max tow. I see several part numbers for controllers. Which controller part number should I use?


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
6,243
Reaction score
5,004
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3

TheGOATJeep

New Member
Joined
Jan 22, 2019
Messages
1
Reaction score
0
Location
78230
Vehicle(s)
2020 Jeep Gladiator
But you will need the wiring harness as well if the build doesn't have ADH on the build.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
6,243
Reaction score
5,004
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3
But you will need the wiring harness as well if the build doesn't have ADH on the build.
No, that's been shown to be a MISTAKE on the instructions. There is NO ADH code for the Gladiator. That's a Wrangler code.
All JTs that have the 7 pin and 4 pin connector at the back have what is needed.

Please, everyone - IGNORE THAT ADH thing if you own a Gladiator.
As long as your truck has the trailer connectors in the back, if you have the plug, you have what's needed.

Again, ADH is for Wranglers, etc. that do not have a tow package. There is no code ADH for Gladiators. You'll never ever find it on any because it's not a Gladiator code.

I've pointed out multiple MISTAKES on the instructions, that is but another to add to my list.

This kit has NOT BEEN TESTED, it's not gone through beta testing or engineering testing, and the instructions have not been proper reviewed. It was made it and box it and send it, we'll let customers test it for us.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
6,243
Reaction score
5,004
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3
Ok, what is ADH And where do I find it?
You won't - it's yet another glaring mistake on the stupid instructions. This was never tested against Gladiators - there is no ADH for Gladiators.


Mkcagle

Well-Known Member
First Name
Michael
Joined
Jul 27, 2019
Messages
388
Reaction score
269
Location
Biloxi, MS
Vehicle(s)
2020 Jeep JT Gladiator Sport S w/max tow
thank you that helps clear things up. My dealer parts manager said the same thing. You would think it would of been properly tested as long as took for them to release it. I get information overload here sometimes. Hard to tell fact from personal opinion sometimes.


Pitch

Member
First Name
Bryan
Joined
Sep 29, 2019
Messages
12
Reaction score
10
Location
Missouri
Vehicle(s)
Jeep
I just installed my mopar brake controller on my 2021 Max Tow with adaptive cruise control and everything appears to be working correctly. No dash lights when I push the manual brake mode, green number light when I'm hooked up to a trailer and a red light when I apply the brake. I'm waiting on my hitch to actually test the brakes but so far so good!


JRobes

Well-Known Member
Joined
Oct 27, 2019
Messages
250
Reaction score
212
Location
South Dakota
Vehicle(s)
2020 Gladiator Max Tow, 2004 WJ Overland
Occupation
Mechanical Engineer
Can confirm that this also caused errors on a Launch Edition JT (which has the ACC option). Same errors as mentioned here, causes all sorts of lights to go off on the dash when you push the manual brake center button of the controller's knob. We did not test with a trailer hooked up though. Only other issue as others mentioned is needing to flip the controller on the mounting plate so the plugs faced the rear of the vehicle when the plate is mounted.


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Messages
1,125
Reaction score
898
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
They may have added the diode to the factory harness knowing the controller harness wouldn’t have it. If that is the case then some 2020’s may also have it depending on build date and when the change was incorporated. If that is the case they should have an optional harness for a VIN range that needs the diode.


jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Messages
457
Reaction score
496
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition, 2004 Wrangler Unlimited
Occupation
System Engineer
Vehicle Showcase
1
They may have added the diode to the factory harness knowing the controller harness wouldn’t have it. If that is the case then some 2020’s may also have it depending on build date and when the change was incorporated. If that is the case they should have an optional harness for a VIN range that needs the diode.
Now this is a good theory. 2 of the ones I’ve seen working were 2021’s and my 2020 is a July 2019 build, so this is very possible.


Mkcagle

Well-Known Member
First Name
Michael
Joined
Jul 27, 2019
Messages
388
Reaction score
269
Location
Biloxi, MS
Vehicle(s)
2020 Jeep JT Gladiator Sport S w/max tow

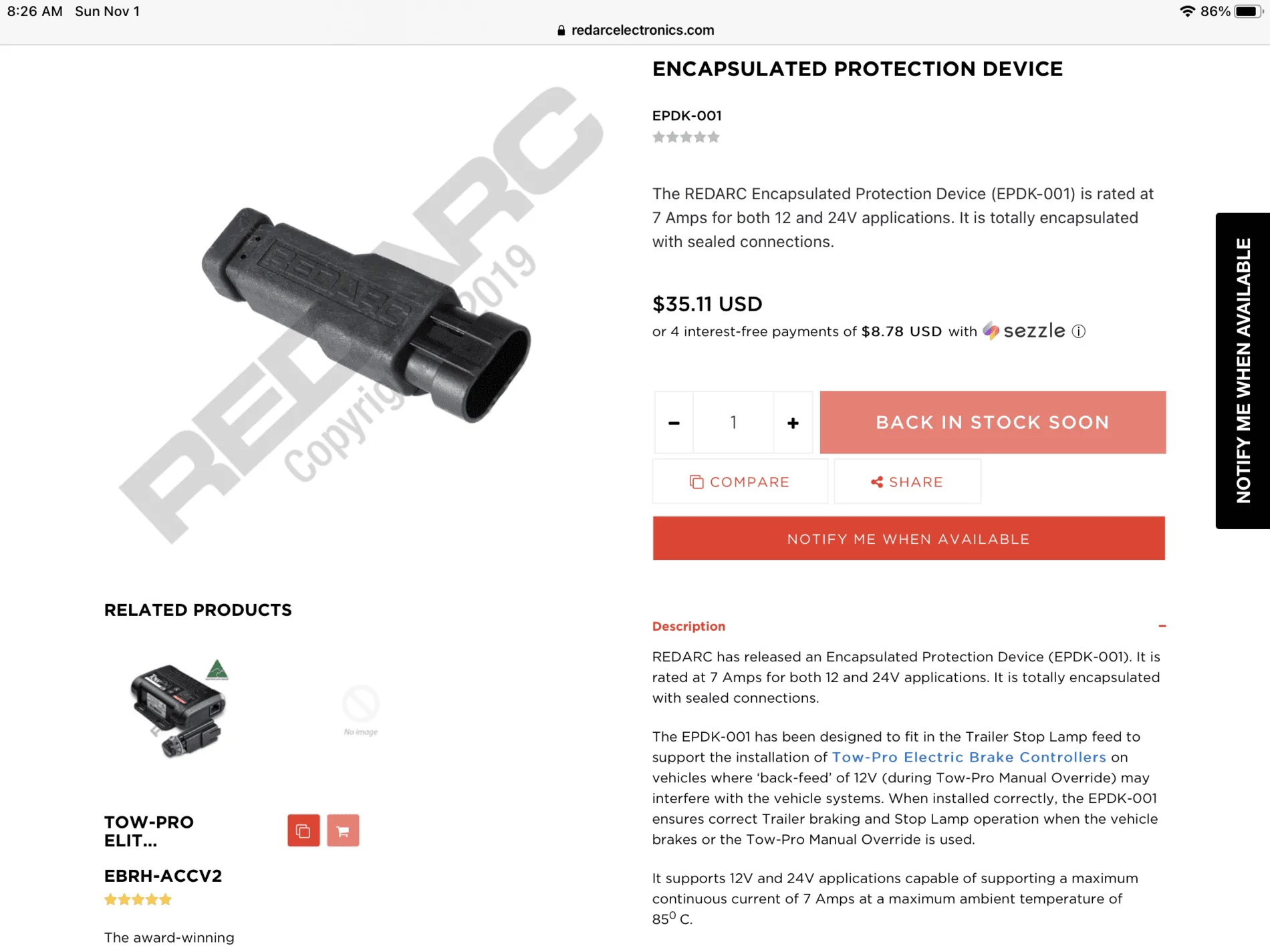

This appears to be Redarcs answer to the feedback issue
