LED Bulb Replacement - IT WORKS!

chithead

Well-Known Member
First Name
Daniel
Joined
Jun 30, 2021
Threads
3
Messages
111
Reaction score
216
Location
Concord, NC
Vehicle(s)
2020 Gladiator Sport
Awesome! I'll try those out for the brake lights then. Those ZEVO 921 are crazy amazing with how much output was there this morning backing out of the driveway. Could see all the way out into the street! Definitely keeping those in the backup bulb spot.

A fellow NC'er, and in Kannapolis no less! That's awesome!
Sponsored



Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Threads
131
Messages
4,631
Reaction score
5,187
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Vehicle Showcase
1
Awesome! I'll try those out for the brake lights then. Those ZEVO 921 are crazy amazing with how much output was there this morning backing out of the driveway. Could see all the way out into the street! Definitely keeping those in the backup bulb spot.

A fellow NC'er, and in Kannapolis no less! That's awesome!
I see Concord in your profile, awesome stuff. Nice to talk with some locals:like:


Yellow1098

Well-Known Member
First Name
Greg
Joined
Jul 2, 2019
Threads
30
Messages
711
Reaction score
617
Location
Orlando, FL
Vehicle(s)
2020 Gladiator Silver Sport S, 77 trans am, Ducati 1098
Quick question guys….will any of H13 halogen replacements work? Thanks as always


Sponsored

Yoshi

Active Member
First Name
Robert
Joined
Nov 27, 2021
Threads
4
Messages
25
Reaction score
18
Location
IN/KY
Vehicle(s)
2021 Jeep Gladiator Willys
Build Thread
Link
Occupation
LE
I have the LED package and i get flashed all the time by oncoming drivers...and not in the good way!
I have stock halogen and got flashed twice in one night. Imma bout to go shopping for extra lights to show people that it was on low beam until they flashed me


dcmdon

Well-Known Member
First Name
Don
Joined
Mar 31, 2021
Threads
60
Messages
3,654
Reaction score
4,385
Location
Boston Metro-West, Northern NH
Vehicle(s)
.
Obviously it's hard to beat the factory LED's. But it is better than the basic halogen bulbs.
And the beam pattern I'm getting it fine. :like:
I can concur. I put all LED replacement bulbs in my 07 Volvo. Its night and day.

Especially the reverse lights. They are blazing now.


tas7107

Member
First Name
Terry
Joined
Sep 20, 2020
Threads
3
Messages
11
Reaction score
6
Location
Tigard, Or
Vehicle(s)
2020 Jeep Gladiator Sport
Hey all anyone in the thread had this problem? I installed the Morimoto 2-stroke 3.0 LED bulbs into my gladiator foglights. replacing the standard bulbs. Now the fogs will work with the ignition on and engine off but then shutoff sometimes with a flicker when the engine is started... any clue?


Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Threads
131
Messages
4,631
Reaction score
5,187
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Vehicle Showcase
1
Hey all anyone in the thread had this problem? I installed the Morimoto 2-stroke 3.0 LED bulbs into my gladiator foglights. replacing the standard bulbs. Now the fogs will work with the ignition on and engine off but then shutoff sometimes with a flicker when the engine is started... any clue?
Sounds like the system isn't recognizing you have led bulbs and is looking for the Halogen lights, which have more draw. It's thinking there is a bulb out and more than likely you will have to get a JScan or Tazer and set your system for LEDs. Th canbus system is tricky, it will work fine with the engine in the on position most of the time but then do what your describing when you crank it up.


texanjeeper

Well-Known Member
Joined
Apr 22, 2021
Threads
35
Messages
693
Reaction score
1,186
Location
Texas
Vehicle(s)
2020 Gladiator Sport-S Granite Crystal Metallic
Occupation
I.T.

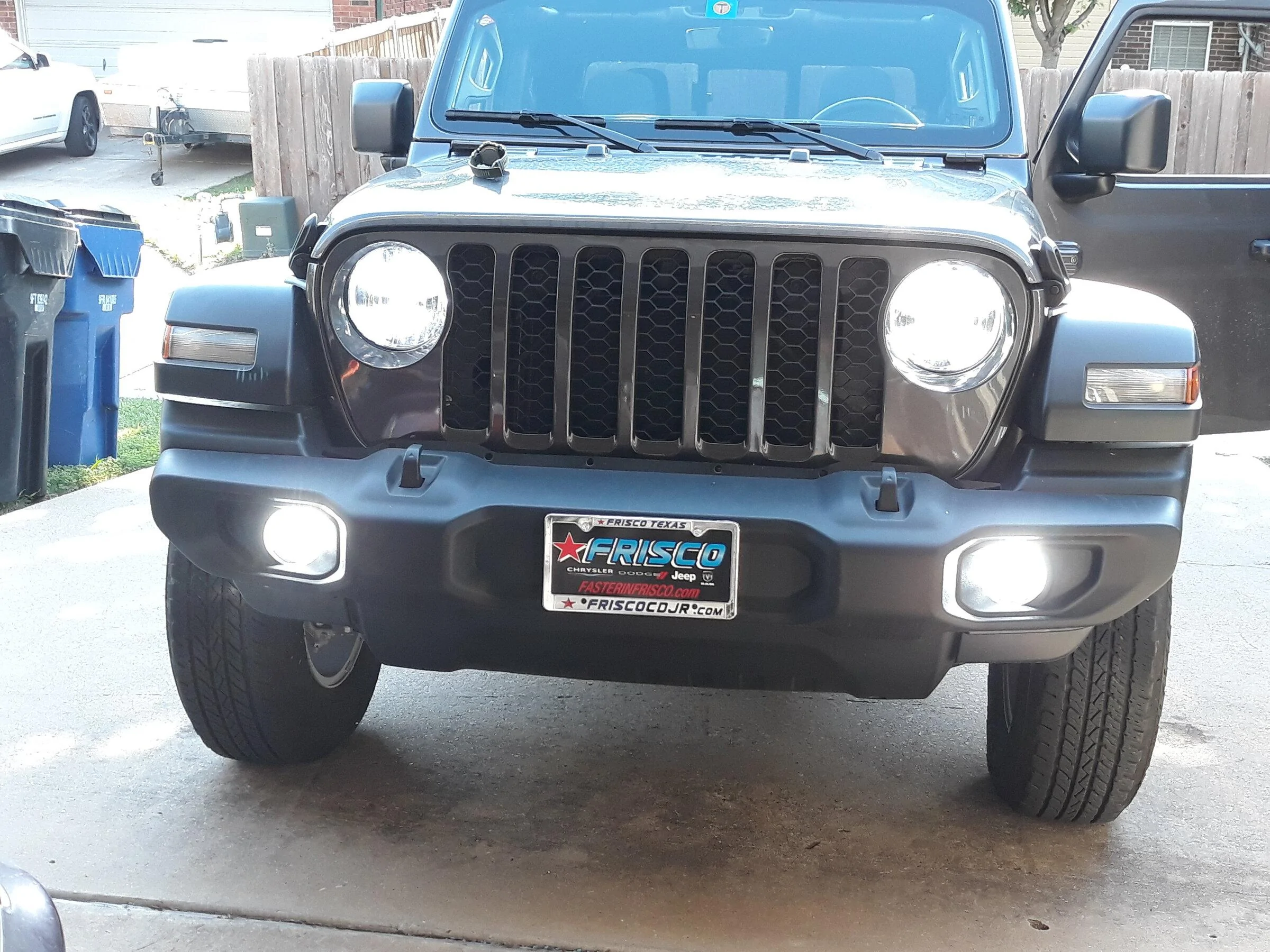

I'm using Lasfit headlights and fog lights, no issues at all. My Lasfit switchback DRL/turn signal lights work great too, but be warned that the turn signals get too hot in the texas summer and if you're sitting at a stop light waiting to turn, with turn signal on for about 4-5 minutes, they will overheat and you'll get a signal on your dash that the turn signal bulb is out. If you let them sit for a couple of minutes, you can use them again but I tend to manage how long they are on, I'll wait until I'm up closer to the turn before I turn them back on.

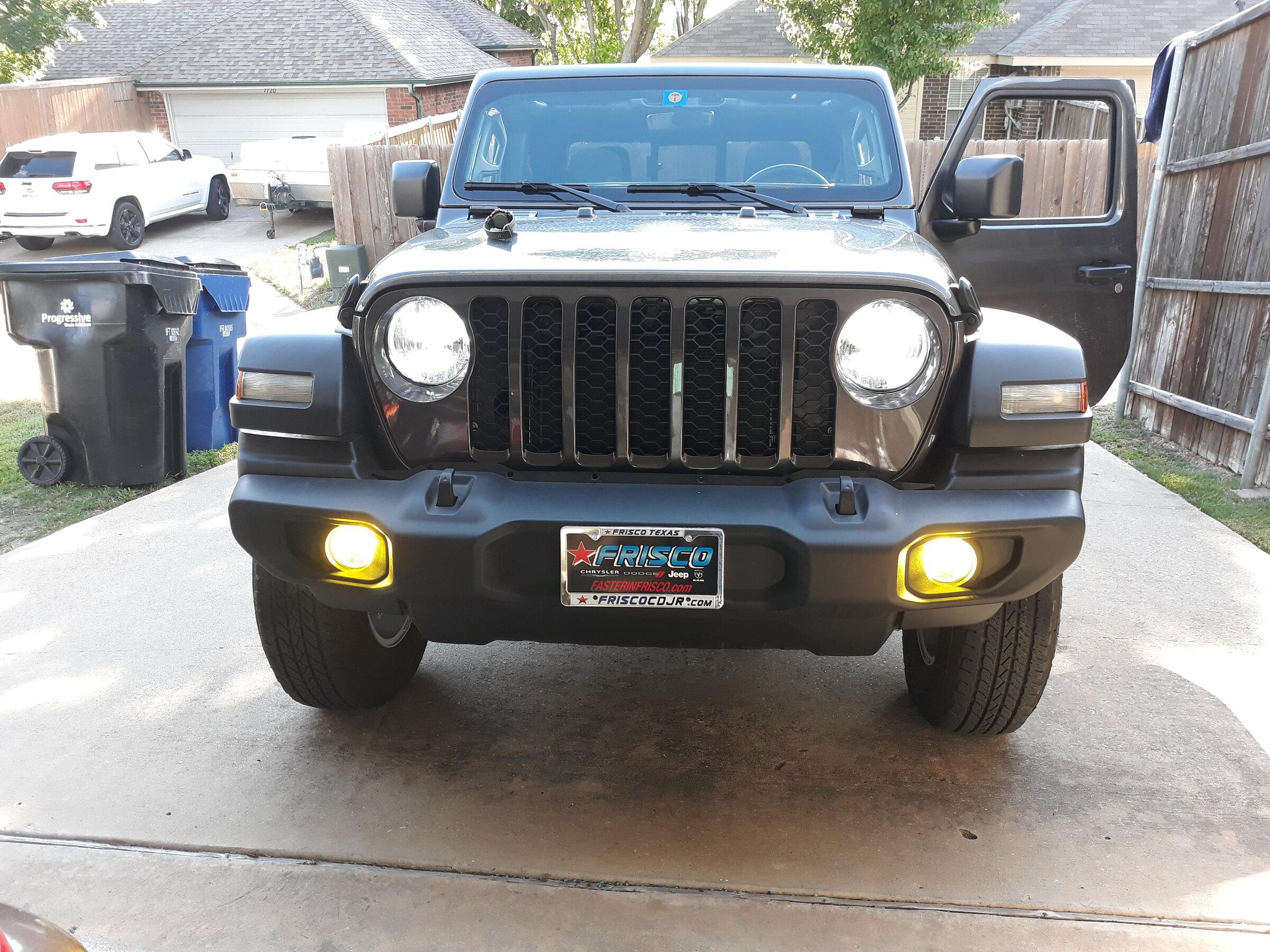

The fogs are switchback as well, one push of the fog lamp button and they're brilliant white, turn them off and back on, and they're amber.


Jeep Gladiator LED Bulb Replacement - IT WORKS! 20210502_181300



Jeep Gladiator LED Bulb Replacement - IT WORKS! 20210502_181236






Sponsored

Dreaded1

Well-Known Member
First Name
Jay
Joined
Sep 17, 2019
Threads
6
Messages
181
Reaction score
239
Location
NY
Vehicle(s)
2020 JT Rubicon
I installed a set of LED headlights from Headlight revolution and had no issues. Except that I am getting glashed now. While installing I checked to make sure the cutoff line was the same in the halogen as LED and I am still getting flashed.


tas7107

Member
First Name
Terry
Joined
Sep 20, 2020
Threads
3
Messages
11
Reaction score
6
Location
Tigard, Or
Vehicle(s)
2020 Jeep Gladiator Sport
Jamie,

I was afraid of that. Now the question is do i throw more money at it by buying a TAZER. The sucky part is I have an AEV Procal Snap that came with the lift kit for this truck but it doenst do anything with the lights :(

Sounds like the system isn't recognizing you have led bulbs and is looking for the Halogen lights, which have more draw. It's thinking there is a bulb out and more than likely you will have to get a JScan or Tazer and set your system for LEDs. Th canbus system is tricky, it will work fine with the engine in the on position most of the time but then do what your describing when you crank it up.


Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Threads
131
Messages
4,631
Reaction score
5,187
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Vehicle Showcase
1
Jamie,

I was afraid of that. Now the question is do i throw more money at it by buying a TAZER. The sucky part is I have an AEV Procal Snap that came with the lift kit for this truck but it doenst do anything with the lights :(
Get the JScan, it's cheaper than the Tazer. I'm using one on my JT, it does basically everything that the Tazer does but is under $100 for everything, I think I was at $93 for everything including the license to use it. Plus once you buy the equipment you can buy additional license for other vehicles and use it on those as well.


Kevin_D

Well-Known Member
First Name
Kevin
Joined
Oct 18, 2020
Threads
50
Messages
2,328
Reaction score
3,074
Location
Inland Northwest
Vehicle(s)
2021 Sport S, 1971 J4000, a bunch of other stuff
I installed a set of LED headlights from Headlight revolution and had no issues. Except that I am getting glashed now. While installing I checked to make sure the cutoff line was the same in the halogen as LED and I am still getting flashed.
Are you lifted?
If so, did you re-aim the lights after the lift was installed?

Kevin


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,081
Reaction score
34,558
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I still don't know why people do the bulb swap instead of buying the correct lights for the correct purpose.
They'll believe the "I did it and I love it" crowd instead of the true experts out there who have been into auto lighting for decades.
I will never ever swap bulbs of a different type into a housing. I will only replace entire assemblies. There are reasons the lights have specific housings and reflectors.
You may think it's ok on your end - but likely someone out there in the other car thinks otherwise.

I love this quote from Daniel Stern - lighting consultant for MOPAR (and likely others) ->

If you just cannot find someone who has an optical aiming machine and is willing to use it correctly, you will have to make do with the distant second-preference method of putting the vehicle on flat, level ground and shining the lamps on a wall a certain distance away. It has to be done as carefully and precisely as possible, so here are detailed instructions:

http://www.danielsternlighting.com/tech/aim/aim.html
--------------
In other words, he's not even a fan of "find flat ground and a wall" method and calls it a distant second best.
------------


The low beam pattern of a visually-aimable headlamp has a distinct horizontal "cutoff" at the top of the beam pattern. It may be hard/razor-sharp, or it may be softer/fuzzier. Below the cutoff is bright light, and above is dark. Vertical aim is done by measuring and adjusting the height of this cutoff relative to the reference marks you put on the wall.

For U.N. (ECE, European, "E-code") and U.S. VOL headlamps, the cutoff to pay attention to is at the top of the left half of the beam pattern, and it should be aligned with the B-B line.

U.S. (DOT, SAE) VOR headlamps can have a straight-across cutoff line extending all the way across the top of the low beam, or a stairstep-shaped cutoff that's lower on the left and higher on the right side of the beam, or just a squared-off top edge of the high-intensity "hot spot" (brightest part of the beam). Whichever style it is, the cutoff to pay attention to is at the top of the right half of the beam pattern. It should be aligned with the applicable horizontal line per the table above.
