I just need to call HP? I am running Beta right now and I looked for the resync and couldnt find it.
My understanding is they have to activate it against your VIN since this is still a Beta type of feature. There are also other parameters they activate for @DAVECS1 that allows him to get better tuning results.

That is why I included the link to the other thread where it was discovered and resolved by one of our members working with HPtuners.
Sponsored



shanesibley

Member
First Name
Shane
Joined
Mar 1, 2022
Threads
1
Messages
18
Reaction score
3
Location
England
Vehicle(s)
2020 Gladiator JTR Gator
Occupation
Military
My understanding is they have to activate it against your VIN since this is still a Beta type of feature. There are also other parameters they activate for @DAVECS1 that allows him to get better tuning results.

That is why I included the link to the other thread where it was discovered and resolved by one of our members working with HPtuners.
Yeah, I am waiting for them to reply to my email request. Im here in England so I try to do that first. Hopefully I hear back soon. Thanks again


fonzie

Well-Known Member
First Name
Alfonso
Joined
Jun 28, 2019
Threads
14
Messages
115
Reaction score
95
Location
McKinney, TX
Vehicle(s)
2018 JLU, 2020 JT, 1996 Bronco

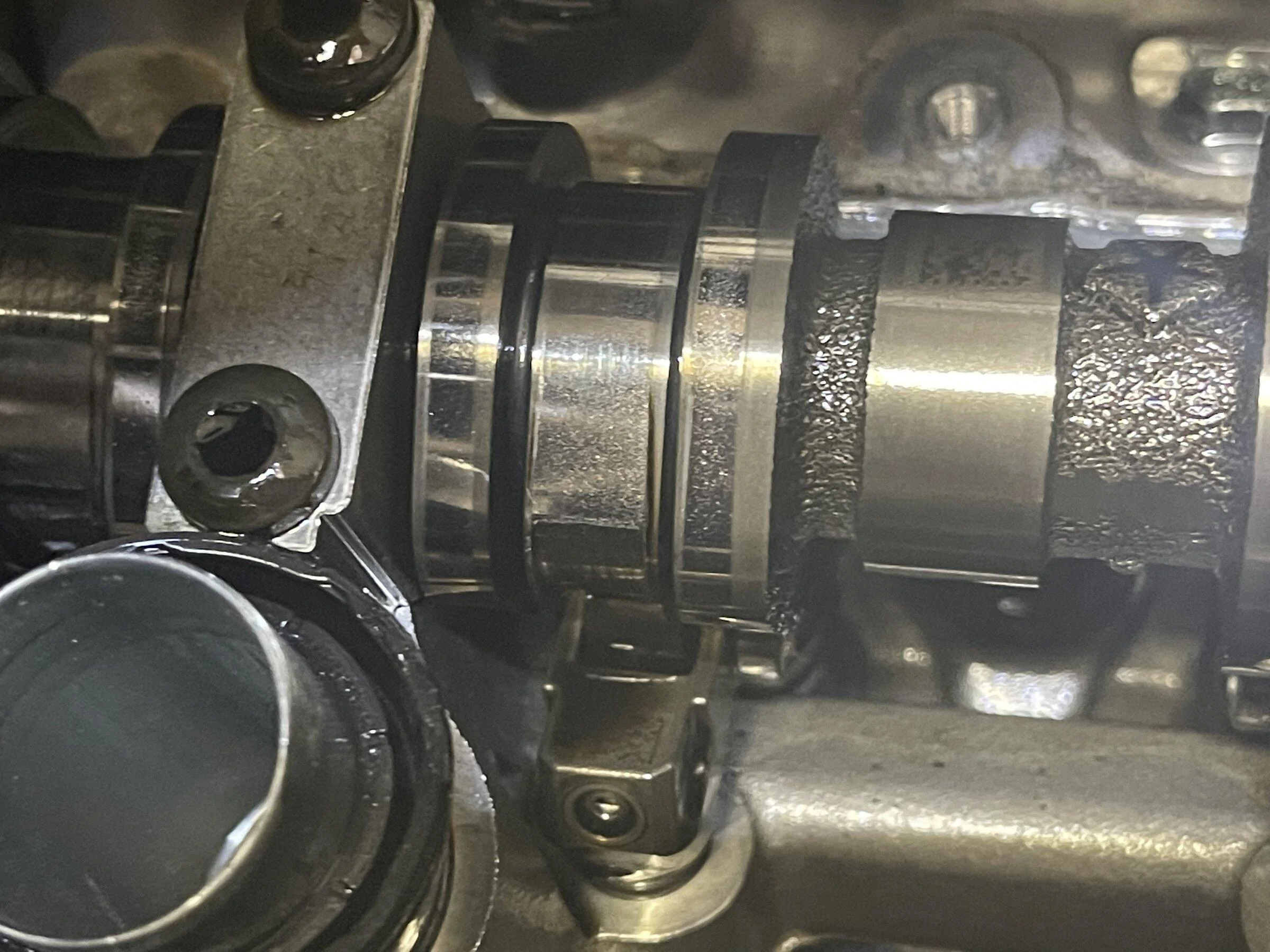

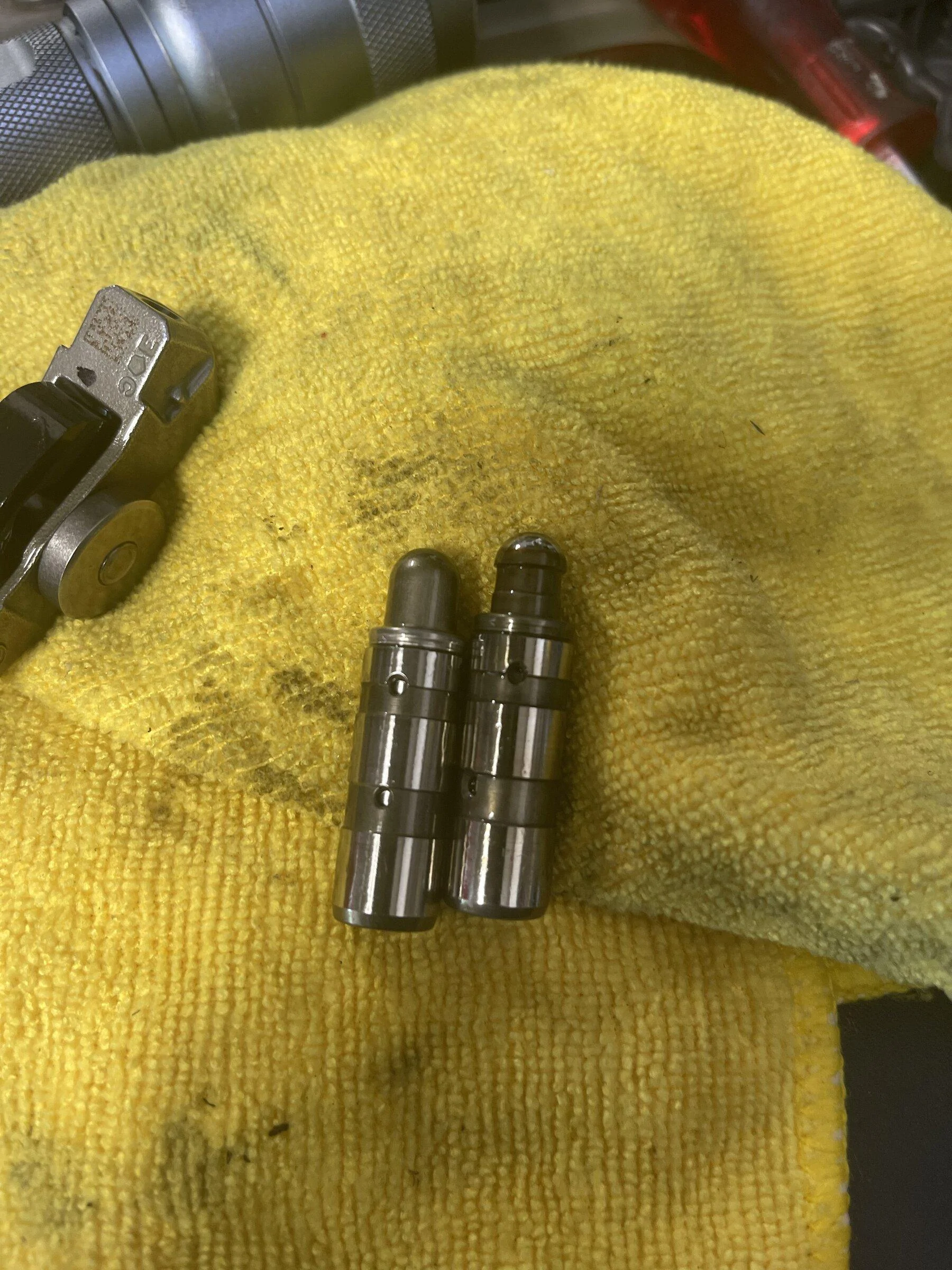

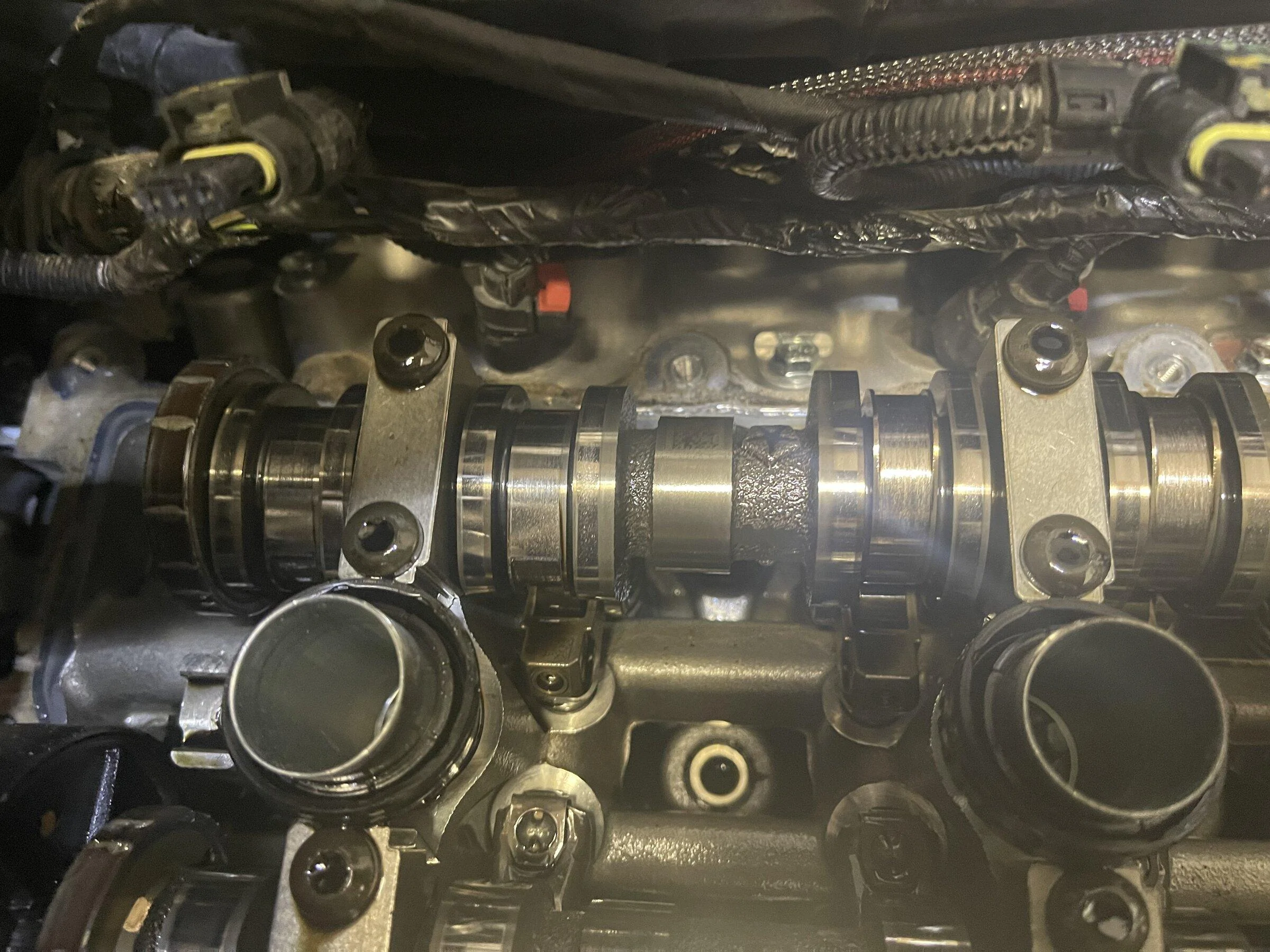

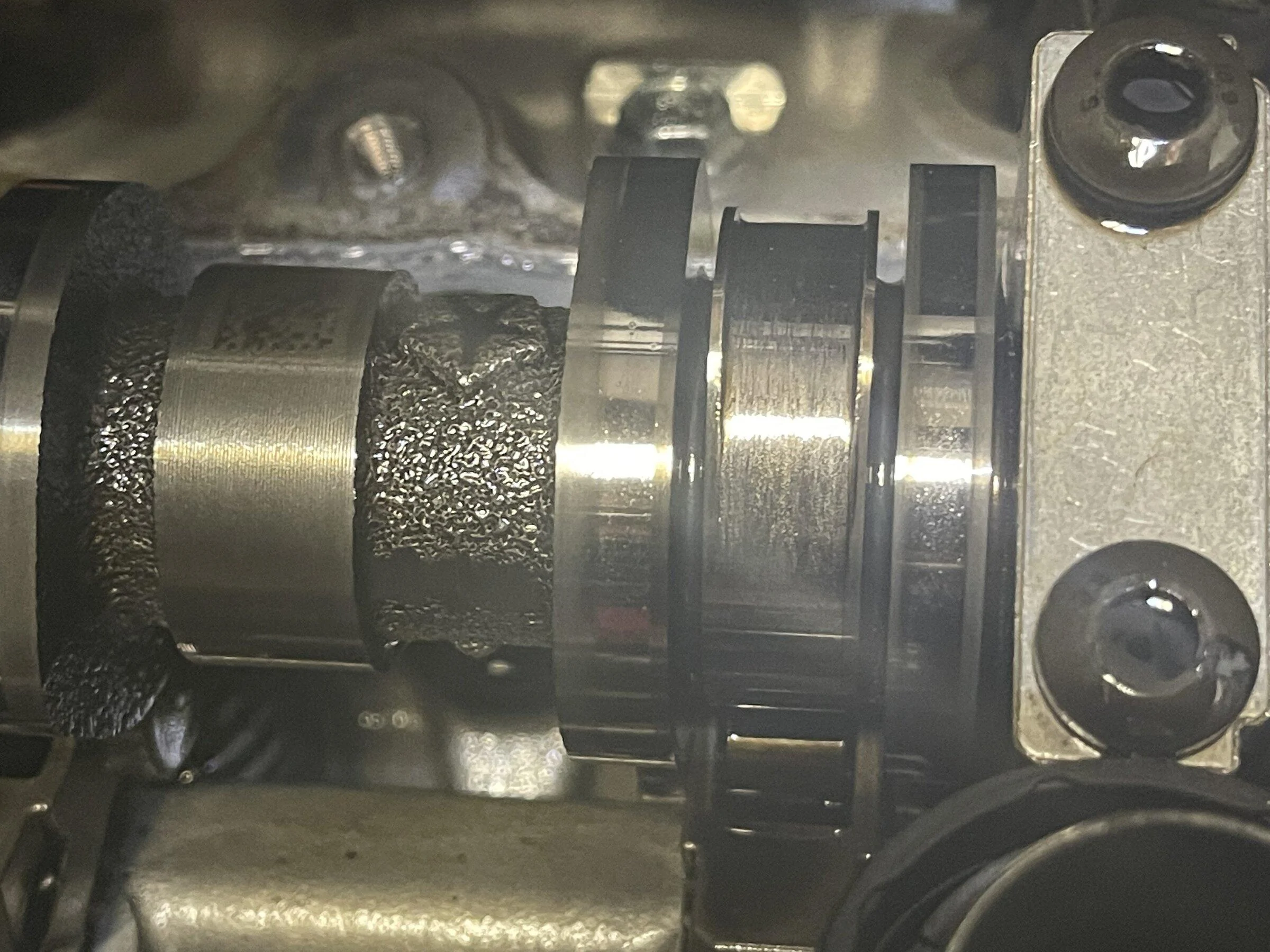

Well, add to the the wrong lifter club… Starting having misfires at wot, P0300 cel and went into limp mod twice. Right intake cam lobes chewed up!
Jeep Gladiator The good and the bad of a roots supercharger. 924B0F52-2F1B-4EA2-ADCE-A0C880C74BAA
Jeep Gladiator The good and the bad of a roots supercharger. 11BB73D0-5E42-4CF6-93DF-EEC2F85B32AE
Jeep Gladiator The good and the bad of a roots supercharger. 7ED77EDA-9337-4EBA-B0B9-54E7A748C267
Jeep Gladiator The good and the bad of a roots supercharger. 97F5FB11-471C-439A-8C7E-4C2A3BE61605

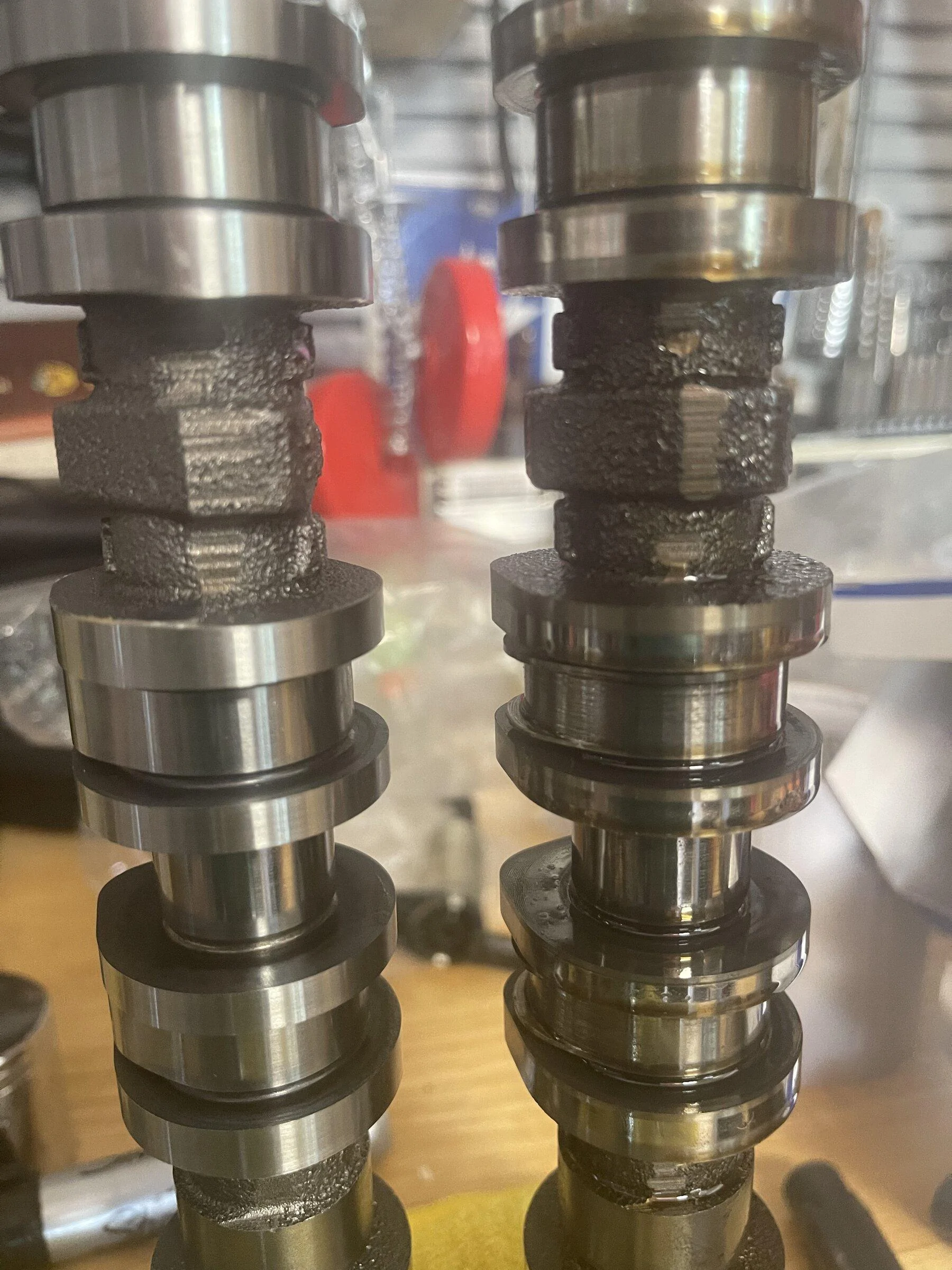

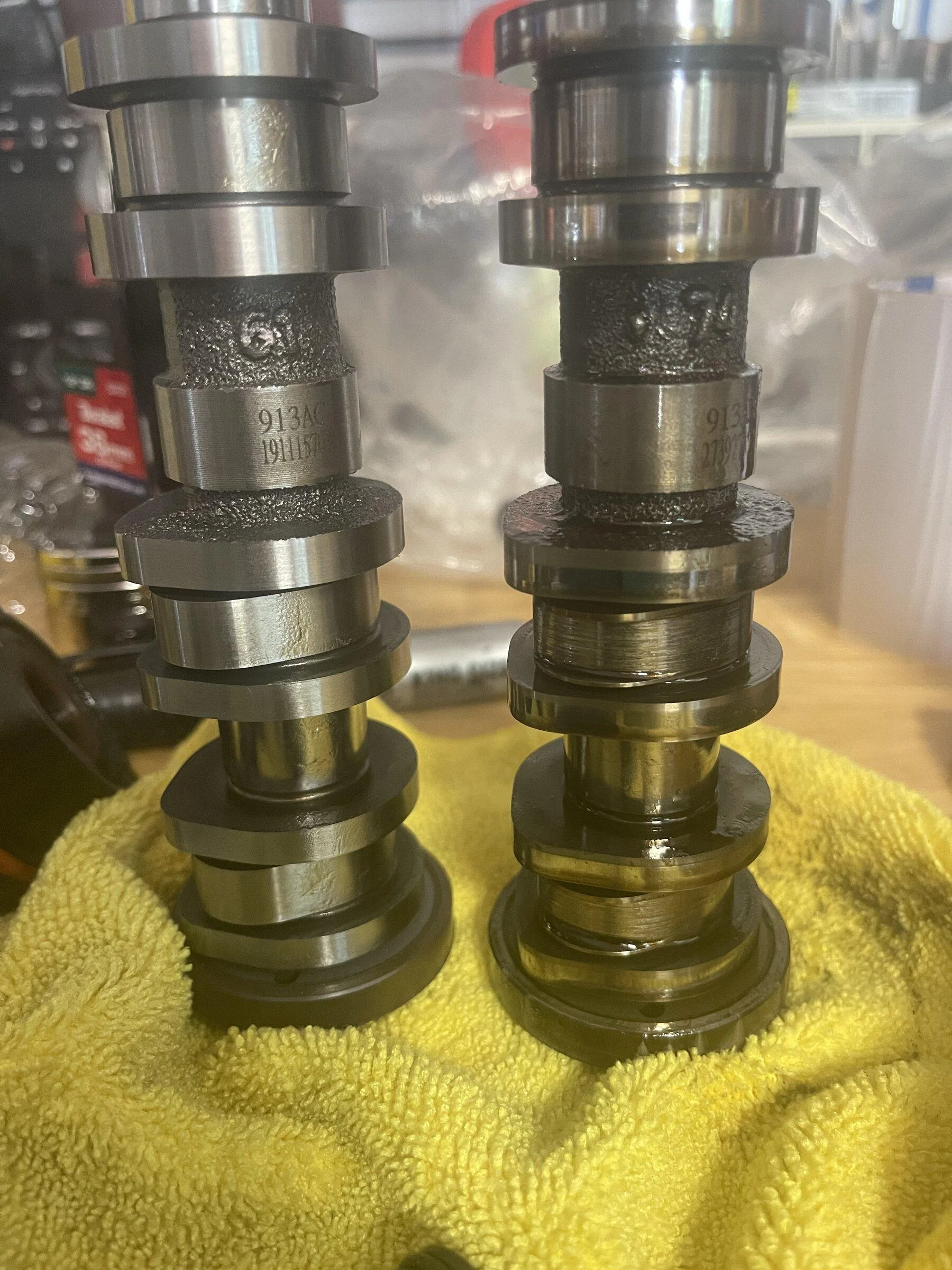

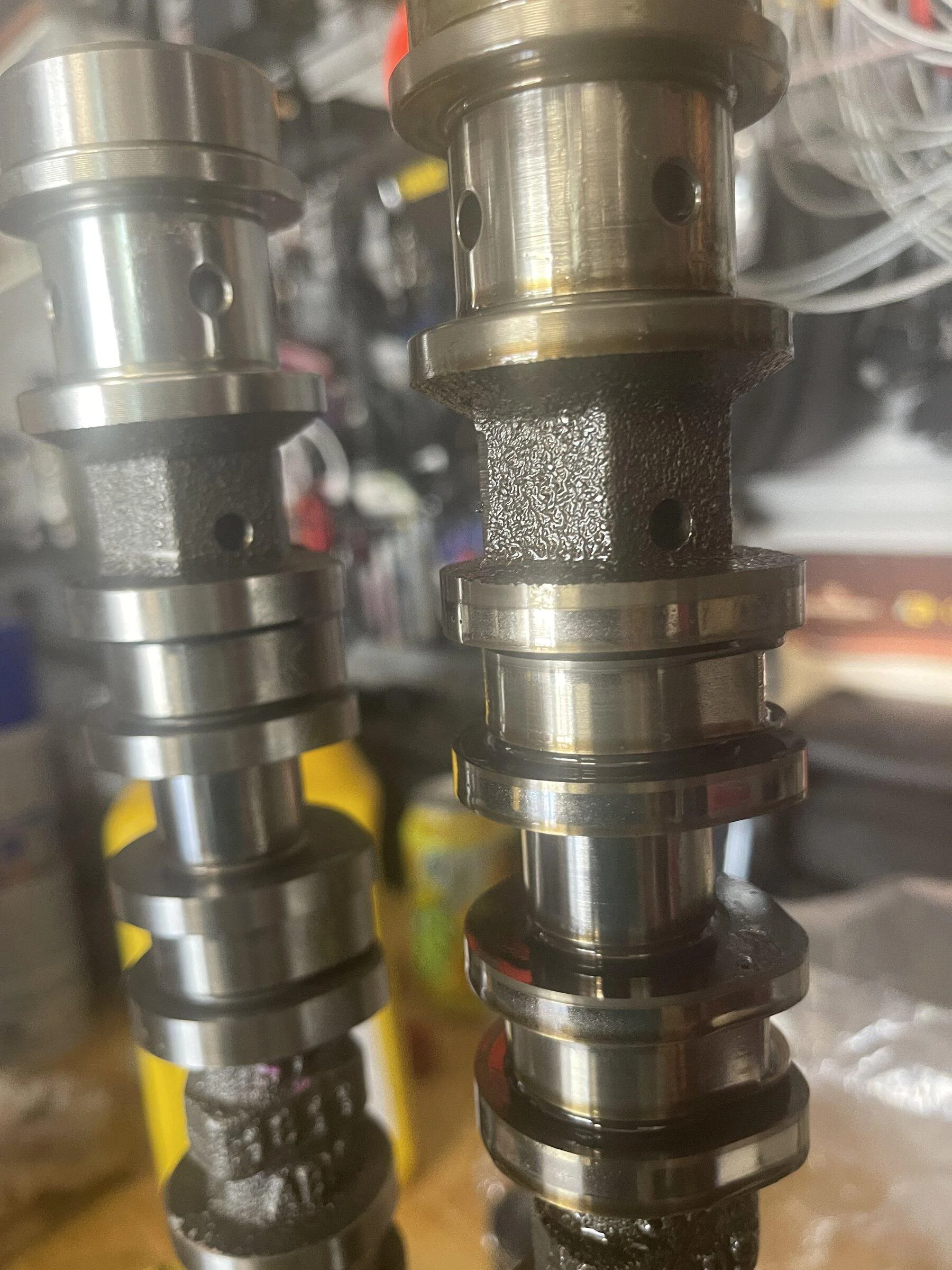

New cam vs old “original “ cam
Jeep Gladiator The good and the bad of a roots supercharger. 9DEAFF5E-23DE-459D-AF40-FA523ADA0756
Jeep Gladiator The good and the bad of a roots supercharger. 2CEAE173-457E-449B-9561-C6B480FDBF52
Jeep Gladiator The good and the bad of a roots supercharger. 135E4831-B7BC-41B5-A8F6-86CDD918B83D


Sponsored

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
180
Messages
29,408
Reaction score
34,974
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Of those that have PROVEN cam issues - such as Dave's, Alfonso's and others mentioned in the forum here, has anyone tracked build dates??
I'm very curious as just on the surface, those proven to have cam problems and incorrect lifters as the cause (all but proven) they seem to be 2020, and yet not all 2020's have had the issue (yet) so....... build dates?
Mine is a 2020 model year, 26,000 miles and thus far, not so much as a click or clack or tick or tock or misfire of any sort.

I also find it extremely interesting that such an engine can go 62,000 miles before kicking an error and shredding metal - that's a heck of a lot of miles!
What's up with that? If the thing isn't holding pressure in the rocker to keep the thing locked in low lift mode, how the @#%$ is it holding out on the high lift?
There's got to be more to it.


fonzie

Well-Known Member
First Name
Alfonso
Joined
Jun 28, 2019
Threads
14
Messages
115
Reaction score
95
Location
McKinney, TX
Vehicle(s)
2018 JLU, 2020 JT, 1996 Bronco
I believe there is a thread where someone was tracking I believe


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
180
Messages
29,408
Reaction score
34,974
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I believe there is a thread where someone was tracking I believe
That would be good.
I could be wrong, but my observations are that this is restricted to 2020 MY. Maybe early 2021. I've seen no mention of it with 2022 or late 2021. Before anyone says "there hasn't been enough time/miles", look back and see that the 2020s were doing it less than a year later, some with under 20,000 miles, so there's been time for it to show up with 2021 MY or even early 2022 MY JTs if it were going to happen.
So, again, I could be wrong, but on the surface, this looks like a 2020, perhaps early 2021 MY, issue.
Build dates, miles when it happened, and - were incorrect lifters involved?

Since there are two solenoid valves that control the VVL, which cylinders were impacted might help explain, too......... if nothing else, a nice to know thing so that a person might suggest "if your misfires are with cylinders a and b but not c, look here"


fonzie

Well-Known Member
First Name
Alfonso
Joined
Jun 28, 2019
Threads
14
Messages
115
Reaction score
95
Location
McKinney, TX
Vehicle(s)
2018 JLU, 2020 JT, 1996 Bronco
I had to order mine due to color at the time, Gator. It was ordered around Sept 2019 and I took possession in early November 2019.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
180
Messages
29,408
Reaction score
34,974
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
I had to order mine due to color at the time, Gator. It was ordered around Sept 2019 and I took possession in early November 2019.
Mine was built 11/05/2019 and has 26,000 miles, no misfires, no odd sounds, smooth as silk.
So - from what I've seen, that puts mine in the range of those having problems.

I'd love to see if anyone has reported cam/lash adjuster(lifter)/rocker issues with late 2021 or 2022 model JTs.


Sponsored

fonzie

Well-Known Member
First Name
Alfonso
Joined
Jun 28, 2019
Threads
14
Messages
115
Reaction score
95
Location
McKinney, TX
Vehicle(s)
2018 JLU, 2020 JT, 1996 Bronco
Mine was built 11/05/2019 and has 26,000 miles, no misfires, no odd sounds, smooth as silk.
So - from what I've seen, that puts mine in the range of those having problems.

I'd love to see if anyone has reported cam/lash adjuster(lifter)/rocker issues with late 2021 or 2022 model JTs.
You need to drive more! Lol


krweatherl

Well-Known Member
First Name
Ken
Joined
Sep 14, 2019
Threads
2
Messages
144
Reaction score
225
Location
Kelso Wa
Vehicle(s)
2022 JTRD
Occupation
Heavy Haul Truck Driver
Mine was built 11/05/2019 and has 26,000 miles, no misfires, no odd sounds, smooth as silk.
So - from what I've seen, that puts mine in the range of those having problems.

I'd love to see if anyone has reported cam/lash adjuster(lifter)/rocker issues with late 2021 or 2022 model JTs.
Not sure of my production date. Purchased August 2020 so I’m sure I’m in the mix also. 13,000 miles and no problems yet.

OP
OP

DAVECS1

Well-Known Member
First Name
David
Joined
Jan 24, 2020
Threads
56
Messages
1,861
Reaction score
2,515
Location
Peoria, IL
Vehicle(s)
2020 Gladiator Sport S Max Tow
Fonzie had the wrong lifters.

If you are curious if you have the problem, go honestly bury the pedal from a dead stop through 4th gear. If you don't throw a light. I believe you are fine. If you do, I will bet you a Miller high life it is cylinder 1,3,5 misfiring.

I have helped about 2-3 people a week since my post. I would say 20 percent are 2021 models.

I looked at fonzies data and unfortunately was able to tell him with high confidence things had gone south.


jsalbre

Well-Known Member
First Name
Jeremy
Joined
Mar 17, 2021
Threads
10
Messages
676
Reaction score
803
Location
Idaho
Vehicle(s)
‘21 Sarge Mojave, ‘21 VW Tiguan SEL-P RLine
Build Thread
Link
Occupation
Security Engineer, First Sergeant
Do you think data logging would show the issue even if you’re not getting a light yet?
