Asfir 4x4 Engine and Transmission skid plate

[ilmostro]

Ordered. Thanks @ASFIR 4x4

Sponsored



[ASFIR 4x4]

Ordered. Thanks @ASFIR 4x4

Thank you!



[yoda13]

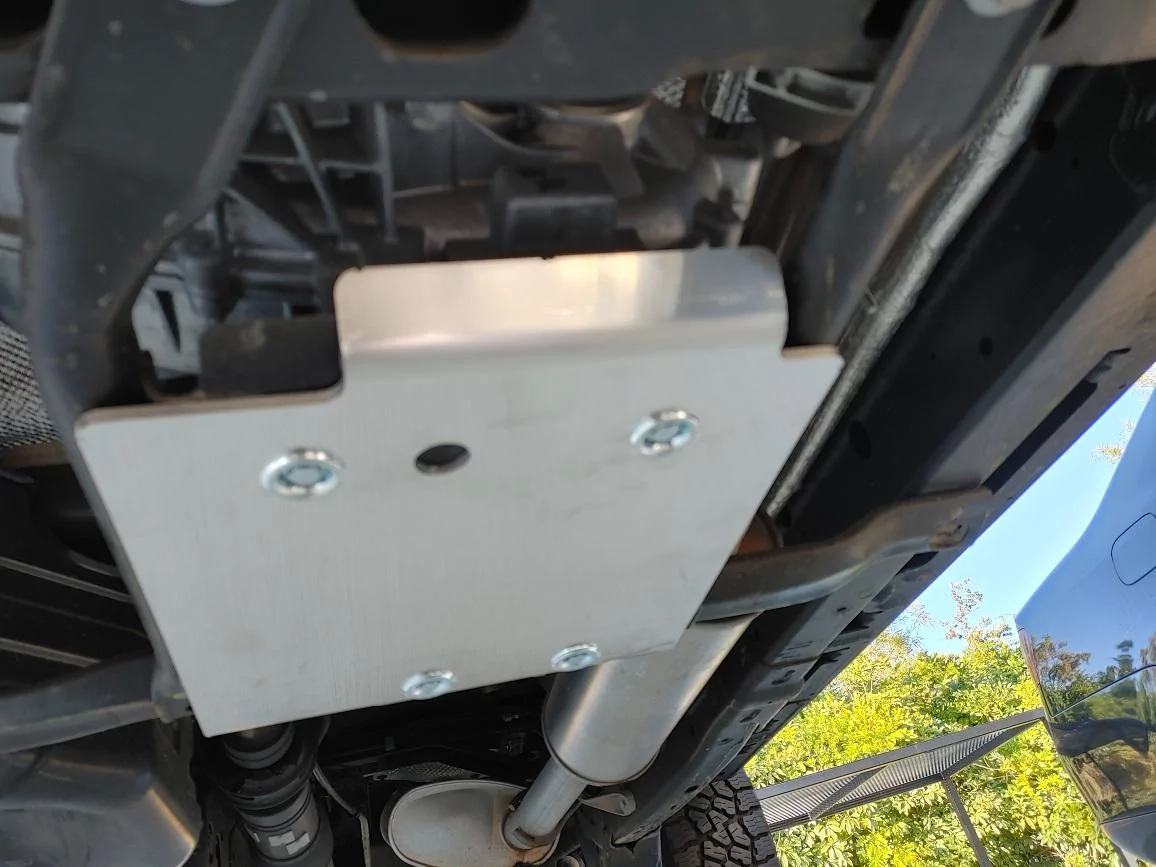

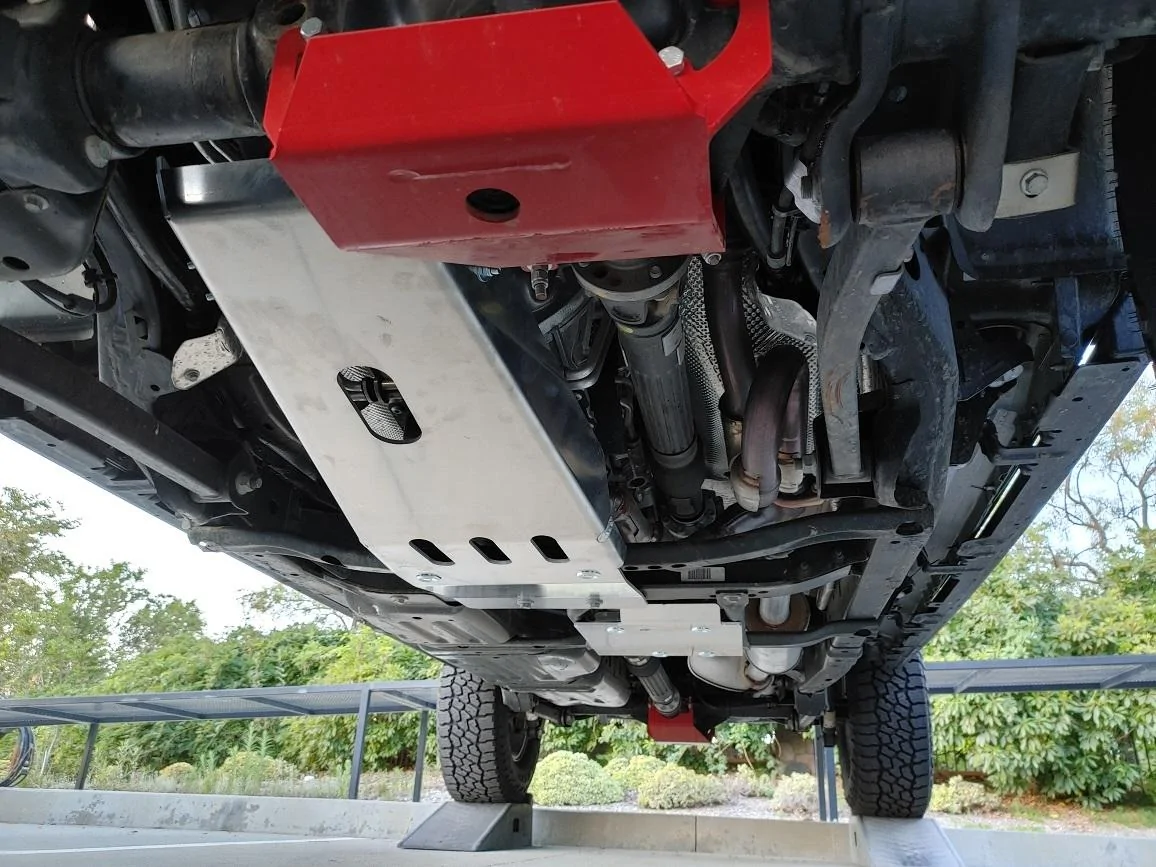

Mine are installed now! I got the engine and the transfer case skid!



[kaeo_15]

Mine was a little tough to line up, but it's in...



[Oak]

I haven't seen a lot of information on Asfir Jeep products, especially for the Gladiator, so hopefully this helps anyone else doing research.

I just installed the 1/4" aluminum engine and transmission skid plate by @asfir_offroad. Purchased off their site at (PN: 541155). Seems like a pretty new product, with more info from the JL folks.

Even on the Rubicon, the new JL/JT leaves the engine and tranny oil pans exposed. I wanted a modular option to keep the Rubicon plates, but there aren't a lot of options for the Gladiator because the motor mounts are different from the JL Wrangler. I'm really only aware of the Rubicon Express plates for the Gladiator, but that requires two plates to cover this space and the engine oil pan plate doesn't mount at the front which worries me a bit.

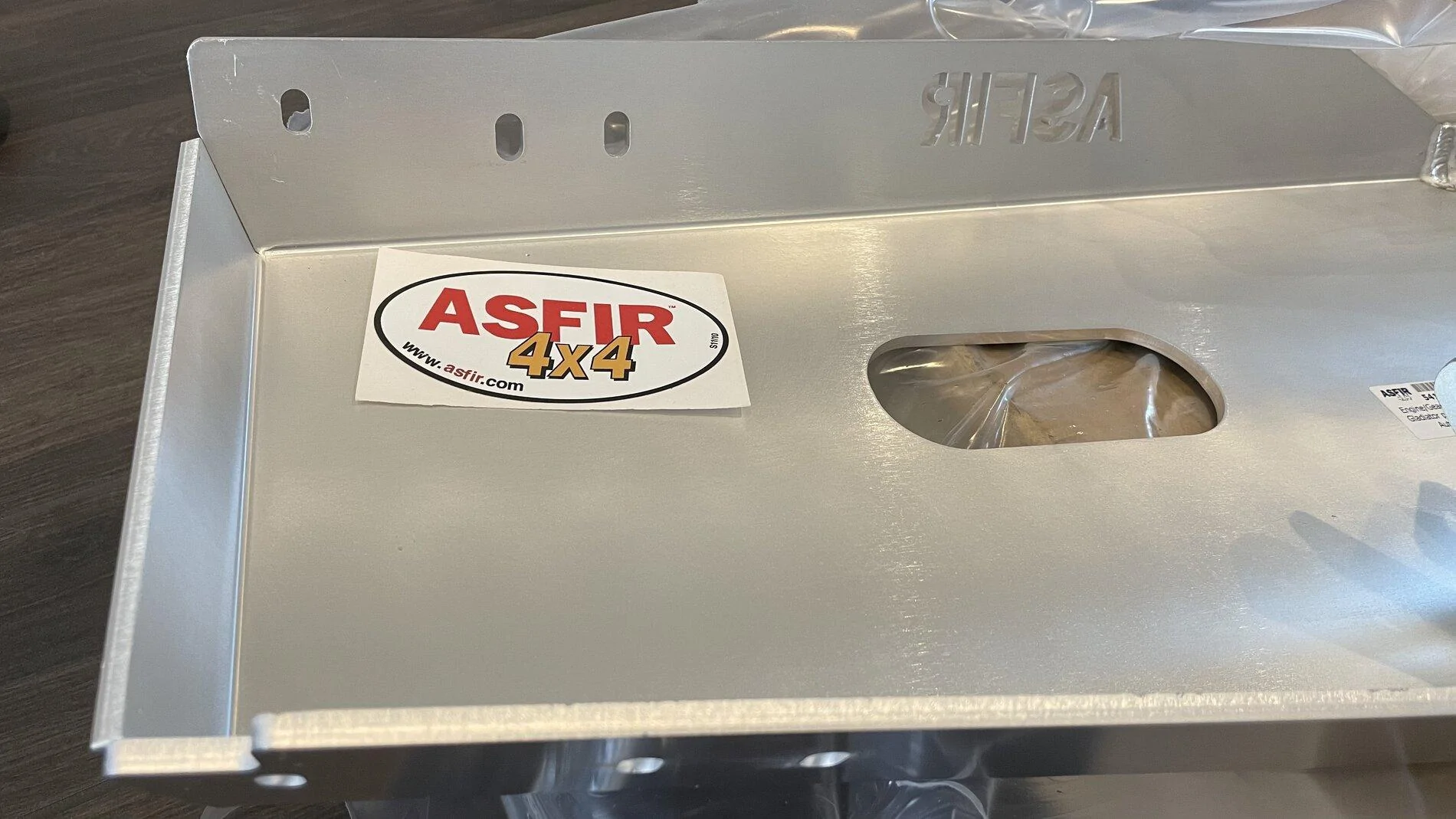

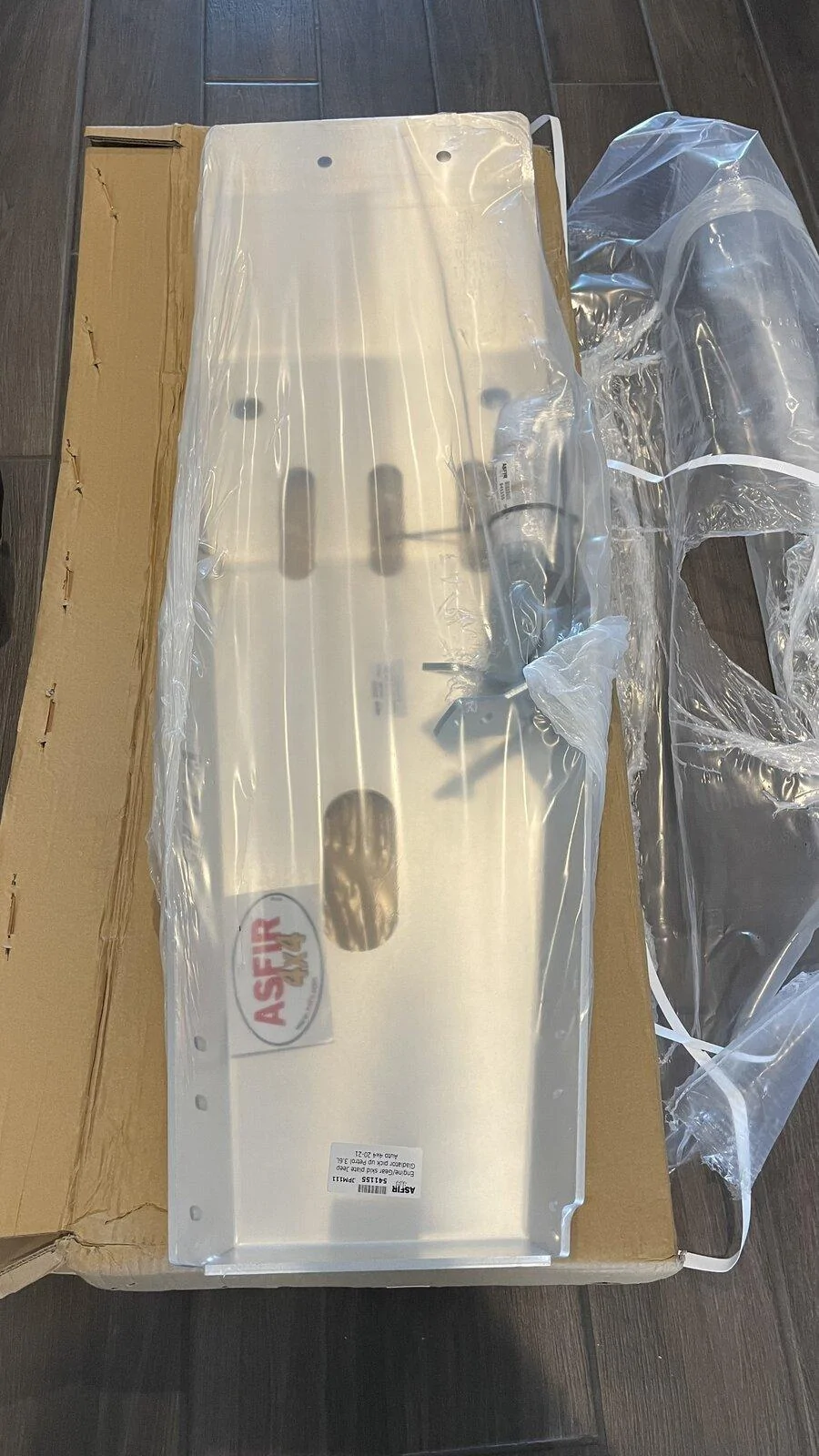

Thought I'd gamble a bit and try this skid plate is a single 1/4" thick sheet of aluminum (plus brackets) that mounts at the engine mounts up front, the cross member, and then again where the transfer case skid plate mounts to the 2nd crossmember using the two factory bolts in the rear.

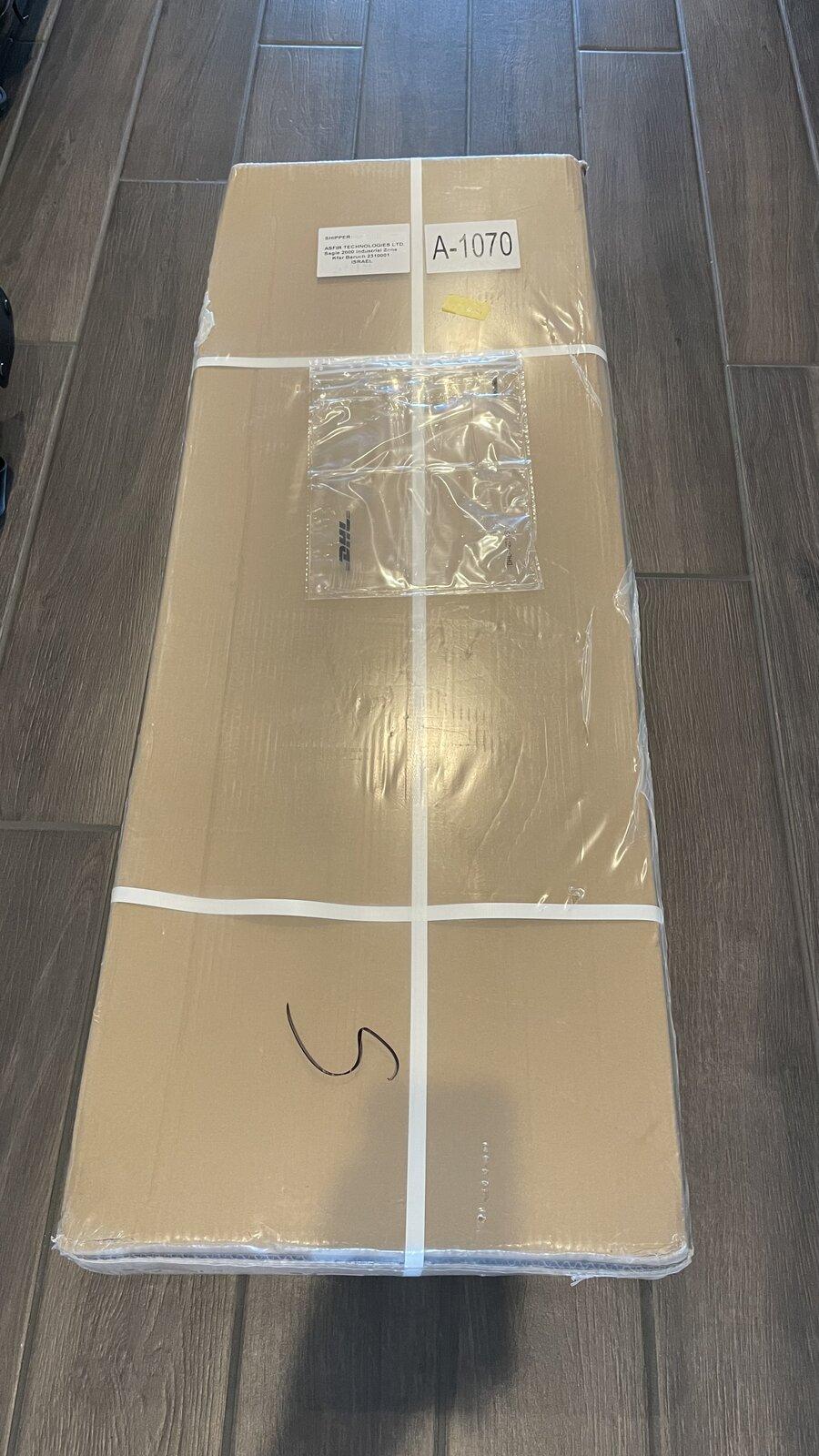

It is an incredible value for one solid piece to cover that vulnerable area. It arrived from their factory in Israel in 11 days, and it's a very easy install with basic tools:

• 18mm socket (reuse factory skid bolts) @66ft-lbs (90Nm)
• 13mm wrench and socket @18ft-lbs (25Nm)
• 17mm socket with 6" extension for new nuts on engine mount bolts @36ft-lbs (50Nm)
• Thread locker
• Torque wrench

Could probably have completed the install in 30min on a lift.

I haven't taken it out on the trails yet, so if anything comes up, I'll come back and post a follow up. Hope this helps anyone else doing research, and I'm happy to answer any questions.

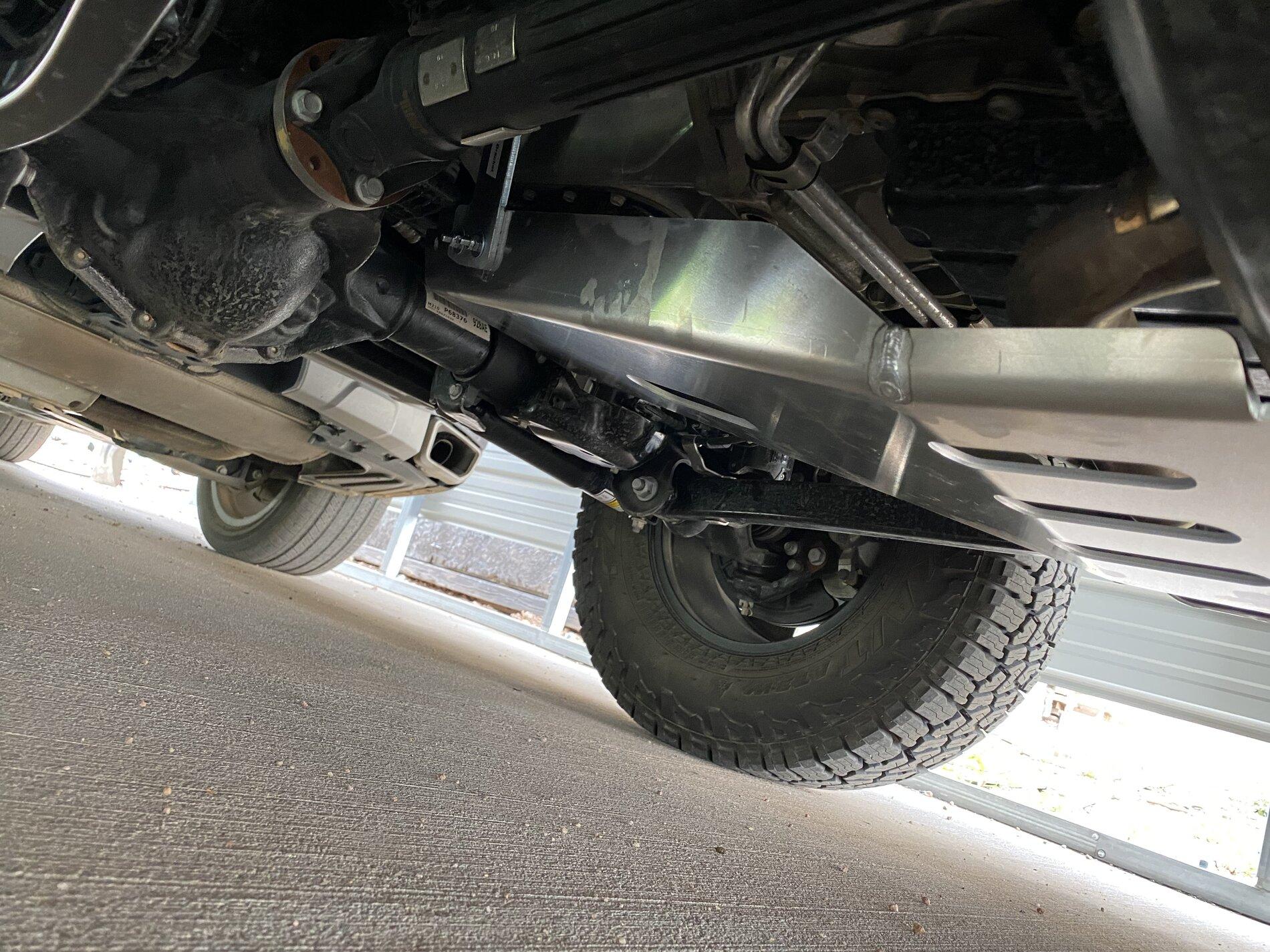

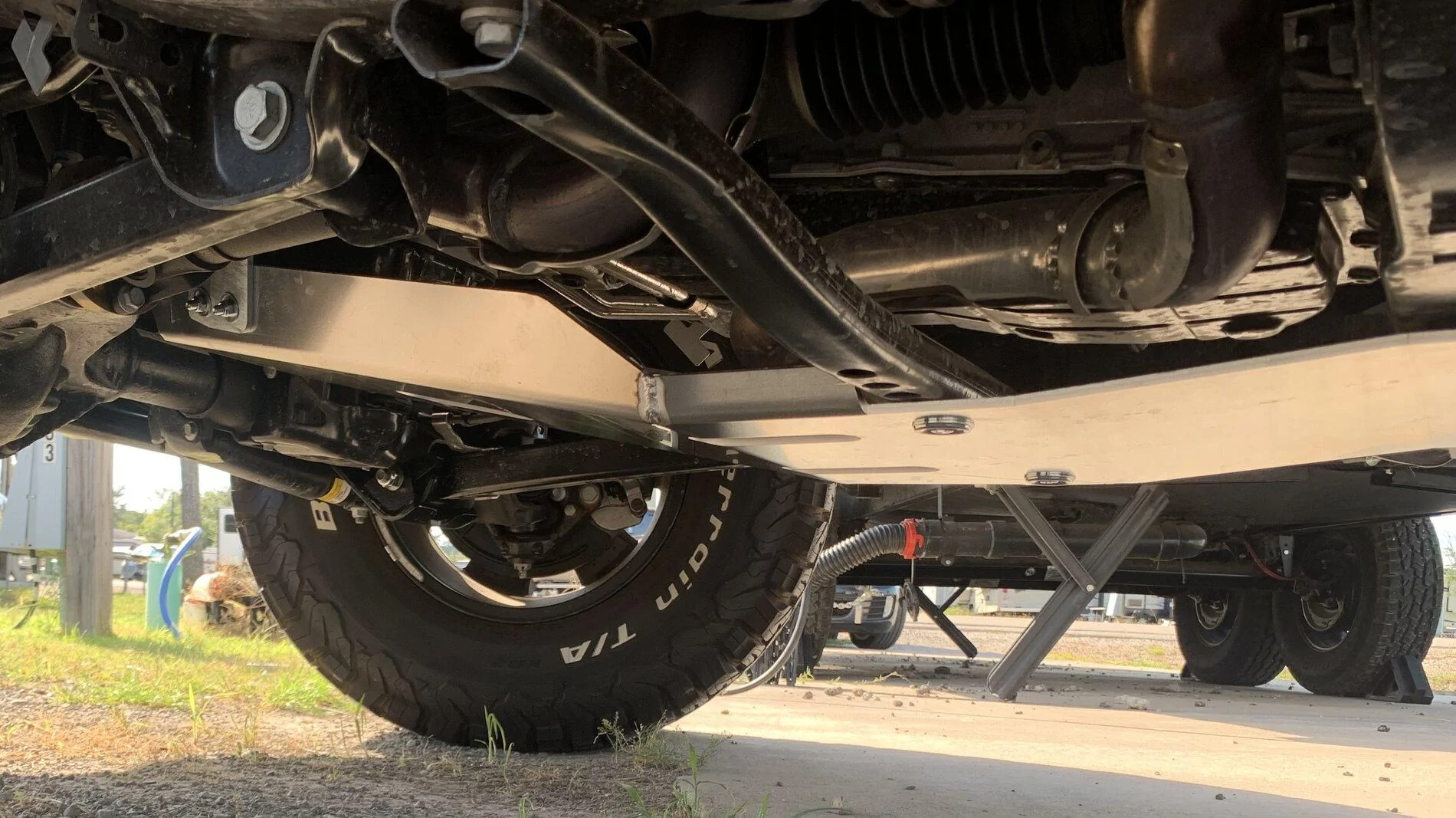

Photos!

Installed mine yesterday and loce them. Thanks for the post I wouldn't have known about them otherwise.



[Wyofuy069]

Had mine done yesterday. Great service and arrived in a week from Israel. Only weighs 20 lbs.



[Sespe]

Ordered, shipped, and installed in just over 1 week. I'm happy!



[GA D90]

Ordered, shipped, and installed in just over 1 week. I'm happy!

Install looks great! I have'm too!
I noticed the diff guards, are they Rancho? How do you like them , and do the limit much ground clearance?
Thanks!



[Sespe]

Install looks great! I have'm too!
I noticed the diff guards, are they Rancho? How do you like them , and do the limit much ground clearance?
Thanks!

Yes, they're the Rancho guards. They lowered the ground clearance a bit, but taller tires went on since then.

https://www.jeepgladiatorforum.com/forum/threads/rancho-differential-guards.38979/



[BW Montauk]

Thanks @ASFIR 4x4 Arrived in exactly 1 week in perfect condition from order date. Awesome quality and communication.



[ASFIR 4x4]

T

Thanks @ASFIR 4x4 Arrived in exactly 1 week in perfect condition from order date. Awesome quality and communication.

Thank you!



[Dryfly24]

Oh man, exactly what I’ve been looking for! Thanks!

Edited to add that I just ordered mine, thanks for the promo code @ASFIR 4x4 !! Just too good a deal to pass up!! Man this site is costing me money...



[RobbertCole]

Hi there, adding on to the special forum discount -> we're launching a new website and we want to celebrate it with you!
We deeply appreciate your trust in our products and want to offer a special promo-code for an extra (!) 15% off our internet sale price.
GLADITORStrong will be valid through Aug. 31st! Please use this code at checkout.

Cheers!


(* one coupon-code per order)

Fantastic deal! Ordered!



[Slacks]

Woohoo! I feel like I should be getting commission

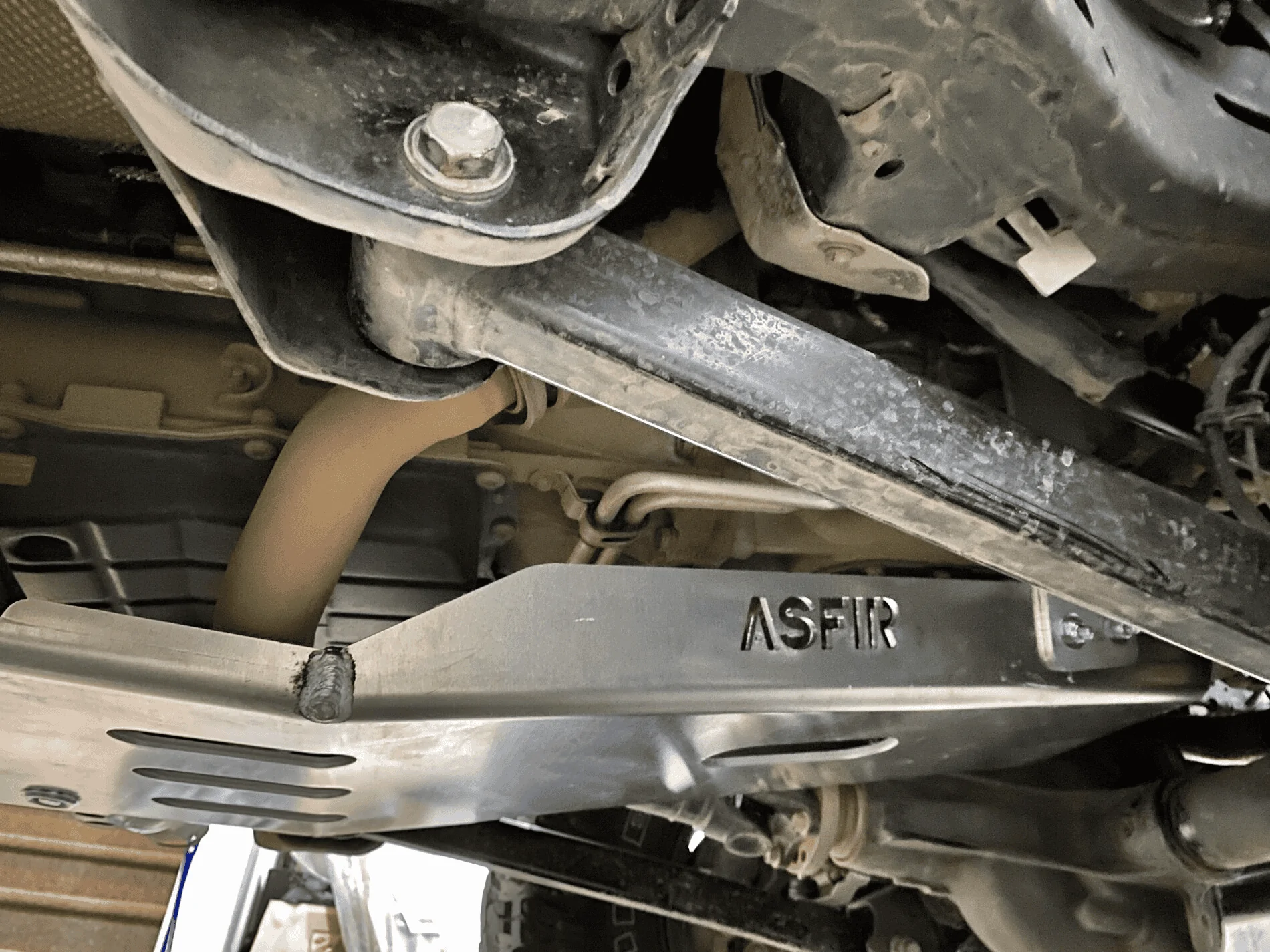

Glad everyone is having a great experience. After a year mine is still holding up well, no corrosion changed the oil, no issues.



[Dryfly24]

Having mine installed at the same time as a couple of leveling blocks. Looks like a quality product.
