Brake Controller? Correct me if I am wrong, according to the Owners Manual while towing you are to use the manual shift mode this will also be the same as the Locking In your transmissions torque Converter, Otherwise you risk transmission slippage or possible damage. I was concerned without a brake control this may happen also the manual said do not cut into any brake wiring? Testing I did apply brakes and they worked with manual shift mode proportionately.

Also i found a "Plug and Play" Brake control on Amazon for Jeep seven prong receiver after trying my tow I did not think it was necessary.

Here’s a AAA reference on state laws. https://drivinglaws.aaa.com/tag/trailer-brakes/
IMHO the laws of physics strongly encourage the use of trailer brakes on any trailer over 3,000lbs and that is what many states require. The transmission and braking are complimentary systems but they are separate and nothing in the transmission is going to be able to decelerate the trailer, safely and in the intended steering path like properly set up trailer brakes and a controller on the tow vehicle. The Gladiator (as of right now) does not have a built in trailer brake controller so users must purchase something from the aftermarket to operate trailer brakes. A simple way of determining if you need a trailer brake controller is to ask - does the trailer I am pulling have trailer brakes? Or is it going to be over 3,000 lbs? If yes, you need a trailer brake controller for the Gladiator tow vehicle and trailer brakes on the trailer.
Sponsored



MOS63B20

Well-Known Member
First Name
Allen
Joined
Feb 13, 2020
Threads
0
Messages
58
Reaction score
27
Location
Brasher Falls NY 13613
Vehicle(s)
2012 2 Door Wrabgler 2020 Gladitor Rubicon
Manual shifting also controlled my brakes..
Here’s a AAA reference on state laws. https://drivinglaws.aaa.com/tag/trailer-brakes/
IMHO the laws of physics strongly encourage the use of trailer brakes on any trailer over 3,000lbs and that is what many states require. The transmission and braking are complimentary systems but they are separate and nothing in the transmission is going to be able to decelerate the trailer, safely and in the intended steering path like properly set up trailer brakes and a controller on the tow vehicle. The Gladiator (as of right now) does not have a built in trailer brake controller so users must purchase something from the aftermarket to operate trailer brakes. A simple way of determining if you need a trailer brake controller is to ask - does the trailer I am pulling have trailer brakes? Or is it going to be over 3,000 lbs? If yes, you need a trailer brake controller for the Gladiator tow vehicle and trailer brakes on the trailer.


MOS63B20

Well-Known Member
First Name
Allen
Joined
Feb 13, 2020
Threads
0
Messages
58
Reaction score
27
Location
Brasher Falls NY 13613
Vehicle(s)
2012 2 Door Wrabgler 2020 Gladitor Rubicon
I will retest! However my two axle brakes on my empty 1,700 pound aluminum trailer brakes are working when I apply the Brakes in my Gladitor Rubicon.. even tested it on ice they locked up. I would like to dial in the amount of brake my tow trailer has! 7,000 to 7,500 tow limit no brakes without a controller you say?

My worst part in towing is rear view.. I just purchased a wireless surveillance camera for the rear of my trailer with a monitor.. also extension mirrors I very much dislike.. Jeep has nothing available..


MOS63B20

Well-Known Member
First Name
Allen
Joined
Feb 13, 2020
Threads
0
Messages
58
Reaction score
27
Location
Brasher Falls NY 13613
Vehicle(s)
2012 2 Door Wrabgler 2020 Gladitor Rubicon
All that the law says for New York state is over 3000 pounds to have adequate breaks! How do we prove this?As Far as I'm concerned I have it right now however I'm not sure after reading what has been posted. There is a lot of data and so many threads probably a million post and I'm all over trying to find the proper information. This forum is very difficult to follow the facts from fiction so I need to do a lot of dealer and OEM investigations. The state law or state laws don't do much for me.


WXman

Banned
Banned
Joined
Mar 1, 2017
Threads
69
Messages
3,102
Reaction score
4,067
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation
As far as manual shift mode goes, my understanding is that this simply allows the user to have more control over which gear the truck is in. The computers onboard can and sometimes will still over-ride your decision to protect the drivetrain, but it gives you more control. What it does not do is affect the way the torque converter operates.

A person can do more damage while towing using the manual shift mode than they can do using normal "drive" mode.


Sponsored

Slapping_Rabbits

Well-Known Member
First Name
Nirzwan
Joined
Apr 27, 2019
Threads
30
Messages
959
Reaction score
801
Location
Havre de grace md
Vehicle(s)
Jeep gladiator Rubicon, triumph rocket iii roadster
yeah how does it change if your gladiator is a manual?


PsyRN

Well-Known Member
First Name
Eric
Joined
May 13, 2019
Threads
23
Messages
454
Reaction score
522
Location
Santa Rosa
Vehicle(s)
2020 StingGray JTR, 2016 Bonneville T120 Black
Brake Controller? Correct me if I am wrong, according to the Owners Manual while towing you are to use the manual shift mode this will also be the same as the Locking In your transmissions torque Converter, Otherwise you risk transmission slippage or possible damage.
A person can do more damage while towing using the manual shift mode than they can do using normal "drive" mode.
So why would the owner's manual say otherwise?


Bbannongmu

Well-Known Member
First Name
JTR.Spartacus
Joined
Jan 18, 2020
Threads
26
Messages
1,874
Reaction score
2,155
Location
Earth
Website
m.facebook.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
Certified Emergency Manager
Vehicle Showcase
1

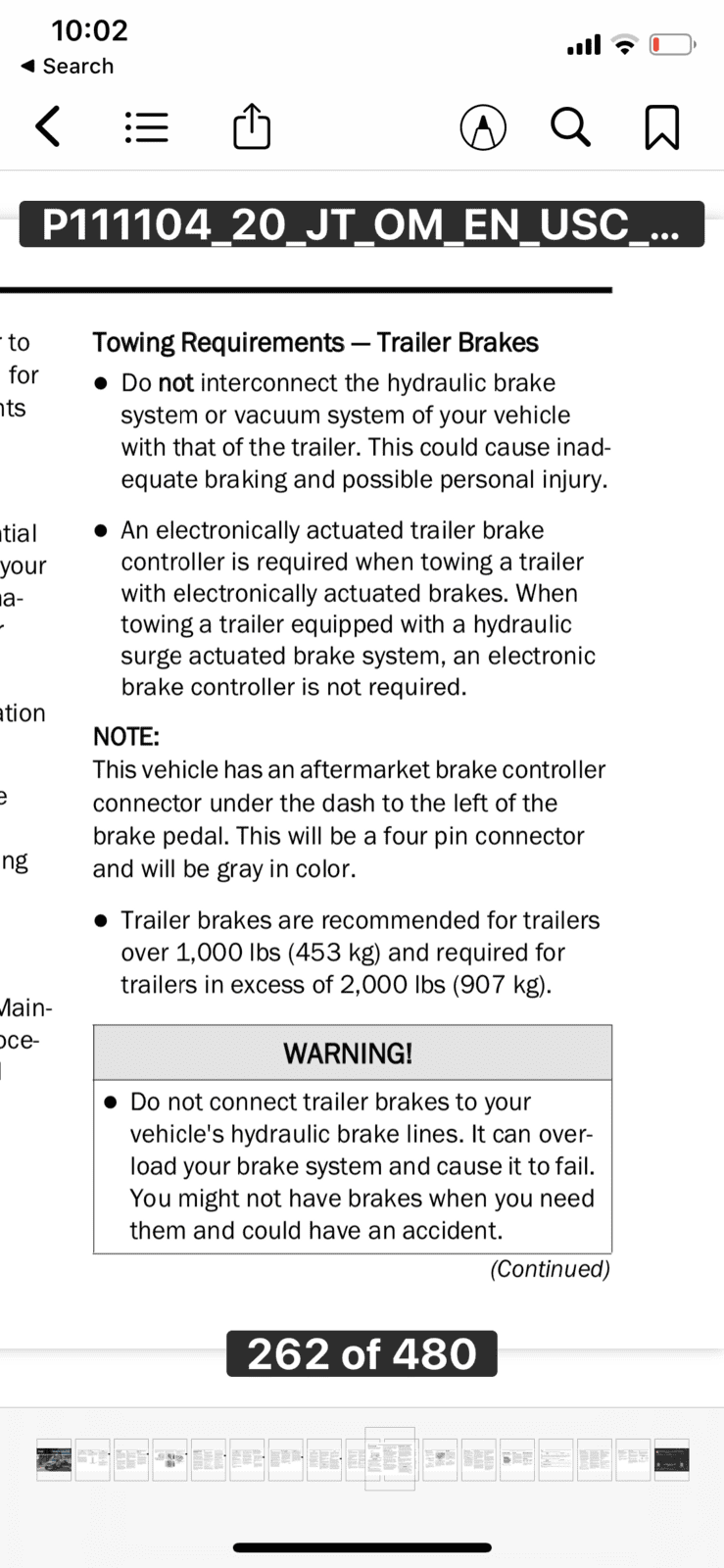

Here is what the owners manual says about trailer brakes /trailer brake controller.


WXman

Banned
Banned
Joined
Mar 1, 2017
Threads
69
Messages
3,102
Reaction score
4,067
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation
So why would the owner's manual say otherwise?

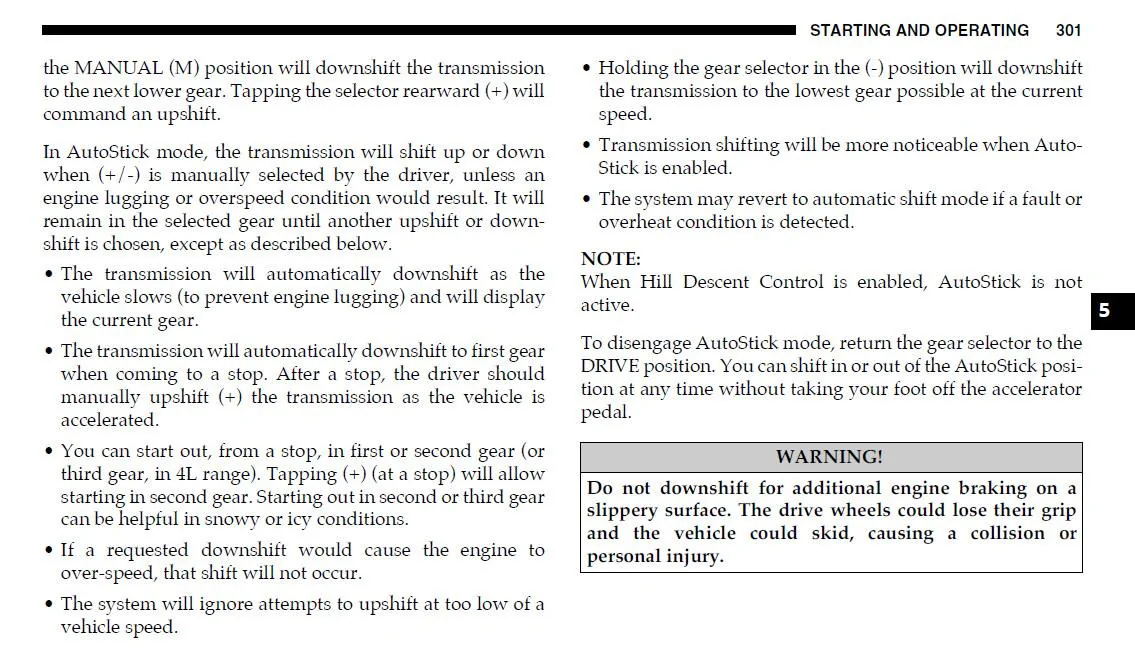

I don't know which version of the owner's manual you've got, but I'm looking at version 2 and the manual shift mode is described exactly how I described it in post #80. It gives you more (not complete) control over which gear you are in, but it does not provide manual control of the torque converter. Also as noted, it's possible to lug the engine if using manual mode (which the software will attempt to prevent per page 301 in the manual) and so it's more easily possible to damage the engine in manual mode. In normal "drive" mode, the vehicle computers will never even let you approach the point of lugging the engine.



Sponsored

MOS63B20

Well-Known Member
First Name
Allen
Joined
Feb 13, 2020
Threads
0
Messages
58
Reaction score
27
Location
Brasher Falls NY 13613
Vehicle(s)
2012 2 Door Wrabgler 2020 Gladitor Rubicon
Thank you for the clarification.. Do you think this controller will work? Only name and part number here, the video explains its Bluetooth setup.



TinyTink

Member
Joined
Feb 16, 2020
Threads
5
Messages
22
Reaction score
22
Location
Louisiana
Vehicle(s)
2020 Jeep Gladiator Sport S with Max Tow
I literally had this in my cart to buy it, not realizing it is backordered until April. Glad I checked in here first because I need this soon and I also need to reserve the 12V plug for a backup camera. I see some of you talking about the redarc and this video makes it seem like a relatively easy install that I can do myself. Would like to hear from someone who has towed with it. For those that have already installed, about how long did it take? I'm kind of worried about voiding the warranty or insurance issues with an aftermarket install like that, but I can't really wait until they release the Mopar because I have a vacation scheduled for mid-April.



whiteglad

Well-Known Member
First Name
Joe
Joined
Feb 12, 2020
Threads
13
Messages
1,149
Reaction score
1,003
Location
Vegas
Vehicle(s)
2022 Gladiator Mojave
I probably won't tow much and didn't want to spend $hundreds. I got the Curt Venturer 51110 and the Ram harness 15458, swapped the blue and black wires in the harness connector going to the Jeep's gray 4-pin under the dash. About $50. I mounted it to the kick panel/knee bolster under the steering wheel.


jwilson2899

Well-Known Member
First Name
Jeff
Joined
Nov 11, 2019
Threads
18
Messages
788
Reaction score
927
Location
Front Royal, VA
Vehicle(s)
2020 Gladiator Rubicon Launch Edition
Occupation
System Engineer
Vehicle Showcase
1
I literally had this in my cart to buy it, not realizing it is backordered until April. Glad I checked in here first because I need this soon and I also need to reserve the 12V plug for a backup camera. I see some of you talking about the redarc and this video makes it seem like a relatively easy install that I can do myself. Would like to hear from someone who has towed with it. For those that have already installed, about how long did it take? I'm kind of worried about voiding the warranty or insurance issues with an aftermarket install like that, but I can't really wait until they release the Mopar because I have a vacation scheduled for mid-April.

I put about 1250 miles on mine a couple, weeks ago and it works great. Everything went smoothly, and it works well with the adaptive cruise.

As for the install it was simple and pretty easy. I went the control knob in the 12V spot myself, but all in, I was less than an hour installing it. I did use the Redarc harness for a Ram and switched the blue and black wires, as it’s plug and play afterwards and saves on buying an adapter harness to use the Tekonsha harness.

You will be fine on warranty. They actually provide that plug under the dash expecting you to plug an aftermarket controller into it.


MOS63B20

Well-Known Member
First Name
Allen
Joined
Feb 13, 2020
Threads
0
Messages
58
Reaction score
27
Location
Brasher Falls NY 13613
Vehicle(s)
2012 2 Door Wrabgler 2020 Gladitor Rubicon
I watched and liked your video to install in your cab the brake controller.
I have the Curt 51180 controller in route through etrailer right now. I like the plug-and-play aspect. Then when Jeep comes out with their promised brake controller I would see if I would prefer that better.
Nice installation I'm happy that it's working for you.
