Flush Mount Tail Lights

[JTitus]

Anyone still looking for these tail lights. I was able to buy them on CJ Pony Parts earlier today and they shipped same day. Their site is showing more in stock, here is the link
https://www.cjponyparts.com/oracle-...lac_guid=2570eeea-b362-ec11-8360-0050568b5164

Sponsored



[tking13]

I ended up breaking down and getting JSCAN. I have a factory LED and you need to do this process to fix the hyper flash and stuff:

Load up JSCAN, go into Adaptions. Go to “Lights Conversion -> US to EURO”

Then find the left and right rear diagnostic settings:

Start with one side, set the value to deactivate then Hit Go. Once you get the confirmation, turn on that blinker until the hyper flash stops.

Then repeat for the other side.

I did not change any other settings than these ones. I left all the tail lamp led things active. They don’t need to be changed for Factory LED trucks.

I have not had any issue since.



[tking13]

I ended up breaking down and getting JSCAN. I have a factory LED and you need to do this process to fix the hyper flash and stuff:

Load up JSCAN, go into Adaptions. Go to “Lights Conversion -> US to EURO”

Then find the left and right rear diagnostic settings:

Start with one side, set the value to deactivate then Hit Go. Once you get the confirmation, turn on that blinker until the hyper flash stops.

Then repeat for the other side.

I did not change any other settings than these ones. I left all the tail lamp led things active. They don’t need to be changed for Factory LED trucks.

I have not had any issue since.

Just tried this procedure (very detailed - TY), but I m still getting the hyperflash and turn signal light out message when I start the Jeep

Any thoughts?



[Renegade]

Just tried this procedure (very detailed - TY), but I m still getting the hyperflash and turn signal light out message when I start the Jeep

Any thoughts?

I didn't do the US to Euro adaptation. Did you do all 4 LED adaptations for the tail light, brake light, turn signal, and reverse lights?



[tking13]

Just tried this procedure (very detailed - TY), but I m still getting the hyperflash and turn signal light out message when I start the Jeep

Any thoughts?

Update on my experience... Contacted JSCAN via Facebook and went through the settings as listed above. Tech had me go to Body Module and clear codes. This immediately corrected both the hyperflash as well as the error code.

Can't say enough about the JSCAN tech... Combined with these instructions, this process worked perfectly!



[Markpod7]

Anyone added the resistor fix for the halogens yet? Mine just shipped



[BigDaddy G]

@ScooterInTX if you had factory halogen and using Jscan, the below settings are all you should have to change to LED if you are NOT using the included resistor.




The US->Euro diagnostic setting mentioned is only if you get turn signal out messages. It’s my understanding those coming from halogen have not gotten this message.

If you have issue with the backup lights not saying on, you should reach out to Oracle to get a new set of resistors which has resolved this for most it seems.

That fixed it for mine Thanks



[just_another_guy]

Anyone added the resistor fix for the halogens yet? Mine just shipped

The resistors seemed to fix mine



[Markpod7]

The resistors seemed to fix mine

They just snap into the line or come with instructions i guess?



[just_another_guy]

They just snap into the line or come with instructions i guess?

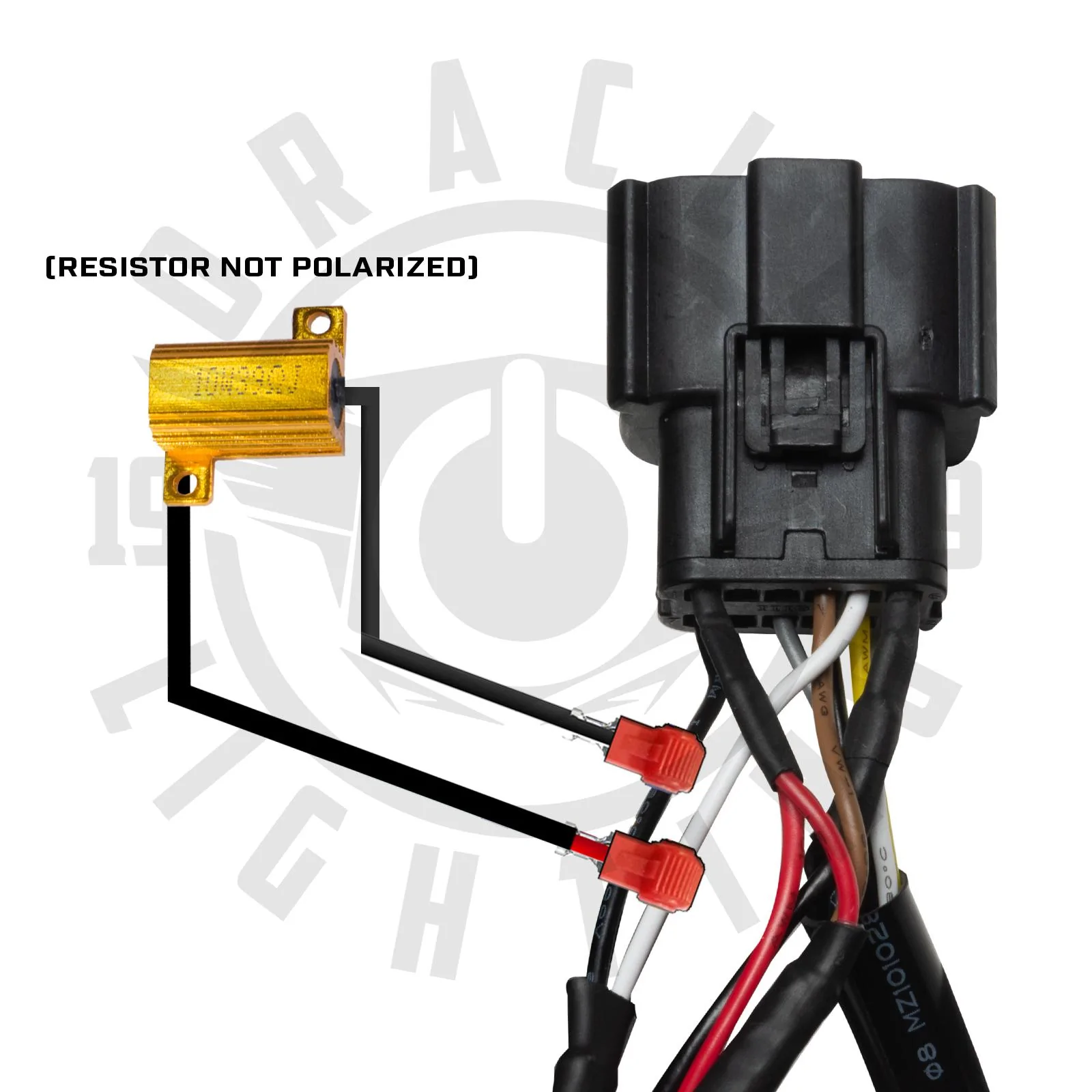

They actually come with instructions to wire them to your brake lights, which is wrong. Here's the correct way to wire them:

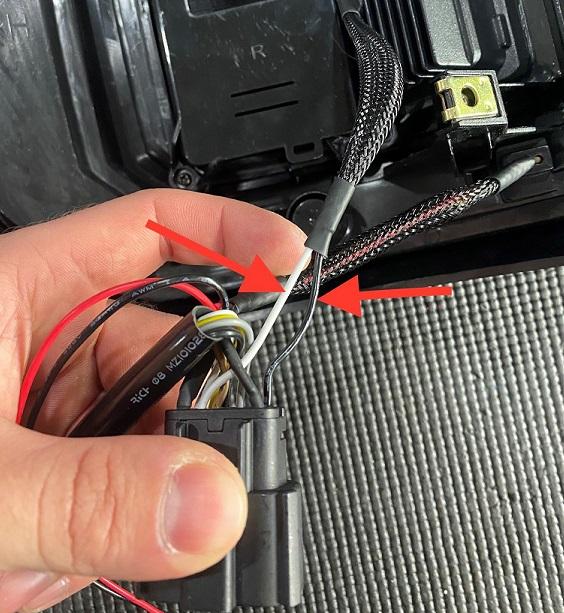

Essentially, you just need to tap one end of each resistor to the white wire and the other end to the black wire, on the ORACLE Tail Light harness. These resistors aren't polarized, so it doesn't matter which end goes to which wire. Here's a clearer picture as to where to tap those in on the tails:



[JP_Oracle]

They just snap into the line or come with instructions i guess?

They actually come with instructions to wire them to your brake lights, which is wrong. Here's the correct way to wire them:



[Bad324]

Anybody order these around Black Friday/Cyber Monday and been given any ETA when they might arrive? Emailed oracle and got canned customer service speak and no actual information.



[ORACLElights]

Anybody order these around Black Friday/Cyber Monday and been given any ETA when they might arrive? Emailed oracle and got canned customer service speak and no actual information.

Hi Brian, we have an email about to send to those waiting for fulfillment. This message hasn't been released to customer service yet today, but I can update you here now.

We have a large batch shipping in mid-February that we expect to cover most of the open orders. For context, we have fulfilled orders placed through the end of August 2021. We will have another more in-depth update closer to that mid-Feb date, and tracking emails will send when your order ships of course. I hope that helps to give some clarity, and we appreciate your patience.

-Rachel



[Jefe1018]

Anyone still looking for these tail lights. I was able to buy them on CJ Pony Parts earlier today and they shipped same day. Their site is showing more in stock, here is the link
https://www.cjponyparts.com/oracle-...lac_guid=2570eeea-b362-ec11-8360-0050568b5164

Did you actually get them? I’m not interested in playing the game. I’ll usually get antsy and order a bunch of other parts while I’m waiting for the one with a delay.



[Bad324]

Hi Brian, we have an email about to send to those waiting for fulfillment. This message hasn't been released to customer service yet today, but I can update you here now.

We have a large batch shipping in mid-February that we expect to cover most of the open orders. For context, we have fulfilled orders placed through the end of August 2021. We will have another more in-depth update closer to that mid-Feb date, and tracking emails will send when your order ships of course. I hope that helps to give some clarity, and we appreciate your patience.

-Rachel

Hi Rachel - this is indeed the kind of information I was looking for so I appreciate it very much!
