Ordered through dealership, Bayway Dodge, Jeep, in the Houston area. $322.04 including tax ($350 - 15%). Used 15% online dealership coupon.
I got mine from Bayway in Houston as well! I would have been sunk without these instructions. Had to make a late night dash to Lowe's before it closed to get the hardware for the nutsert crushing. Almost bought a torque wrench, but I'd rather spend that $150 on more gear for my Gladiator!

Sponsored



Lynn_F

Well-Known Member
First Name
Lynn
Joined
Aug 2, 2019
Threads
19
Messages
600
Reaction score
1,056
Location
Fannett, Tx
Vehicle(s)
2020 Gladiator Sport S
Vehicle Showcase
2

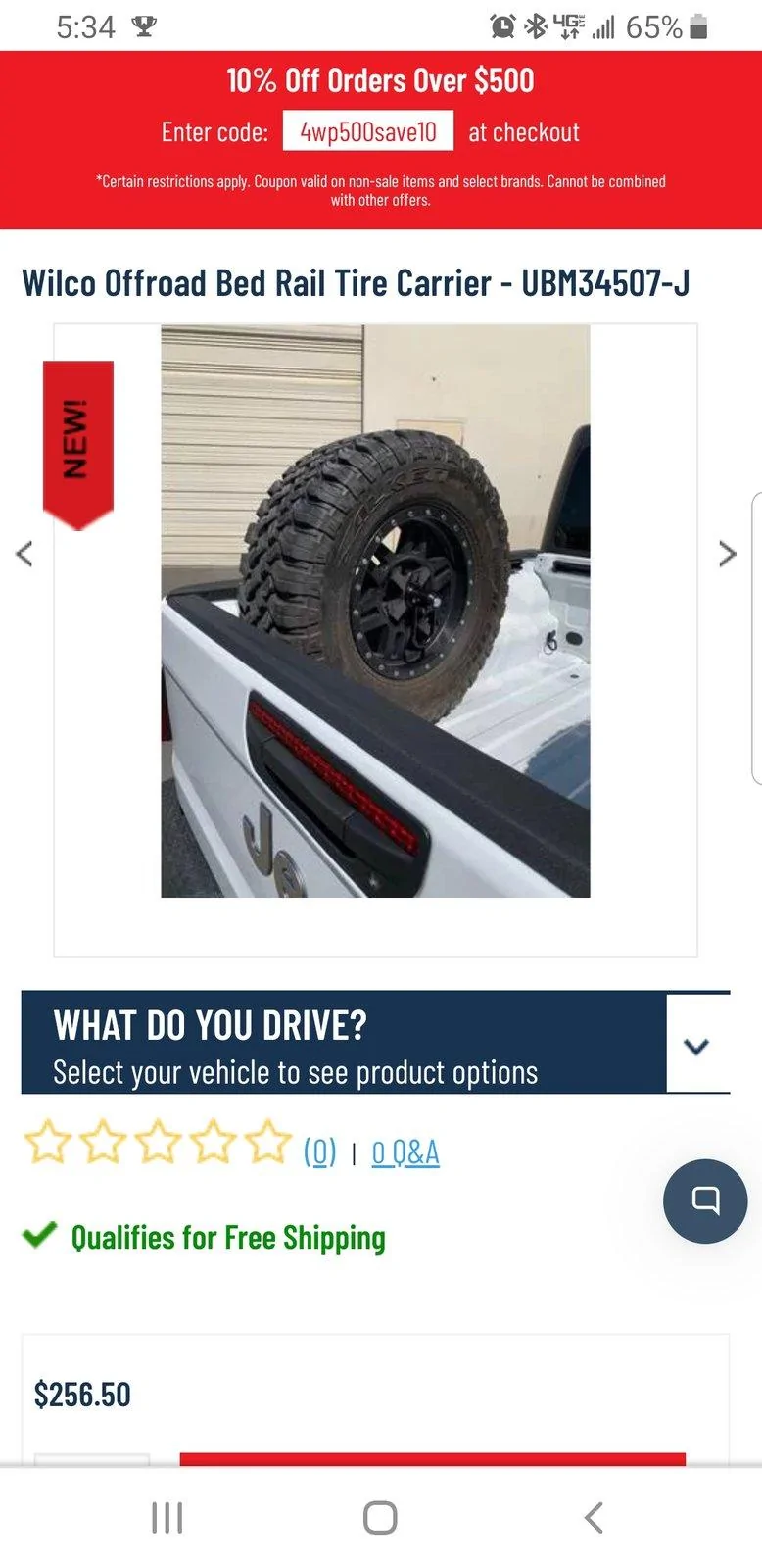

I haven't been interested in having the rail system until I saw this spare mount! I think this would look awesome!! Excellent write-up, it will come in handy if I decide to go this route with the spare.



steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"

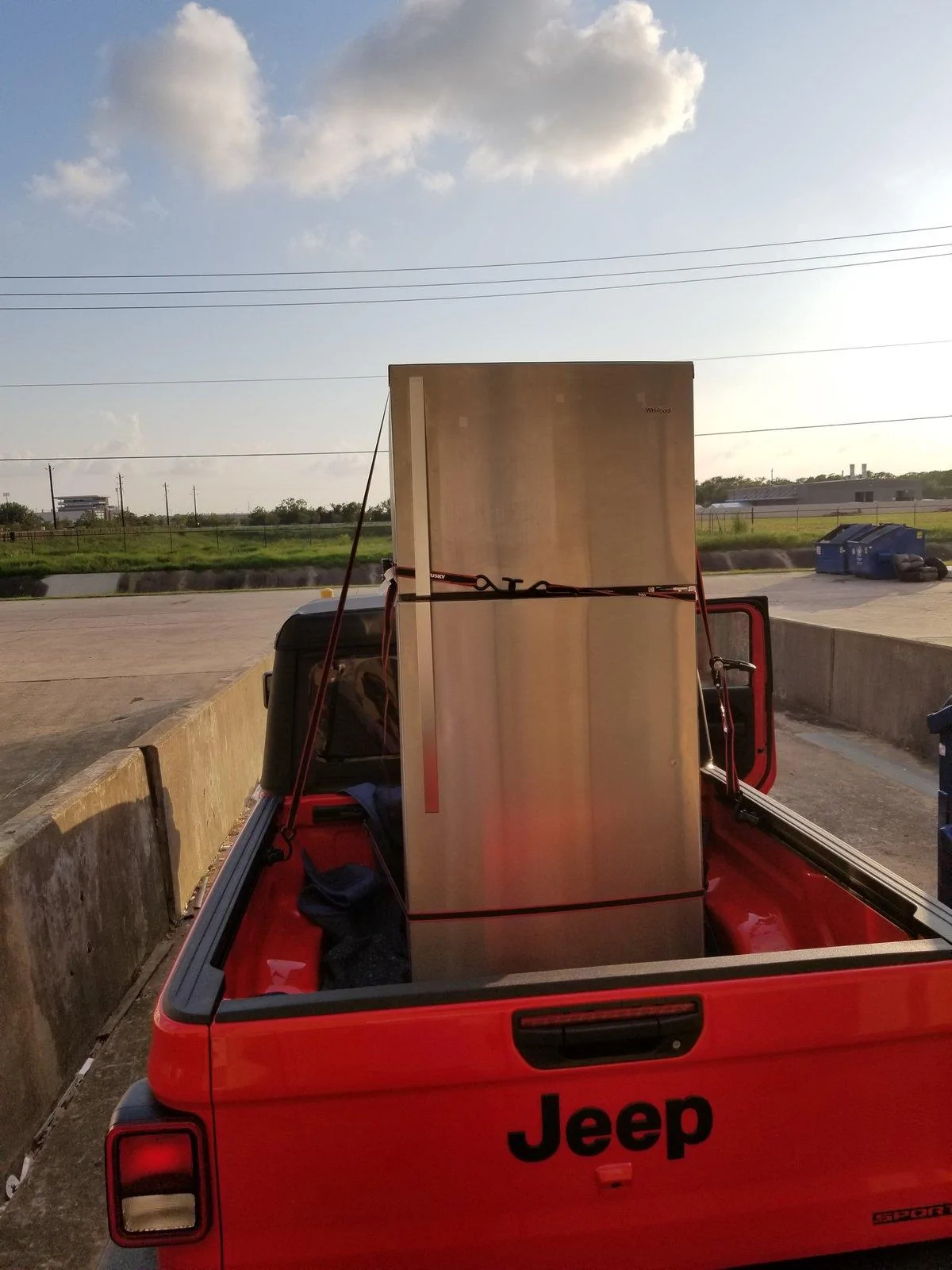

I don't know how I could have secured our new fridge as well today without the cargo rails system.

some creative D ring rigging. but yeah the trail rail kit looks nice. I'm going to be building mine out of a black plastic 2x8, lol.


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
some creative D ring rigging. but yeah the trail rail kit looks nice. I'm going to be building mine out of a black plastic 2x8, lol.
Can somebody tell me the measurements of one of the rails, not the length, but the width and height of the piece, somewhere around 1.5"x1.5" i assume.

Thanks.


Sponsored

steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
The nutsert that they include is cleverly hexagonal as well and fits snuggly into the cutout in the truck.
what are the chances you can buy just this hex nutzert from mopar?


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Threads
6
Messages
1,663
Reaction score
1,535
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
That was irritating...
Same problem with the nutserts.

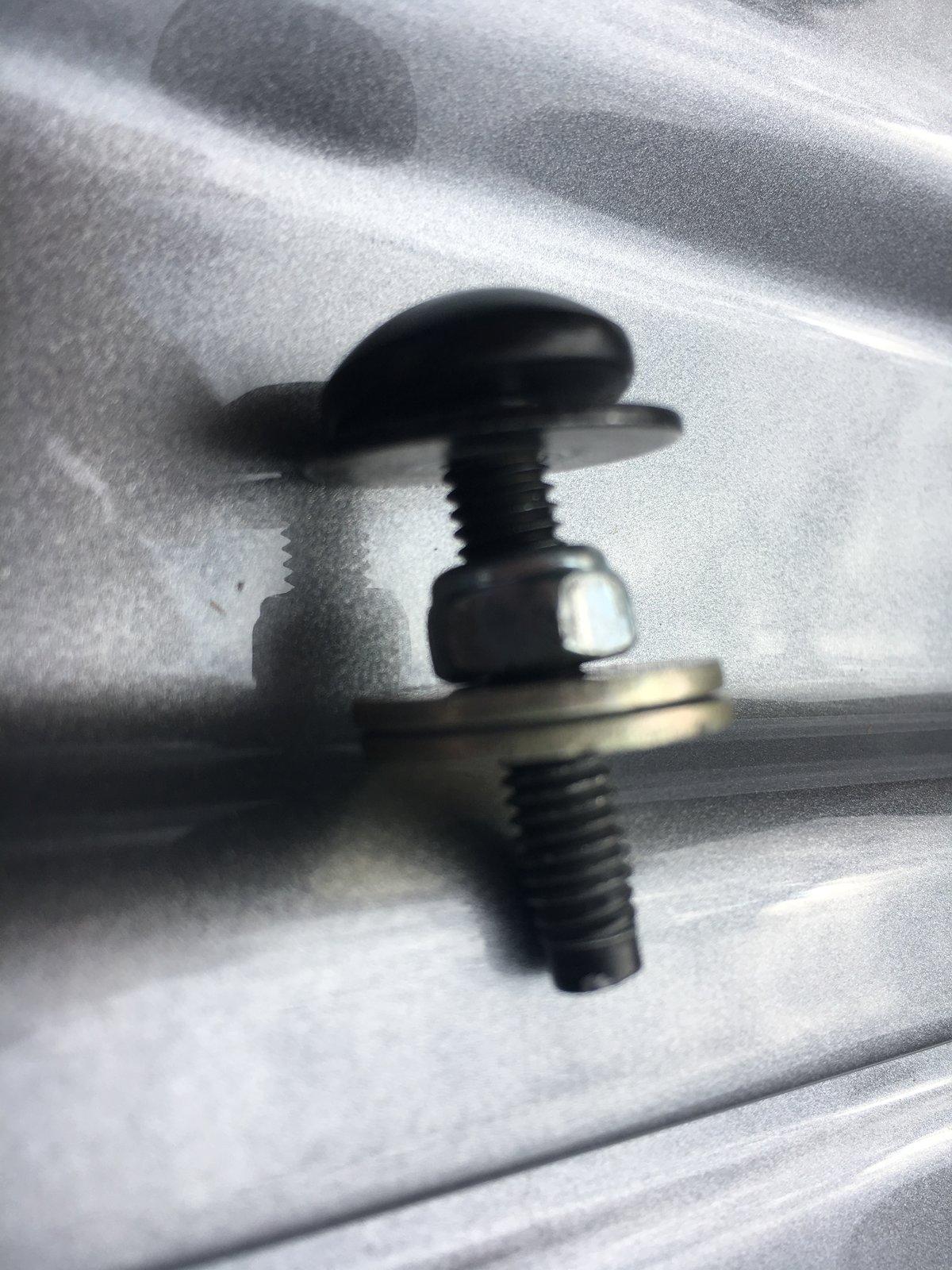

Here’s a pic of my bolt-nut-device using the bolt from the rail kit. Worked like a champ.
Adding some lube to the insert tool 'bolt-nut-device' will help reduce friction while compressing the head.


JohnManc

Member
First Name
John
Joined
Sep 23, 2019
Threads
2
Messages
8
Reaction score
5
Location
Hollidaysburg PA
Vehicle(s)
2013 JKU Black
Yes. I installed my rail kit after my Line-x was applied.
Yes you can add the rails after line-x. I just did mine last night. Take your time and use a raspy to ‘clean’ out the initial opening for each hole. I then used a screw to Pre-run each hole. Also added a little WD40 as I ran the bolt in/out taking my time to not cross or strip any. This by far took longest time but was well worth it. Oh yeah, the nutsert are a royal pain! I used the nut/washer method above and held flange of the seat with a narrow jaw pliers. Took longer than should but I really didn’t want to end up with any bolts not being useable. Now adding soft roll up (Rugged Ridge) tonneau. Goal is to have a rack that works with a tonneau - still have not found one I like yet


Godfadr

Well-Known Member
First Name
Godfadr
Joined
Dec 7, 2018
Threads
42
Messages
533
Reaction score
936
Location
Clermont, FL
Website
www.FredRewey.com
Vehicle(s)
2018 Wrangler Unlimited, 2020 Jeep Gladiator
Occupation
Speaker, Author, Dude Who Likes Bacon
Vehicle Showcase
1
Going down this road now. All the covers I like need the Trail System (which did not come on mine). Thanks for the awesome write-up!


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"

Sponsored

Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Threads
29
Messages
5,149
Reaction score
5,403
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
The nutzerts are not that difficult to install. Look up the Frame Light Mount Part # 82215428 on the Mopar site. It shows how to do the nutzert, and the kit includes the hardware to install the four in the package. It requires a washer and a nut that is a little larger than the bolt. The washer goes against the nutzert, then the nut, and the bolt then screws in. Hold the nut with a flat wrench, and tighten down the bolt with a socket wrench. After I figured out what I was doing wrong on the first one, the other three were easy.

The dealer should have the Mopar nutzerts. I ordered a mixed size box off Amazon, since I needed a few of various sizes for my other projects.


CKUCF

Well-Known Member
First Name
CK
Joined
Nov 6, 2019
Threads
11
Messages
113
Reaction score
161
Location
Florida
Vehicle(s)
2020 Sting-Gray Sport S w/ Max Tow
Build Thread
Link
I wish I would’ve found this thread before being defeated by the nutserts. I had the same idea, once mine started spinning, but I omitted the washers (oops!) and now the bolt and nut are stuck in the (still free spinning) nutsert. Miserable.


steffen707

Well-Known Member
Joined
Jan 28, 2018
Threads
204
Messages
8,620
Reaction score
8,916
Location
Middle Wisconsin
Vehicle(s)
2001 Jetta TDI RIP, 89' Civic SI, 2019 Pacifica Hybrid, 2020 GLADIATOR SPORT S "GLADYS"
I wish I would’ve found this thread before being defeated by the nutserts. I had the same idea, once mine started spinning, but I omitted the washers (oops!) and now the bolt and nut are stuck in the (still free spinning) nutsert. Miserable.
any way to get a hand in there to stop it from spinning to re-do the nutzert? maybe take the tail light out to gain access?


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Threads
6
Messages
1,663
Reaction score
1,535
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
any way to get a hand in there to stop it from spinning to re-do the nutzert? maybe take the tail light out to gain access?
See post #12 for the solution.


CKUCF

Well-Known Member
First Name
CK
Joined
Nov 6, 2019
Threads
11
Messages
113
Reaction score
161
Location
Florida
Vehicle(s)
2020 Sting-Gray Sport S w/ Max Tow
Build Thread
Link
any way to get a hand in there to stop it from spinning to re-do the nutzert? maybe take the tail light out to gain access?
after borrowing a second set of needle-nosed vise grips I was able to back out the nut enough to free the bolt. It took forever, turning 1/64” at a time, but ultimately it came out. Had the whole system installed 10 minutes later after using a fresh bolt, nut, and washers(!) to crush the nutserts. Thankful for threads like this!
