Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup)

Joebbaseball

Active Member
First Name
Joe
Joined
Jul 11, 2020
Threads
1
Messages
27
Reaction score
11
Location
Syracuse
Vehicle(s)
2020 Jeep Gladiator (Overland) 1995 Jeep Wrangler (Sahara)
If anyone that needs the passenger side wiring I have one $40 (including shipping). Here are the specs...

  • Genuine:

  • SKU: 68299332AG
  • Positions: Right, Right Front
  • Other Names: Front Door Wiring, Right Front Door, Wiring
  • Description:
    Right.
  • Applications: 4x4. 4xe. Recon 4x4. Black And Tan 4x4. Launch Edition 4x4.
  • Replaces: 68299332AB, 68299332AC, 68299332AD, 68299332AE, 68299332AF, 68325461AA, 68325461AB, 68325461AC, 68325461AD, 68325461AE, 68325461AF
Sponsored



Fishee

Well-Known Member
Joined
Feb 28, 2021
Threads
9
Messages
295
Reaction score
405
Location
Ohio
Vehicle(s)
2021 Jeep Gladiator Willys NACHO
Well I got mine to work, I double checked the pins on body connection and 1 looked just slightly off, straightened it and it all works perfectly. Those pins really need to be more robust imho on a vehicle designed to take doors on and off and unplug that connection over and over


Erievon

Well-Known Member
First Name
Al
Joined
Apr 20, 2020
Threads
1
Messages
643
Reaction score
855
Location
Cleveland, OH
Vehicle(s)
2023 JTR., 2021 JLU Altitude
Occupation
International Banker
Glad you got it going. Agree on the plugs. I never owned a JK, did they have this issue?


Fishee

Well-Known Member
Joined
Feb 28, 2021
Threads
9
Messages
295
Reaction score
405
Location
Ohio
Vehicle(s)
2021 Jeep Gladiator Willys NACHO
I'm not sure, this is my 1st jeep and I take doors off as often as I can, guess I need to be more careful putting them back on


FREEZE451

Well-Known Member
First Name
Jon
Joined
Oct 23, 2019
Threads
19
Messages
443
Reaction score
645
Location
Fargo, ND
Vehicle(s)
2021 Jeep Gladiator Mojave | 2021 Grand Cherokee L
Add me to the troubleshooting list:

Installed all parts and only passenger side worked at first.

Took the passenger cap of the handle and put it on the driver side.

Now the driver side works.

Makes me believe that cap is the issue.

This is the one that works on both:

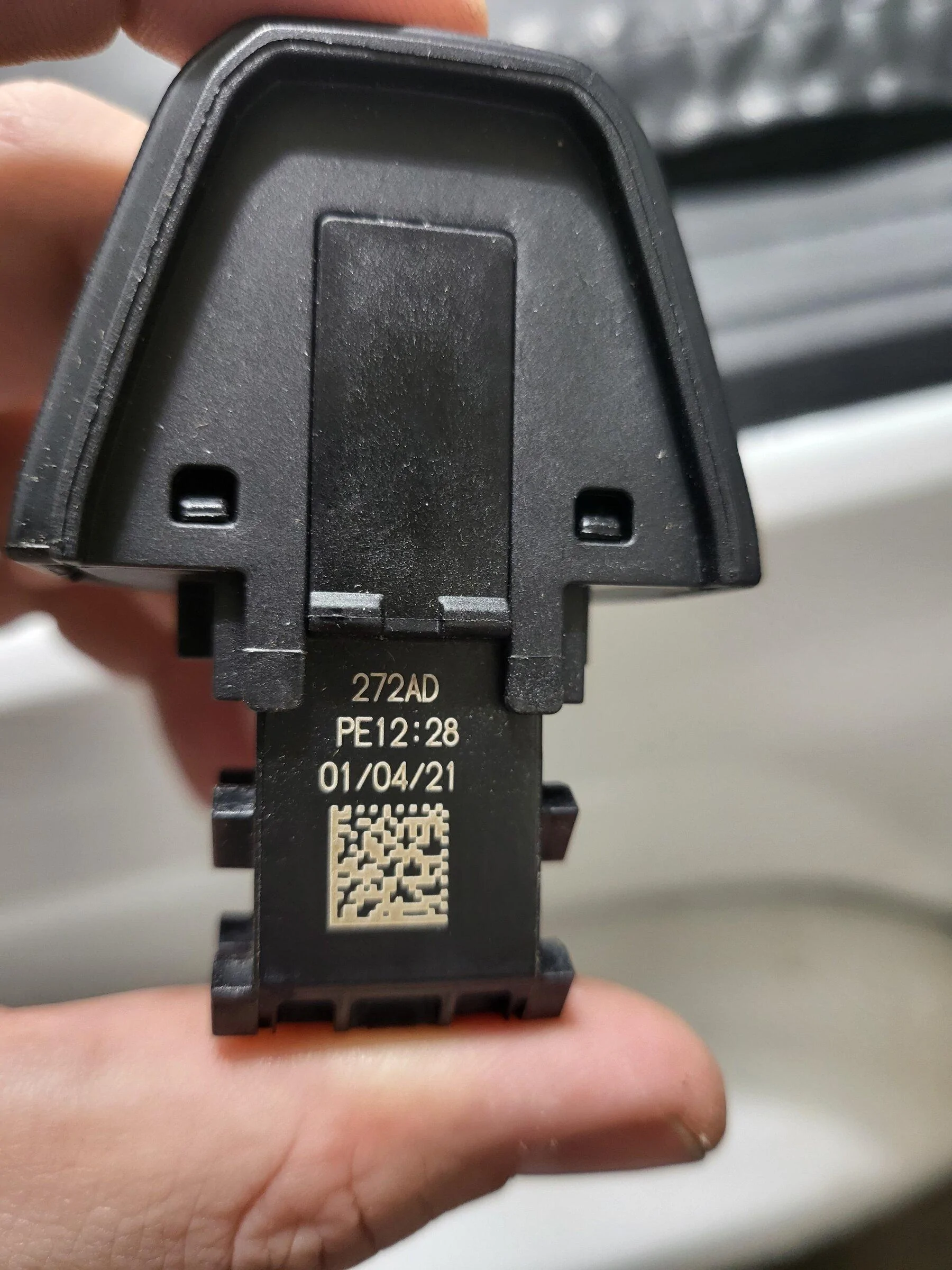

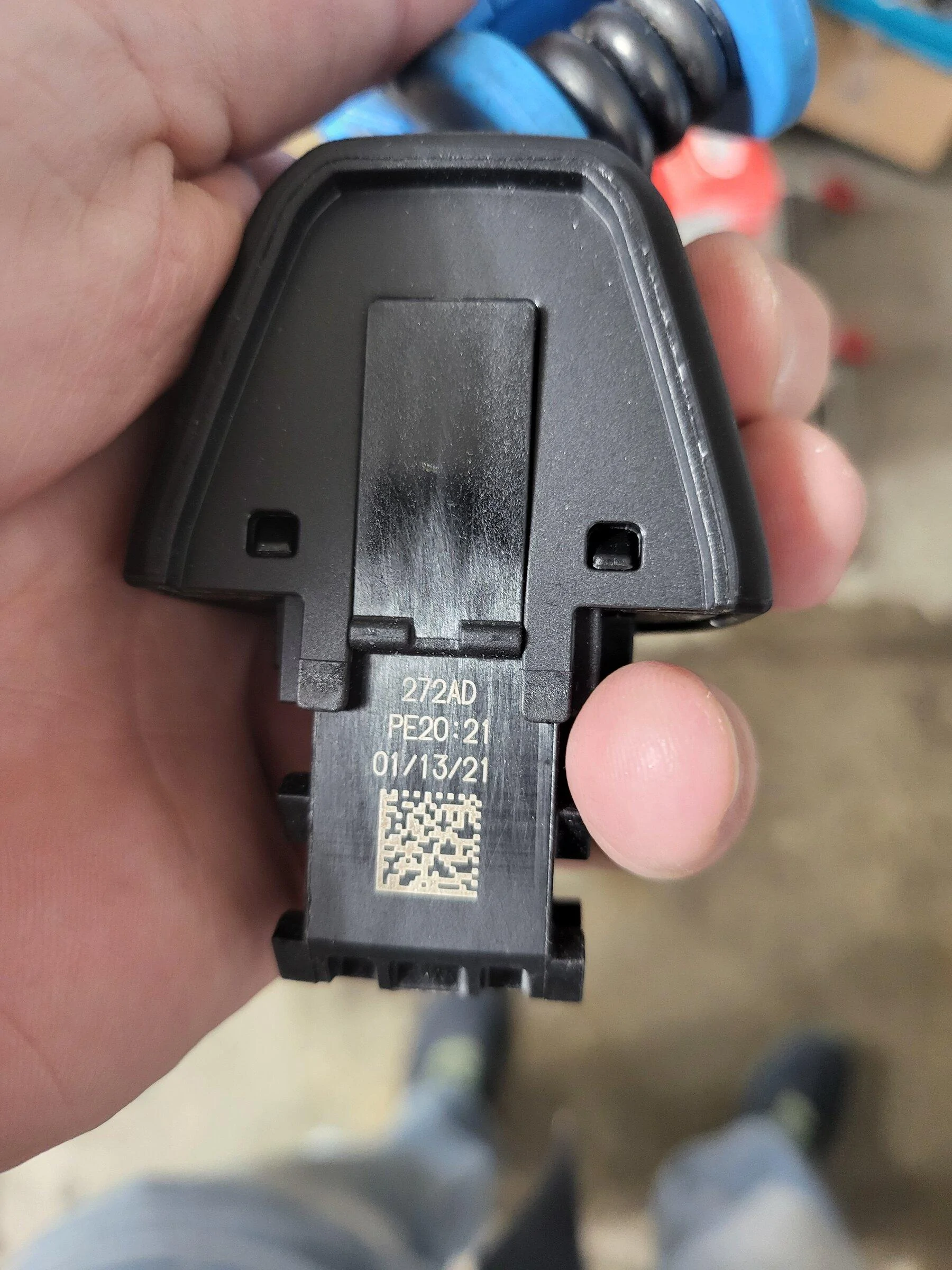

Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 20211229_192446


This is the one that seems not to work:

Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 20211229_192556


Any thoughts?

Glad at least driver works since that's used %99 of the time but not being complete annoys me more than anything lol


Sponsored

bleda2002

Well-Known Member
Joined
May 11, 2021
Threads
23
Messages
2,331
Reaction score
3,747
Location
34655
Vehicle(s)
2021 JTR Firecracker Red
Add me to the troubleshooting list:

Installed all parts and only passenger side worked at first.

Took the passenger cap of the handle and put it on the driver side.

Now the driver side works.

Makes me believe that cap is the issue.

This is the one that works on both:
Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 20211229_192556


This is the one that seems not to work:

Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 20211229_192556


Any thoughts?

Glad at least driver works since that's used %99 of the time but not being complete annoys me more than anything lol
Check the magnet? I could of sworn that a bunch of these had the magnet backwards


FREEZE451

Well-Known Member
First Name
Jon
Joined
Oct 23, 2019
Threads
19
Messages
443
Reaction score
645
Location
Fargo, ND
Vehicle(s)
2021 Jeep Gladiator Mojave | 2021 Grand Cherokee L
Check the magnet? I could of sworn that a bunch of these had the magnet backwards
I will google that, I knew that's how they worked but wasn't sure about disassembling it 🤔


Fishee

Well-Known Member
Joined
Feb 28, 2021
Threads
9
Messages
295
Reaction score
405
Location
Ohio
Vehicle(s)
2021 Jeep Gladiator Willys NACHO
Add me to the troubleshooting list:

Installed all parts and only passenger side worked at first.

Took the passenger cap of the handle and put it on the driver side.

Now the driver side works.

Makes me believe that cap is the issue.

This is the one that works on both:
Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 20211229_192556


This is the one that seems not to work:

Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 20211229_192556


Any thoughts?

Glad at least driver works since that's used %99 of the time but not being complete annoys me more than anything lol
I want to say that manufacture date is the one that had faulty caps. Not sure if it was in this thread or a different one


rymac986

Well-Known Member
First Name
Ryan
Joined
May 30, 2021
Threads
6
Messages
68
Reaction score
29
Location
Massachusetts
Vehicle(s)
2021 Jeep Gladiator Willys
Not sure if this would help, but this is from page 7 of the installation instructions for the Mopar aux switch kit. For those having difficulty with getting a dealer to add the prox entry sales code, here’s what it says to have them do (for the upfitter switches anyway):





Sponsored

ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Not sure if this would help, but this is from page 7 of the installation instructions for the Mopar aux switch kit. For those having difficulty with getting a dealer to add the prox entry sales code, here’s what it says to have them do (for the upfitter switches anyway):

Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) image


Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) image
That appears to work if it was an option for that truck. I found that since auto high beam wasn't even an option for my truck in November, it can't be added to the VIN (they tried) but since the proximity locks were an option for my truck, they easily got it added to my VIN.
I had it all programmed and working already so it wasn't a big deal - I just wanted it in the VIN so that if my truck got an update/flash that hit the BCM or other areas, I'd not have to program it in again.
Auto high beams wasn't an option for Gladiator until at least December 2019 so it wasn't possible to get that added to the VIN. It works fine, I'll just have to put it back if they flash the modules containing those lines.


ecidiego

Well-Known Member
First Name
Chris
Joined
Nov 3, 2021
Threads
53
Messages
2,863
Reaction score
4,217
Location
San Diego
Vehicle(s)
2021 Gladiator Mojave
Occupation
IT
Just confirming if ordering non-kit:

Kit Contains:

LF Door Wiring - 68299333AG
RF Door Wiring - 68299332AG
Handles - 68307269AC (x2)
Handle Caps - 68307272AD (x2)

That's literally all I need other than the programming? I believe Mojave has all the needed stock stuff. 8.4 radio if that matters.

Only $308


FREEZE451

Well-Known Member
First Name
Jon
Joined
Oct 23, 2019
Threads
19
Messages
443
Reaction score
645
Location
Fargo, ND
Vehicle(s)
2021 Jeep Gladiator Mojave | 2021 Grand Cherokee L
Just confirming if ordering non-kit:

Kit Contains:

LF Door Wiring - 68299333AG
RF Door Wiring - 68299332AG
Handles - 68307269AC (x2)
Handle Caps - 68307272AD (x2)

That's literally all I need other than the programming? I believe Mojave has all the needed stock stuff. 8.4 radio if that matters.

Only $308
That's what's I ordered, activated with Jscan also.


ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Threads
178
Messages
29,091
Reaction score
34,572
Location
Runnells, Iowa
Vehicle(s)
'22 JTO, '23 JLU, '82 SX4, '73 P. Cardin Javelin
Occupation
Retired auto mechanic, frmr gov't ntwrk security admin
Vehicle Showcase
3
Yes, I also used jscan to enable.

These are the numbers I used when ordering all those months ago. Ignore the suffix letters - AC may turn to AD, AE may turn to AF. Don't worry about that part, just the number itself.

68299333AF - left Front Door Wiring harness

68307269AC - Exterior Door Handle (2)

68307272AD - Door Handle Cap (2)

68299332AE - right door wiring harness

-----------------------------------------------------------------------------

With JScan you need to enable the passive entry,
turn on the UConnect passive entry setting,
and enable the appropriate antennas.

These are the changes, no matter which tool you use:

AP1 Left front > smart switch

AP2 right front > smart switch

Passive entry present > yes/ active

Passive entry CSM > yes/ active


Yoshi

Active Member
First Name
Robert
Joined
Nov 27, 2021
Threads
4
Messages
25
Reaction score
18
Location
IN/KY
Vehicle(s)
2021 Jeep Gladiator Willys
Build Thread
Link
Occupation
LE
Just to verify and some notes.

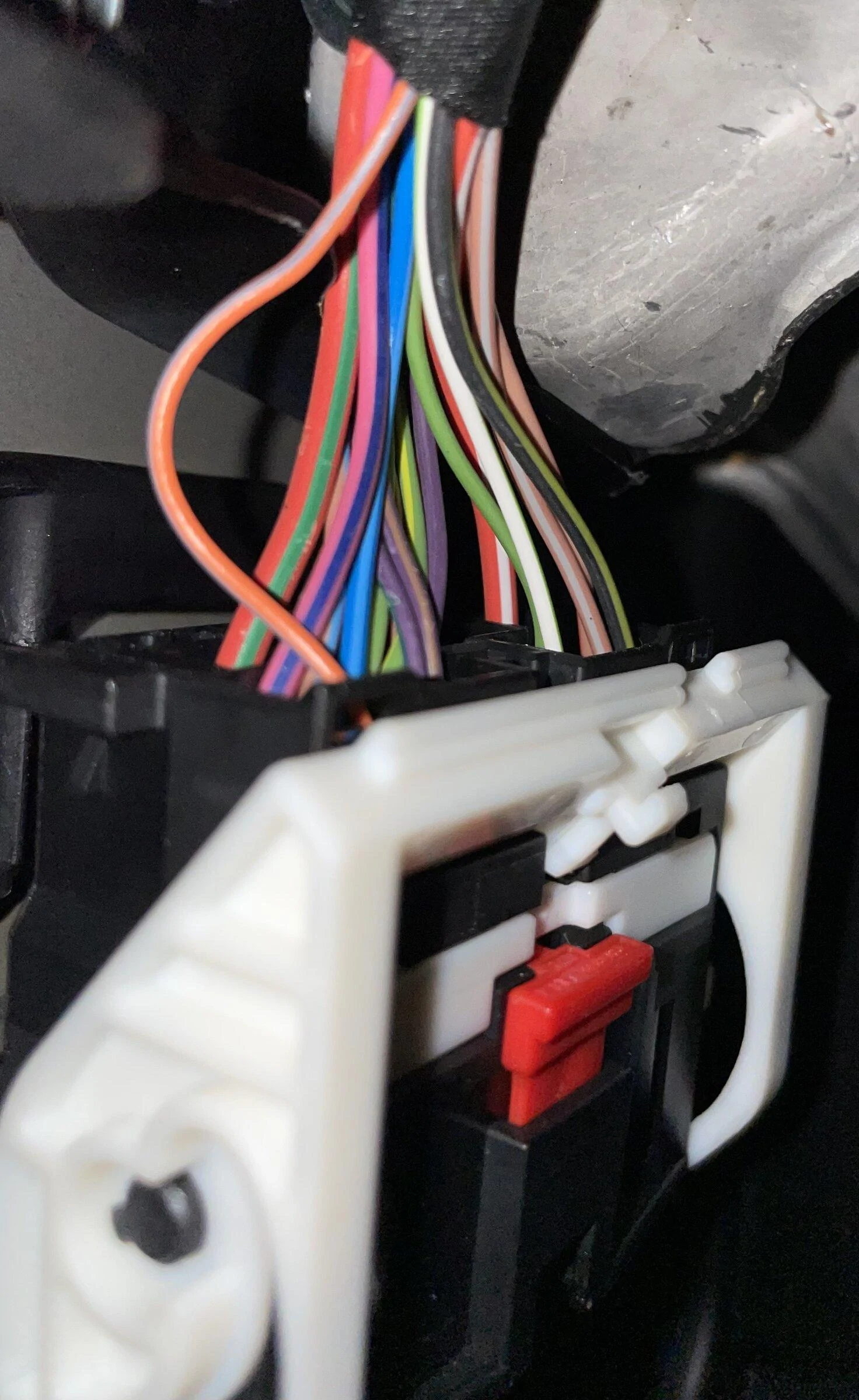

So I went to check if my 2021 Willy’s has the wiring. To open the plastic cover you pull straight back towards the seat. It has 2 clips. I pushed the red tab up towards the roof to unlock, pushed the tab under the white lever towards the wall the connector is sticker to, then flipped the white lever from the down position to the up position. That lever actually pushes and pulls the plug.

I first looked at the plug stuck to the door (that was wrong… the door harness has no pins because it has no keyless entry installed… duh. So after my brain figured that out…

stuck my camera under the connector stuck to the body of the body wall. (In the dark and cold) finally got a shot of the plug wires and pins.

I believe I see a green wire with a yellow tracer and another wire which I’m guessing has the white tracer.

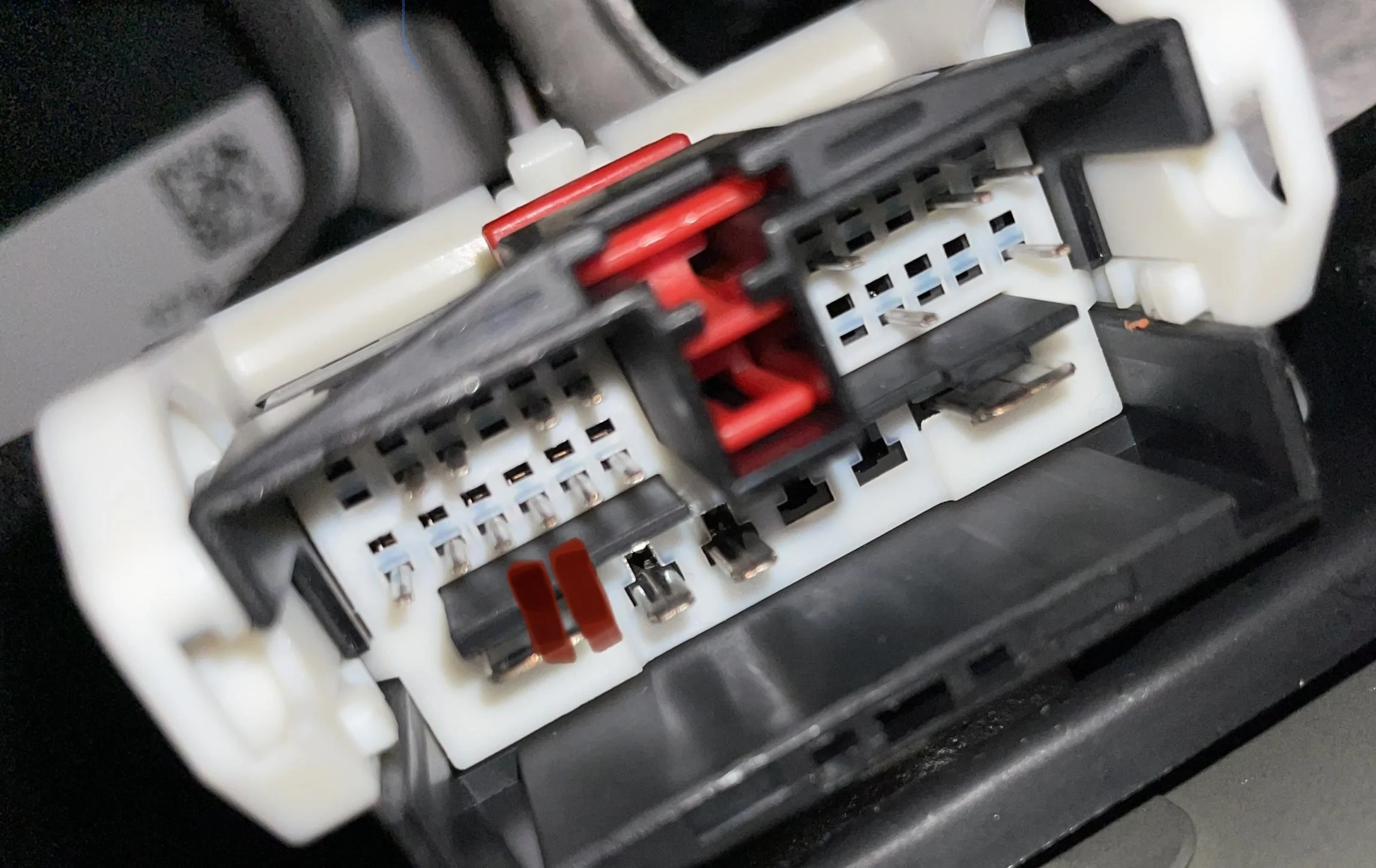

I believe I see that I have the 2 pins (15 and 16) marked with red in the connector picture.

I then cranked my head around to look inside and under the dash. I think I see where you would plug in a Tazer mini. I can get my hand in there but I think I will order the extension cords to make plugging things back in for the dealer easier. (I have small Asian hands and even then it looks pretty tight… and my middle finger knuckles get stuck closed sometimes…trigger finger?)

Thanks for this helpful thread. Does this sound/look right?

Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 4D07E164-4EC3-4B79-8B12-E5C6CE581C6E


Jeep Gladiator Proximity door locks retrofit on Wrangler/Gladiator, someone figured it out (DIY writeup) 3CECB097-D2FF-47EE-A458-7AECB153C92A
