Teraflex 1.5" Leveling kit

[LB140]

https://www.jeepgladiatorforum.com/forum/threads/brand-spanking-new-death-wobble-on-way-home.75638/

Post #6 gives a good image of highlighted steering components.

Yes you are 100% correct it is the Tie rod and Drag link that are adjustable, not Track bar. Thank you and a great photo of it. It's a lot different than my 02 TJ

Sponsored



[chr15m]

Yes you are 100% correct it is the Tie rod and Drag link that are adjustable, not Track bar. Thank you and a great photo of it. It's a lot different than my 02 TJ

No worries, I was hoping it might help, glad to hear it.



[LB140]

So after much research of front bumpers and winches, that will add on about 150lbs. Thinking I might go with a 2" front and add 1/2-3/4 " in the rear.



[D_JT]

Yes you are 100% correct it is the Tie rod and Drag link that are adjustable, not Track bar. Thank you and a great photo of it. It's a lot different than my 02 TJ

Not really. I have a TJ as well. Its all the same aside from the drag link and tie rod design. TJ's have a Y-link steering set up while the JT/JL have a over knuckle steering set up. Otherwise its the same principle.

So after much research of front bumpers and winches, that will add on about 150lbs. Thinking I might go with a 2" front and add 1/2-3/4 " in the rear.

I changed from a plastic bumper to a factor steel bumper and added a winch. That added roughly 100lbs (when you factor in the weight lost from removing the plastic bumper.) I just installed a set of Clayton 1.5" front springs yesterday on my diesel JT. It lifted it 2.25" But I expect them to settle closer to 1.5". Hope that helps.



[LB140]

Not really. I have a TJ as well. Its all the same aside from the drag link and tie rod design. TJ's have a Y-link steering set up while the JT/JL have a over knuckle steering set up. Otherwise its the same principle.



I changed from a plastic bumper to a factor steel bumper and added a winch. That added roughly 100lbs (when you factor in the weight lost from removing the plastic bumper.) I just installed a set of Clayton 1.5" front springs yesterday on my diesel JT. It lifted it 2.25" But I expect them to settle closer to 1.5". Hope that helps.

Awesome thank you for the update I really appreciate it. Any photos to share
And looking on their website did it come with shock extenders??



[D_JT]

Awesome thank you for the update I really appreciate it. Any photos to share
And looking on their website did it come with shock extenders??

I bought just the diesel specific springs (I have a diesel). I did not opt for the shock extenders because I was trying to remedy the bottoming out issue the diesels have. If I was to add extenders then I would need to add bump stop extenders as well. Basically defeating the purpose of the taller springs. I do plan on adding the MOPAR lower control arms that come with the MOPAR 2" lift as well as a adjustable front track bar. But here is a picture.

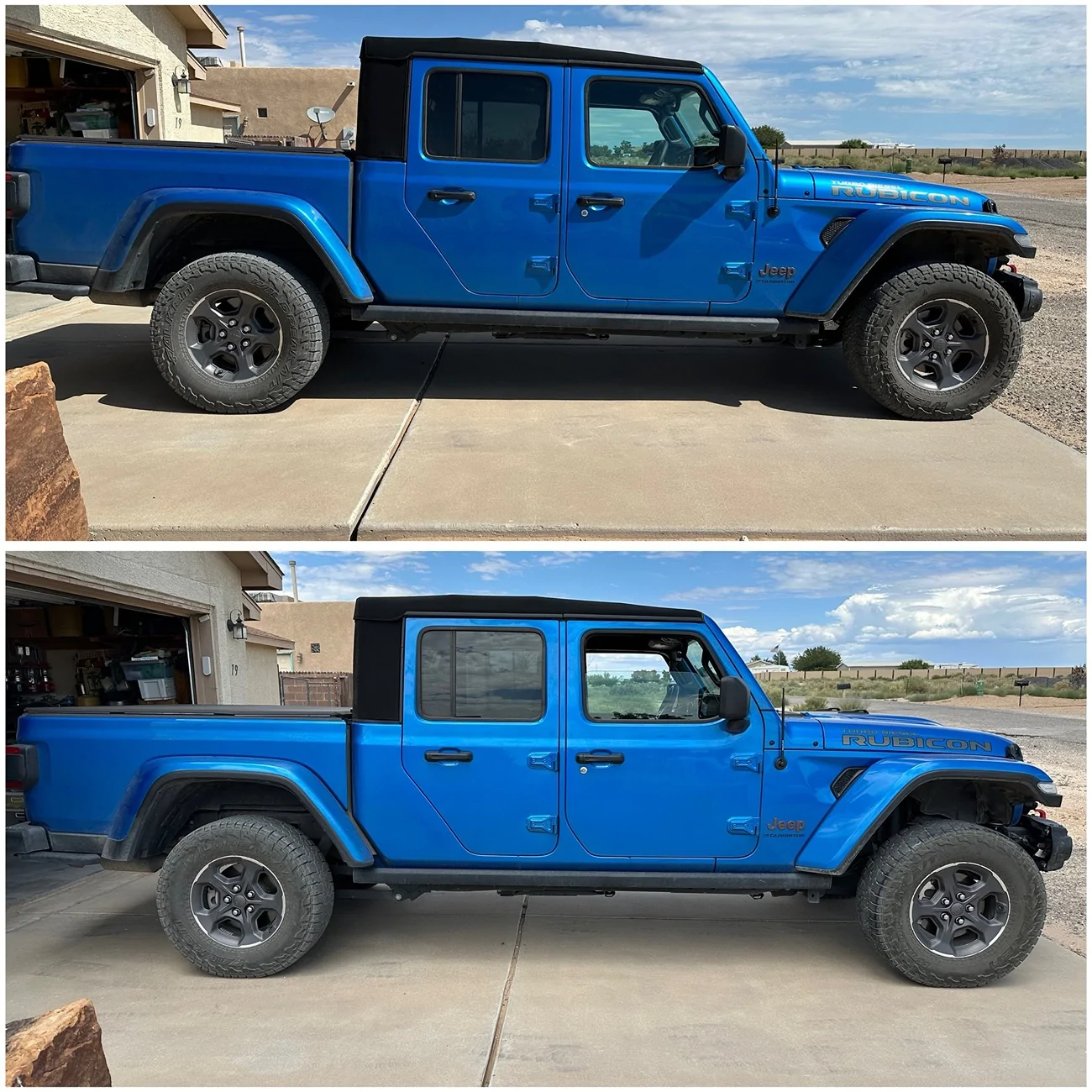

Before and after.



[LB140]

I bought just the diesel specific springs (I have a diesel). I did not opt for the shock extenders because I was trying to remedy the bottoming out issue the diesels have. If I was to add extenders then I would need to add bump stop extenders as well. Basically defeating the purpose of the taller springs. I do plan on adding the MOPAR lower control arms that come with the MOPAR 2" lift as well as a adjustable front track bar. But here is a picture.
Before and after.

Looks great thanks for sharing



['22JTRD]

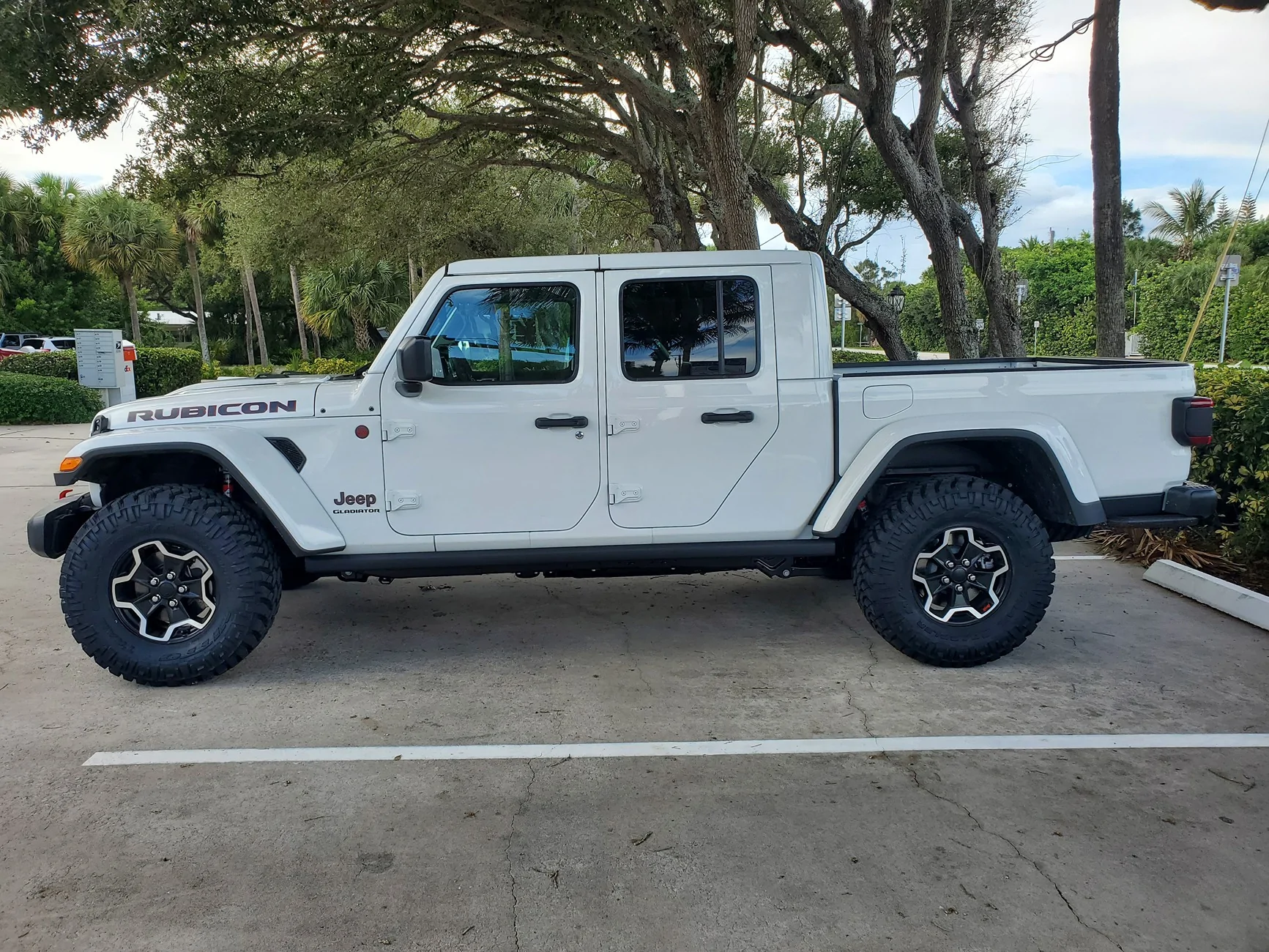

Top Pic = 35s No Level Kit

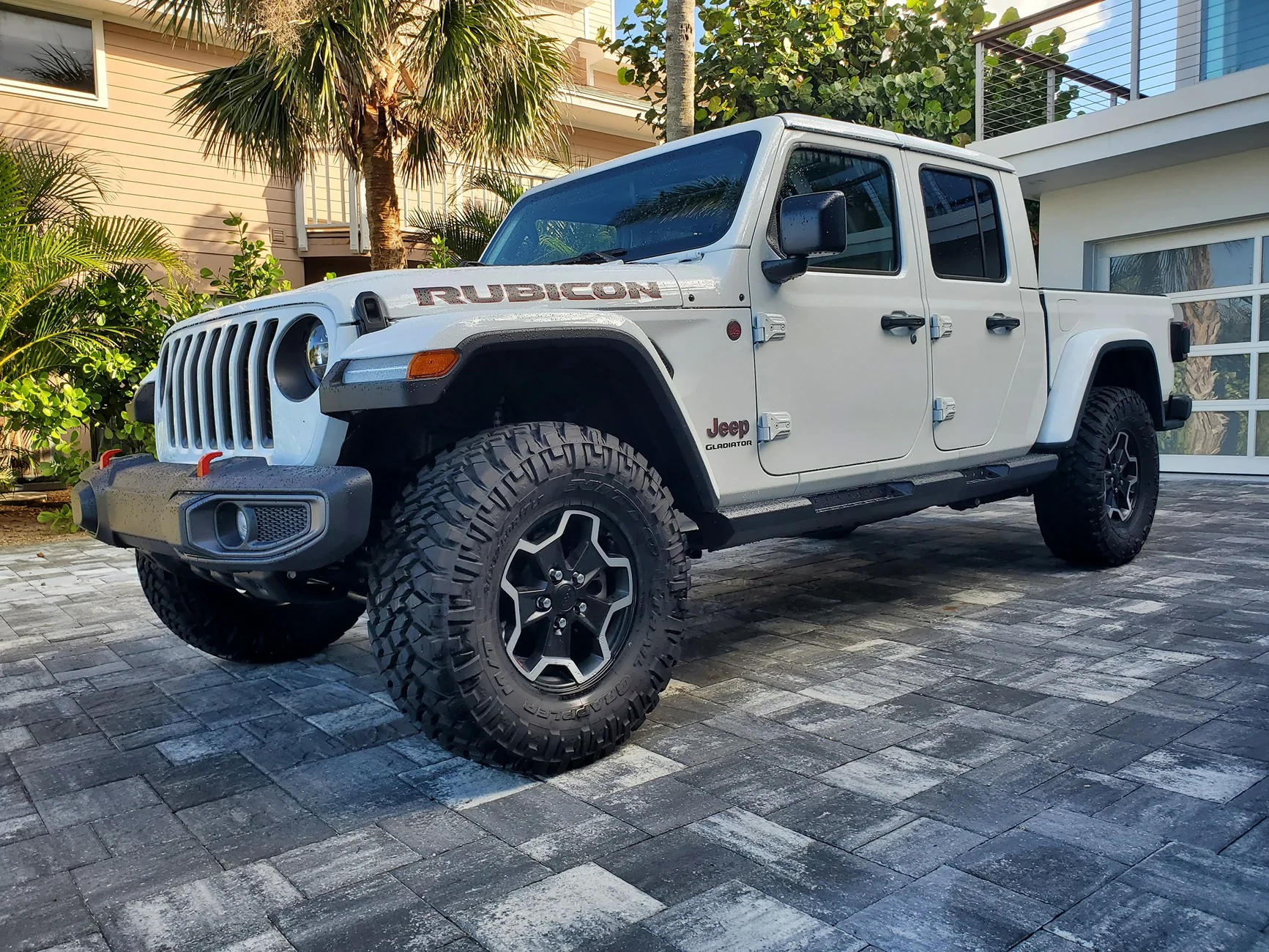

Bottom Pic= 35s + Teraflex 1.5" Level Kit



[LB140]

Top Pic = 35s No Level Kit
Bottom Pic= 35s + Teraflex 1.5" Level Kit

Thank you for sharing. It makes a difference when you can see it



['22JTRD]

Thank you for sharing. It makes a difference when you can see it

FYI,
Make sure to add the Teraflex 2" Front Shock Lower mount extension kit to keep the shock travel correct

I kept both the Level kit and shock extensions when I installed the Mopar 2" Bilstein lift and went to Nitto Ridge Grappler 38"x11.50x17 after wearing out the 35s.



['22JTRD]

So after much research of front bumpers and winches, that will add on about 150lbs. Thinking I might go with a 2" front and add 1/2-3/4 " in the rear.

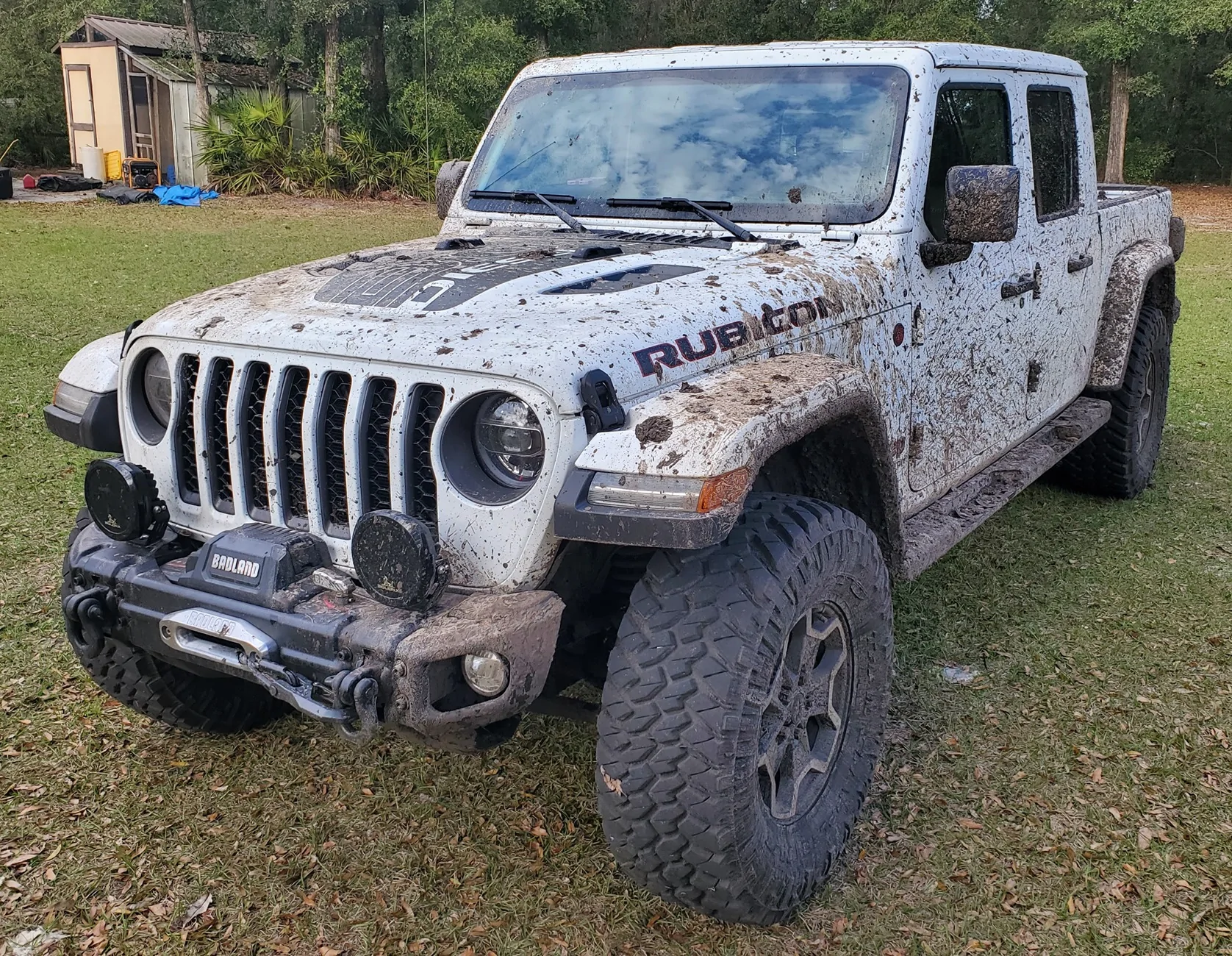

Adding the Arcus and Badlands 12k didn't cause any noticeable front end drop



[LB140]

Adding the Arcus and Badlands 12k didn't cause any noticeable front end drop

Good to know I just bought the 12K badlands apex for it for only $420. What mounting plate did you use? Know I just need to find a used steel bumper close to me



['22JTRD]

Good to know I just bought the 12K badlands apex for it for only $420. What mounting plate did you use? Know I just need to find a used steel bumper close to me

Rugged Ridge Arcus bumper has a proprietary winch mount plate



[Vivec]

Top Pic = 35s No Level Kit
Bottom Pic= 35s + Teraflex 1.5" Level Kit

does this have the Mopar 2” lift on it also?



['22JTRD]

does this have the Mopar 2” lift on it also?

Those pics are before I added the Mopar 2" Bilstein Lift
Left Pic = 35s on oem suspension
Right pic = 35s and Teraflex 1.5" Leveling Kit
