I’m having a devil of a time with the top bolt getting it to line up right on the front driver side.
Not sure if you have progressed on the install. But I found that starting the upper out flare screw FIRST than going to the lower fasteners works best. Trying to align the inner liner with the flare and than the mudflap is a challenge as the inner liner pushes back. I have also --- used black tape to hold inner liner to the flare to simplify. Pull off the tape once you have a couple threads on the screw. It only took one time to learn this frustration -
Sponsored



Puttyandnapalm

Well-Known Member
First Name
D
Joined
Aug 11, 2019
Threads
17
Messages
330
Reaction score
303
Location
Cumberland, MD
Vehicle(s)
2020 Hydro blue gladiator overland
Occupation
Casino
Not sure if you have progressed on the install. But I found that starting the upper out flare screw FIRST than going to the lower fasteners works best. Trying to align the inner liner with the flare and than the mudflap is a challenge as the inner liner pushes back. I have also --- used black tape to hold inner liner to the flare to simplify. Pull off the tape once you have a couple threads on the screw. It only took one time to learn this frustration -
I ended up digging around my garage and found a couple slightly longer screws that worked like a charm. I also trimmed a the inner plastic so the clips lined up better.

the rears were easy, but I’m a little disappointed at weather tech for their hardware


MattBrinks

Member
First Name
Matt
Joined
Jan 16, 2020
Threads
1
Messages
5
Reaction score
5
Location
Lincoln, NE
Vehicle(s)
2020 Gladiator Rubicon, 2015 Wrangler Willy's Wheeler
Is anyone seeing this trying to get the top clip to go on the inner fender? The clip just doesn't seem to be long enough (none of them do.) I emailed WT about this thinking I got the wrong hardware kit and they shipped me out the exact same clips that I already had.





ScarCase

Member
Joined
Dec 6, 2019
Threads
0
Messages
22
Reaction score
2
Location
TX
Vehicle(s)
2020 JTR
Is anyone seeing this trying to get the top clip to go on the inner fender? The clip just doesn't seem to be long enough (none of them do.) I emailed WT about this thinking I got the wrong hardware kit and they shipped me out the exact same clips that I already had.



it doesn’t look like it will work but there is just enough gap between the clip and the plastic to slip the screw in there. I was able to get mine installed with the same alignment ‘issue’.


SMLDave

Well-Known Member
First Name
Dave
Joined
May 27, 2019
Threads
0
Messages
50
Reaction score
39
Location
Sioux City Ia
Vehicle(s)
2010 Sahara, 07 Caliber. 2020 Gladiator Rubicon Granite Crystal Metallic
Just finished installing mine, same setup, to short, was able to trim a little off and have a better area to screw into.
They look great on mine


Sponsored

Puttyandnapalm

Well-Known Member
First Name
D
Joined
Aug 11, 2019
Threads
17
Messages
330
Reaction score
303
Location
Cumberland, MD
Vehicle(s)
2020 Hydro blue gladiator overland
Occupation
Casino
Is anyone seeing this trying to get the top clip to go on the inner fender? The clip just doesn't seem to be long enough (none of them do.) I emailed WT about this thinking I got the wrong hardware kit and they shipped me out the exact same clips that I already had.



I trimmed the inner fender a little so it fit, and I also used slightly longer screws to help get it done


Digger70

Well-Known Member
First Name
Matt
Joined
Jun 14, 2019
Threads
6
Messages
461
Reaction score
441
Location
Pennsylvania
Vehicle(s)
2022 Jeep Gladiator Altitude

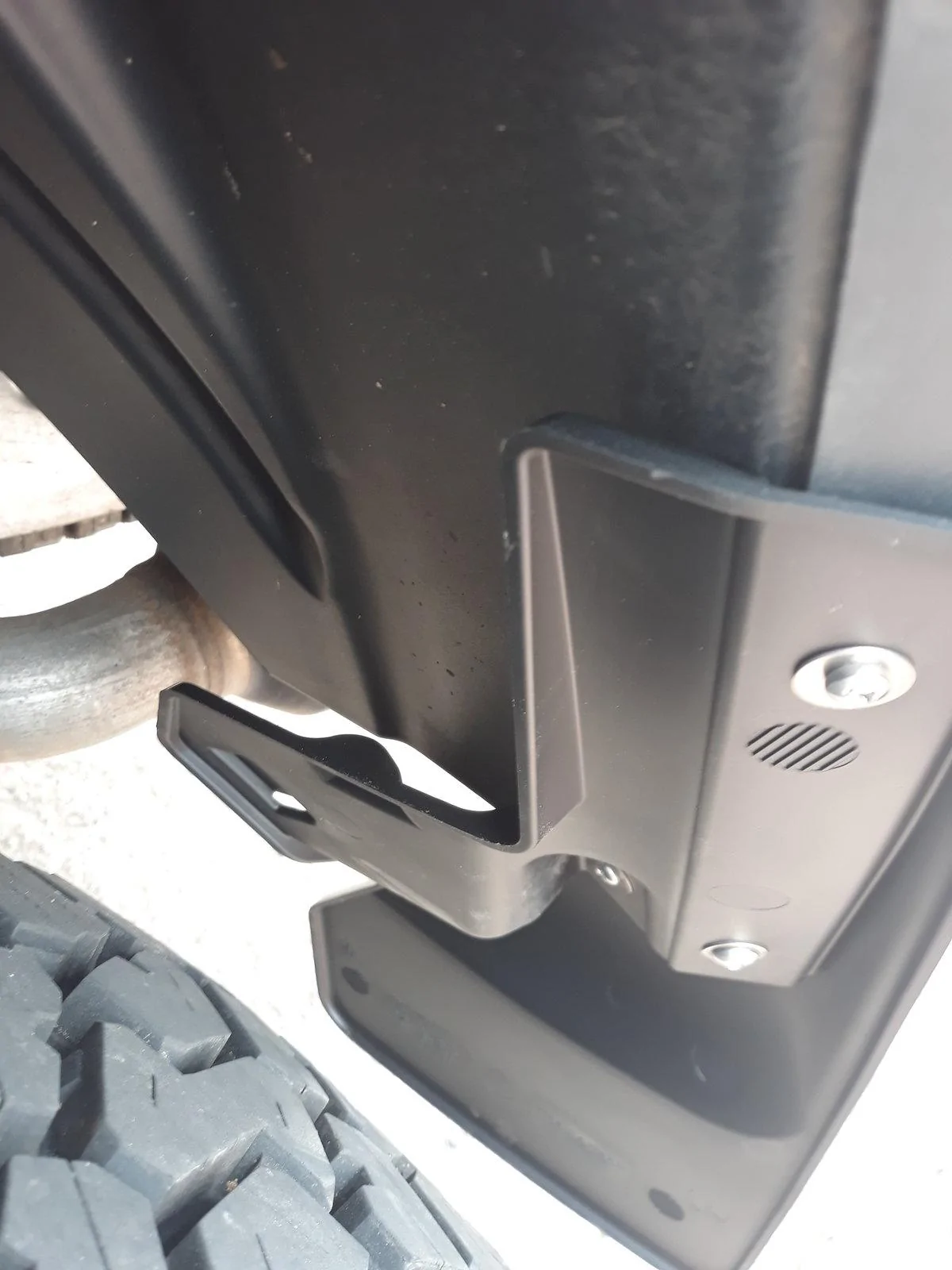

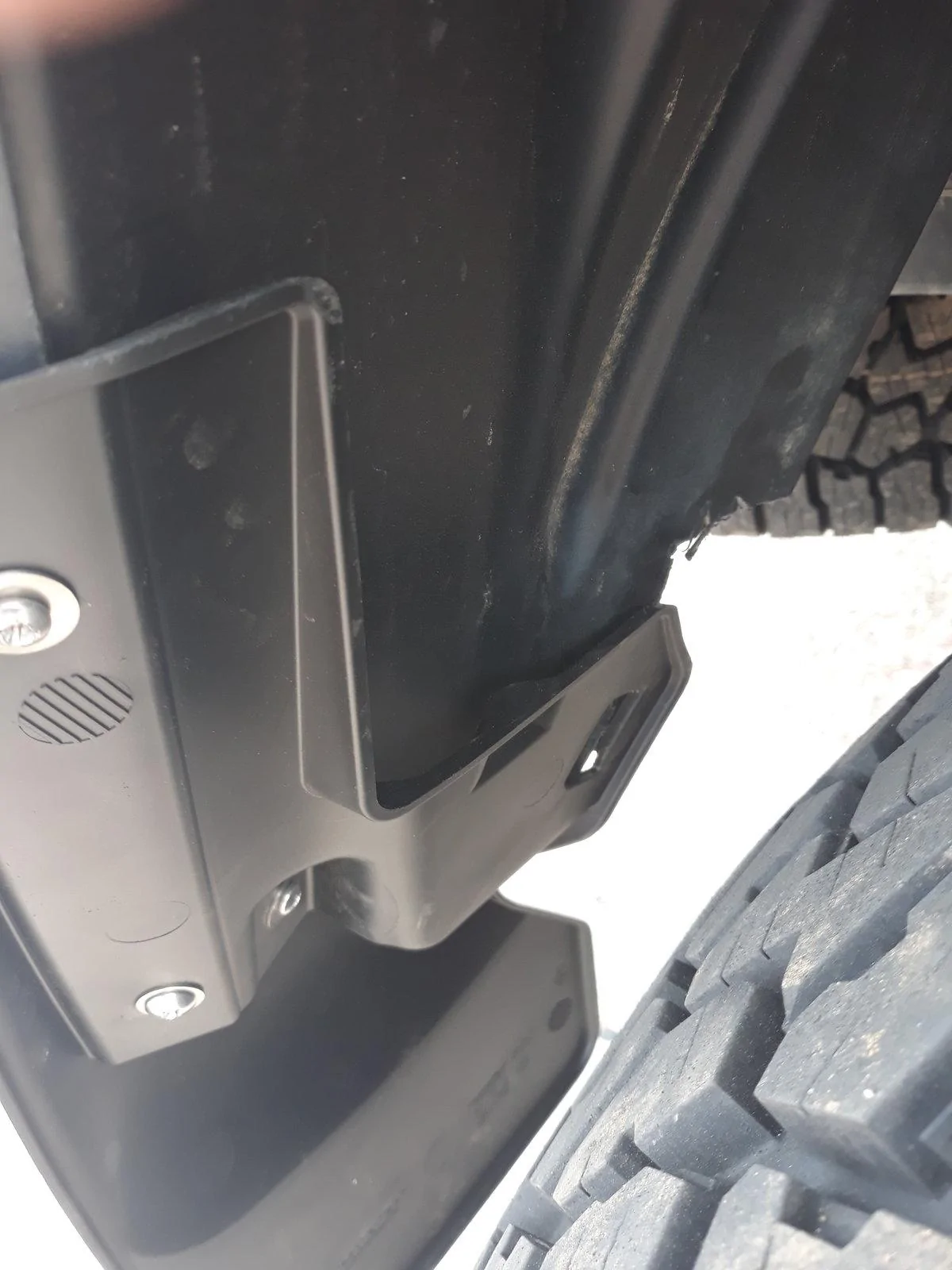

Tried installing mine today but they wouldn't fit. I have sidesteps on my JTR and the bottom of the flaps wouldn't sit flush. I thought maybe I could force them on but couldn't get the holes to line up and had the same problem pictured above. I drilled that hole and got the screw in. I have elderly parents who have trouble getting in and out so that's why I put in the steps. I'll probably have to get something generic now and use the plastic rivet gun that I bought in order to install the rear flaps. Maybe I'll be able to screw into the front of the step.


Mowat

Well-Known Member
First Name
Matt
Joined
Aug 16, 2019
Threads
0
Messages
93
Reaction score
99
Location
Central MA
Vehicle(s)
2020 Gladiator
Tried installing mine today but they wouldn't fit. I have sidesteps on my JTR and the bottom of the flaps wouldn't sit flush. I thought maybe I could force them on but couldn't get the holes to line up and had the same problem pictured above. I drilled that hole and got the screw in. I have elderly parents who have trouble getting in and out so that's why I put in the steps. I'll probably have to get something generic now and use the plastic rivet gun that I bought in order to install the rear flaps. Maybe I'll be able to screw into the front of the step.
you need the sport S fronts most likely.. It has a bigger cut out.


Digger70

Well-Known Member
First Name
Matt
Joined
Jun 14, 2019
Threads
6
Messages
461
Reaction score
441
Location
Pennsylvania
Vehicle(s)
2022 Jeep Gladiator Altitude
you need the sport S fronts most likely.. It has a bigger cut out.
I already have the mopar 'Jeep' fronts and they don't fit but the rears do. The Rubicon flares and Sport/Overland flares are different. I looked at pics of the weathertech fronts for Sport and Rubicon and they're similar but I'm not going to get them if I have to pay to ship them back if they don't work.


Sponsored

JCJeep1

Well-Known Member
First Name
John
Joined
Aug 21, 2019
Threads
4
Messages
257
Reaction score
242
Location
New Jersey Shore
Vehicle(s)
1997 TJ 37" MT Long Arm 2004 Dodge Ram 2500 Cummins 2020 StingGrey Gladiator Sport S Tow
Vehicle Showcase
1
Understood why they told you to stop drilling :) I found that installing the top outer screw (hardest to get started) first and having tape to keep the inner liner aligned to outer fender worked the best. Then I could work my way down finishing by installing the plastic push pin last.


Backwoodsraider

Well-Known Member
Joined
Nov 15, 2019
Threads
11
Messages
122
Reaction score
148
Location
Colorado
Vehicle(s)
2020 Jts
I got the sport S flaps. The rears are garbage. The instructions say to slip the liner into the tab on the flap. Liner is way too big. Had to trim the liner on the passenger side. The drivers side i said fuck it and installed straight on. I ordered the sport S, not sure if there is a differant flap for the rears, but the ones sent really are not designed right. if i hadnt already cut the liner and installed (hindsight) i would have contacted weathertech and asked wtf





Cleankat

Well-Known Member
First Name
Brandon
Joined
Sep 1, 2019
Threads
4
Messages
287
Reaction score
344
Location
Columbus, Ohio
Vehicle(s)
2020 Gladiator Overland
I got the sport S flaps. The rears are garbage. The instructions say to slip the liner into the tab on the flap. Liner is way too big. Had to trim the liner on the passenger side. The drivers side i said fuck it and installed straight on. I ordered the sport S, not sure if there is a differant flap for the rears, but the ones sent really are not designed right. if i hadnt already cut the liner and installed (hindsight) i would have contacted weathertech and asked wtf



Strange....did they send you the right ones? Mine went on like butter on my overland.


smlobx

Well-Known Member
First Name
Eddie
Joined
Jun 28, 2018
Threads
65
Messages
2,063
Reaction score
3,283
Location
Mid Atlantic
Vehicle(s)
JTR, F-350 diesel, Porsche Spyder, Model Y
Occupation
Semi retired consultant
Got an email back from WT, they said they are working on a modified hardware kit that will solve this issue and advised me to stop drilling holes.
Did they give you any idea of when the revised kits might be available?


Gatorized

Well-Known Member
Joined
Sep 13, 2019
Threads
6
Messages
1,663
Reaction score
1,535
Location
ME/NH
Vehicle(s)
‘06 CRV, ‘14 Mazda3, ‘20 JTR (Gator)
Did they give you any idea of when the revised kits might be available?
Is anyone seeing this trying to get the top clip to go on the inner fender? The clip just doesn't seem to be long enough (none of them do.) I emailed WT about this thinking I got the wrong hardware kit and they shipped me out the exact same clips that I already had.



I sent WT an email explaining the issue with fitment, along with pics like the above showing the alignment issue with the clip nuts. They said they would send me some longer clip nuts. Hopefully they will be here this week.
Makes me wonder if they designed the hardware package based on the fender liners from early production JTs everyone was having issues with, and when the fender liners changed the hardware no longer worked.
