Factory trail camera install?

  1. scuuuud

    scuuuud Member

    Vehicle(s):
    2020 Gladiator Rubicon, 2017 Abarth, 2017 WRX, 2009 Ferrari 430 Scuderia
    Joined:
    Mar 18, 2020
    Location:
    SoCal
    Posts:
    14
    Liked:
    7
    Ok some more research today...

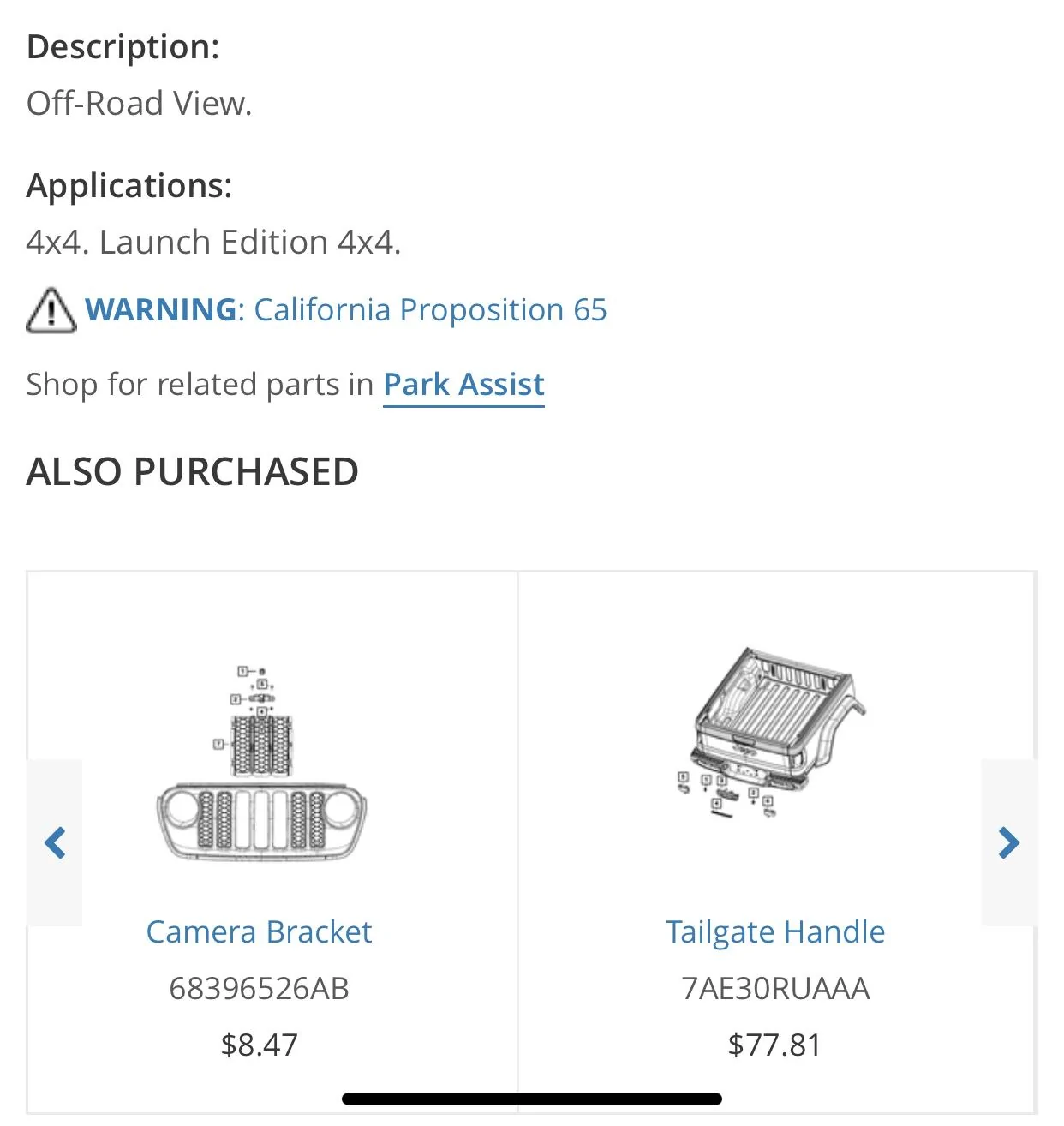

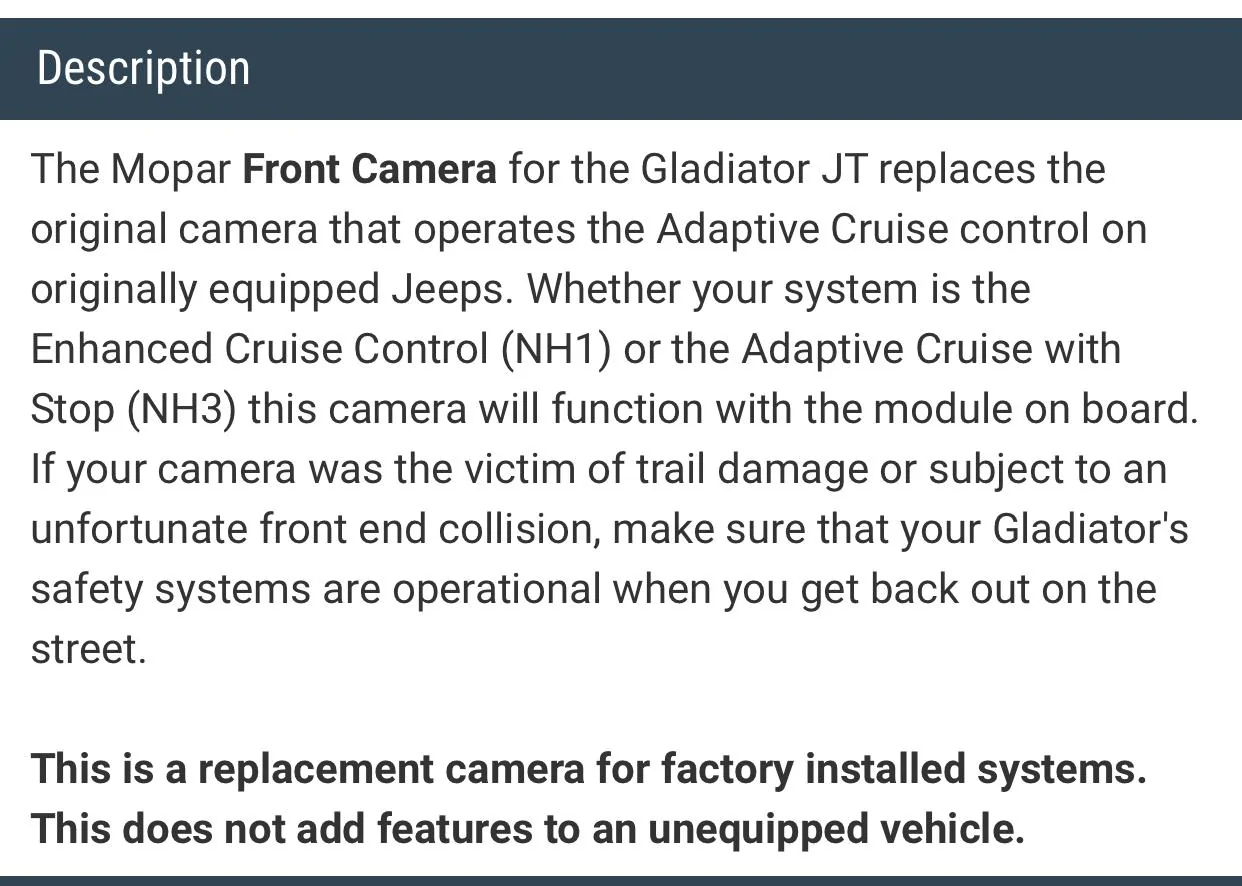

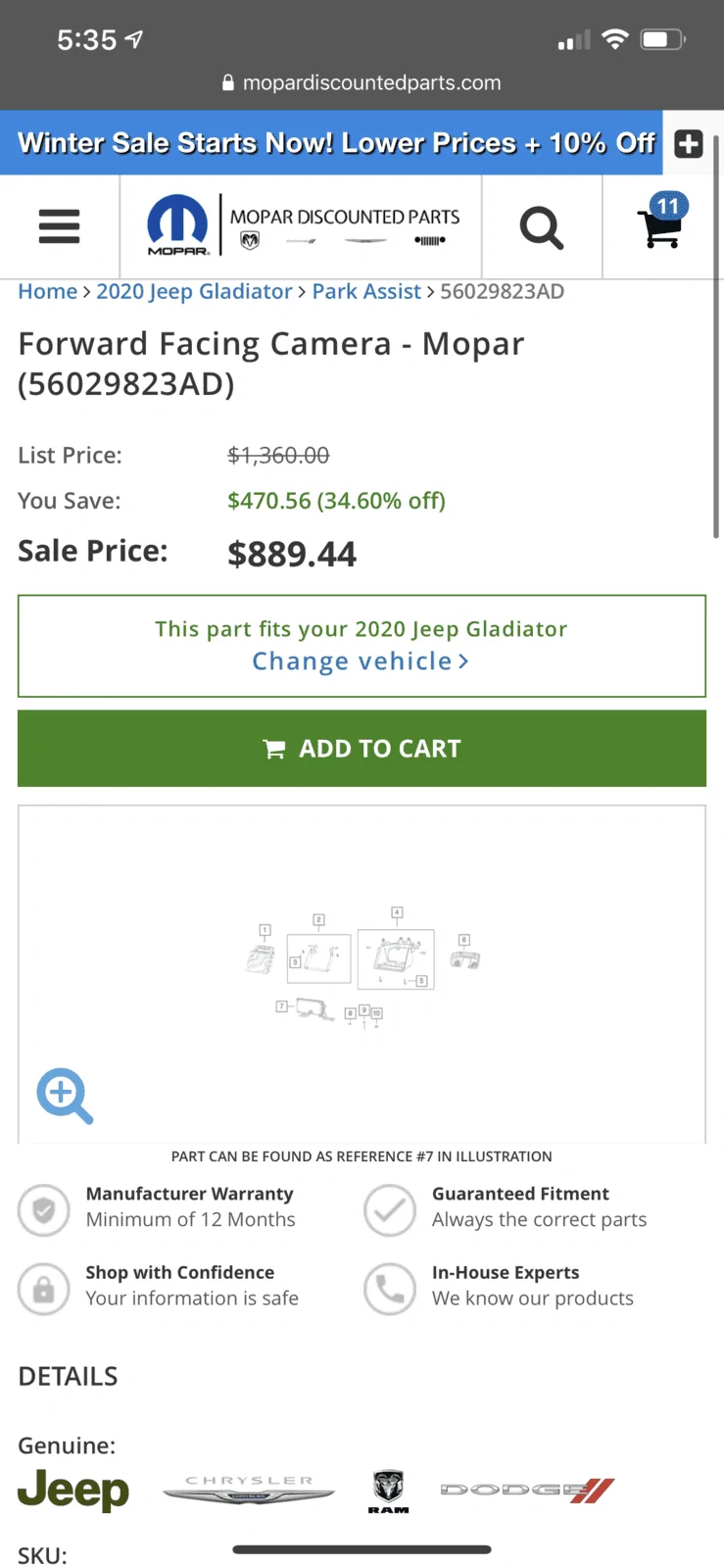

    the video processor seems to be for the ADAS system or forward collision system. I deduced this by looking at the descriptions. The trail cam is called off-road camera. The adas stuff is called forward camera. So we may not need the processor after all. I wasn’t able to dismantle my washer bottle today. I did poke around and don’t see any harnesses for the camera. Anyone know where they may be? My Jeep has the LED package.





  2. OP
    OP
    mtpilatus

    mtpilatus Member

    Vehicle(s):
    Sting Gray Gladiator Rubicon
    Joined:
    May 7, 2018
    Location:
    Kansaa
    Posts:
    24
    Liked:
    5
    I believe all of the parts have been found except maybe the wiring harness. I am hoping it's already there with the 8.4 radio and LED lights.

    DVC and scuuuud like this.
  3. DVC

    DVC Member

    First Name:
    Aaron
    Vehicle(s):
    2020 Jeep Gladiator Rubicon
    Joined:
    May 1, 2019
    Location:
    Northern NJ
    Posts:
    7
    Liked:
    12
    Great job sorting this out so far! Looking forward to following in your footsteps on this....

    scuuuud likes this.
  4. dwayneturner70

    First Name:
    Dwayne Turner
    Vehicle(s):
    2020 Jeep Gladiator Sport S
    Joined:
    Jun 24, 2019
    Location:
    Atlanta, GA
    Posts:
    16
    Liked:
    35

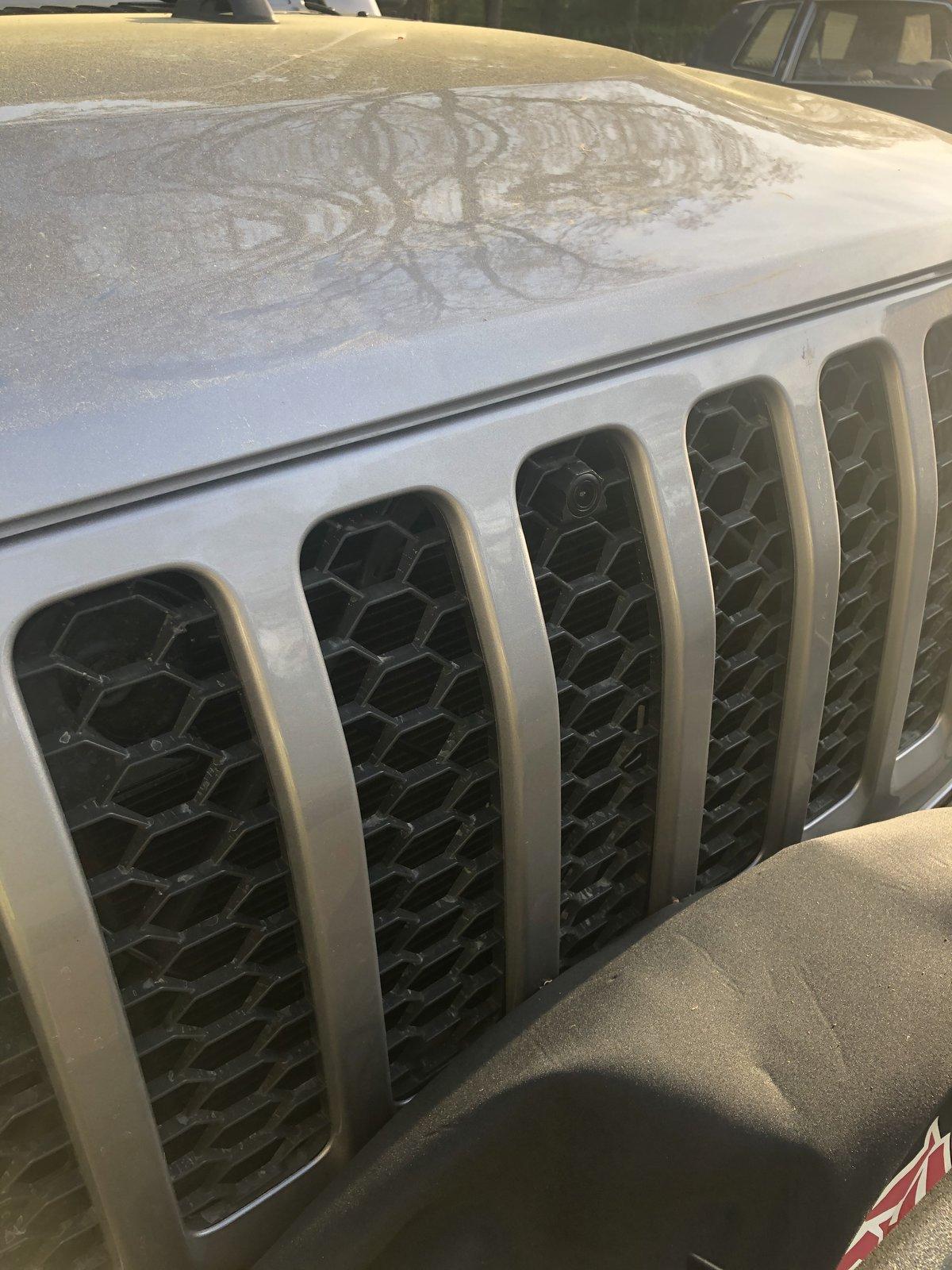

    Installed the front trail camera from ZAutomative.




    Bbannongmu, RxGladiator and scuuuud like this.
  5. SoCalGladiator

    First Name:
    Brian
    Vehicle(s):
    2020 Jeep Gladiator Rubicon Pumpkin Orange
    Joined:
    Jan 7, 2020
    Location:
    San Marcos, CA
    Posts:
    10
    Liked:
    1
    How much out the door for the ZAutomotive foward trail cam?

    Can you post a link?

  6. SoCalGladiator

    First Name:
    Brian
    Vehicle(s):
    2020 Jeep Gladiator Rubicon Pumpkin Orange
    Joined:
    Jan 7, 2020
    Location:
    San Marcos, CA
    Posts:
    10
    Liked:
    1

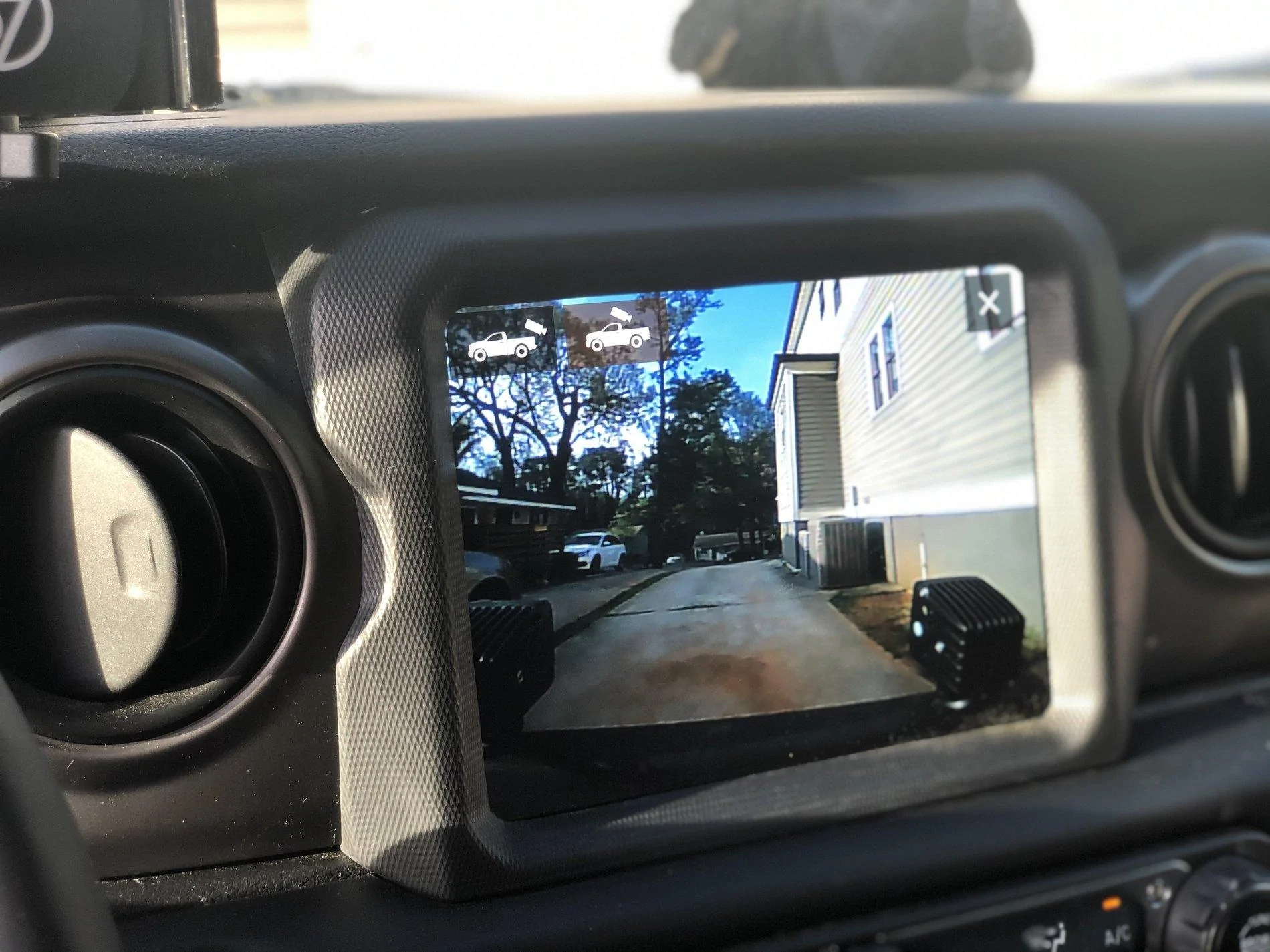

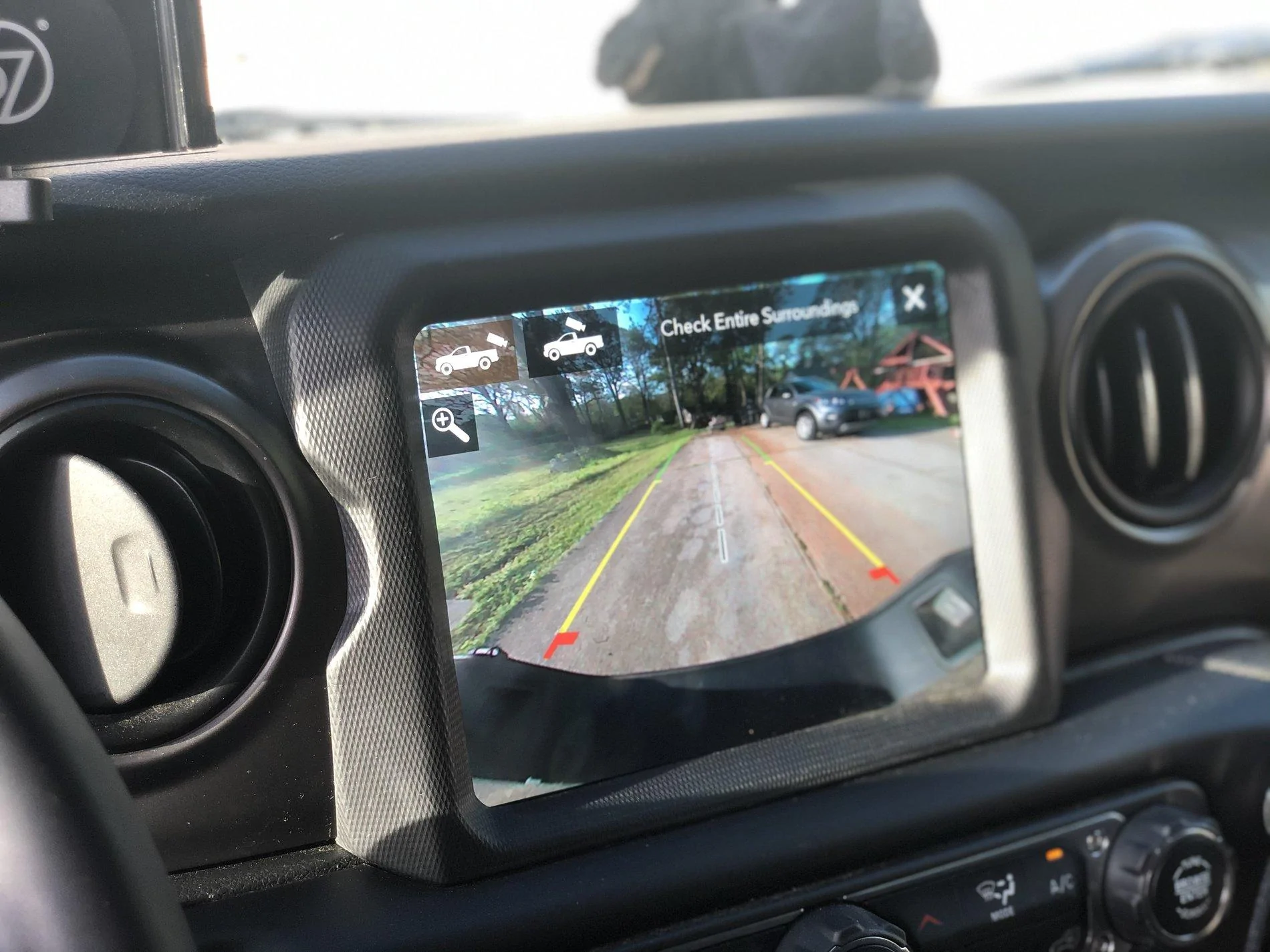

    It's also odd how the icons on your display show both being rear facing.

  7. jwilson2899

    jwilson2899 Well-Known Member

    First Name:
    Jeff
    Vehicle(s):
    2020 Gladiator Rubicon Launch Edition, 2004 Wrangler Unlimited
    Joined:
    Nov 11, 2019
    Location:
    Front Royal, VA
    Posts:
    226
    Liked:
    269
    Occupation:
    System Engineer
    That’s how the Tazer front cam option works. It simulates a cargo camera for a Ram, and uses that to give you the input for the front camera.

  8. 361Sean

    361Sean Well-Known Member

    Vehicle(s):
    2020 JT Rubi. 2006 Liberty. 2003 Ram 2500 CTD, and a couple of Hogs.
    Joined:
    Oct 6, 2019
    Location:
    Long Island NY
    Posts:
    133
    Liked:
    80
    How hard was it to wire up. in other words how hard to RIP apart the dash to access the back of the display screen. Thanks.

  9. bryanklay

    bryanklay Member

    First Name:
    bryan
    Vehicle(s):
    1994 ford bronco upcoming 2020 jeep gladiator overland in blue
    Joined:
    Sep 30, 2019
    Location:
    south weber utah
    Posts:
    7
    Liked:
    3
    good Afternoon

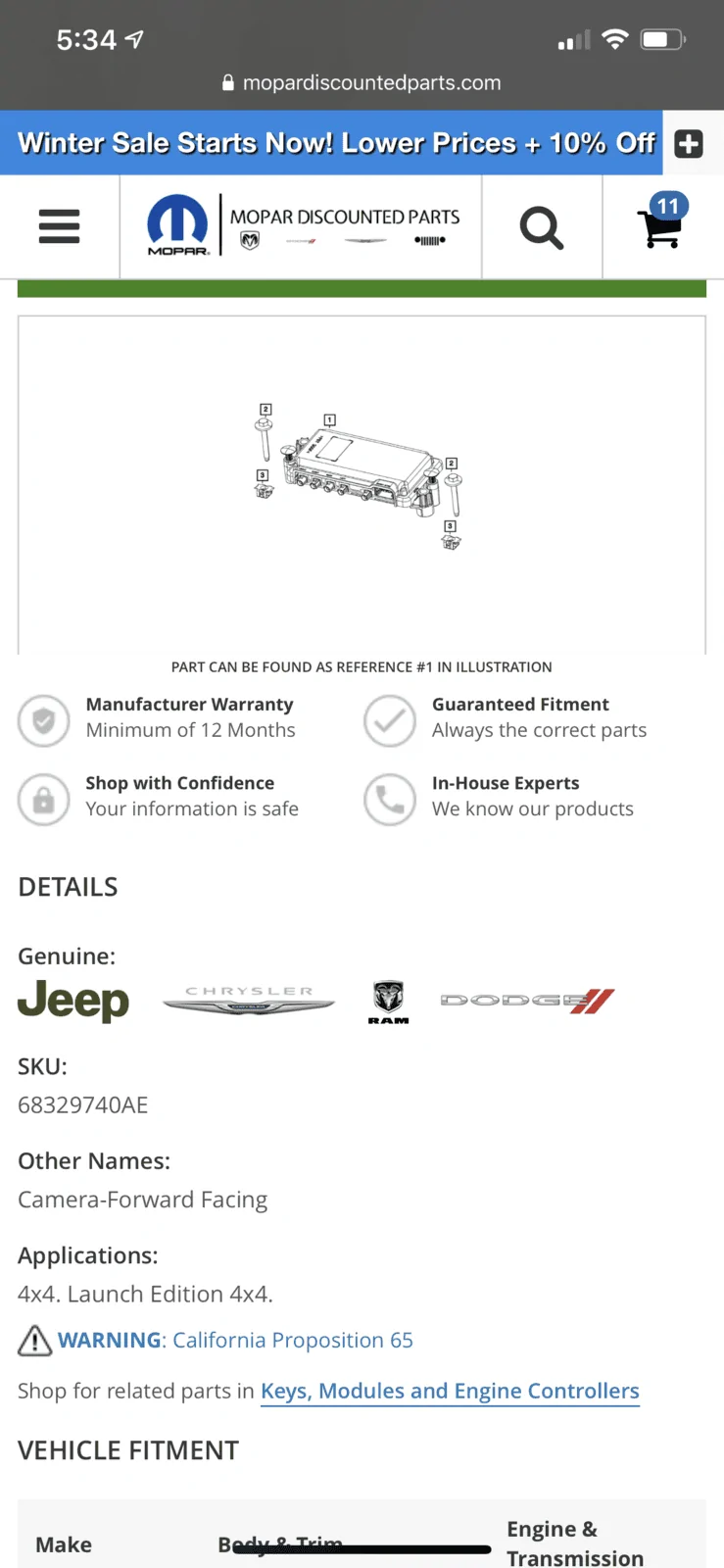

    i have been following this thread and now that i have parts on order, i decided to do my research after the fact.. what i found is both good and bad. the good is this can be done. however, you will need to determine if your Gladiator has the central video processing module. if you do, then the install is pretty easy. if not, then you will need to obtain that unit which is part #68329740AE and costs 306.00 online. this part is behind the subwoofer. the other part you will need is the video cable from the camera to the processor. there is one harness that is only 42.00 online and that part number is 68406737AB.. however, the main section is part of the main wiring harness in the engine compartment. to find the end that will connect to the camera wiring harness, look just aft of the left headlight and you will see two wires that are video cable that are bolted to the body. there is no connector at that end. the second part of the wiring to the CVPM i am still working on. i found on my Overland that i do not have the CVPM., but most of the wiring is there. i am sorry for both the good and the bad news. if you have any questions please feel free to ask. have a great day
    Bryan

    mtpilatus likes this.
  10. OP
    OP
    mtpilatus

    mtpilatus Member

    Vehicle(s):
    Sting Gray Gladiator Rubicon
    Joined:
    May 7, 2018
    Location:
    Kansaa
    Posts:
    24
    Liked:
    5
  11. SoCalGladiator

    First Name:
    Brian
    Vehicle(s):
    2020 Jeep Gladiator Rubicon Pumpkin Orange
    Joined:
    Jan 7, 2020
    Location:
    San Marcos, CA
    Posts:
    10
    Liked:
    1
    Great info. Do tou need all this is you have a Rubicon with adaptive cruise control and crash avoidance? I thought the video processor was done by the controller.

  12. bryanklay

    bryanklay Member

    First Name:
    bryan
    Vehicle(s):
    1994 ford bronco upcoming 2020 jeep gladiator overland in blue
    Joined:
    Sep 30, 2019
    Location:
    south weber utah
    Posts:
    7
    Liked:
    3
    as i did my researsh, i found that you have to have the LED lighting system, but i am not sure if the Adaptive cruise control is involved with the CVPM it does make sense. let me do some more research on this.

  13. dstephns

    dstephns Member

    First Name:
    Dave
    Vehicle(s):
    2020 JT Rubicon, 1966 Sunbeam Tiger
    Joined:
    Nov 26, 2019
    Location:
    Phoenix, AZ
    Posts:
    12
    Liked:
    5
    Thanks for doing the research. I have had camera, grill and bracket on order for about a week now but have not heard anything from from suppliers. Just a pending charge. I have the 8.4 inch display and the LED light package, but no Adaptive Cruise Control on my Rubicon. I'm very interested in adding the OEM trail cam to the Gladiator. Really curious if the Rubicon has the video processor already installed. Kind of a weird place behind the rear seats near the subwoofer. I have not popped the plastic cover off to look ... yet.
    thanks again for your research on this topic.
    Dave

  14. bryanklay

    bryanklay Member

    First Name:
    bryan
    Vehicle(s):
    1994 ford bronco upcoming 2020 jeep gladiator overland in blue
    Joined:
    Sep 30, 2019
    Location:
    south weber utah
    Posts:
    7
    Liked:
    3

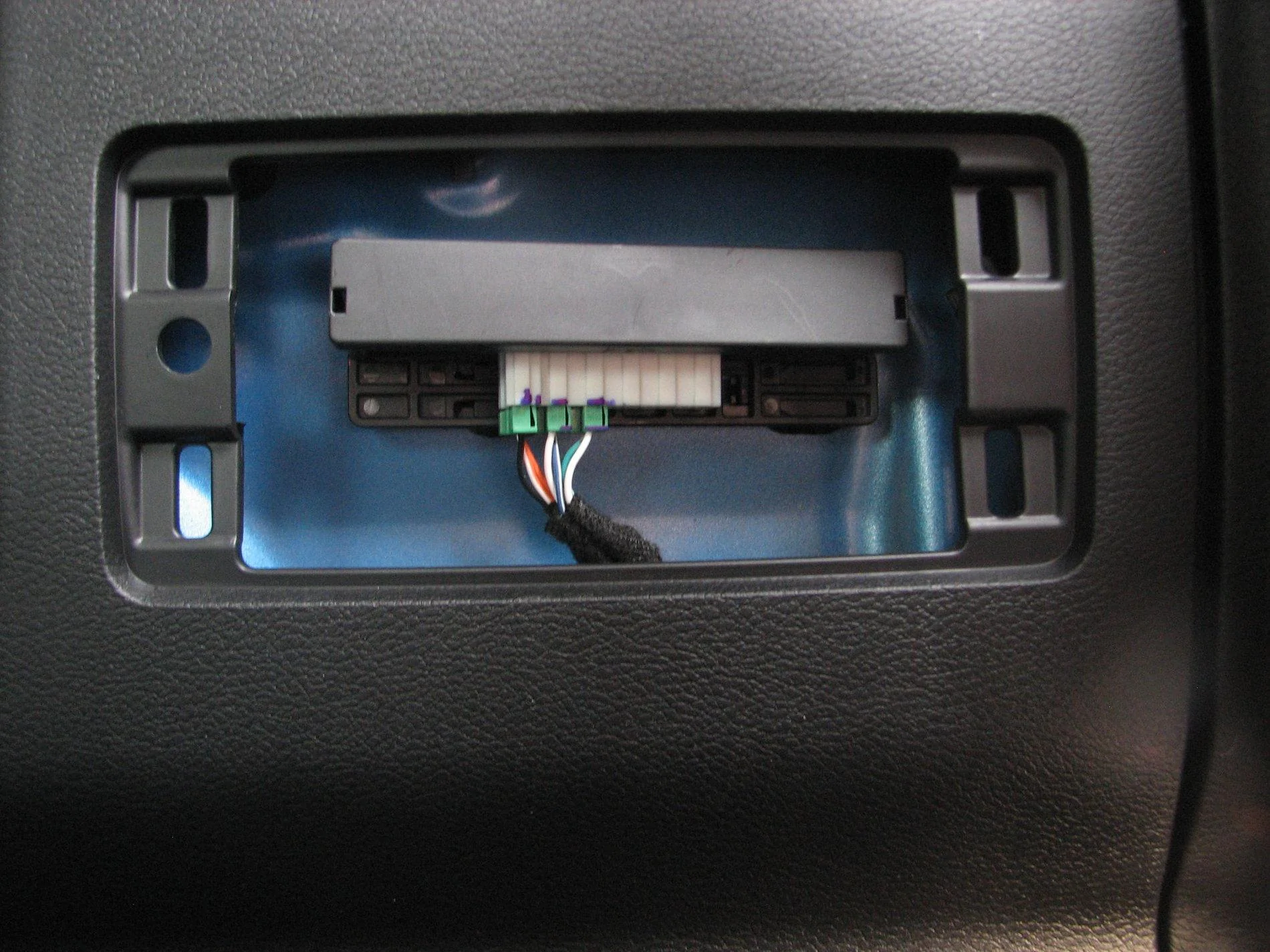

    by pulling the back panel off was how i found out the CVPM was not in the jeep. as to the adaptive cruise control, the camera and radar unit is in the box in front of the rearview mirror. i am working on the issue of the wiring from the Can bus that is located behind the left rear seat to the CVPM. this may take awhile. However, to see if you have the CVPM, try looking behind the panel that is behind the left rear seat. pop the panel off using a flat trim tool and see if there is more then three connectors. i have not looked in to which place the CVPM connector fits. i hope to do that tomorrow. i have attached 2 pictures to help you with your looking. i hope this helps.



  15. bryanklay

    bryanklay Member

    First Name:
    bryan
    Vehicle(s):
    1994 ford bronco upcoming 2020 jeep gladiator overland in blue
    Joined:
    Sep 30, 2019
    Location:
    south weber utah
    Posts:
    7
    Liked:
    3

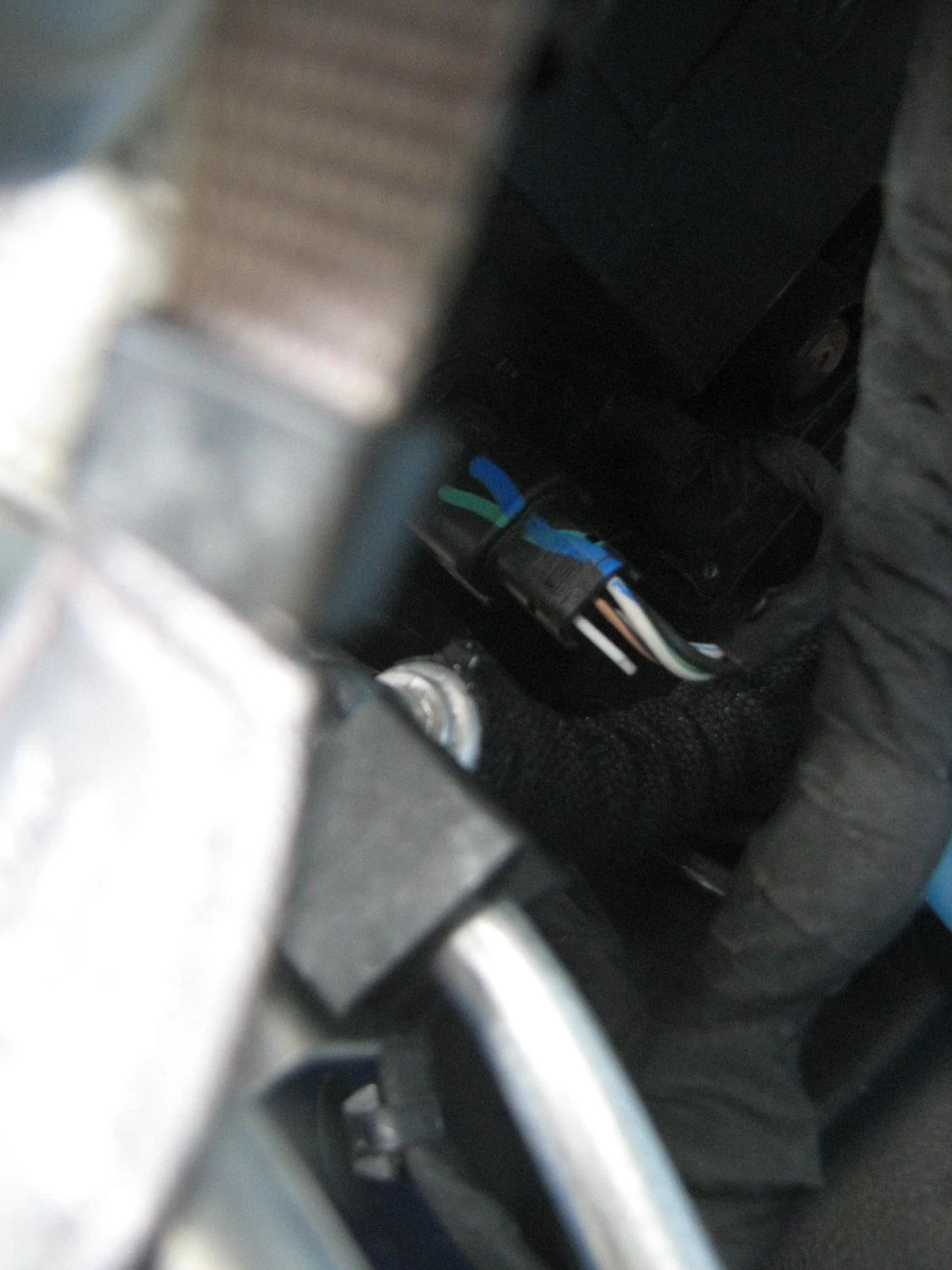

    the connector that is part of the can bus will have two wires. one dark blue and the other is white with a orange stripe.
