I installed mine on a metal cloak bumper over the weekend. Never done it before and my only problem that i will fix before using the winch is one of the square nuts that you use to screw the base to the plate was not tapped correctly
Sponsored



BamaJeep

New Member
Joined
May 17, 2020
Threads
0
Messages
3
Reaction score
0
Location
Alabama
Vehicle(s)
JLUR
I installed mine on a metal cloak bumper over the weekend. Never done it before and my only problem that i will fix before using the winch is one of the square nuts that you use to screw the base to the plate was not tapped correctly
Where are you getting new square nuts from for this? (Assuming you are getting new ones)


Donkey Fluffer

Well-Known Member
First Name
Jim
Joined
Sep 8, 2019
Threads
11
Messages
244
Reaction score
486
Location
Virginia
Vehicle(s)
2018 Jeep Wrangler Sahara JLU and 2020 Jeep Gladiator Rubicon
Awesome, thanks for the feedback! So I guess there is still a tiny bit of interference between the handle and the bumper and small shave to either one should do the trick. Out of curiosity, why did you decide to trim the bumper and not the handle?
I felt like shortening the handle might take away the leverage sometimes needed with winch handles and certainly wouldn't be as easy to clean up and paint as the bumper.

I'm taking the bumper off, hopefully this weekend, to install my Maximus 3 tow loops so I can towit behind my RV. It will require some trimming of the stock metal bumper also, but beats installing an unsightly baseplate


highoctane

Well-Known Member
First Name
Tony
Joined
Oct 19, 2019
Threads
3
Messages
50
Reaction score
92
Location
PA
Vehicle(s)
'20 Jeep Gladiator Rubicon

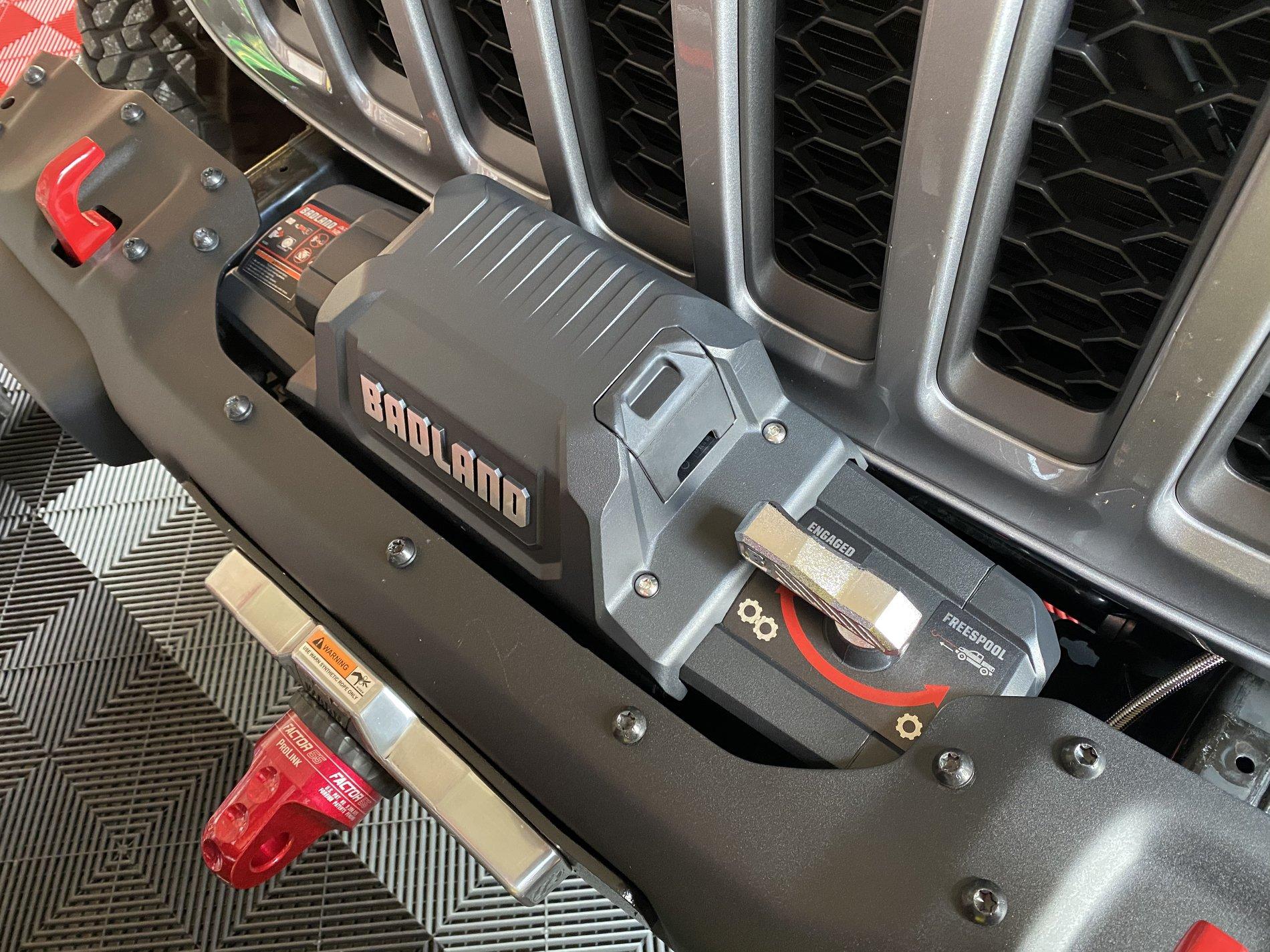

I used the Rockhard 4x4 winch plate for the oem Rubicon steel bumper and have zero interference between the winch clutch lever and the bumper. Plenty of room. Plus it was only $200. Much cheaper than the Mopar version and many of the other options as well.



JCstud21

Well-Known Member
First Name
Jon
Joined
Jul 23, 2019
Threads
6
Messages
74
Reaction score
85
Location
West Virginia
Vehicle(s)
2020 Jeep Gladiator Rubicon, 2019 Jeep JLU Rubicon
Occupation
Engineer

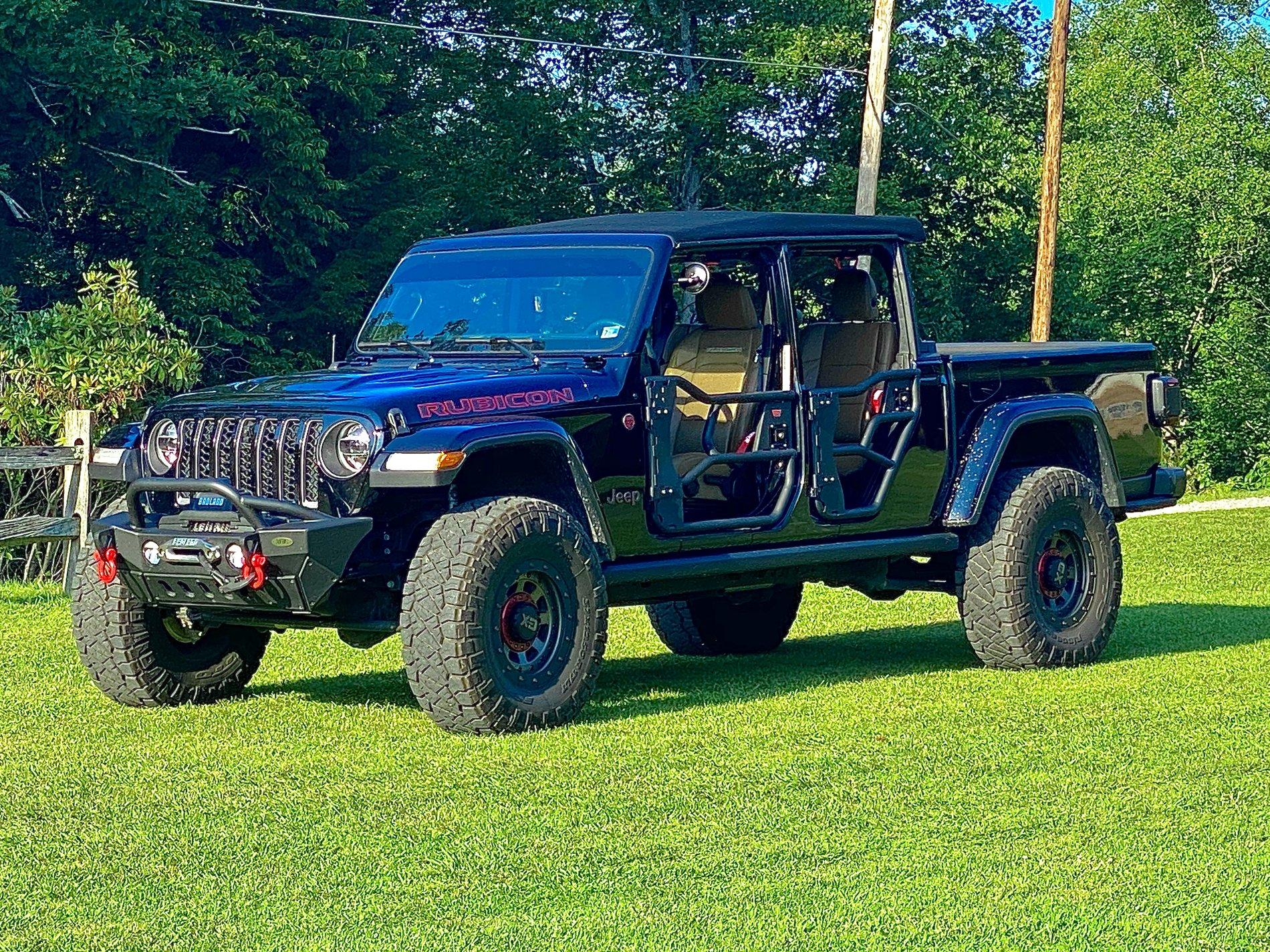

Total look at mine installed!
Jeep Gladiator New Apex 12K Harbor Freight winch Install IMG_0348


Sponsored

Dest

New Member
Joined
Jul 5, 2020
Threads
0
Messages
2
Reaction score
2
Location
USA
Vehicle(s)
JK
Could someone who relocated their solenoid/controls to inside the engine compartment annotate their wiring? Especially on the winch and on the solenoid? I just caught my battery on fire and the winch ran continuously, so I clearly have something wrong. Also what did you do with the 2 connections on the back of the winch? Thanks. X.X


Racer_X

Well-Known Member
Joined
Sep 9, 2019
Threads
6
Messages
181
Reaction score
211
Location
One hour from a major airport
Vehicle(s)
2020 Firecracker Red Rubicon Gladiator
Vehicle Showcase
1
Could someone who relocated their solenoid/controls to inside the engine compartment annotate their wiring? Especially on the winch and on the solenoid? I just caught my battery on fire and the winch ran continuously, so I clearly have something wrong. Also what did you do with the 2 connections on the back of the winch? Thanks. X.X
use the search feature for warn interrupter or solenoid and you'll pull up a bunch of threads with pictures.


PsyRN

Well-Known Member
First Name
Eric
Joined
May 13, 2019
Threads
23
Messages
454
Reaction score
522
Location
Santa Rosa
Vehicle(s)
2020 StingGray JTR, 2016 Bonneville T120 Black
I used the Rockhard 4x4 winch plate for the oem Rubicon steel bumper and have zero interference between the winch clutch lever and the bumper. Plenty of room. Plus it was only $200. Much cheaper than the Mopar version and many of the other options as well.

Jeep Gladiator New Apex 12K Harbor Freight winch Install IMG_0348
I just got the Rockhard 4x4 plate yesterday. Hoping to get it installed this weekend. But I'm also hoping to move the control box like @Sorbs for a lower profile look. A buddy is much better at electrical stuff, so I'm hoping he can help me figure it out.


Dest

New Member
Joined
Jul 5, 2020
Threads
0
Messages
2
Reaction score
2
Location
USA
Vehicle(s)
JK
Just remember where each solenoid wire connects and don't forget your grounds and you should be fine.


airmax617

Active Member
First Name
Max
Joined
Nov 11, 2019
Threads
9
Messages
26
Reaction score
7
Location
New Jersey
Vehicle(s)
Jeep Gladiator Rubicon
I have been struggling whether to add a Warn power interrupt kit or a generic solenoid and connect to Aux switches. Called Warn today and they recommend to directly wire instead of using their kit. Same recommendation from HF on the Apex product.

Sounds like they thought this through and have a prepared answer...wondering why they don't like the relay additions. Any ideas as to why that's the company line?


Sponsored

Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Threads
131
Messages
4,636
Reaction score
5,193
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Vehicle Showcase
1
I have been struggling whether to add a Warn power interrupt kit or a generic solenoid and connect to Aux switches. Called Warn today and they recommend to directly wire instead of using their kit. Same recommendation from HF on the Apex product.

Sounds like they thought this through and have a prepared answer...wondering why they don't like the relay additions. Any ideas as to why that's the company line?
The Badlands Apex came with a power kill switch. I installed mine just because it came with it. Not sure why they would recommend not using it. I mean technically you can just wire it up but why send it if you recommend not using it.


airmax617

Active Member
First Name
Max
Joined
Nov 11, 2019
Threads
9
Messages
26
Reaction score
7
Location
New Jersey
Vehicle(s)
Jeep Gladiator Rubicon
The Badlands Apex came with a power kill switch. I installed mine just because it came with it. Not sure why they would recommend not using it. I mean technically you can just wire it up but why send it if you recommend not using it.
Yes you're right, I thought I read somewhere wiring directly is fine too. The APEX instructions actually say to keep the switch in the off position when not in use. Do you keep yours off?

My comment stands about Warn -- saying to direct wire and i don't think they provide a kill switch or solenoid with their products.


Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Threads
131
Messages
4,636
Reaction score
5,193
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Vehicle Showcase
1
Yes you're right, I thought I read somewhere wiring directly is fine too. The APEX instructions actually say to keep the switch in the off position when not in use. Do you keep yours off?

My comment stands about Warn -- saying to direct wire and i don't think they provide a kill switch or solenoid with their products.
Yeah, I keep it in the off position. I figure if I head out to go wheel somewhere I'll just flip it to the on position before I leave that way it's ready to go


teleportJeep

Well-Known Member
First Name
Marco
Joined
Mar 31, 2020
Threads
6
Messages
94
Reaction score
126
Location
San Diego
Vehicle(s)
gladiator

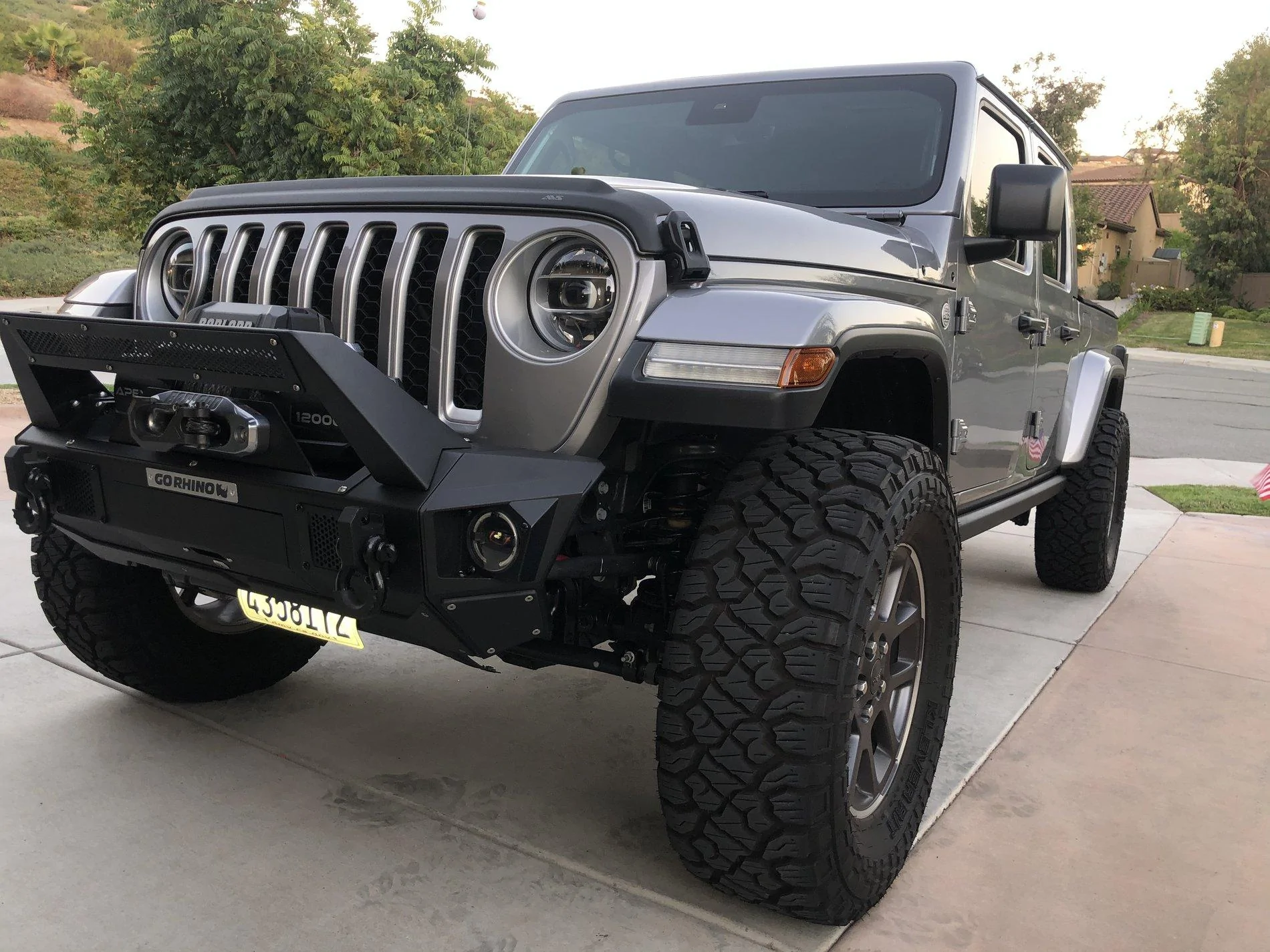

I just installed my Apex and use the kill switch.
I didn’t have to move any controllers for my setup, easy setup.
Jeep Gladiator New Apex 12K Harbor Freight winch Install EC6A83F7-5C50-4560-84BB-D5A97E4C8D1D


PsyRN

Well-Known Member
First Name
Eric
Joined
May 13, 2019
Threads
23
Messages
454
Reaction score
522
Location
Santa Rosa
Vehicle(s)
2020 StingGray JTR, 2016 Bonneville T120 Black
I have been struggling whether to add a Warn power interrupt kit or a generic solenoid and connect to Aux switches. Called Warn today and they recommend to directly wire instead of using their kit. Same recommendation from HF on the Apex product.

Sounds like they thought this through and have a prepared answer...wondering why they don't like the relay additions. Any ideas as to why that's the company line?
So if I want to connect aux switches, then you don't need to connect the interrupt kit? But then do I still need to turn it on and off? or the aux switch manage the power to it? and what about parasitic draw? if I have this thing connected to power, will the aux switch stop power to it, even if it's left on?
