Please teach me about jscan

Dennfann

Member
First Name
Denny
Joined
Sep 7, 2020
Messages
7
Reaction score
3
Location
Tennessee
Vehicle(s)
2020 Jeep Gladiator
Occupation
Section Leader
Hi all, I got the JScan, V Gate, and cables. I can plug in the V Gate directly in the OBD port and it powers up, reads, connects to the app. But, when I pull the 2 security cables down and plug into the V Gate, I get nothing. The V Gate won’t power on.
Have any of you had this issue and can tell me what I’m doing wrong?



Advertisement





ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
6,195
Reaction score
4,961
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3
Hi all, I got the JScan, V Gate, and cables. I can plug in the V Gate directly in the OBD port and it powers up, reads, connects to the app. But, when I pull the 2 security cables down and plug into the V Gate, I get nothing. The V Gate won’t power on.
Have any of you had this issue and can tell me what I’m doing wrong?
Did you plug the vgate into the security cable and NOT the OBD port? You should connect the device to the cable, not the port.

I also noticed that when I used the cable and jscan it took 3 or 4 minutes before I actually had access to change anything. It was weird. I could connect, see things, but some parts of jscan were not "apparent" for a little while.


Gregj

Well-Known Member
First Name
Greg
Joined
Jul 4, 2019
Messages
160
Reaction score
136
Location
West Texas
Vehicle(s)
JT Overland North Edition, 2018 JLU, 2018 JLUR
@Dennfann Which cable do you have? I have seen, I believe over on the JL Forum, that someone got a cable without the power wire in it. I'll see if i can find the Post on it.

Gregj

ETA: Here is a link to the pin-out for the OBD2 port, see it your cable has connectors in position 4,5 and 16. Those are ground, ground and power respectively. IIRC someone had a cable that was missing the connector in #16
.OBD2 pin-out

Last edited:

Dennfann

Member
First Name
Denny
Joined
Sep 7, 2020
Messages
7
Reaction score
3
Location
Tennessee
Vehicle(s)
2020 Jeep Gladiator
Occupation
Section Leader
Did you plug the vgate into the security cable and NOT the OBD port? You should connect the device to the cable, not the port.

I also noticed that when I used the cable and jscan it took 3 or 4 minutes before I actually had access to change anything. It was weird. I could connect, see things, but some parts of jscan were not "apparent" for a little while.
Yes I did. When plugged into the OBD port, it immediately lights up and responds. When I plug it into the cable adapter, it does nothing.


Dennfann

Member
First Name
Denny
Joined
Sep 7, 2020
Messages
7
Reaction score
3
Location
Tennessee
Vehicle(s)
2020 Jeep Gladiator
Occupation
Section Leader
@Dennfann Which cable do you have? I have seen, I believe over on the JL Forum, that someone got a cable without the power wire in it. I'll see if i can find the Post on it.

Gregj

ETA: Here is a link to the pin-out for the OBD2 port, see it your cable has connectors in position 4,5 and 16. Those are ground, ground and power respectively. IIRC someone had a cable that was missing the connector in #16
.OBD2 pin-out
Thanks! I’ll check it when I get home and verify.


Dennfann

Member
First Name
Denny
Joined
Sep 7, 2020
Messages
7
Reaction score
3
Location
Tennessee
Vehicle(s)
2020 Jeep Gladiator
Occupation
Section Leader
@Dennfann Which cable do you have? I have seen, I believe over on the JL Forum, that someone got a cable without the power wire in it. I'll see if i can find the Post on it.

Gregj

ETA: Here is a link to the pin-out for the OBD2 port, see it your cable has connectors in position 4,5 and 16. Those are ground, ground and power respectively. IIRC someone had a cable that was missing the connector in #16
.OBD2 pin-out
Mine does not have Pin 5 or a couple of others for that matter. Do you have a recommendation on what cable set I should order?


Gregj

Well-Known Member
First Name
Greg
Joined
Jul 4, 2019
Messages
160
Reaction score
136
Location
West Texas
Vehicle(s)
JT Overland North Edition, 2018 JLU, 2018 JLUR

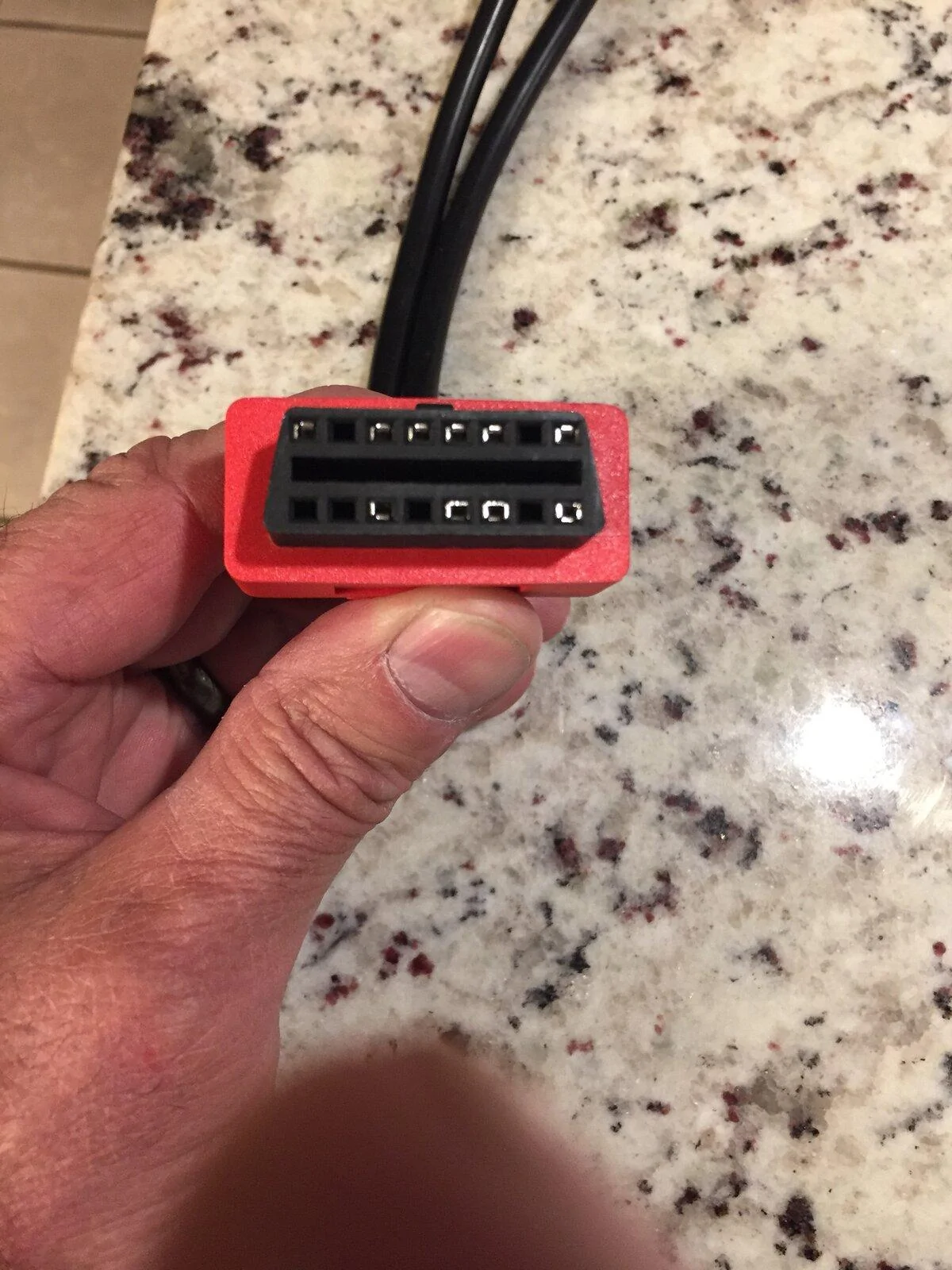

Here is a picture of the business end of my cable, I looked for the one I bought from Amazon and it is not showing up.
