What winch?

MilesDavis

Member
First Name
Miles
Joined
Jul 1, 2020
Messages
6
Reaction score
1
Location
Canada
Vehicle(s)
Jeep Gladiator 2020
Occupation
Police officer



Advertisement





maxpower220

Well-Known Member
First Name
Paul
Joined
Jun 15, 2019
Messages
190
Reaction score
118
Location
Pensacola
Vehicle(s)
2020 JTR silver bullet
Bumper is coming this week. I’ve never had a winch and will probably rarely use it. I’m looking at the Rough Country 9500 with synthetic line for $399, the Badlands Apex for $480, or the Smittybilt 9.5 or 10k . In reality, just wondering if the Apex is with the extra $100. It does seem to have a nicer hook; not sure that’s worth $100.


Jeeperjamie

Well-Known Member
First Name
Jamie
Joined
Feb 12, 2020
Messages
1,834
Reaction score
1,582
Location
Kannapolis nc
Vehicle(s)
2020 jeep gladiator
Occupation
Weyerhaeuser
Bumper is coming this week. I’ve never had a winch and will probably rarely use it. I’m looking at the Rough Country 9500 with synthetic line for $399, the Badlands Apex for $480, or the Smittybilt 9.5 or 10k . In reality, just wondering if the Apex is with the extra $100. It does seem to have a nicer hook; not sure that’s worth $100.
The Apex is a 12000lb winch with synthetic line. The extra 2000-2500lbs worth of pulling is worth $100


93civej1

Well-Known Member
Joined
Mar 20, 2020
Messages
296
Reaction score
148
Location
TN
Vehicle(s)
2020 Gobi Sport S (Max Tow)
I have a warn VR8 sitting in my garage that is pretty much new. I took it off a 4runner I traded in.
I had planned to keep it if I have any need for it. Is there any reason to hold onto it for my gladiator since It is new and I have it in my posession? If not, I can just try to sell it and maybe get some kind of other parts. My gladiator is all stock for now.


GEETCH

Active Member
First Name
Dave
Joined
Sep 4, 2020
Messages
32
Reaction score
20
Location
USA
Vehicle(s)
2021 JTR "on order"
Occupation
Navy

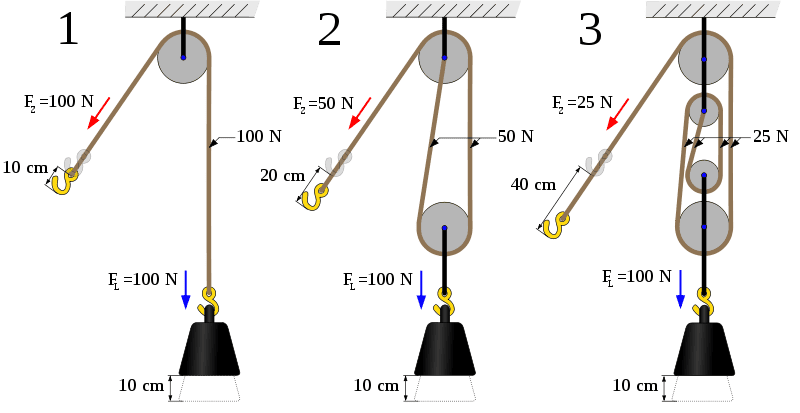

I have read through this thread and there is a lot of good information about more technical aspects of winching. I appreciate everyone sharing, and I have a small contribution as well, I am more of a visual kinda guy and hope this helps someone out as well.


Attachments

Bbannongmu

Well-Known Member
First Name
JTR.Spartacus
Joined
Jan 18, 2020
Messages
951
Reaction score
904
Location
Earth
Website
m.facebook.com
Vehicle(s)
2020 Jeep Gladiator Rubicon
Build Thread
Link
Occupation
Certified Emergency Manager
Vehicle Showcase
1
I have a warn VR8 sitting in my garage that is pretty much new. I took it off a 4runner I traded in.
I had planned to keep it if I have any need for it. Is there any reason to hold onto it for my gladiator since It is new and I have it in my posession? If not, I can just try to sell it and maybe get some kind of other parts. My gladiator is all stock for now.
8k is a bit light for a Gladiator but you could run it with a snatch block - definitely better than nothing. I’m running a Warn Zeon 10s and it seems pretty good and fast.


OshnDoc

New Member
First Name
Arne
Joined
Aug 31, 2020
Messages
3
Reaction score
2
Location
Oxford, MS
Vehicle(s)
2020 Gladiator Mojave
Occupation
Oceanographer
How does that work? The rating of the winch is based on things like the drum size, cooling, power intake, etc. From page 16 of the SB manual

With 85ft of line on the drum the winch pulls 6300lbs. With 40ft of line on the drum it pulls 8850lbs. That is about half the line on the drum remaining (equivalent to a snatch block letting out twice as much line) yet pull only went up 40%. What am I failing to understand?
Simple physics of a pulley system.



ShadowsPapa

Well-Known Member
First Name
Bill
Joined
Oct 12, 2019
Messages
6,243
Reaction score
5,006
Location
Runnells, Iowa
Vehicle(s)
2020 JT Overland; 2018 Grand Cherokee; 2004 Grand Cherokee Special Edition; 1970 Javelin(sold); 1973 Javelin; 1982 Eagle SX4
Occupation
Retired auto tech, frmr gov't ntwrk security admin
Vehicle Showcase
3
Like a lever as well. You can double force but something has to give - so you halve the distance moved.
It's work, and work is something like multiplying the force by the amount of movement.
Hydraulics, levers, pulleys, whatever.
If you want to lift more weight with a hydraulic cylinder, you can double the square inches of the piston, lift twice as much weight, but it will move half as far.
So you have done the SAME amount of work even though you moved it half as far because you moved twice as much.
You need to move 100 pounds, you have only 50 pounds of force. Using pulleys you can double your force - so you can still do it but will cut the distance in half in the process.

I think work usually involves Newtons and meters - Newtons for the force, Meters for the distance.

Work = F x D where F is force and D is distance.


GEETCH

Active Member
First Name
Dave
Joined
Sep 4, 2020
Messages
32
Reaction score
20
Location
USA
Vehicle(s)
2021 JTR "on order"
Occupation
Navy
I’m currently looking at a Smittybilt X2O COMP - Waterproof Synthetic Rope Winch - 12,000
