AEV 2" spacer lift for Mojave Gladiator

[Greg83]

You don't need to use the longer control arms...
The Geometry brackets are intended for use with stock control arm lengths

Ok. Thanks!

Sponsored



[Greg83]

So for you guys with the 2” Mojave lift that had your geo brackets at the lowest setting and were in the 4.5 degree caster range, and we’re going to try the middle setting, did that put you where we want to be? Are most people running the middle setting at that 6.2-6.7 degree range?



[Challenger85]

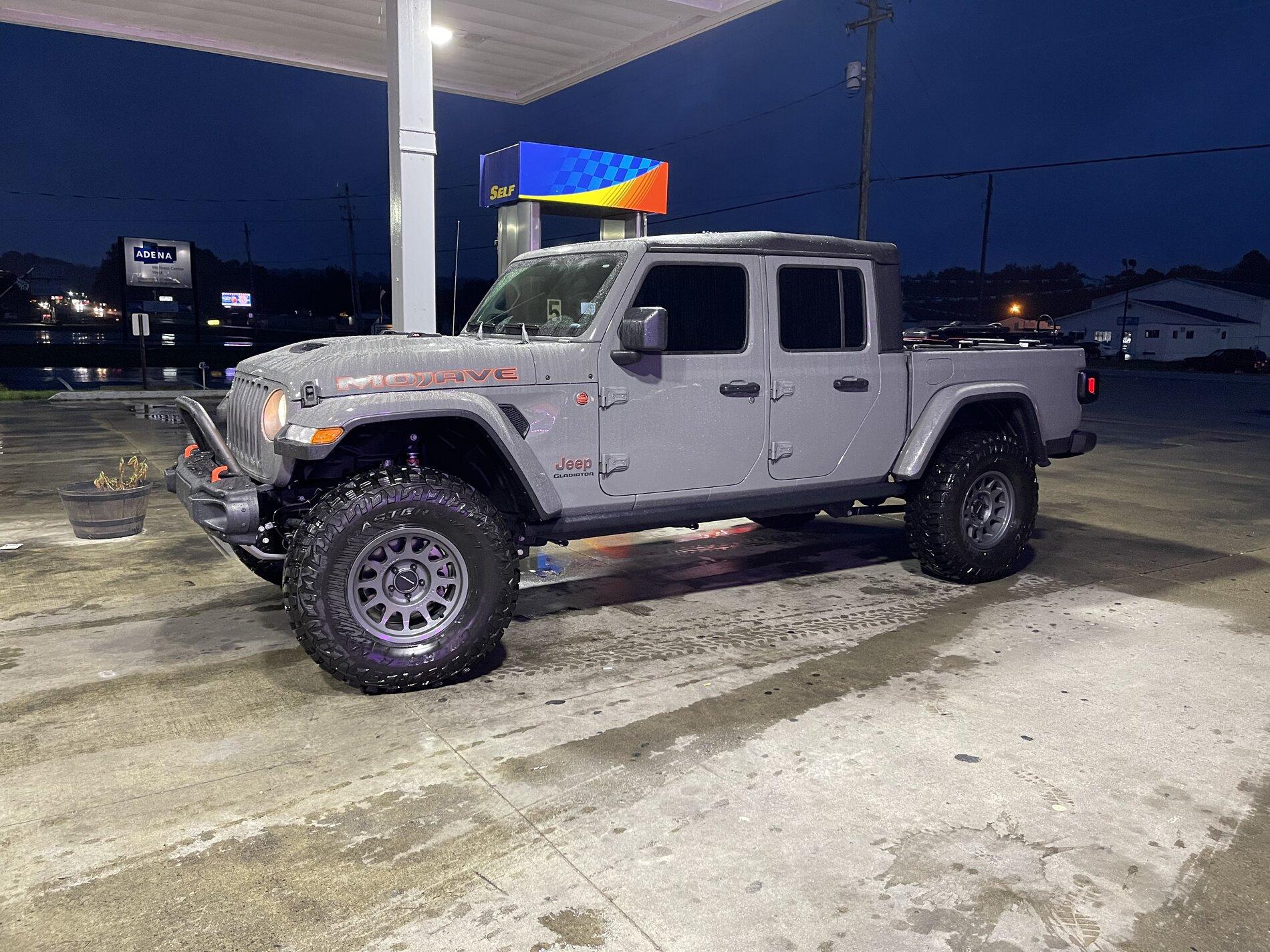

Just finished mine
37s with 2” AEV spacer lift

Holy hell that’s so good. What is your height to the top of the hardtop with this setup?! I’m guessing it’s about 4.5” of lift so around 77”?



[LostAggie]

So for you guys with the 2” Mojave lift that had your geo brackets at the lowest setting and were in the 4.5 degree caster range, and we’re going to try the middle setting, did that put you where we want to be? Are most people running the middle setting at that 6.2-6.7 degree range?

Interested also…



[Tuggernuts]

So for you guys with the 2” Mojave lift that had your geo brackets at the lowest setting and were in the 4.5 degree caster range, and we’re going to try the middle setting, did that put you where we want to be? Are most people running the middle setting at that 6.2-6.7 degree range?

Mine is set at the lowest with a caster at 4.8. I feel like it handles fine. Not sure what I’d gain by making the adjustment and achieving higher caster.



[LostAggie]

How are the rear tires lined up? Any need for rear track bar?



[Tuggernuts]

I was told there is no need for an adjustable track bar. On the Geo bracket subject, most forget that the Mojave is lifted from the factory approximately 1” so add the AEV 2” and you have a total of 3”. That’s what the middle setting calls for. Like I said, mine is at the lowest setting and it tracks fine at. 4.8 caster.



[LostAggie]

I was told there is no need for an adjustable track bar. On the Geo bracket subject, most forget that the Mojave is lifted from the factory approximately 1” so add the AEV 2” and you have a total of 3”. That’s what the middle setting calls for. Like I said, mine is at the lowest setting and it tracks fine at. 4.8 caster.

I already have the Steer Smarts Yeti front track bar from JL I had but was wondering about rear.



[Tuggernuts]

I already have the Steer Smarts Yeti front track bar from JL I had but was wondering about rear.

If you want to measure down to a nats ass, get an adjustable rear track bar. The guy that installed my kit said it was not necessary with a 2” added lift.



[TheRealGinjaNinja]

Mine is set at the lowest with a caster at 4.8. I feel like it handles fine. Not sure what I’d gain by making the adjustment and achieving higher caster.

Higher caster would get better return to center, less wandering and a bit more steering effort (good thing in my book). I have the geo brackets but not yet installed them. My steering did get a bit lighter but still drives pretty good. I want to get my caster between 6-6.5 and I bet it will drive better than stock.

Cheers



[LostAggie]

I went ahead and got the rear YetI track bar. It would bother me.



[Tuggernuts]

Higher caster would get better return to center, less wandering and a bit more steering effort (good thing in my book). I have the geo brackets but not yet installed them. My steering did get a bit lighter but still drives pretty good. I want to get my caster between 6-6.5 and I bet it will drive better than stock.

Cheers

I would definitely have it set at the middle setting then.



[Mudhorn_55]

37 bfg’s

Hi, I know this is an older post, but your running 37 bfg on the stock rims, it looks like in the pic?



[4573davidb]

Hi, I know this is an older post, but your running 37 bfg on the stock rims, it looks like in the pic?

Yeah, 37x12.5 on stock wheels



[Shahzeb719]

Got my AEV kit for the Mojave from quadratec and the Mopar LCAs. Will be installing Friday. Hopefully I won’t need to spend the extra money on the geo brackets. After install would you guys recommend a alignment or just leave it be after install?
