AEV Releases JT 2.5 DualSport RT Suspension System

catronro

New Member
First Name
Robert
Joined
Mar 27, 2019
Messages
4
Reaction score
4
Location
Phoenix
Vehicle(s)
2010 JK Hemi
Looks like AEV released their coil suspension. I thought they were going to use the Bilstein 8100s but it looks like the final version uses the 5100.

https://www.aev-conversions.com/product/jt-2-5-dualsport-rt-suspension/

Whose buying it?



Advertisement





Stevevdbh

Well-Known Member
First Name
Steve
Joined
Aug 31, 2020
Messages
120
Reaction score
31
Location
California
Vehicle(s)
2019 Rubicon
Occupation
Manager

LAJEEPR

Member
First Name
Jimmie
Joined
Sep 20, 2020
Messages
17
Reaction score
12
Location
Los Angeles
Vehicle(s)
2020 Jeep Gladiator Rubicon
I’ve been waiting for this. I’m okay with the 5100s if they perform comparably to the set on my JKU which had a heavy constant load and high COG (Gobi rack, RTT). I also had the Geometry Brackets and those definitely improved the on-road handling for daily driving. If you do more off the grid camping and less rock crawling, these AEV lifts are a great way to go. One noticeable item missing in the kit is an adjustable track bar. I’d add one to get the front axle centered correctly. Steer Smarts Yeti HD is a good way to go there. That said, I’m not in a rush to be first. Might wait until others have installed and provided feedback.


LAJEEPR

Member
First Name
Jimmie
Joined
Sep 20, 2020
Messages
17
Reaction score
12
Location
Los Angeles
Vehicle(s)
2020 Jeep Gladiator Rubicon
Also, pretty sure the reason behind the 5100s is to keep the price down. 8100s would almost double the cost of the kit. Still available aftermarket, Tuned for the JT.


Mac

Well-Known Member
Joined
Nov 30, 2017
Messages
225
Reaction score
111
Location
MA
Vehicle(s)
2020 JT Hydro Blue Max Tow

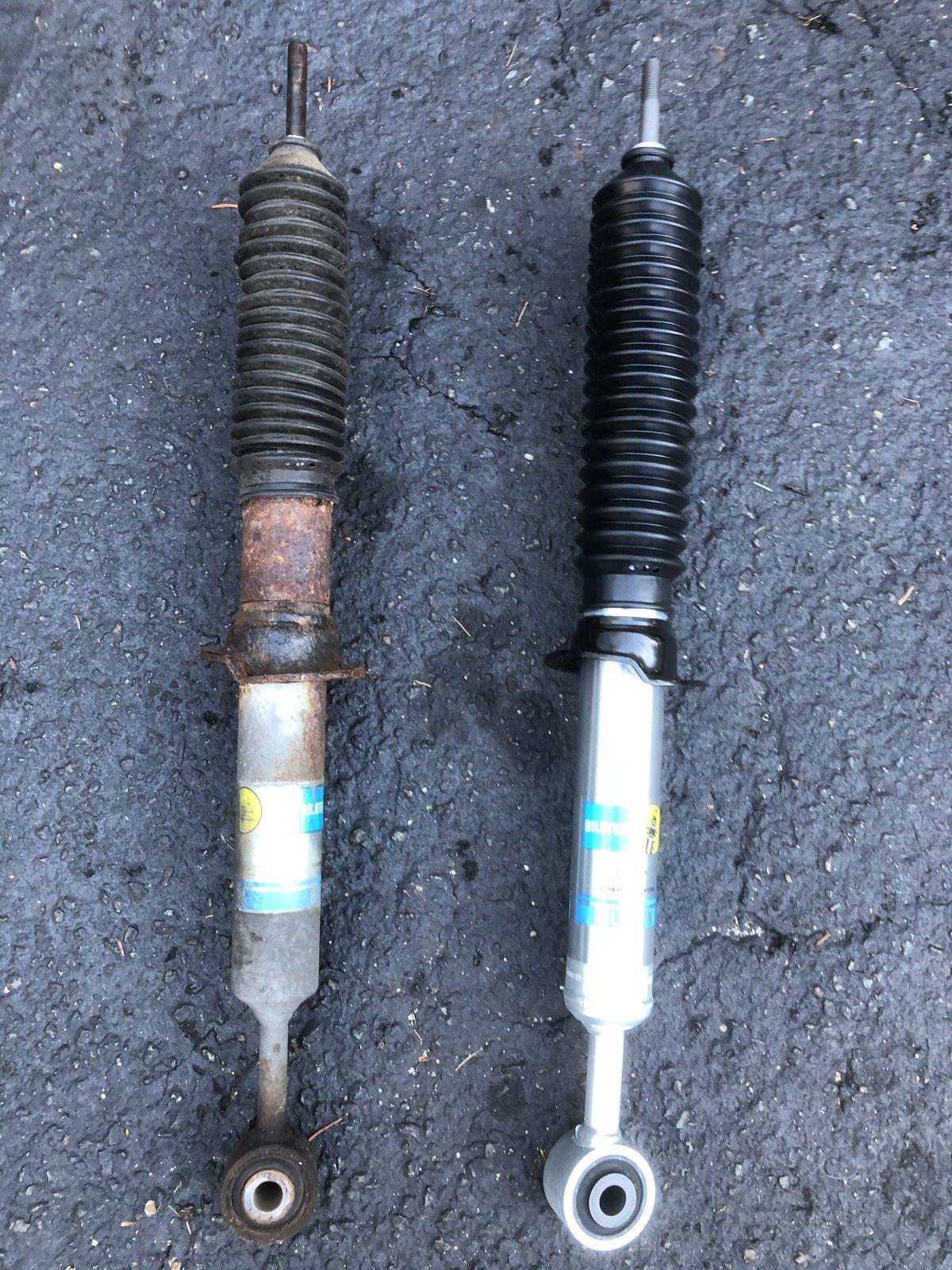

Not a huge fan of the 5100s they ride harsh and corrode pretty badly, I had these on my Tundra, at least they are cheap. My friend put Fox shocks on his JK at around the same time and they look a lot better with little corrosion.


Mac

Well-Known Member
Joined
Nov 30, 2017
Messages
225
Reaction score
111
Location
MA
Vehicle(s)
2020 JT Hydro Blue Max Tow
Surprised AEV would go with control arm relocation brackets.
Why? The stock control arms work well and rarely fail, by using relocation brackets you can adjust caster for the lift exactly.


Moe_Fugga

Well-Known Member
First Name
Jason
Joined
Jan 1, 2020
Messages
482
Reaction score
605
Location
GA
Vehicle(s)
2020 Gladiator
I got a JKS lift with front LCAs and front track bar for $1200 thanks to my mechanic ordering the parts. AEV is too damn high at $1600 considering it leaves those parts out.


Renegade

Well-Known Member
First Name
Zac
Joined
Sep 11, 2017
Messages
2,054
Reaction score
2,391
Location
Signal Mountain, TN
Vehicle(s)
2020 JT
I guess. Its not a replacement for adjustable control arms and I’d rather trust strength of frame and axle than stamped brackets.
AEV (and their lift products formerly branded as Nth Degree) pioneered the bolt-on geometry correction brackets. While they aren’t for every application, they do reduce the harshness of the ride which is created by increased control arm angles. That said, I think the JT rides great with mild lifts.


darkhorse13

Well-Known Member
First Name
John
Joined
Jun 4, 2020
Messages
65
Reaction score
75
Location
Denver, CO
Vehicle(s)
2020 JTR
Occupation
Data Analyst
I just want to try out the frequency tuned springs. If they can actually tame concrete / expansion joint roads I'd be amazed. I'm running Clayton 2.5" fronts and 3.5" rears (due to 600lb constant load) and I'm at exactly 3.0" lift at all four corners. AEV is claiming that their triple rate rear springs are designed for a load/towing but unless they are as tall as the Clayton's and running a comparable spring rate I don't see how they will give a true 2.5" lift in the rear. AEV won't release spring rates (frustrating) but I believe Clayton's are the highest on the market right now and they barely cut it. Hoping that AEV will come out with an HD version as well but given the amount of time it took to market with the standard version, who knows if 2021 would even be a good estimate.


InvertedLogic

Well-Known Member
Joined
Aug 2, 2018
Messages
73
Reaction score
31
Location
Denver, CO
Vehicle(s)
19 JLUR
I have my eye on this. I really do like the fit and finish of AEV stuff and this looks perfect for my use case. I do with it had a front track bar and rear relo bracket at least. AEV is one of few suspension companies that talks about spring/shock tuning and natural frequencies of their suspensions.

Not a huge fan of the 5100s they ride harsh and corrode pretty badly, I had these on my Tundra, at least they are cheap. My friend put Fox shocks on his JK at around the same time and they look a lot better with little corrosion.
From what I understand the 5100s AEV provides are custom valved to their springs. Not to say it won't be a harsh ride but it might not be the same as OTS 5100s. That corrosion does look rough though. I wonder if they would have survived better without the boot trapping dirt and moisture? I know it was always a big debate about pros/cons of shock boots.


njjeepthing

Well-Known Member
First Name
Jamie
Joined
Jan 10, 2020
Messages
57
Reaction score
38
Location
Ocean City
Vehicle(s)
2020 Gladiator, 2018 JLU
Think about it! Who built the Brute? Don't you think they have some knowledge of the platform by now? The relocation brackets are used on all their kits and work well. I agreed a front track bar would also be a nice add on to the kit, I believe the recommend the Yeti kits. I have had at least 3 Jeeps with AEV kits, and they all worked just fine on and offroad.

  • Like
Reactions: Mac
