DisAble the Elect.Park Brake when Door is Open ?

Mr._Bill

Well-Known Member
First Name
Bill
Joined
Jul 22, 2019
Threads
30
Messages
5,246
Reaction score
5,523
Location
North Las Vegas, NV
Vehicle(s)
2020 Jeep Gladiator Overland - 2013 Nissan Leaf SV
Vehicle Showcase
1
Could you disconnect the door sensor when you have to do this kind of maneuvering? Then it'd think the doors are off. I don't know for sure, as my manual doesn't auto park. But our manual compass did, because it had the electronic parking brake. This all started when the Grand cherokees were recalled due to a dangerous faulty shift lever.
That seems like a lot of hassle, and then you are risking bent pins in the connector that creates other issues. All you have to do is buckle the seat belt and keep weight on the seat. You don't have to have the belt around you, just buckled.
Sponsored



usnavycdr

Well-Known Member
First Name
John
Joined
May 9, 2021
Threads
2
Messages
66
Reaction score
87
Location
San Antonio
Vehicle(s)
2021 JT Willys Sport S, 99 WJ
Occupation
Psych RN
My experience not knowing or hearing about this "feature" was backing a boat down the ramp, got out to help offload and started to pull fwd or try to with the door open.
Nothing happened and I got the Park Mode engaged message on dash. Following instructions did nothing because I never put seat belt on. I thought something was broken.
Finally tried 4Lo and it disabled the Park Mode and I pulled up the ramp.
I assume that if you're going in and out on trail in 4Lo you won't need to worry about it but that seems like the time it should have been engaged. Would have saved the child last week.


jeepin48

Well-Known Member
First Name
Jake
Joined
Sep 10, 2020
Threads
10
Messages
418
Reaction score
432
Location
Michigan
Vehicle(s)
JT Overland 3.0L
Occupation
Engineer
Could you disconnect the door sensor when you have to do this kind of maneuvering? Then it'd think the doors are off. I don't know for sure, as my manual doesn't auto park. But our manual compass did, because it had the electronic parking brake. This all started when the Grand cherokees were recalled due to a dangerous faulty shift lever.
Simplest fix I have heard. I have not looked at it specifically but I dont remember their being a door button like many cars. I wonder if it is located in the lock mechanism. If that is the case I would go ahead and add a switch to that wire. At this point I just need to know what color the wires are.


Gvsukids

Well-Known Member
First Name
Justin
Joined
Mar 7, 2020
Threads
22
Messages
5,008
Reaction score
4,659
Location
Grand Rapids
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S Max Tow
Occupation
Delivery Driver
Could you disconnect the door sensor when you have to do this kind of maneuvering? Then it'd think the doors are off. I don't know for sure, as my manual doesn't auto park. But our manual compass did, because it had the electronic parking brake. This all started when the Grand cherokees were recalled due to a dangerous faulty shift lever.
Yes you can do that. There are threads about this issue with other solutions too.


Sponsored

WXman

Banned
Banned
Joined
Mar 1, 2017
Threads
69
Messages
3,102
Reaction score
4,068
Location
Bluegrass region of Kentucky
Vehicle(s)
2021 Jeep Gladiator Overland EcoDiesel
Occupation
Meteorology and Transportation
YouTube is your buddy.



I will mention that just yesterday I saw a thread on this forum or maybe the JL side where a child was killed on the Rubicon trail because the father stopped the Jeep and jumped out to help another Jeep, and the kids started climbing out and hit the shifter and the Jeep rolled over top of another child, killing him. In that scenario, AutoPark would have saved the child's life.


Dqban

Well-Known Member
Joined
Jun 29, 2020
Threads
13
Messages
417
Reaction score
560
Location
Florida
Vehicle(s)
Gladiator overland
Occupation
APRN
I do find it a pia sometimes...there should be a way to disable it. Like the auto start start. It's not annoying all the time but when it is ...


Gvsukids

Well-Known Member
First Name
Justin
Joined
Mar 7, 2020
Threads
22
Messages
5,008
Reaction score
4,659
Location
Grand Rapids
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S Max Tow
Occupation
Delivery Driver

CLM

Active Member
Joined
Jun 21, 2021
Threads
2
Messages
26
Reaction score
31
Location
Georgia, USA
Vehicle(s)
2021 Gladiator Rubicon 3.0 Diesel Sting Gray
FROM OWNERS MANUAL PAGE 147-148
AUTOPARK
"AutoPark is a supplemental feature to assist in
placing the vehicle in PARK should the
situations on the following pages occur. It is a
back up system and should not be relied upon
as the primary method by which the driver shifts
the vehicle into PARK.
The conditions under which AutoPark will
engage are outlined on the following pages.
WARNING!
 Driver inattention could lead to failure to
place the vehicle in PARK. ALWAYS DO A
VISUAL CHECK that your vehicle is in PARK
by verifying that a solid (not blinking) “P” is
indicated in the instrument cluster display
and on the gear selector. If the "P" indicator
is blinking, your vehicle is not in PARK. As
an added precaution, always apply the
parking brake when exiting the vehicle.
 AutoPark is a supplemental feature. It is not
designed to replace the need to shift your
vehicle into PARK. It is a back up system
and should not be relied upon as the
primary method by which the driver shifts
the vehicle into PARK.

If the vehicle is not in PARK and the driver exits
the vehicle with the engine running, the vehicle
may AutoPark.
AutoPark will engage when all of these
conditions are met:
 Vehicle is equipped with an 8-speed transmission
 Driver door is ajar or if the driver door is
removed and the driver is not on the seat
(seat pad sensor detects driver missing)
 Vehicle is not in PARK
 Driver door is removed
 Vehicle speed is 1.2 mph (1.9 km/h) or less
 Driver seat belt is unbuckled
 Driver door is ajar
 Brake pedal is not pressed
The message “AutoPark Engaged Shift to P then
Shift to Gear” will display in the instrument
cluster."

It appears that the most reliable way to avoid AutoPark is to keep your seat belt buckled. You should still be able to open the door slightly for reversing into tight spots, just a bit more effort to leave the seat belt on.


rcwhat

Member
Joined
May 23, 2021
Threads
1
Messages
10
Reaction score
4
Location
MA
Vehicle(s)
21 Mojave
What is the problem with a safety feature design to stop deaths? Is there a legitimate needs or are we just bring difficult because Big Gob'mint Daddy said you have to do it?
Because you’ll never fix stupid. If you’re not a complete idiot then the “feature” is way more of an “annoyance” than a “feature”


Sponsored

ACAD_Cowboy

Well-Known Member
First Name
Francis
Joined
May 1, 2019
Threads
22
Messages
1,414
Reaction score
1,953
Location
NY
Vehicle(s)
15 jkur
Because you’ll never fix stupid. If you’re not a complete idiot then the “feature” is way more of an “annoyance” than a “feature”
I dunno, feels like you are reaching to make excuses. The wifes last two cars have had it and as long as you play by the rules it's basically transparent in operation.

The stupid here seems to be the operators.


sharpsicle

Well-Known Member
Joined
Apr 29, 2021
Threads
13
Messages
2,181
Reaction score
4,927
Location
Tampa, FL / Milwaukee, WI
Vehicle(s)
2020 Gladiator Overland, 2002 VTX1800

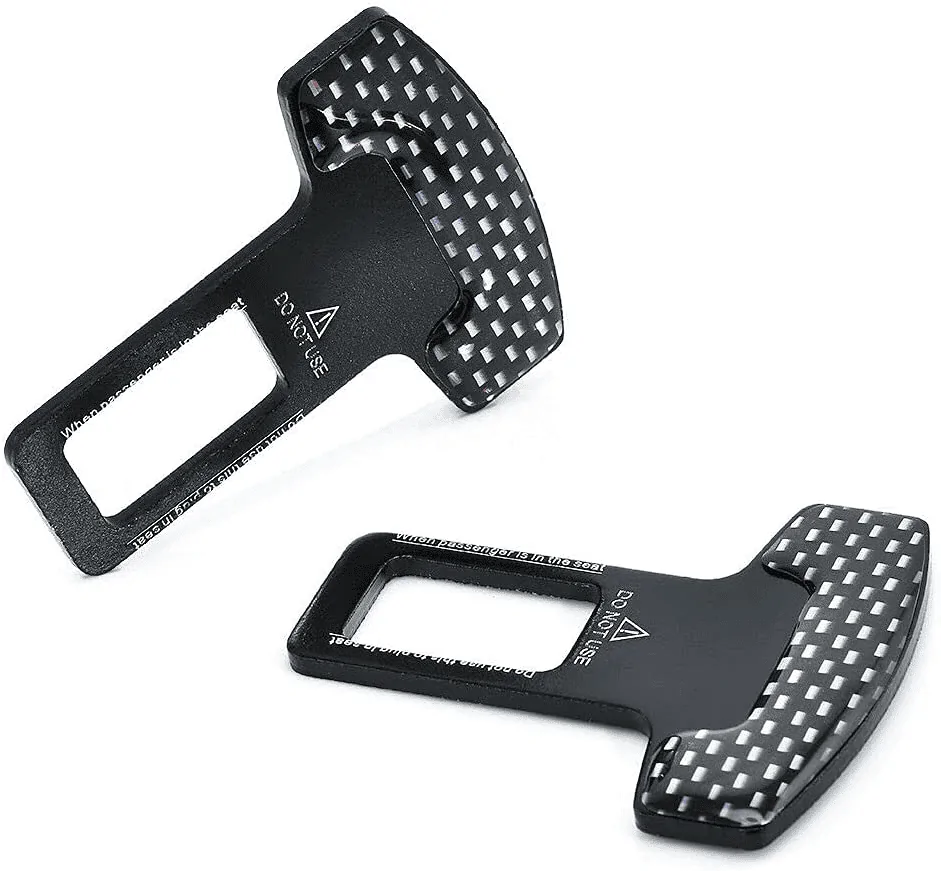

The simplest fix are these. Clip them in and viola, it's disengaged.

Since this is my daily driver, I don't want it permanently disabled. I want to choose when. These work perfectly.

Jeep Gladiator DisAble the Elect.Park Brake when Door is Open ? 1627186822777


Gvsukids

Well-Known Member
First Name
Justin
Joined
Mar 7, 2020
Threads
22
Messages
5,008
Reaction score
4,659
Location
Grand Rapids
Website
www.youtube.com
Vehicle(s)
2020 Gladiator Sport S Max Tow
Occupation
Delivery Driver
The simplest fix are these. Clip them in and viola, it's disengaged.

Since this is my daily driver, I don't want it permanently disabled. I want to choose when. These work perfectly.

Jeep Gladiator DisAble the Elect.Park Brake when Door is Open ? 1627186822777
Seatbelt does the same thing. Just leave it attached behind ones body.


MPMB

Well-Known Member
First Name
Michael
Joined
Apr 30, 2021
Threads
7
Messages
1,283
Reaction score
1,742
Location
Utah
Vehicle(s)
'21 JTR - SG
Occupation
Check your inbox.
What is the problem with a safety feature design to stop deaths? Is there a legitimate needs or are we just bring difficult because Big Gob'mint Daddy said you have to do it?
Habits. History of bad habits.

How many people here open the door and turn around to look when backing up? That used to be a thing.

If I'm in my driveway and need to move the truck 5' forward in the driveway, I can't just hop in it and move it.

Our Audi Q3 did the same thing. It's happened enough times for me to notice, and be mildly annoyed.

Back when doors weighed 300# (I'm looking at you, 1978 Monte Carlo), opening and closing doors was a workout.
